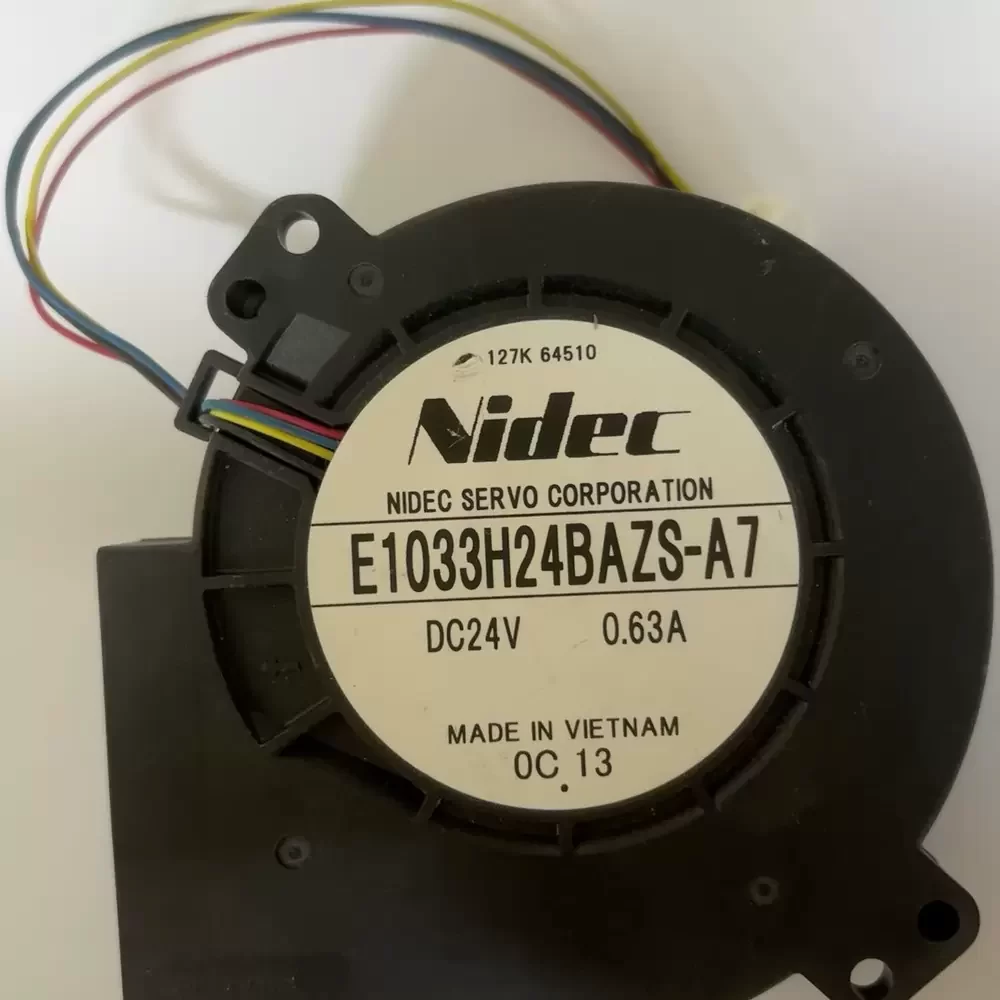

E1033H24BAZS-A7 Nidec 24VDC 0.63A 97x94x33mm Centrifugal Blower

Description

The Nidec E1033H24BAZS-A7 is a high-performance centrifugal blower measuring 97 x 94.4 x 33 mm, operating at a nominal 24 VDC with a current draw of 0.63 A. This unit features a robust PBT plastic housing and impeller, utilizing a dual ball bearing system for extended operational life. The internal motor is a brushless DC design providing high static pressure through a side-discharge configuration. It includes a 4-wire interface with a 5-pin connector for power and tachometer signal feedback, ensuring precise rotational monitoring.

E1033H24BAZS-A7 Specifications
Model: E1033H24BAZS-A7
Brand: Nidec
Category: Centrifugal Blower
Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Current: 0.63 A
Power: 15.12 W
Dimensions: 97 x 94.4 x 33 mm
Bearing Type: Dual Ball Bearing
Housing Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Termination: 4-wire (5-pin connector)
Motor Type: Brushless DC
Airflow Direction: Centrifugal / Side Exhaust
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Insulation Resistance: 10 MΩ min. at 500 VDC
Dielectric Strength: 500 VAC for 1 minute

E1033H24BAZS-A7 Applications
Primary applications include integration into Fuji Xerox D95, D110, D125, 4127, and 4110 series production printers for fuser exit thermal management. Deployed within high-speed document processing systems and industrial imaging equipment to maintain optimal operating temperatures during continuous duty cycles.
