Description

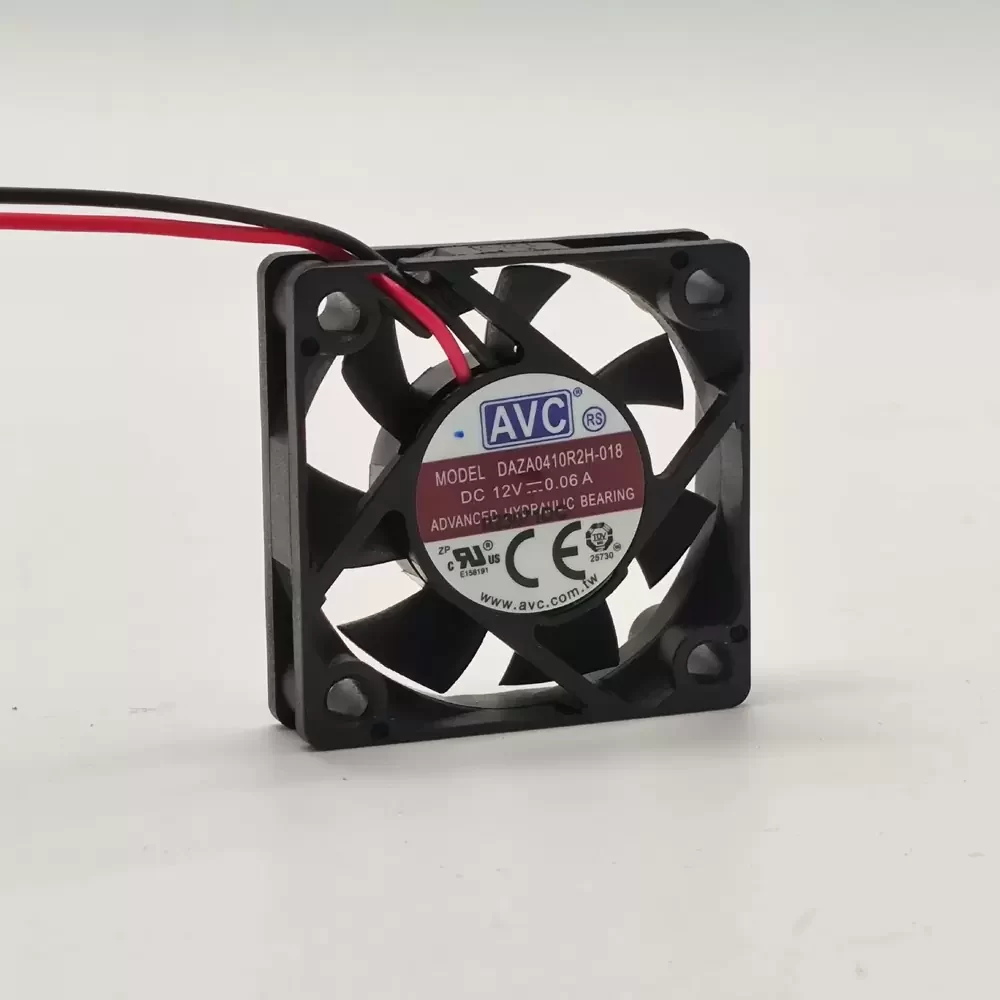

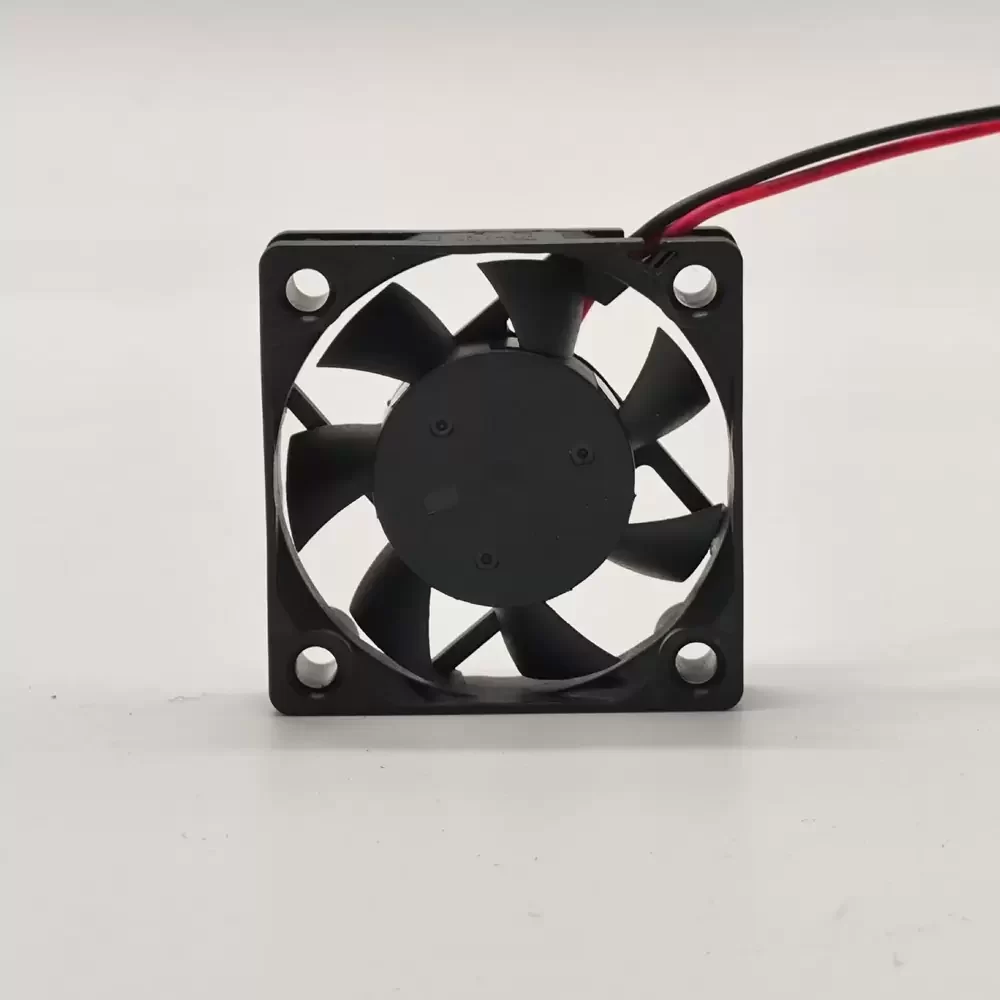

The AVC DAZA0410R2H-018 is a 40 x 40 x 10 mm axial cooling fan featuring a 12 VDC nominal voltage and a 0.06 A rated current. This hardware component utilizes a hydraulic bearing system and a 2-wire lead connection for power delivery. The structural assembly consists of a thermoplastic PBT frame reinforced with 30% glass fiber and a PBT impeller with 15% glass fiber, meeting UL 94V-0 flammability standards. The internal brushless DC motor is designed for high-speed rotation with optimized blade geometry to minimize acoustic output during operation.
DAZA0410R2H-018 Specifications
Model: DAZA0410R2H-018
Brand: AVC (Asia Vital Components)
Category: DC Axial Fan
Dimensions: 40 x 40 x 10 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.2 VDC
Rated Current: 0.06 A
Bearing Type: Hydraulic Bearing
Speed Grade: High (H)
Interface: 2-wire
Frame Material: Thermoplastic PBT +30% GF (UL 94V-0)
Impeller Material: Thermoplastic PBT +15% GF (UL 94V-0)
Operating Temperature: -10 to +60 °C
Storage Temperature: -40 to +75 °C
Weight: 15 g
DAZA0410R2H-018 Applications
Primary applications include integration into digital video recorders, network video recorders, and external hard drive enclosures. Deployed within compact server chassis and telecommunications equipment for localized thermal management of internal electronic components.
