9RA1224G4001 Sanyo Denki 24VDC 130CFM 120x120x25mm Axial Fan

Description

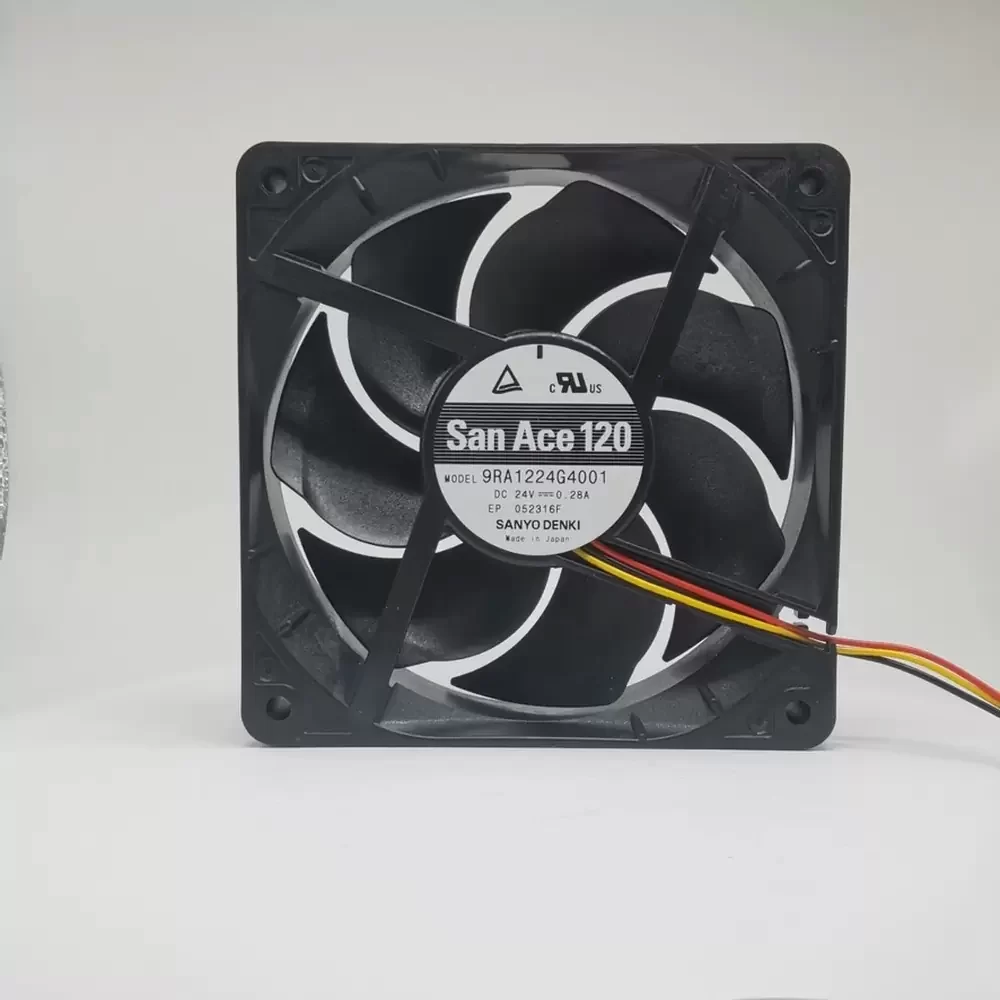

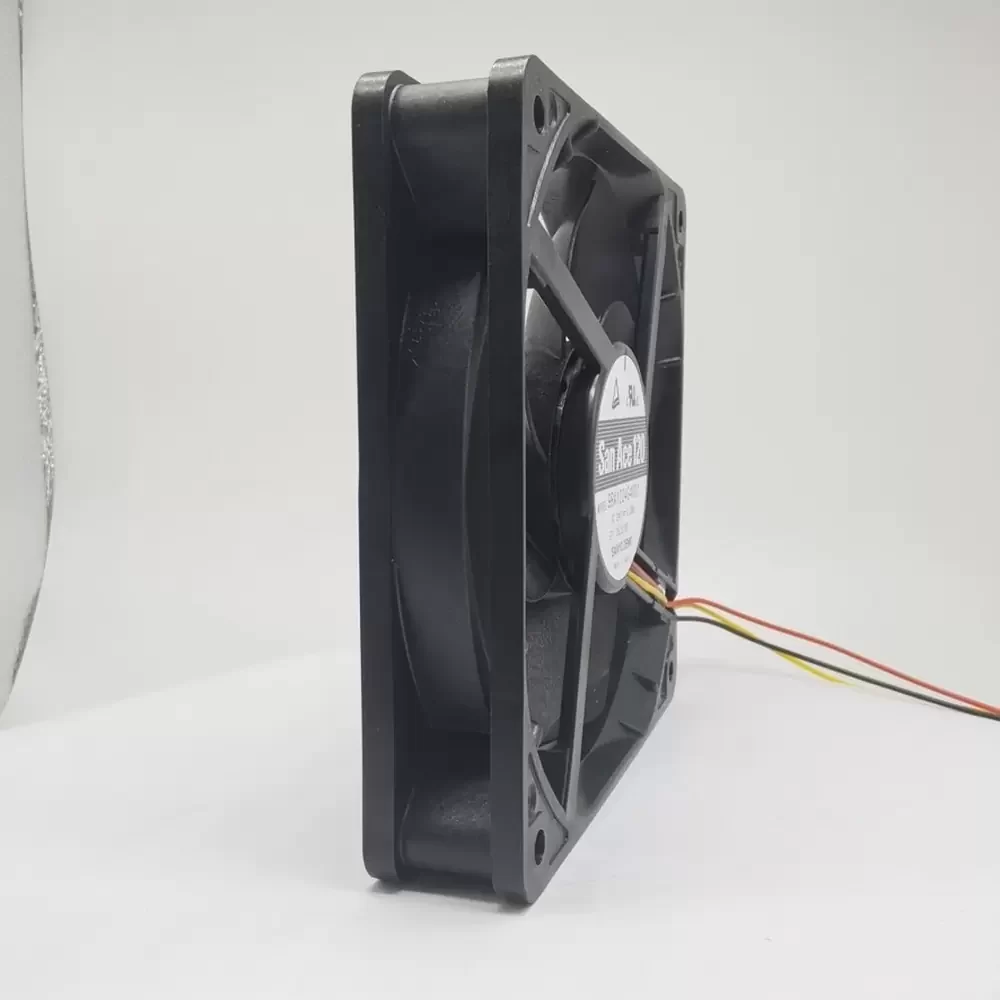

Sanyo Denki 9RA1224G4001 is a 120 x 120 x 25 mm axial fan operating at a nominal 24 VDC with a 6.72 W power consumption and a high-volume airflow of 130 CFM. The unit features a plastic frame and impeller construction with a ribbed housing design for structural integrity. It utilizes a brushless DC motor with a pulse sensor for speed monitoring, delivering a static pressure of 120 Pa at a rotational speed of 4500 RPM. The internal mechanism is designed for long-term reliability, offering an expected life of 60 000 hours at 60 °C while maintaining a sound pressure level of 47 dB(A).

9RA1224G4001 Specifications
Model Number: 9RA1224G4001
Brand: Sanyo Denki
Series: San Ace 120 9RA

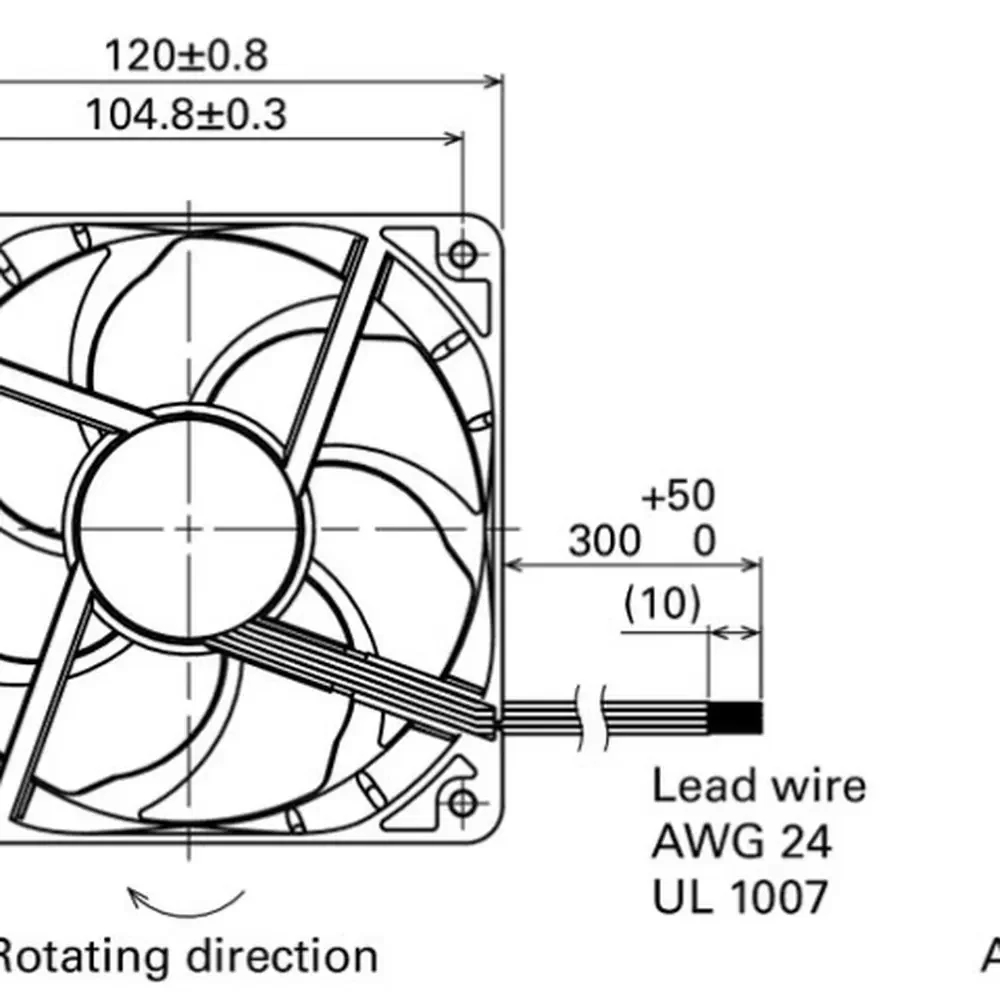

Frame Size: 120 mm
Frame Thickness: 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14 to 27.6 VDC
Rated Current: 0.28 A
Rated Input: 6.72 W
Rated Speed: 4500 RPM
Max Airflow: 3.68 m3/min
Max Airflow: 130 CFM
Max Static Pressure: 120 Pa
Max Static Pressure: 0.48 inchH2O
Sound Pressure Level: 47 dB(A)
Operating Temperature: -20 to +70 °C
Expected Life: 60 000 hours at 60 °C
Expected Life: 90 000 hours at 40 °C
Mass: 210 g
Sensor Type: Pulse Sensor
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-1)
Bearing Type: Dual Ball Bearing
Ribbed: Yes

9RA1224G4001 Applications
Primary applications include integration into medical diagnostic equipment, professional audio-visual racks, and telecommunications server enclosures. Deployed within industrial power supplies and automated control panels to provide high-efficiency thermal management for heat-sensitive electronic components.
