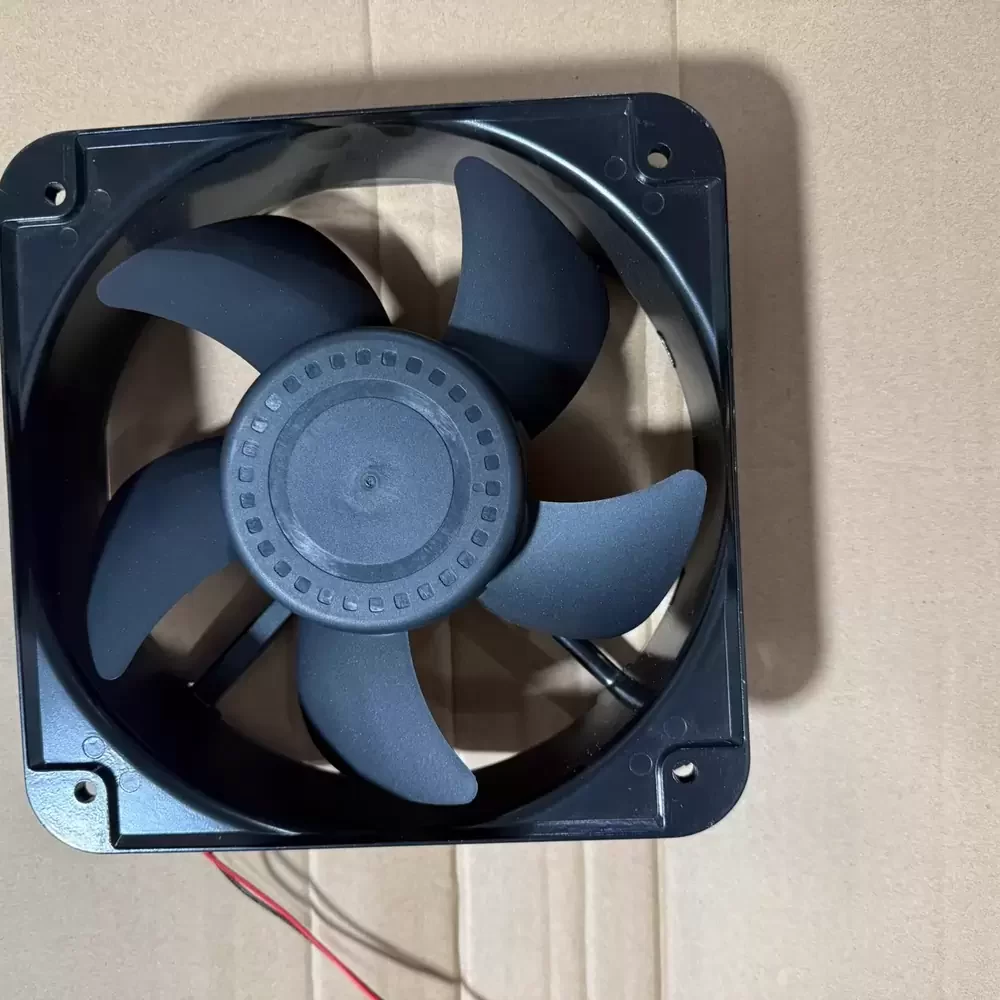

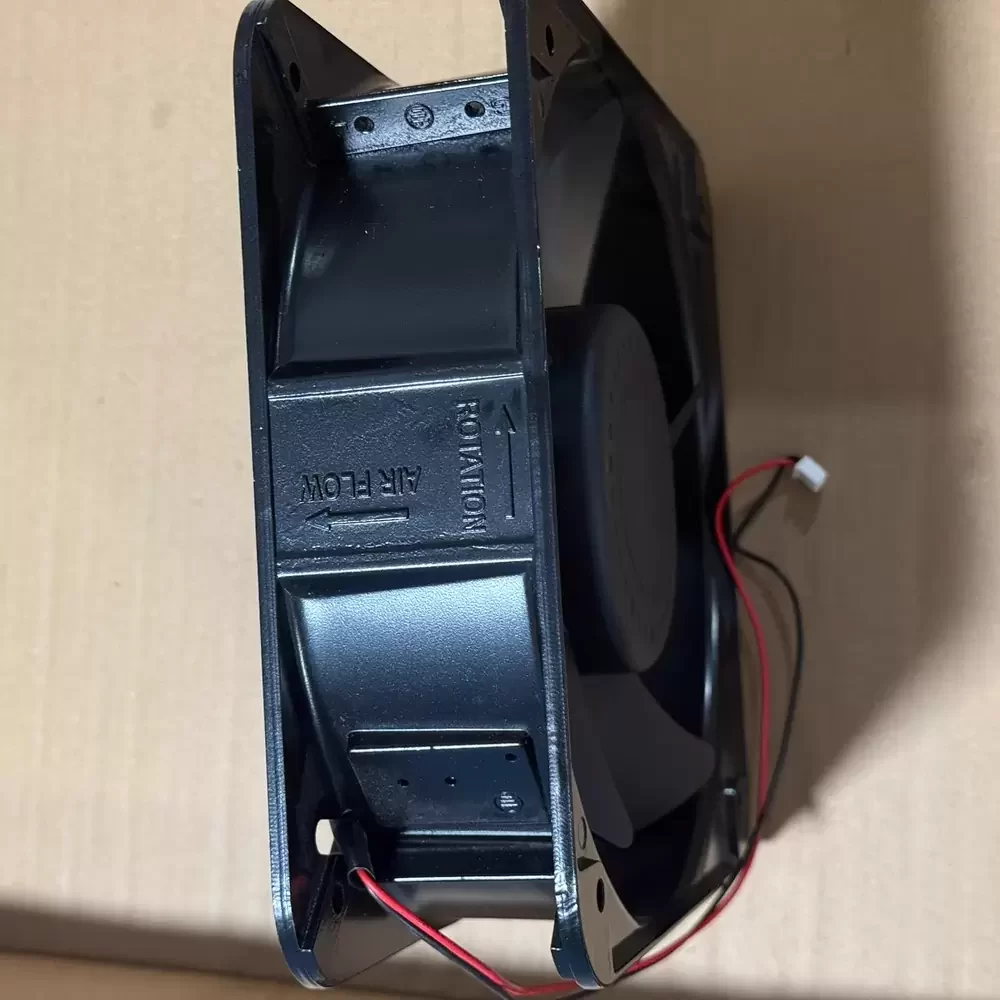

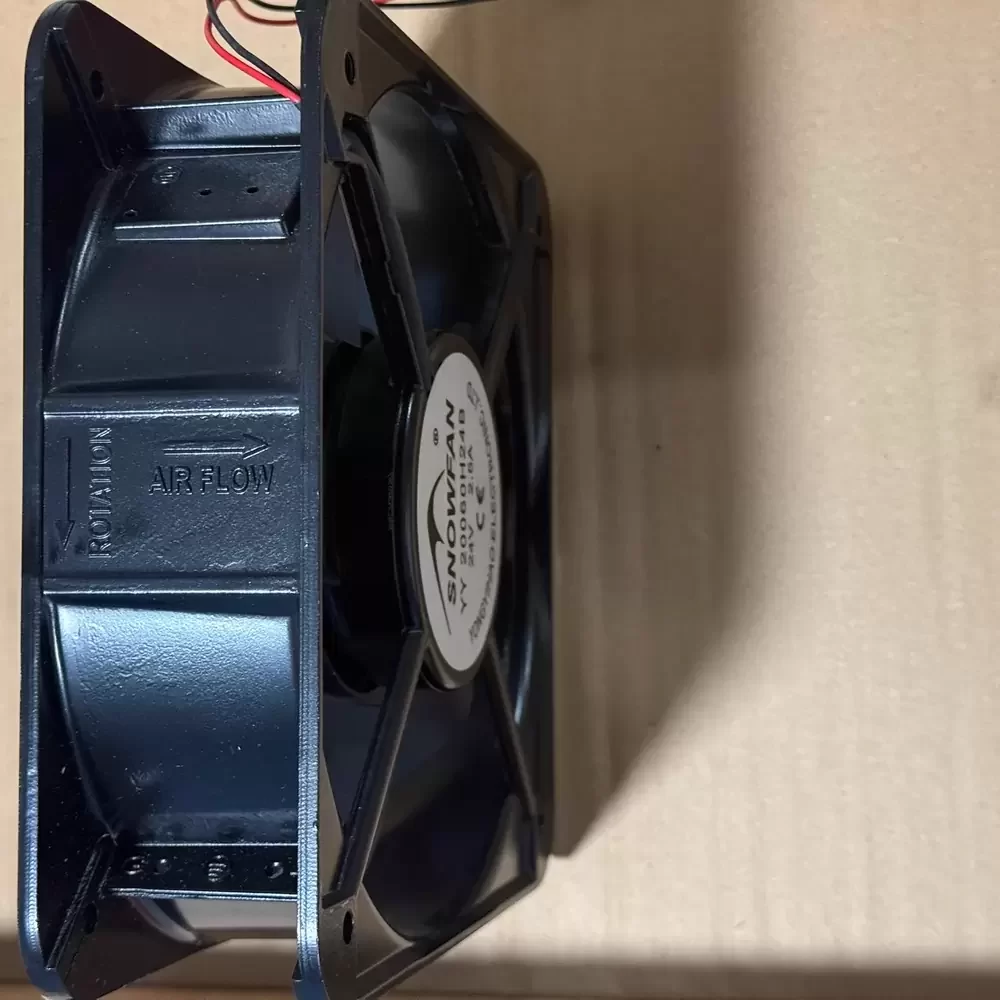

YY20060H24B Snowfan 24VDC 2.5A 200x200x60mm Axial Fan

Description

Snowfan YY20060H24B is a 200 x 200 x 60 mm high-performance axial cooling fan engineered with a 24 VDC brushless motor and a 2.5 A current rating. The assembly utilizes a precision dual ball bearing system and an aerodynamically optimized PBT thermoplastic impeller housed within a rugged aluminum alloy frame. This unit delivers high-velocity airflow and significant static pressure through a 2-wire lead interface, featuring integrated polarity protection and auto-restart functionality.

YY20060H24B Specifications
Model Number: YY20060H24B
Brand: Snowfan
Product Category: DC Axial Fan
Dimensions: 200 x 200 x 60 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 2.5 A
Input Power: 60.0 W
Rated Speed: 3500 RPM
Maximum Airflow: 450.0 CFM
Static Pressure: 1.25 In H2O
Noise Level: 68.0 dB(A)
Bearing Type: Dual Ball Bearing
Frame Material: Die-cast Aluminum Alloy
Impeller Material: PBT Thermoplastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +80 °C
Life Expectancy: 70,000 Hours at 40 °C
Weight: 1250 g

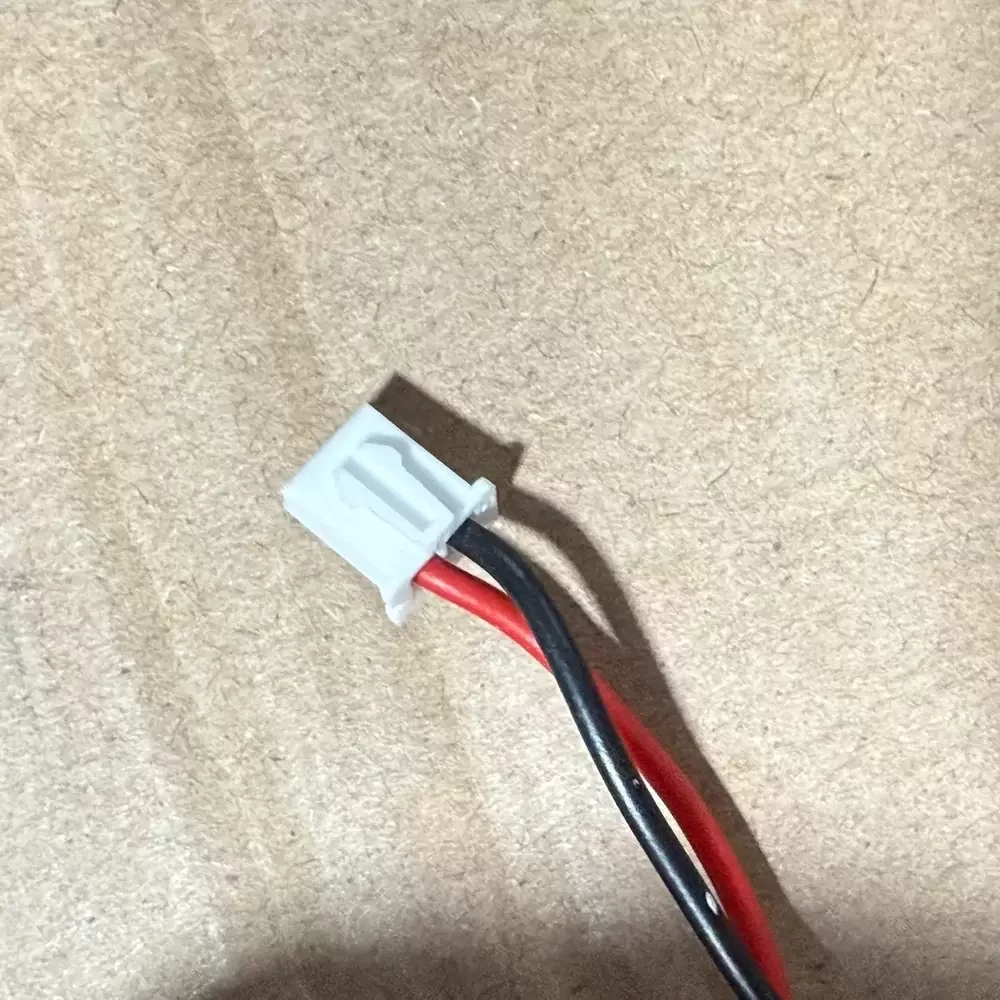

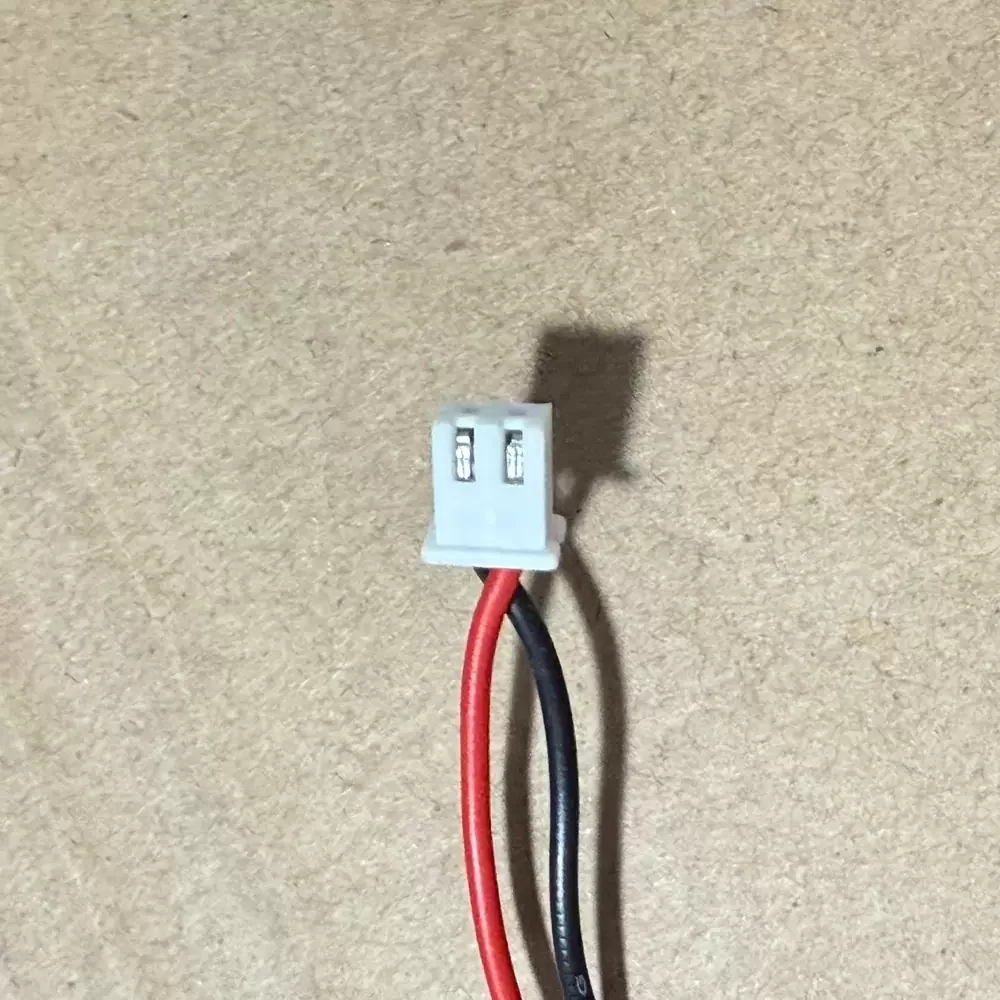

Termination: 2-Wire Lead (UL 1007, 24 AWG)
Insulation Resistance: 10 M Ohm at 500 VDC
Dielectric Strength: 5 mA Max at 500 VAC for 1 minute
Motor Protection: Auto-Restart and Polarity Protection

YY20060H24B Applications
Primary applications include integration into high-power frequency converters, industrial server racks, and telecommunications base stations. Deployed within CNC machine control cabinets, large-scale LED display thermal management systems, and uninterruptible power supply (UPS) enclosures.
