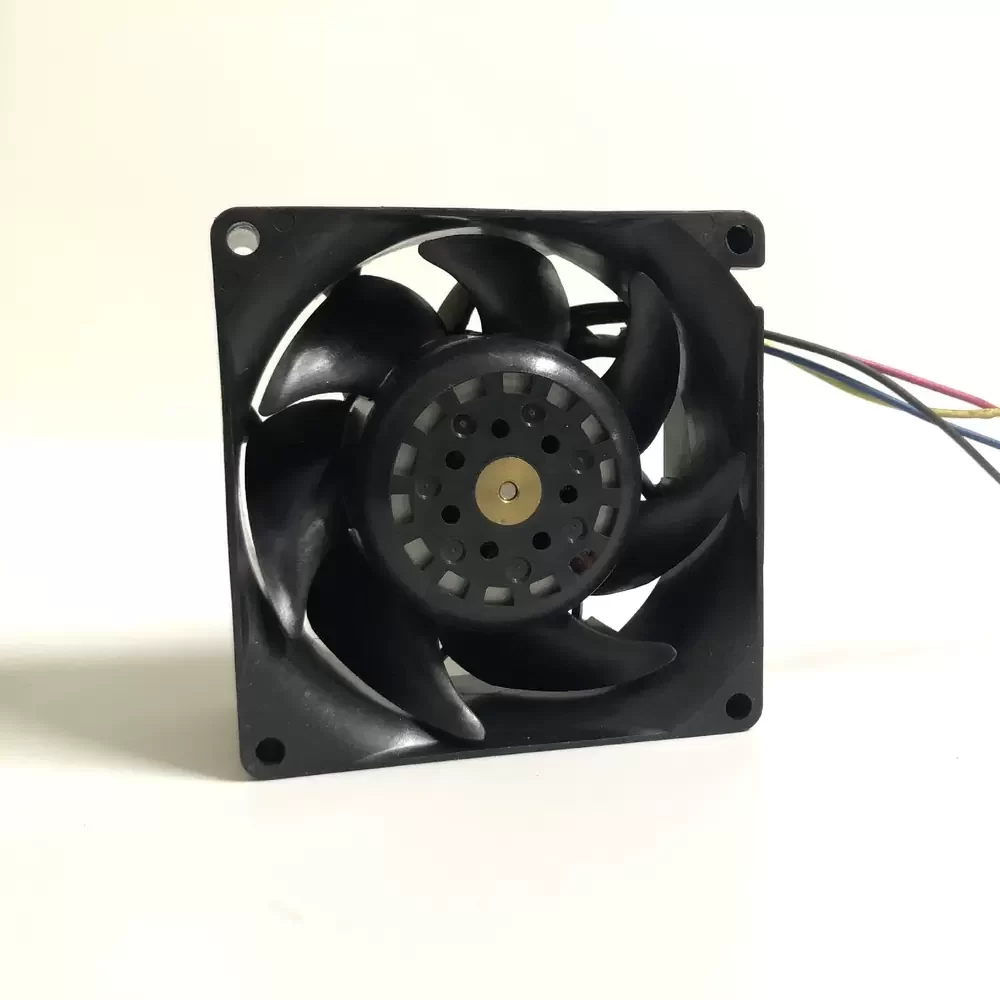

G0838BBZP-31 Nidec Servo 12VDC 3.3A 80x38mm Axial Fan

Description

Nidec Servo G0838BBZP-31 is an 80 x 80 x 38 mm high-performance axial fan operating at 12 VDC with a 3.3 A current draw. The unit features a dual ball bearing system and a 4-wire interface supporting PWM speed control and tachometer output. Constructed with a PBT UL94V-0 plastic frame and impeller, it delivers high static pressure and airflow through a high-speed internal motor. The mechanical design includes a brushless DC motor architecture with integrated locked rotor protection and auto-restart functionality.

G0838BBZP-31 Specifications
Model: G0838BBZP-31
Brand: Nidec Servo
Dimensions: 80 x 80 x 38 mm
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.8 VDC
Rated Current: 3.3 A
Rated Power: 39.6 W
Bearing Type: Dual Ball Bearing
Interface: 4-wire (Red: +, Black: -, Yellow: Tach, Blue: PWM)
Material: PBT Plastic (UL94V-0)
Speed: 13,000 RPM
Airflow: 120 CFM
Static Pressure: 550 Pa
Noise Level: 68 dB(A)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 210 g
Safety Certifications: UL, cUL, TUV

G0838BBZP-31 Applications
Primary applications include integration into high-density server chassis, telecommunications base station cooling modules, and network switch thermal management systems. Deployed within industrial power supply units and high-performance computing (HPC) racks requiring significant static pressure for dense component cooling.
