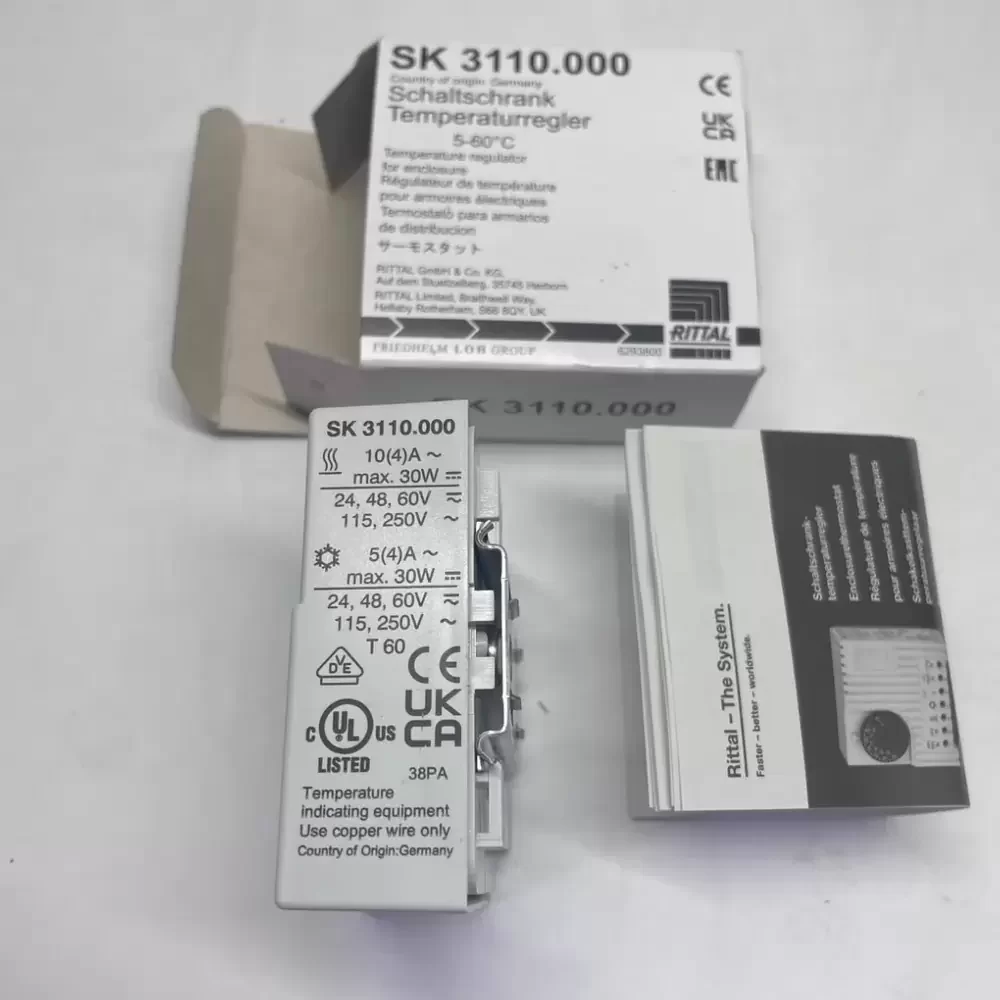

SK3110.000 Rittal 230VAC/60VDC 5-60°C Enclosure Thermostat

Description

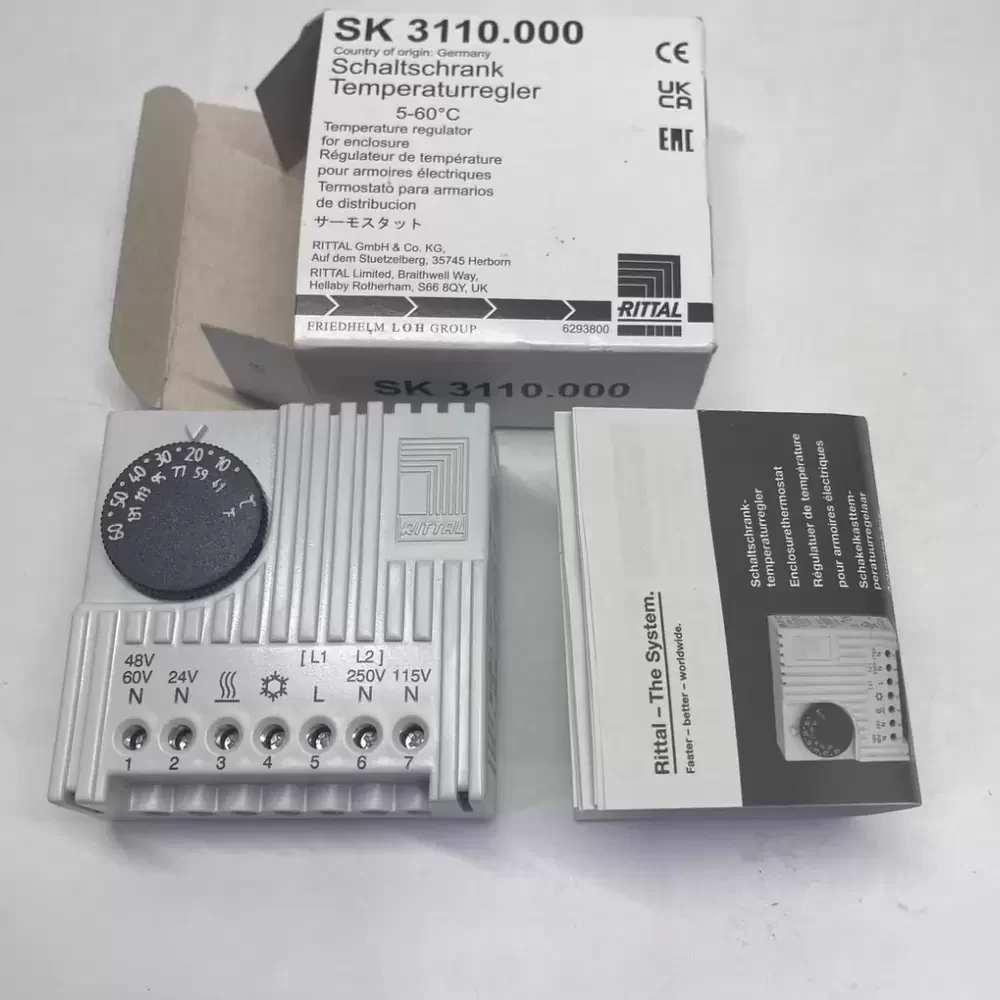

Rittal SK 3110.000 is a compact 71 x 71 x 33.5 mm enclosure internal thermostat operating across a wide voltage range of 24 V AC to 230 V AC and 24 V DC to 60 V DC. The unit features a bi-metal controller as the temperature-sensitive element with integrated thermal feedback for precise regulation. It is housed in a RAL 7035 light grey plastic casing and utilizes a single-pole change-over (SPDT) quick-break contact mechanism. The physical interface includes a terminal strip with external screw connections and a flexible mounting system compatible with 35 mm support rails or mounting plates via a snap-fastening adapter.

SK 3110.000 Specifications
Model Number: SK 3110.000
Brand: Rittal
Category: Enclosure Internal Thermostat
Rated Operating Voltage (AC): 24 V to 230 V, 1~
Rated Operating Voltage (DC): 24 V to 60 V
Setting Range: +5 °C to +60 °C
Switching Difference: 1 K ± 0.8 K
Contact Type: Single-pole change-over contact (SPDT)
Contact Load (Heating): AC 10 (4) A, DC max. 30 W
Contact Load (Cooling): AC 5 (4) A, DC max. 30 W
Inductive Load: cos φ = 0.6
Width: 71 mm
Height: 71 mm
Depth: 33.5 mm
Weight: 105 g
Color: RAL 7035 (Light Grey)

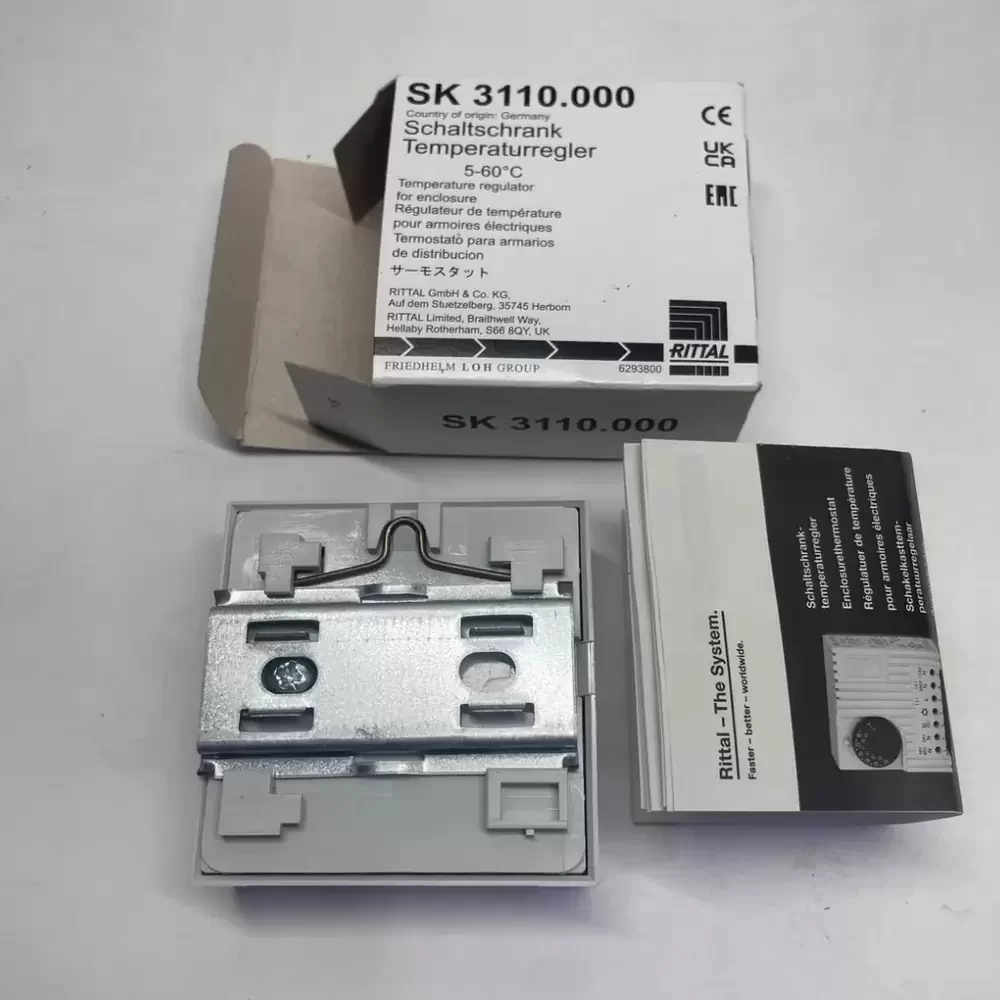

Mounting Type: 35 mm DIN rail (EN 50 022) or mounting plate
Connection Type: Screw terminal strip
Approvals: UL, cUL, VDE, EAC, CE
Customs Tariff Number: 90321020
EAN: 4028177036598

SK 3110.000 Applications
Primary applications include integration into industrial control cabinet fan-and-filter units, enclosure heaters, and air-to-air heat exchangers. Deployed within telecommunications racks and automated machinery control panels to provide thermal regulation or signal generation for temperature monitoring.
