SD2060M2B SENSDAR 24VDC 1.5A 200x200x60mm DC Axial Fan

Description

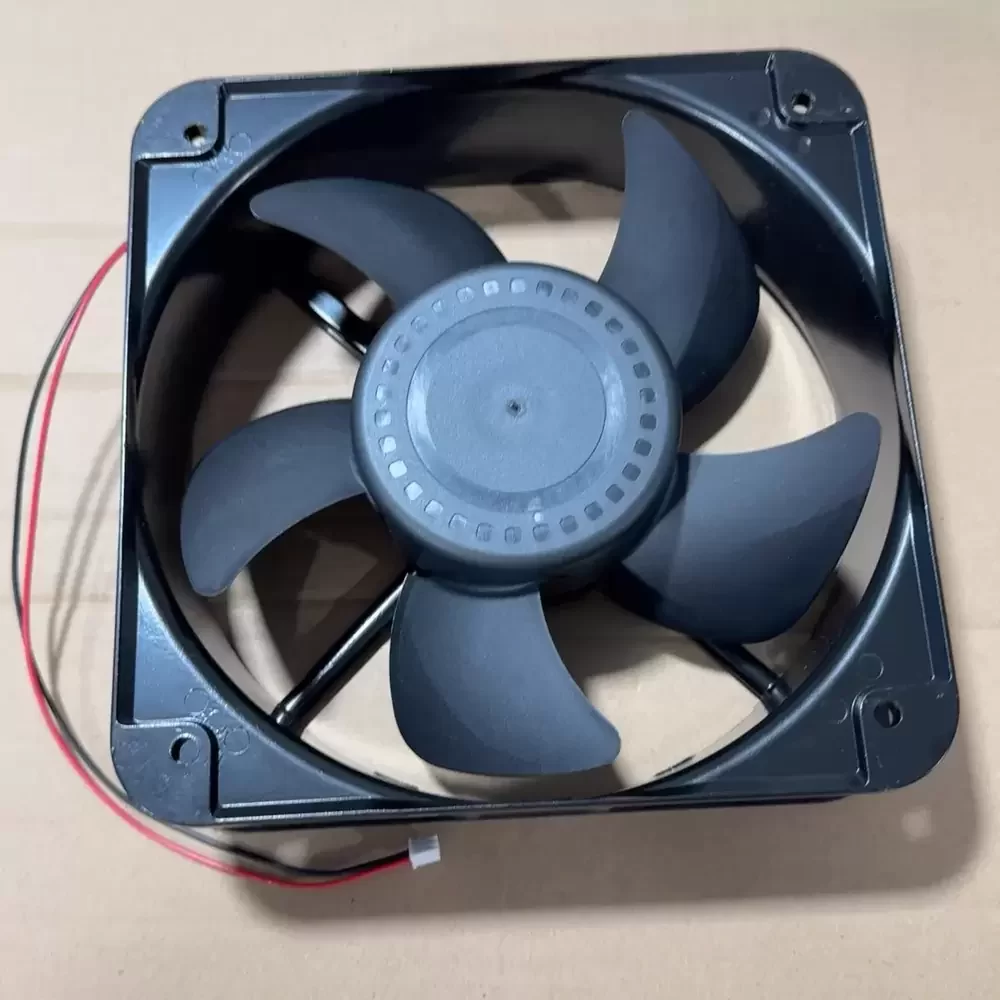

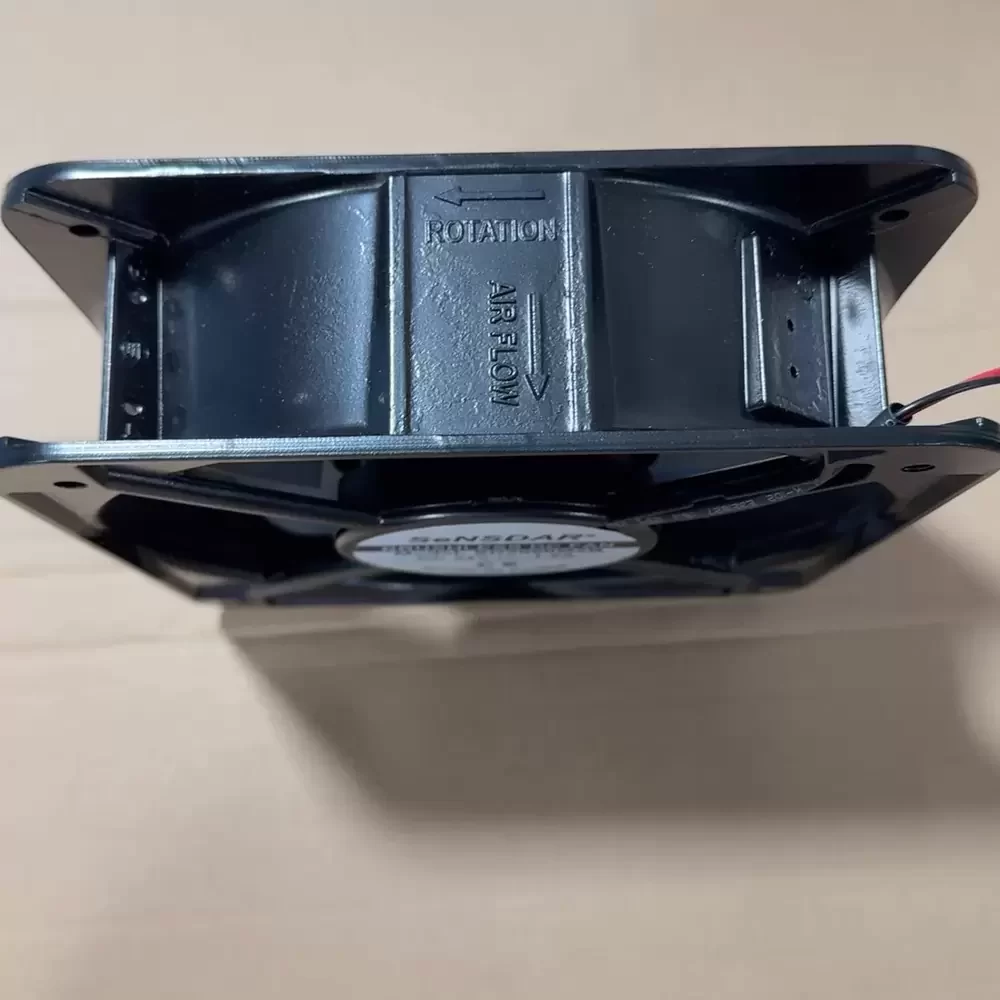

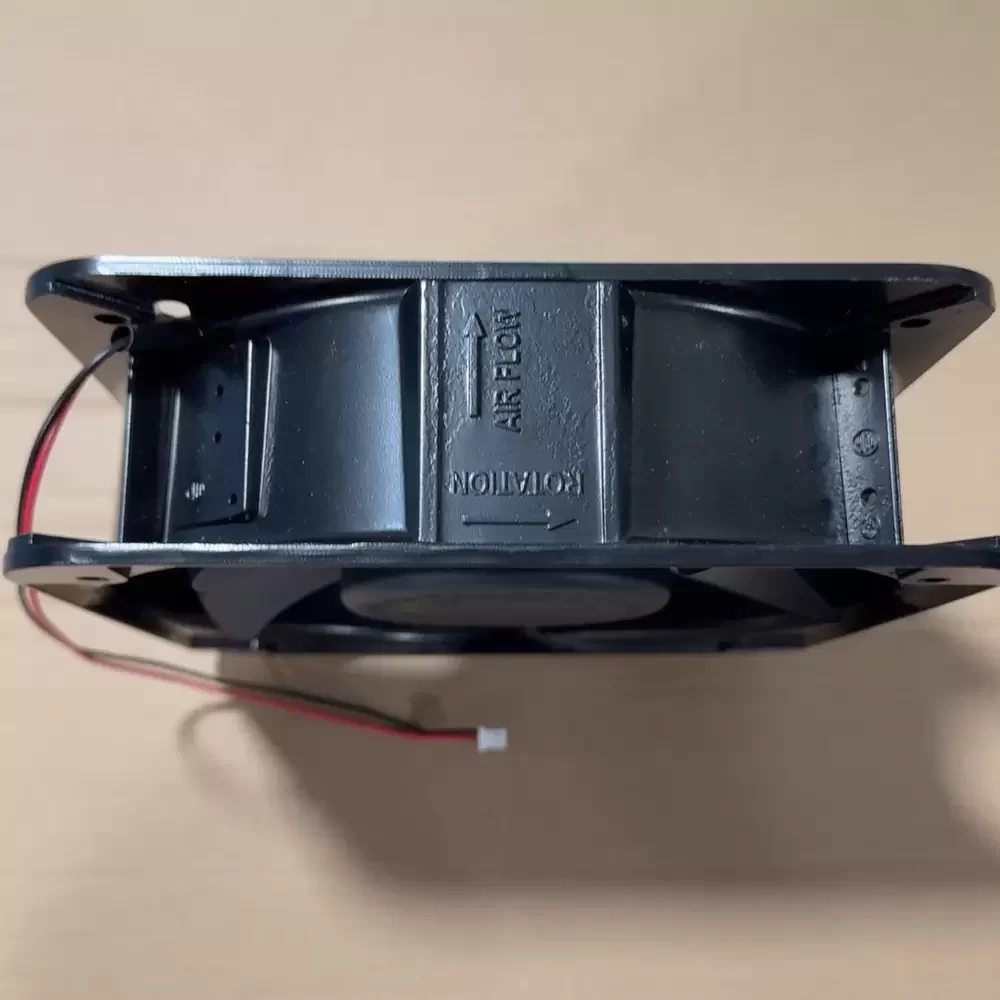

SENSDAR SD2060M2B is a high-performance DC axial fan measuring 200 x 200 x 60 mm, operating at a nominal 24 VDC with a 1.5 A current draw. The unit features a robust die-cast aluminum housing and a UL 94V-0 rated thermoplastic PBT impeller. It utilizes a precision dual ball bearing system to ensure extended operational life and stability under continuous high-speed rotation. The electrical interface is provided via lead wires, supporting integrated motor protection against polarity reversal and locked rotor conditions.

SD2060M2B Specifications
Model: SD2060M2B
Brand: SENSDAR
Category: DC Axial Fan
Dimensions: 200 x 200 x 60 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 1.5 A
Input Power: 36.0 W
Rated Speed: 3500 RPM
Maximum Airflow: 420 CFM
Static Pressure: 0.85 in-H2O
Noise Level: 65 dBA
Bearing Type: Dual Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +80 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 1200 g

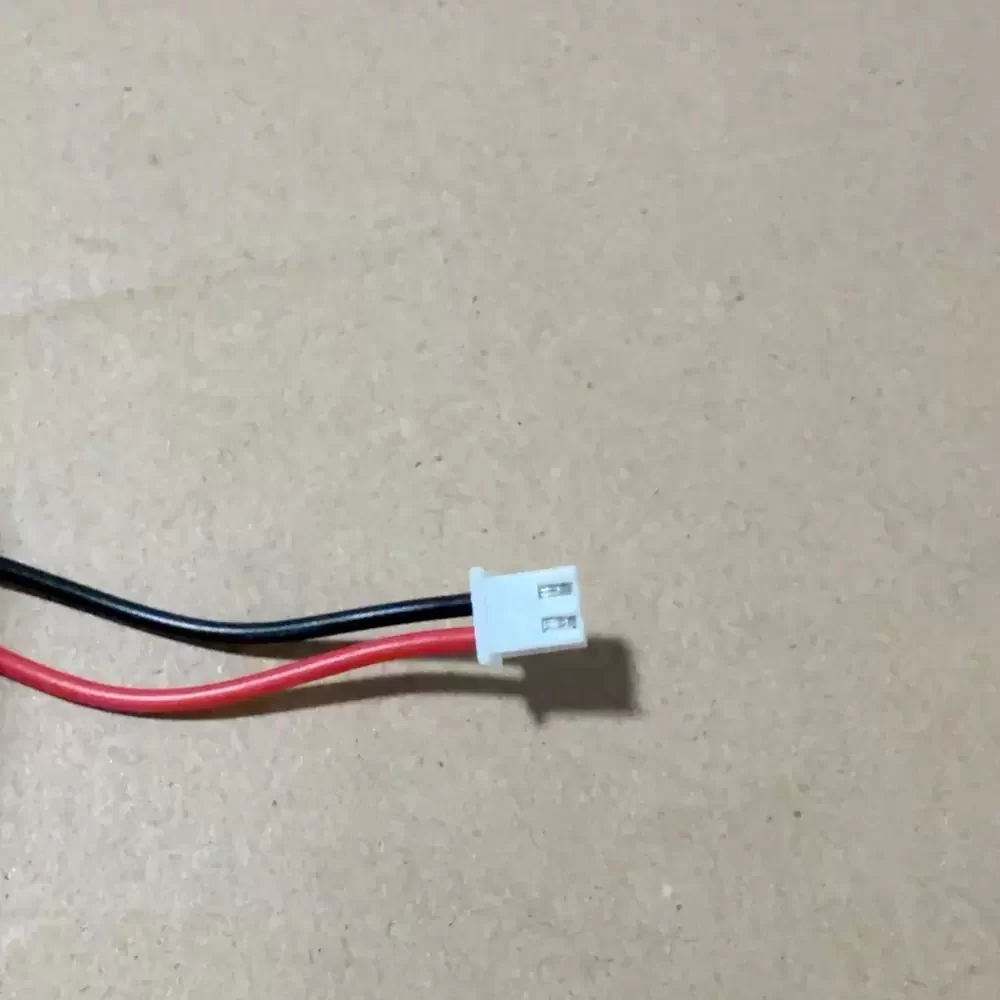

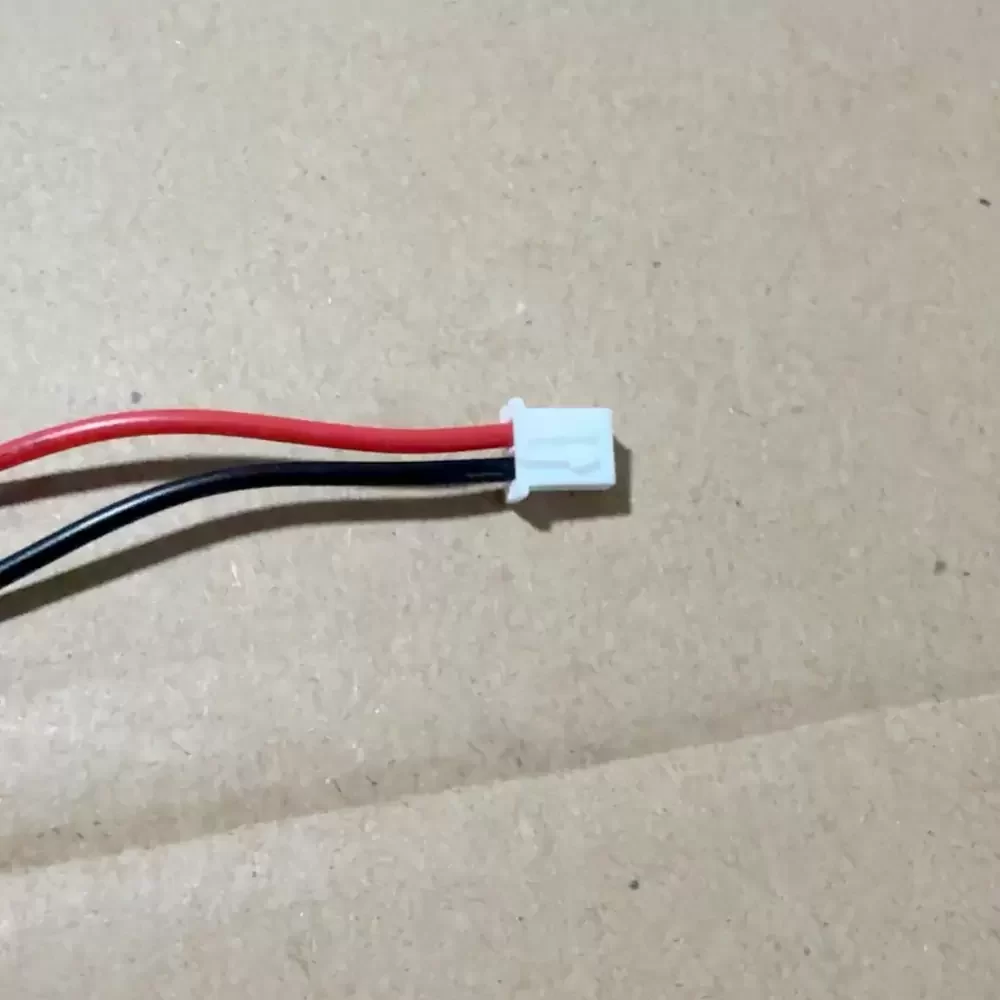

Termination: Lead Wires
Safety Certifications: UL, CE, RoHS, TUV

SD2060M2B Applications
Primary applications include integration into high-density server racks, industrial control cabinets, and telecommunications base stations. Deployed within CNC machine tool cooling systems, large-scale power supply units, and medical imaging equipment requiring high-volume thermal dissipation.
