D1225C12B7ZP-99 Nidec Servo 12VDC 0.22A 120mm Axial Fan

Description

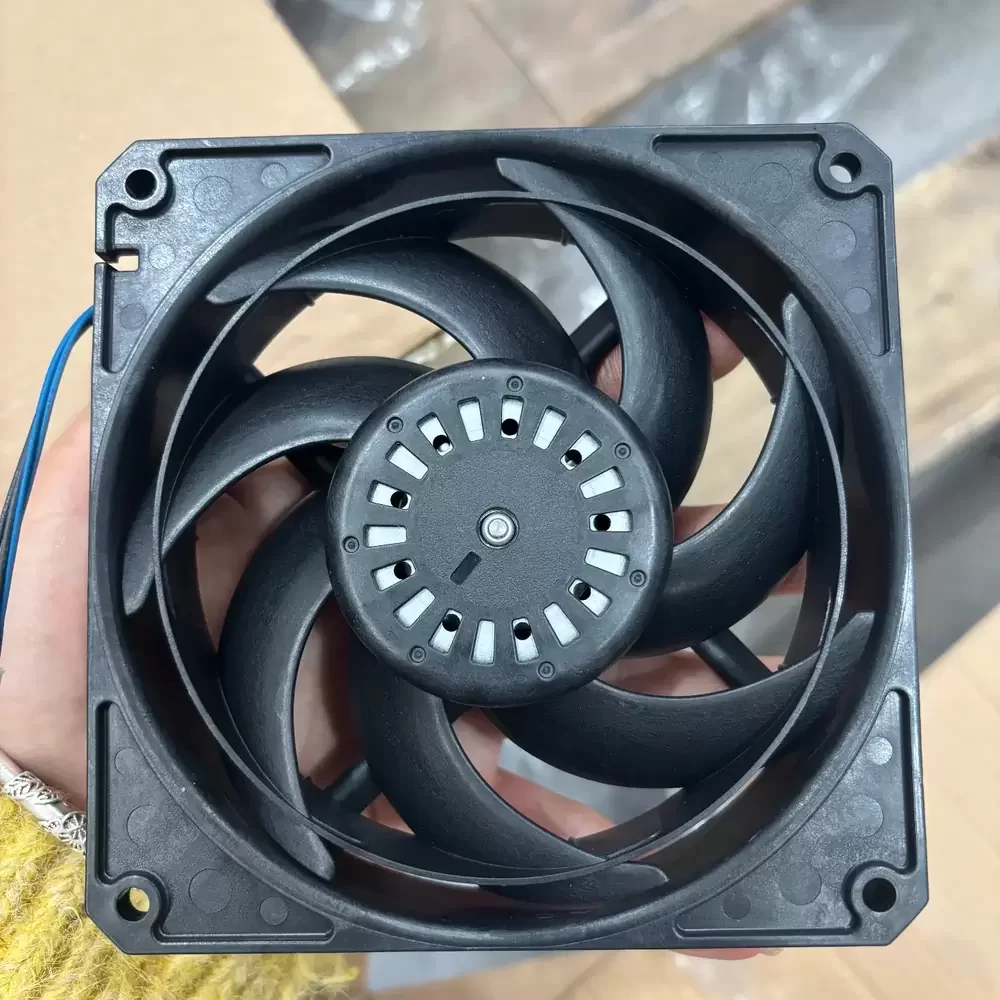

Nidec Servo D1225C12B7ZP-99 is a 120 x 120 x 25 mm axial fan operating at 12 VDC with a 0.22 A current rating and 2.64 W power consumption. The unit features a 7-blade impeller design optimized for high static pressure and a dual ball bearing system for extended operational life. It utilizes a 3-wire interface providing power, ground, and a tachometer signal. The chassis is constructed from reinforced PBT plastic with an integrated motor hub designed for vibration dampening and acoustic stability.

D1225C12B7ZP-99 Specifications
Model: D1225C12B7ZP-99
Brand: Nidec Servo
Frame Size: 120 x 120 x 25 mm
Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.8 VDC
Current: 0.22 A
Power: 2.64 W
Speed: 2150 RPM
Airflow: 58.3 CFM
Static Pressure: 2.8 mmH2O
Noise Level: 28 dBA
Bearing Type: Dual Ball Bearing
Number of Blades: 7
Wiring: 3-wire (Two Blue, One Black)
Material: PBT Plastic (UL 94V-0)
Weight: 200 g
MTBF: 100,000 hours at 35 °C
Origin: Vietnam
Certifications: UL, TUV, CE

D1225C12B7ZP-99 Applications
Primary applications include integration into server rack enclosures, telecommunications switching equipment, and high-density industrial power supply cooling systems. Deployed within CNC control cabinets and medical imaging workstations requiring precise thermal management and high static pressure airflow through restrictive heat sinks.
