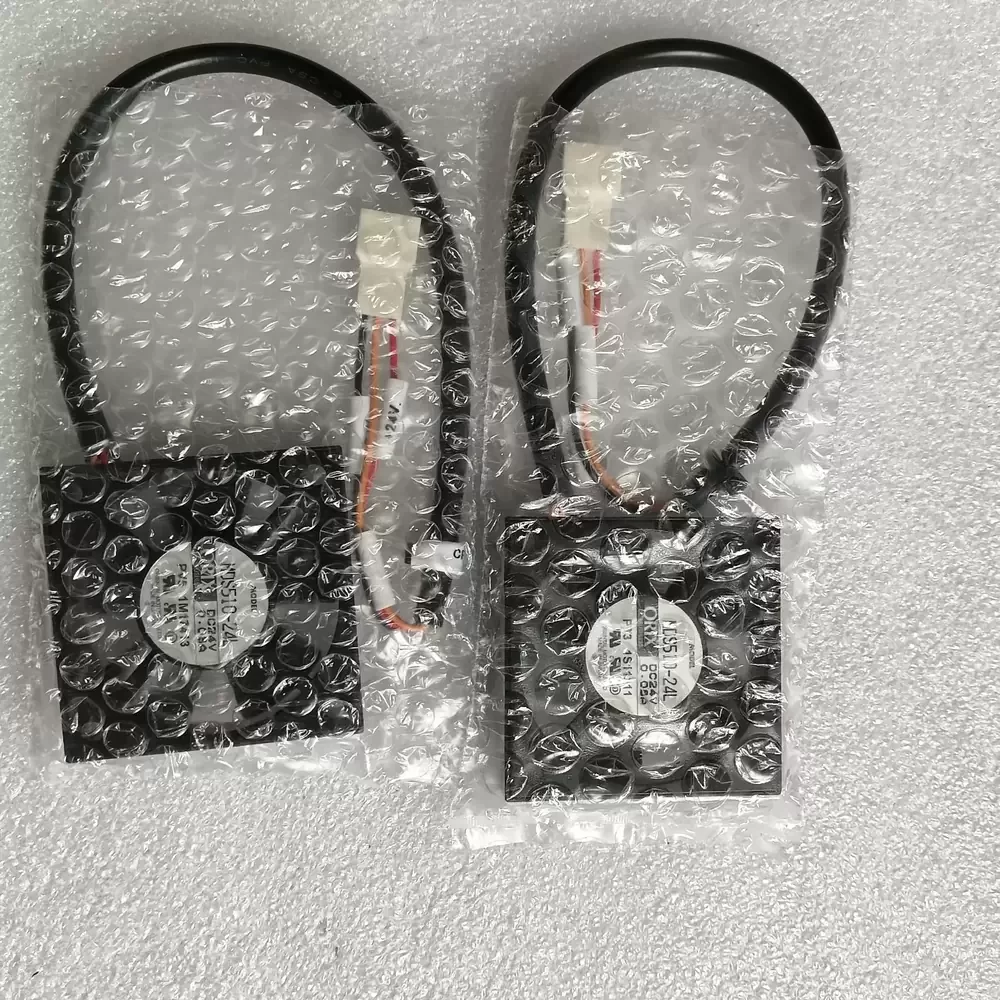

MDS510-24L ORIX 24V 0.08A 52x52x10mm DC Axial Fan

Description

Oriental Motor ORIX MDS510-24L is a 52 mm x 52 mm x 10 mm axial cooling fan operating at 24 VDC with a 0.08 A current rating. The unit features a high-strength polycarbonate frame and polybutylene terephthalate blades rated for industrial thermal management. It utilizes a precision ball bearing system to achieve a rotational speed of 7000 r/min, delivering an airflow capacity of 0.27 m³/min and a maximum static pressure of 54 Pa. The electrical interface is a 3-wire lead configuration equipped with an integrated electronic stall alarm for real-time rotation monitoring and system safety.

MDS510-24L Specifications
Model: MDS510-24L
Brand: Oriental Motor (ORIX)
Product Line: MDS Series
Fan Type: DC Axial Fan
Frame Size: 52 mm x 52 mm
Thickness: 10 mm
Voltage: 24 VDC
Current: 0.08 A
Rotational Speed: 7000 r/min
Max Airflow: 0.27 m³/min (9.53 CFM)
Max Static Pressure: 54 Pa (0.217 inH2O)
Noise Level: 36 dB (A)
Bearing Type: Ball Bearing
Connection Type: 3-wire Lead Wire
Function: Stall Alarm (Electronic Type)
Frame Material: Polycarbonate
Impeller Material: Polybutylene Terephthalate (PBT)
Operating Temperature: -10 to +60 °C
Insulation Resistance: 10 MΩ or more (250 VDC)
Dielectric Strength: 500 VAC for 1 minute
Safety Standards: UL, CSA, EN, CE
RoHS Compliant: Yes
Mass: 30 g

MDS510-24L Applications
Primary applications include integration into industrial control panels, telecommunications switching modules, and high-density server enclosures. Deployed within medical diagnostic equipment and automated welding power supplies for critical component cooling and thermal regulation.
