FSY81B12M FONSONING 12VDC 0.15A 80x80x15mm Axial Fan

Description

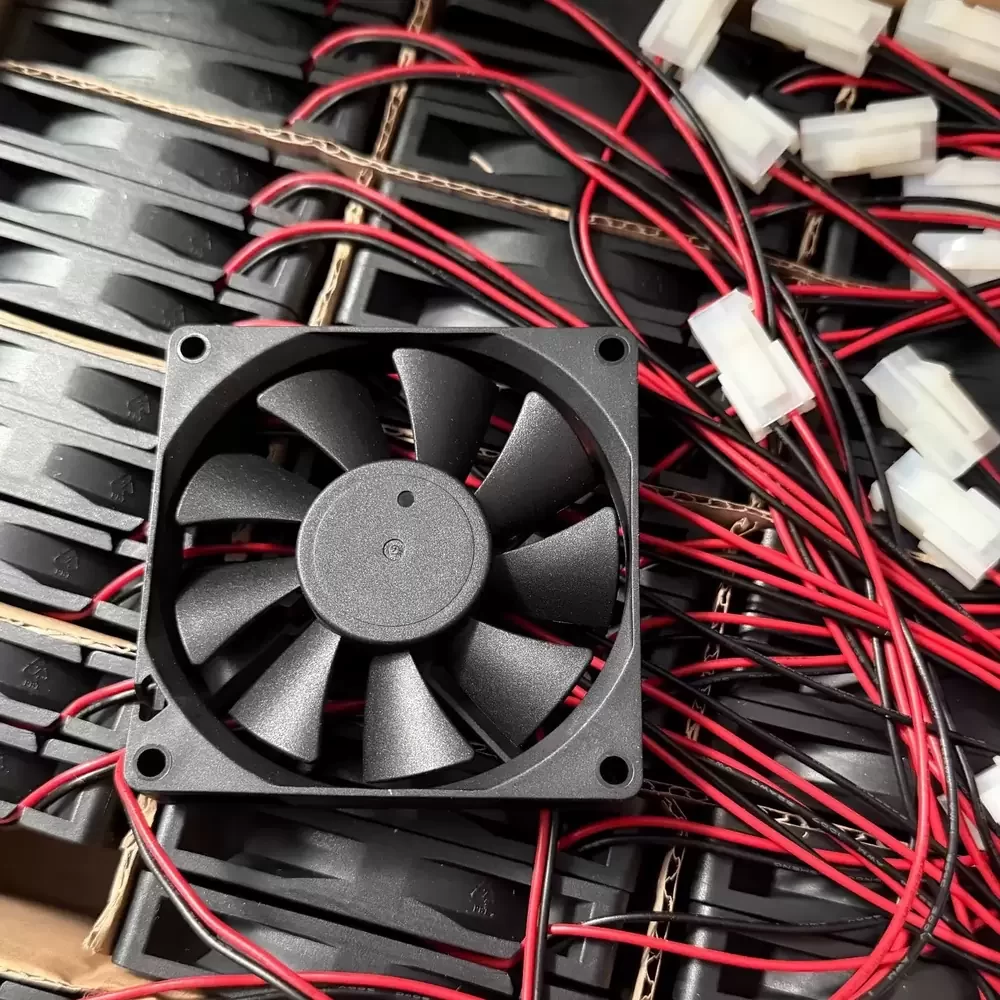

FONSONING FSY81B12M is an 80 x 80 x 15 mm axial cooling fan operating at 12 VDC with a 0.15 A current rating. The unit features a dual ball bearing system housed within a PBT thermoplastic frame and impeller, meeting UL 94V-0 flammability standards. It utilizes a 2-wire interface with 250 mm lead wires for power connection. The internal motor is brushless DC with impedance protection, providing consistent rotational speed and airflow through seven high-efficiency blades.

FSY81B12M Specifications
Model: FSY81B12M
Brand: FONSONING
Dimensions: 80 x 80 x 15 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.8 to 13.2 VDC
Rated Current: 0.15 A
Input Power: 1.8 W
Rated Speed: 3000 RPM
Maximum Airflow: 28.5 CFM
Static Pressure: 3.2 mmH2O
Noise Level: 31.5 dBA
Bearing Type: Dual Ball Bearing
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Lead Wire: 2-wire, 250 mm length
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 50,000 hours at 40 °C
Weight: 55 g

FSY81B12M Applications
Primary applications include integration into compact server chassis, network switch enclosures, and power supply units requiring slim-profile thermal management. Deployed within medical diagnostic equipment, industrial control panels, and LED display cooling systems where continuous operation and high reliability are required.
