FT4232H FTDI 480Mbps 4-Channel UART/MPSSE USB Interface Module

Description

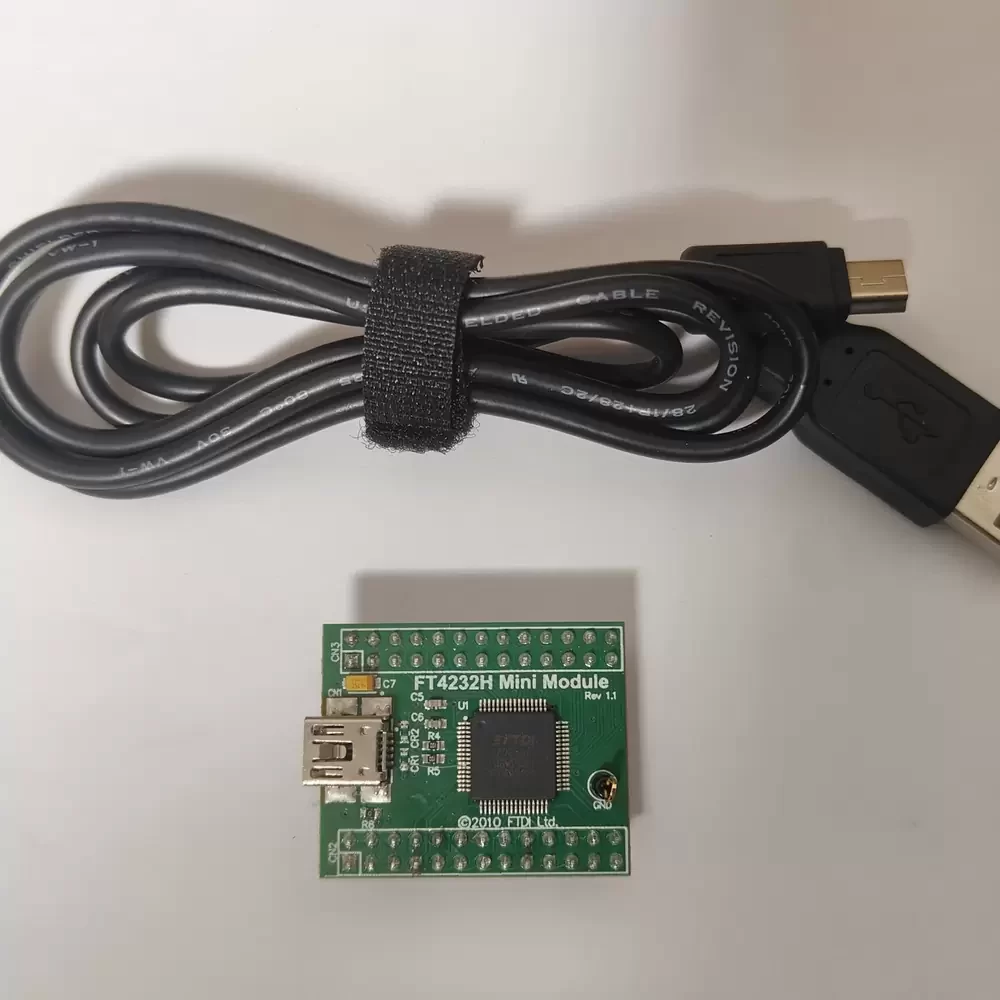

FTDI FT4232H MINI MODULE is a 30 mm x 51 mm USB 2.0 Hi-Speed evaluation platform featuring the FT4232H quad-channel bridge controller. It operates at 480 Mbps and provides four independent UART, SPI, I2C, or JTAG interfaces via two Multi-Protocol Synchronous Serial Engines (MPSSE). The hardware integrates a 1.8 V LDO regulator, 12 MHz crystal oscillator, and an EEPROM for custom descriptors, utilizing two 26-pin dual-row headers for direct PCB integration or breadboard prototyping.

FT4232H MINI MODULE Specifications
Model: FT4232H MINI MODULE
Brand: FTDI Chip
USB Interface: USB 2.0 Hi-Speed
Data Rate: 480 Mbps
Controller IC: FT4232H
Channels: 4 Independent Ports
I/O Voltage: 3.3 V
Core Voltage: 1.8 V
Supply Voltage: 5.0 V
Interface Types: UART, MPSSE (JTAG, SPI, I2C)
Connector: USB Mini-B
Header Pins: 2 x 26-pin Dual-Row
Dimensions: 30 mm x 51 mm
Operating Temperature: -40 to +85 °C
EEPROM: 93LC46/56/66 compatible
Clock: 12 MHz Crystal
Current Consumption: 70 mA
Compliance: RoHS, CE, FCC

FT4232H MINI MODULE Applications
Primary applications include integration into automated test equipment (ATE), JTAG debuggers for FPGA/CPLD programming, and industrial sensor data acquisition systems. Deployed within telecommunications infrastructure for remote management and embedded system development kits requiring high-speed multi-port serial communication.
