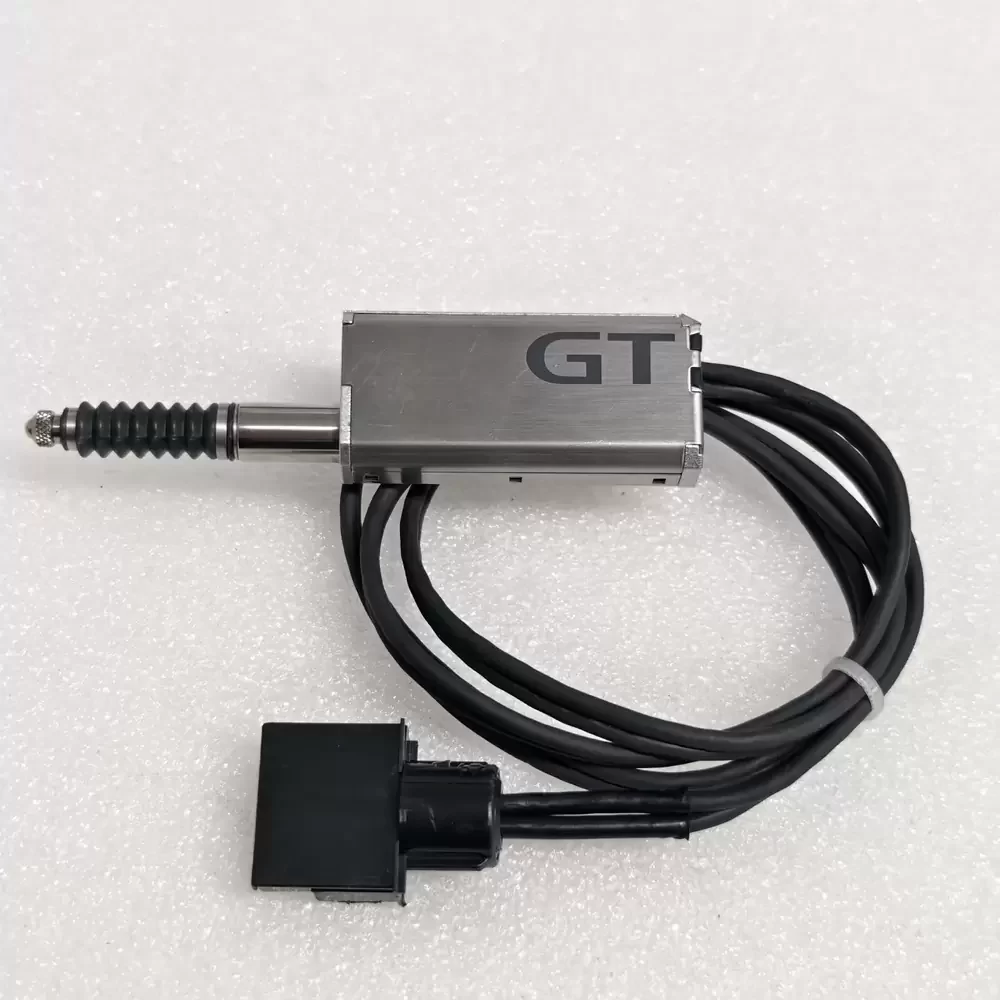

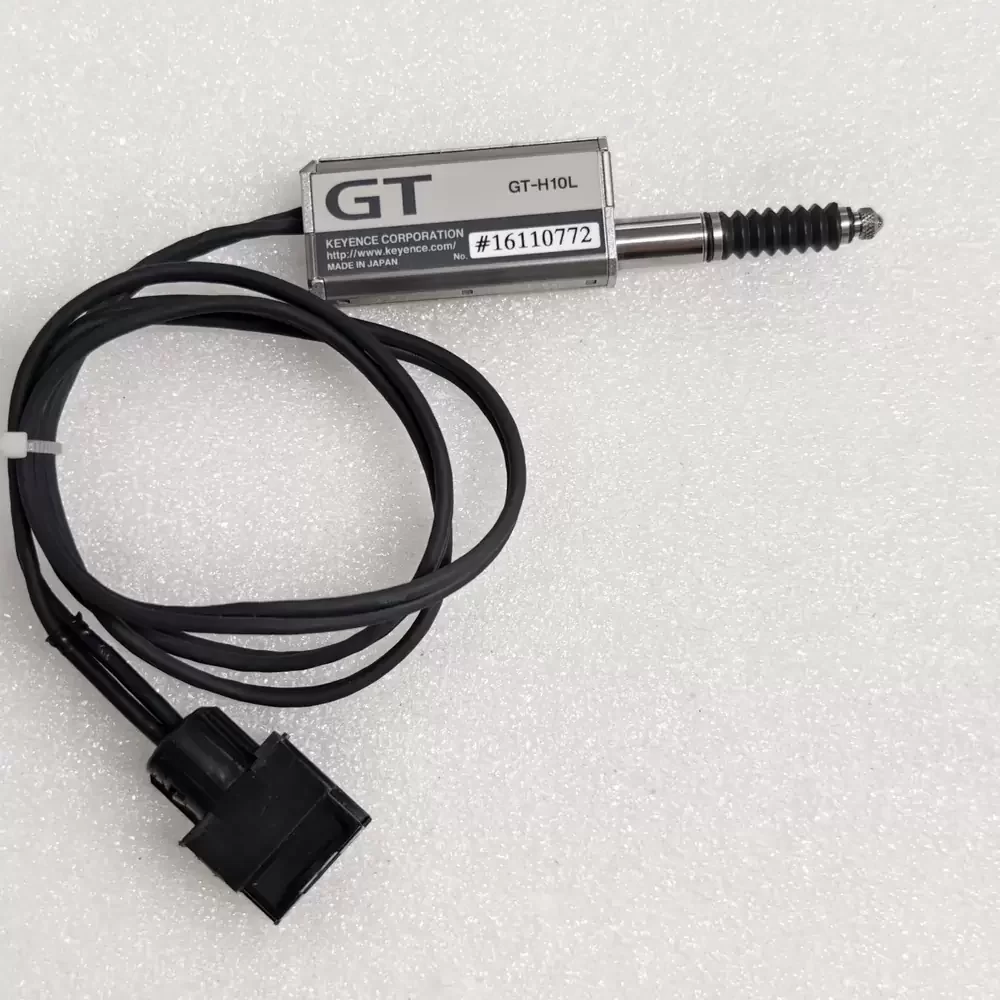

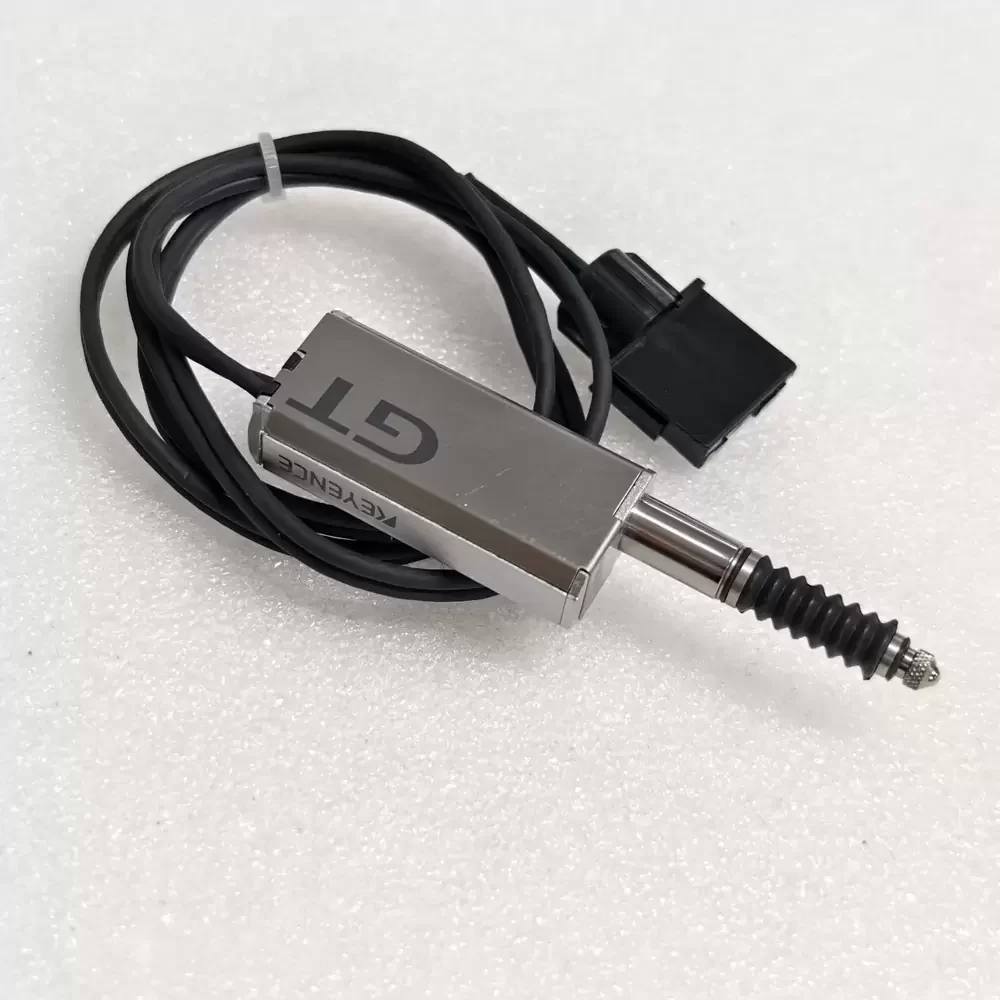

GT-H10L Keyence 10mm 0.3N Low-Force Digital Contact Sensor

Description

Keyence GT-H10L 10 mm measuring range, 0.3 N downward measuring force, and 3 µm repeatability digital contact sensor head. The unit is constructed with a TYPE430 stainless steel housing and a TYPE304 stainless steel contact tip to ensure structural rigidity and chemical resistance. It utilizes a co-transformer absolute position detection method to prevent data loss during high-speed spindle movement. The internal mechanism incorporates linear ball bearings to minimize friction and extend mechanical service life. The sensor provides a mechanical response of 7 Hz and maintains a repeatability of 3 µm at stable ambient temperatures.

GT-H10L Specifications
Model: GT-H10L
Brand: Keyence
Type: Sensor head (Low-stress)
Measuring Range: 10 mm
Measuring Force (Downward): 0.3 N
Measuring Force (Side): 0.25 N
Measuring Force (Upward): 0.2 N
Mechanical Response: 7 Hz
Repeatability: 3 µm
Ambient Temperature: -10 to +55 °C
Relative Humidity: 35 to 85 % RH
Housing Material: TYPE430 Stainless steel
Indicator Material: Polyarylate
Contact Material: TYPE304 Stainless steel
Cable Material: PVC
Cable Length: 2 m
Weight: 115 g

GT-H10L Applications
Primary applications include integration into automated inspection systems for measuring delicate electronic components, thin-film thickness verification, and precision glass substrate flatness testing. Deployed within semiconductor assembly lines and medical device manufacturing cells where low contact pressure is required to prevent workpiece deformation.
