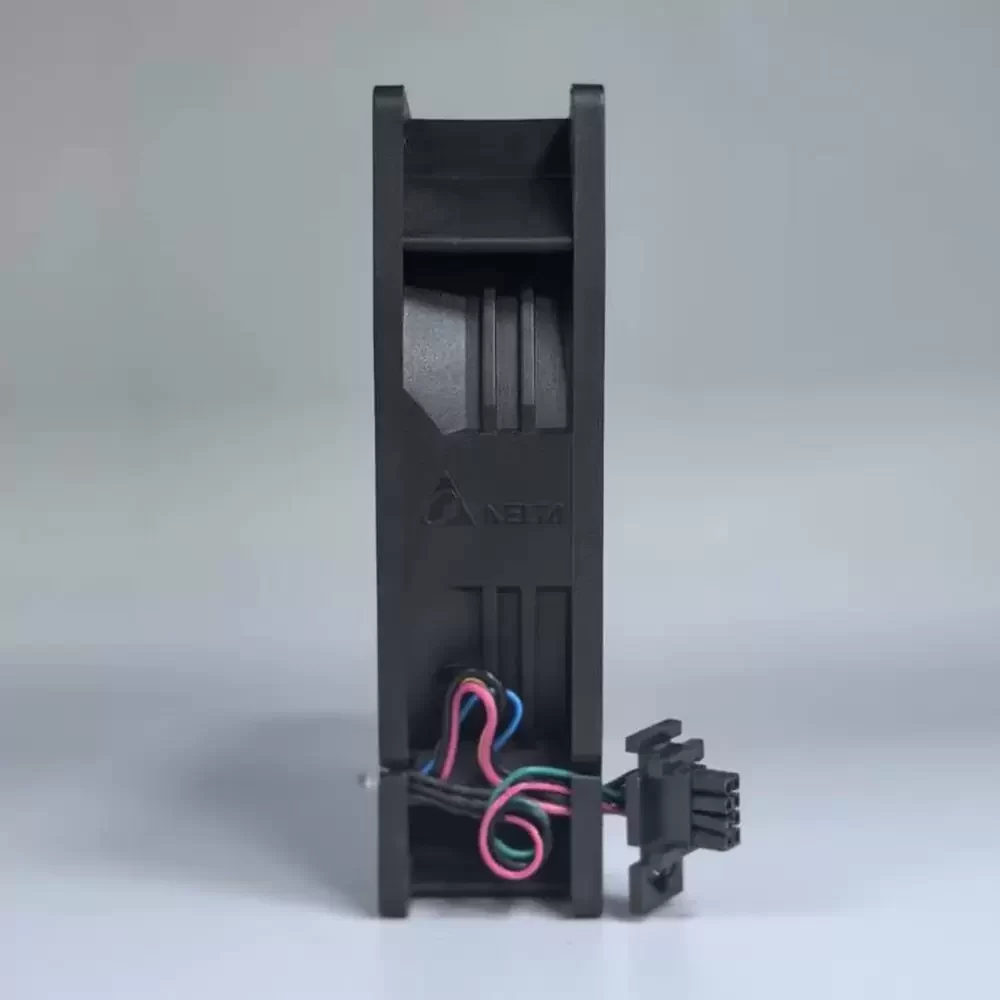

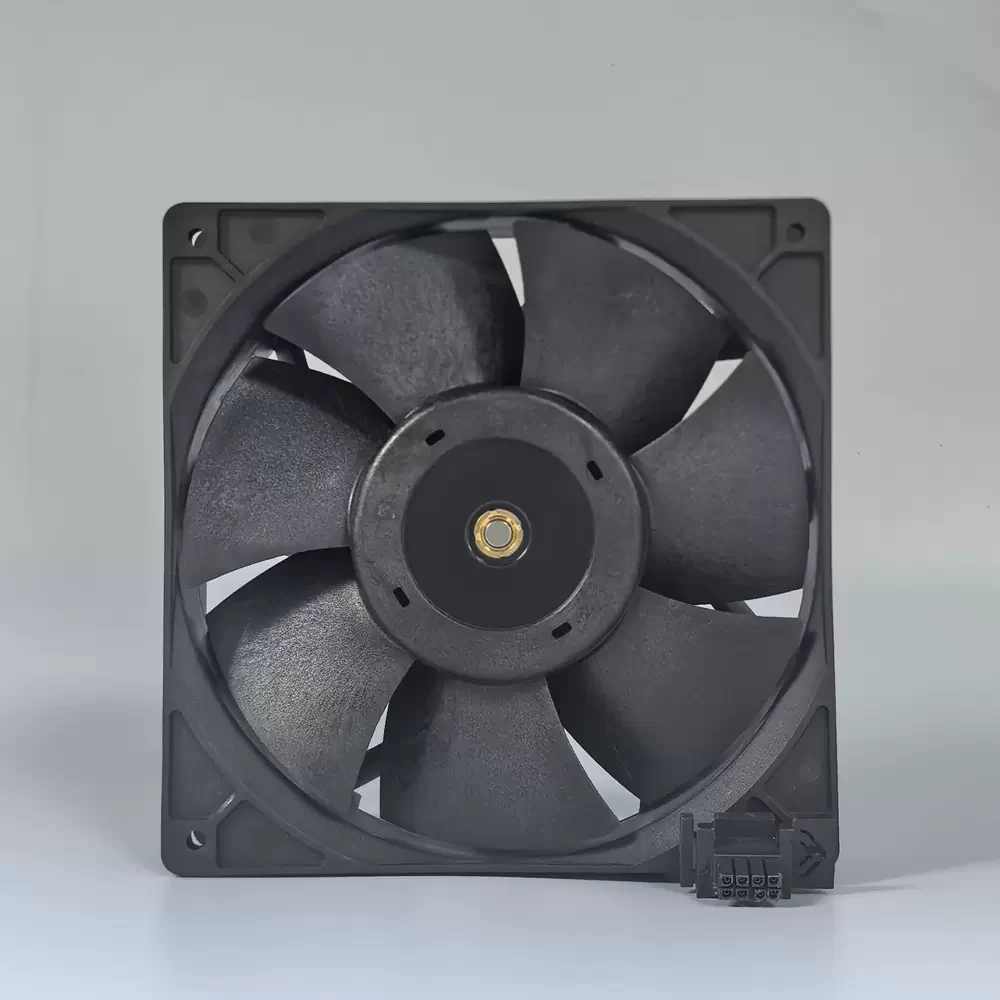

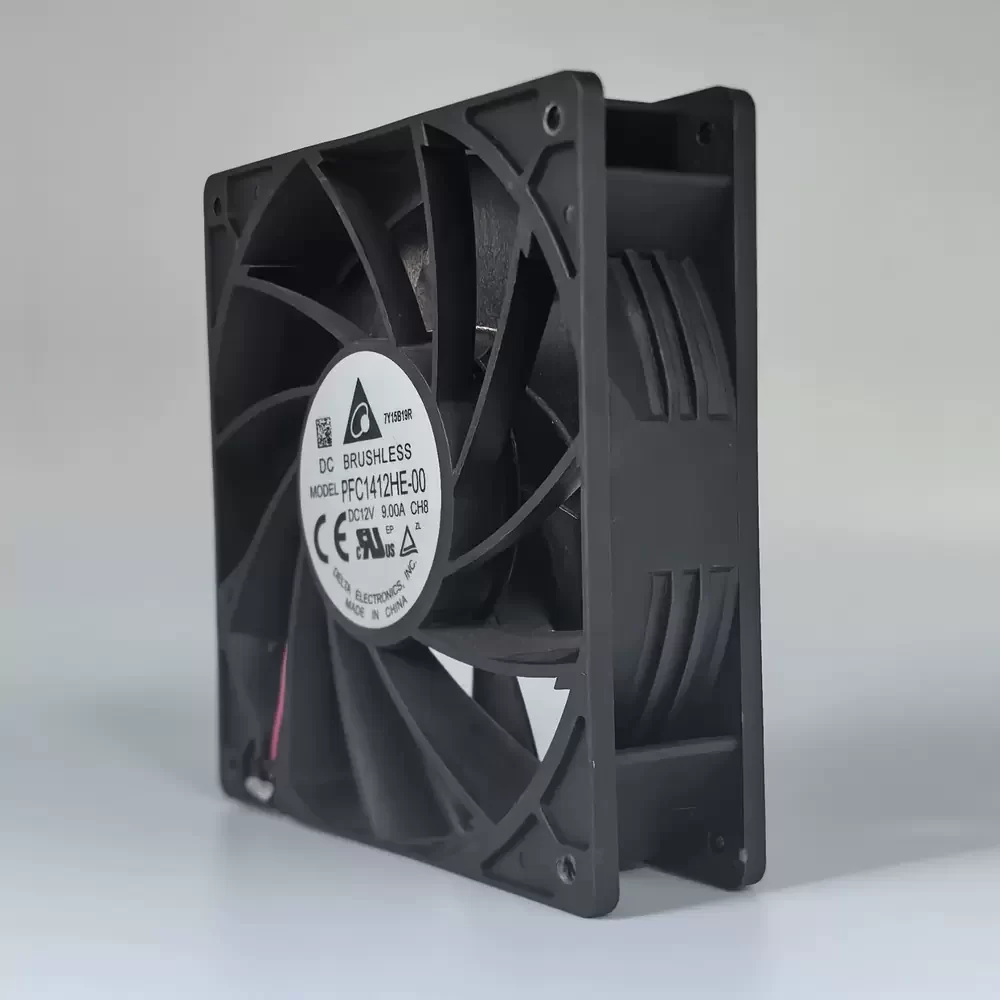

PFC1412HE-00CH8 Delta 12VDC 9.00A 140x38mm Axial Fan

Description

Delta PFC1412HE-00CH8 is a 140 x 140 x 38 mm high-performance axial fan operating at 12 VDC with a 9.00 A rated current and 108.0 W power consumption. The unit features a dual ball bearing system and a 4-wire interface supporting PWM speed control and tachometer output. Constructed with a UL 94V-0 plastic impeller and frame, it delivers 330.35 CFM airflow and 60.20 mmH2O static pressure at a rotational speed of 7500 RPM.

PFC1412HE-00CH8 Specifications
Model: PFC1412HE-00CH8
Brand: Delta Electronics
Dimensions: 140 x 140 x 38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.2 VDC
Rated Current: 9.00 A
Input Power: 108.0 W
Rated Speed: 7500 RPM
Maximum Airflow: 330.35 CFM
Maximum Static Pressure: 60.20 mmH2O
Acoustic Noise: 75.5 dB-A
Bearing Type: Dual Ball Bearing
Interface: 4-wire (PWM and Tachometer)
Material: Plastic (UL 94V-0)
Operating Temperature: -10 to 60 °C
Storage Temperature: -40 to 70 °C
Weight: 550 g
Safety Approvals: UL, CUL, TUV, CE

PFC1412HE-00CH8 Applications
Primary applications include integration into high-density server chassis, industrial control workstations, and telecommunications networking equipment. Deployed within high-performance computing (HPC) cooling systems and power supply units requiring extreme static pressure for dense heat sink ventilation.
