Description

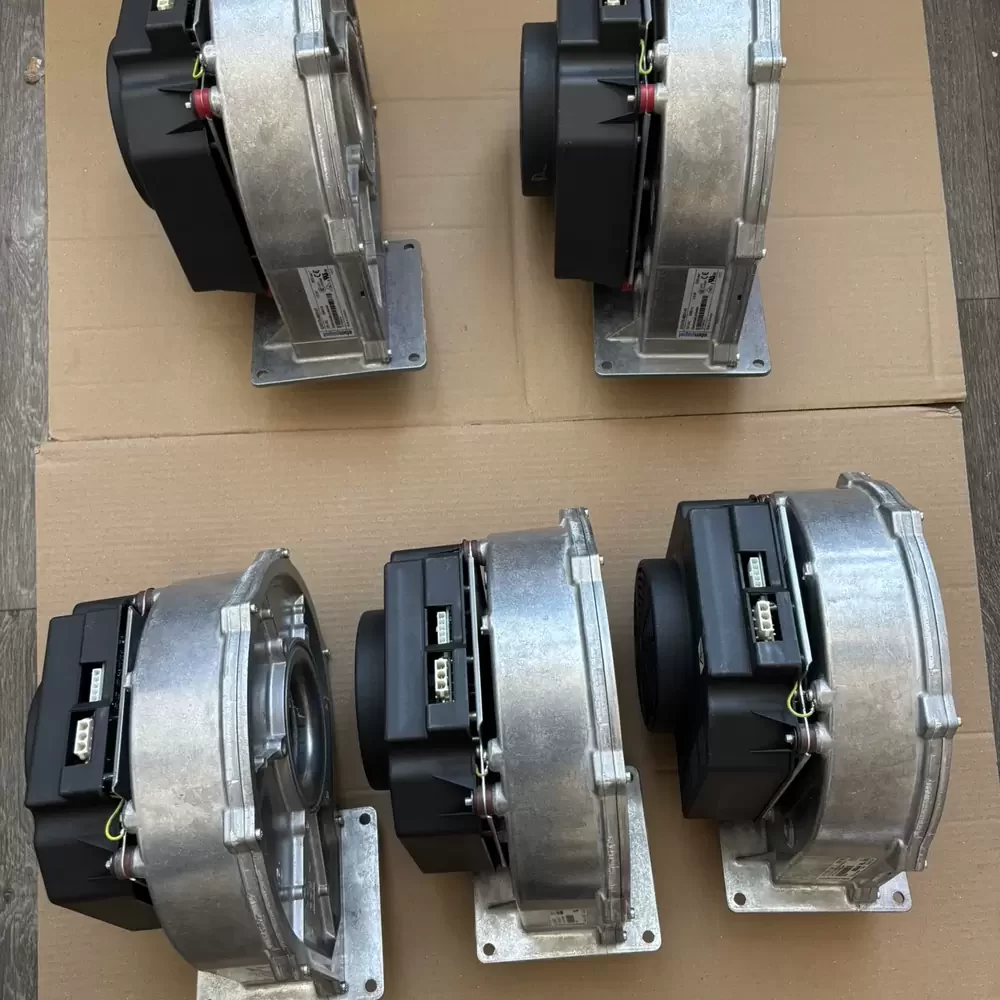

The ebm-papst G1G170-AB31-01 is a precision-engineered EC centrifugal blower designed for high-efficiency thermal management and combustion applications. Featuring an advanced M1G074-BF electronically commutated motor, this unit delivers superior aerodynamic performance with reduced power consumption compared to traditional AC variants. The 170mm die-cast aluminum housing ensures structural rigidity and optimal thermal impedance management under high-load conditions. Engineered with maintenance-free ball bearings and integrated electronic protection, the G1G170-AB31-01 provides reliable operation in demanding industrial environments, specifically optimized for gas condensing boilers and precise air-fuel mixing systems requiring exact speed modulation and high static pressure capabilities.
Model Number: G1G170-AB31-01
Brand: ebm-papst
Product Type: EC Centrifugal Blower
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Rated Power: 315 W
Rated Speed: 5650 RPM
Current Draw: 2.1 A
Bearing Type: Ball Bearing
Motor Type: M1G074-BF (EC Motor)
Max. Air Flow: 229.5 CFM (390 m³/h / 6.5 m³/min)
Max. Static Pressure: 10.04 inH₂O (2500 Pa / 255 mmH₂O)
Dimensions: 170mm Diameter
Housing Material: Die-cast Aluminum
Impeller Material: Sheet steel, hot-dip galvanized
Direction of Rotation: Clockwise, viewed toward rotor
Degree of Protection: IP20
Insulation Class: F
Mounting Position: Any
Operating Temperature: -25°C to +60°C
Speed Control: 0-10 VDC / PWM
Motor Protection: Thermal overload protector (TOP) wired internally
Weight: 3.4 kg
Compliance: CE, CSA, UL
This high-performance blower is extensively utilized in gas condensing heating systems and industrial combustion applications where precise air-fuel ratios are critical. The G1G170-AB31-01 excels in providing consistent airflow for burner systems, ensuring optimal combustion efficiency and reduced emissions. Additionally, the G1G170-AB31-01 is suitable for specialized electronics cooling, server rack ventilation, and industrial process air extraction where compact, high-pressure airflow is required.
