Description

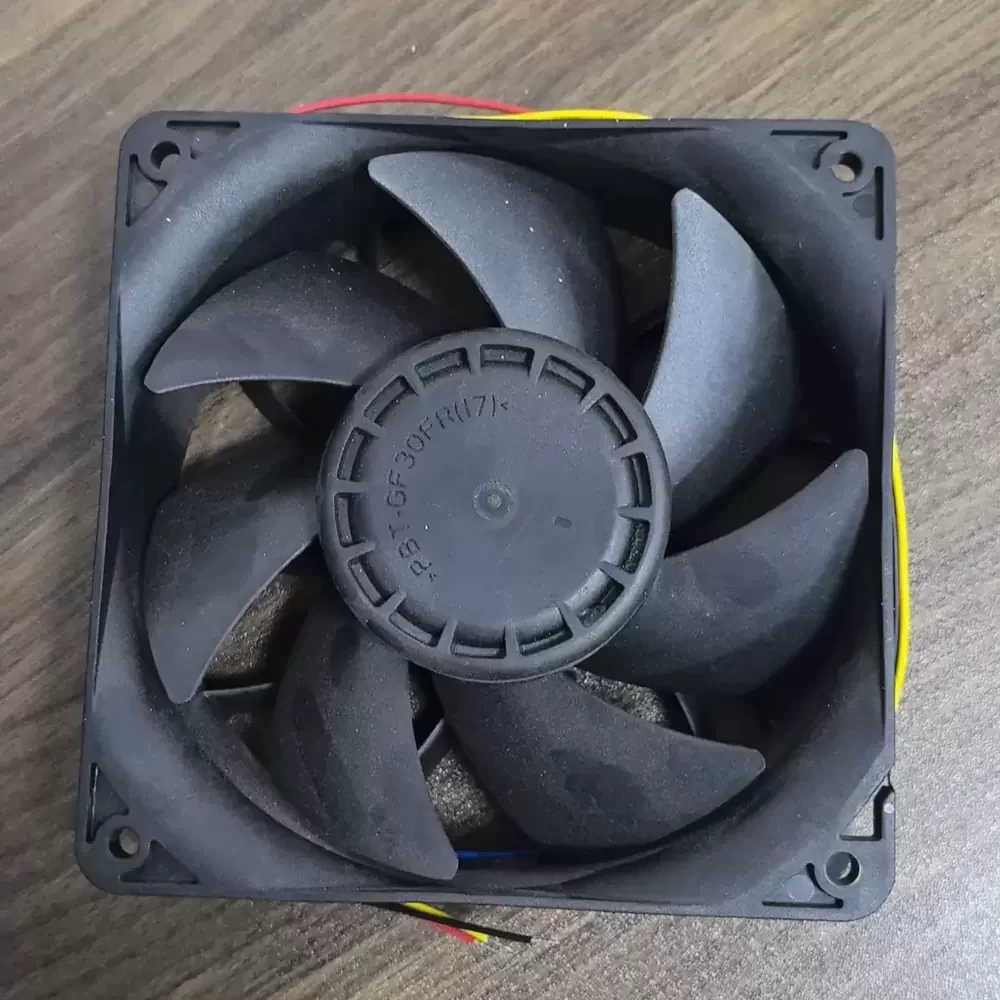

The SUNON PFC0382BX-1Q08C-SAP is a high-static pressure Axial Fan engineered for mission-critical thermal management. Utilizing advanced DC motor technology and a dual ball bearing architecture, this unit ensures exceptional rotational stability and longevity under continuous load. The 80x80x38mm frame design optimizes aerodynamic throughput, significantly reducing thermal impedance in high-density enclosures. With a power rating of 35.88W, it delivers aggressive airflow performance while maintaining structural rigidity, making it an ideal solution for overcoming high system resistance in industrial and server environments.
Model Number: PFC0382BX-1Q08C-SAP
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 20.4 – 27.6 VDC
Rated Current: 1.495 A
Power: 35.88 W
Rated Speed: 13000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 132.5 CFM (225.1 m³/h / 3.75 m³/min)
Max. Static Pressure: 2.73 inH₂O (69.34 mmH₂O / 680 Pa)
Dimensions: 80x80x38mm
Weight: 170 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 66.0 dB(A)
Control Interface: 4-Wire PWM
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Protection: Auto Restart, Polarity Protection
Designed for high-density computing environments, the PFC0382BX-1Q08C-SAP excels in 1U and 2U server rack assemblies where backpressure is significant. Ideally suited for frequency converters, industrial power supplies, and telecommunications cabinets, this fan ensures components operate within safe thermal limits. The PFC0382BX-1Q08C-SAP is also frequently utilized in precision CNC machinery and medical instrumentation requiring robust airflow to dissipate heat from power electronics and drive systems efficiently.
