Description

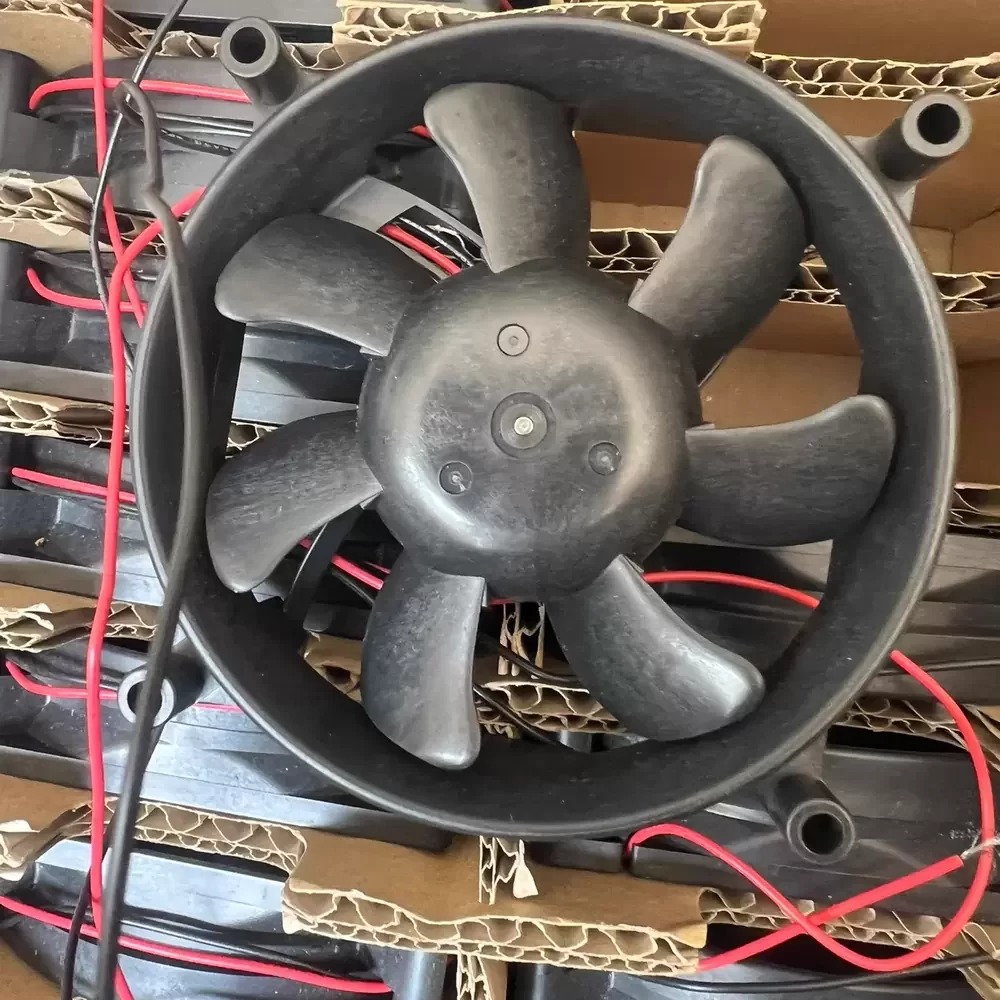

Nidec Servo SKUD24B4 is a 24VDC 120x120x25mm Axial Fan optimized for sustained thermal management in enclosed industrial control environments. By maintaining a consistent 0.13A current draw, this unit mitigates localized heat accumulation that typically degrades sensitive logic controllers. The precision-balanced impeller assembly ensures that the 2.9W power consumption translates into efficient laminar airflow rather than parasitic vibration. Integrated electromagnetic shielding within the motor housing prevents EMI interference with adjacent low-voltage signaling components. This specific 120x120x25mm 24VDC Axial Fan utilizes a specialized lubricant reservoir to maintain a stable hydrodynamic film, ensuring the 24VDC Axial Fan remains operational under continuous duty cycles without bearing seizure.
Model Number: SKUD24B4
Brand: Nidec Servo
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.13A
Power: 3.12W
Rated Speed: 2600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 88.2 CFM (2.50 m³/min)
Max. Static Pressure: 58.8 Pa (0.236 inH₂O)
Dimensions: 120 x 120 x 25 mm
Weight: 210g
Life Expectancy: 50,000 Hours at 40C
Noise Level: 37 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 2-Wire Lead Wires
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +70C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, CSA, VDE, CE
Applications & Industry Use Cases
1. VFD Control Cabinets: High static pressure overcomes filter resistance to prevent drive overheating.
2. Industrial PLCs: Compact 25mm profile fits standard enclosures for critical logic cooling.
3. 2U Rackmount Chassis: Optimized dimensions serve as a direct replacement fan for server nodes.
4. Telecom Edge Routing: Low-noise operation maintains thermal equilibrium in remote outdoor signal pedestals.
5. CNC Machine Tools: Robust housing resists vibration-induced fatigue in heavy-duty machining centers.
6. Medical Imaging Equipment: Stable airflow ensures consistent cooling for sensitive diagnostic sensor arrays.
