Description

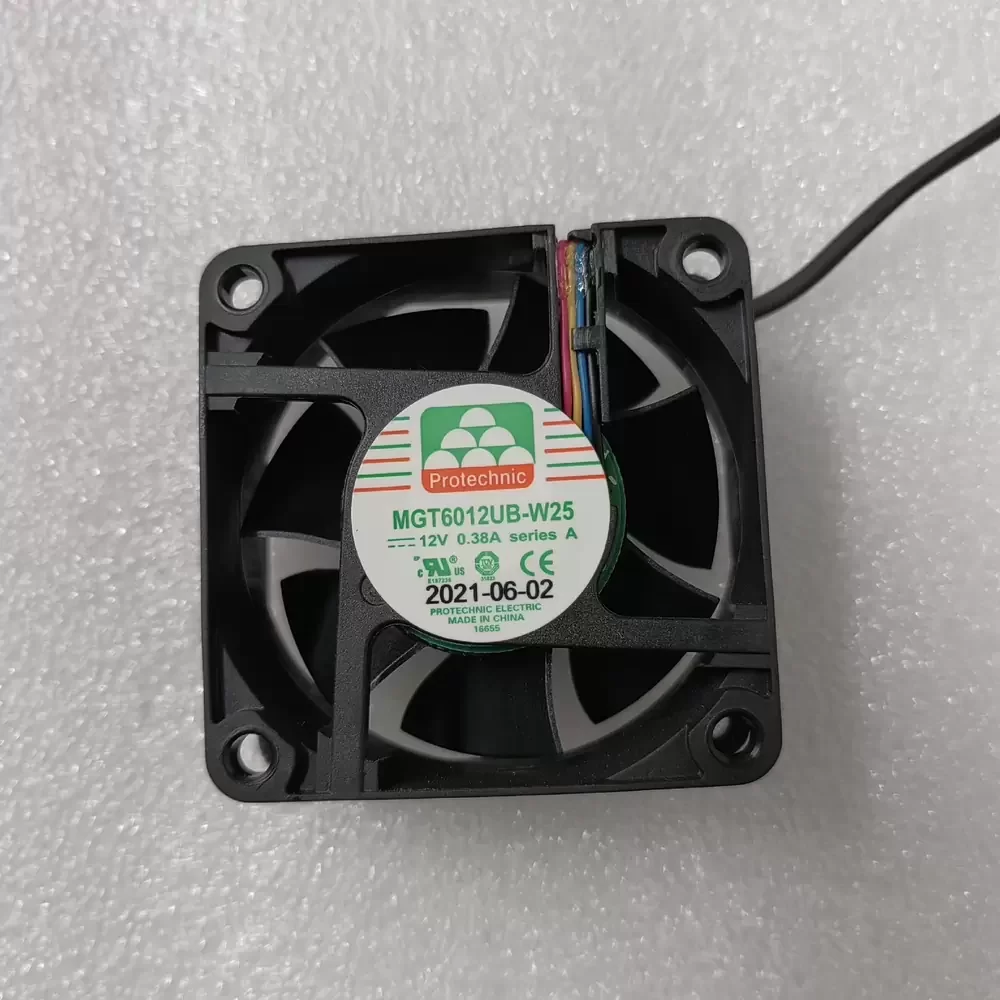

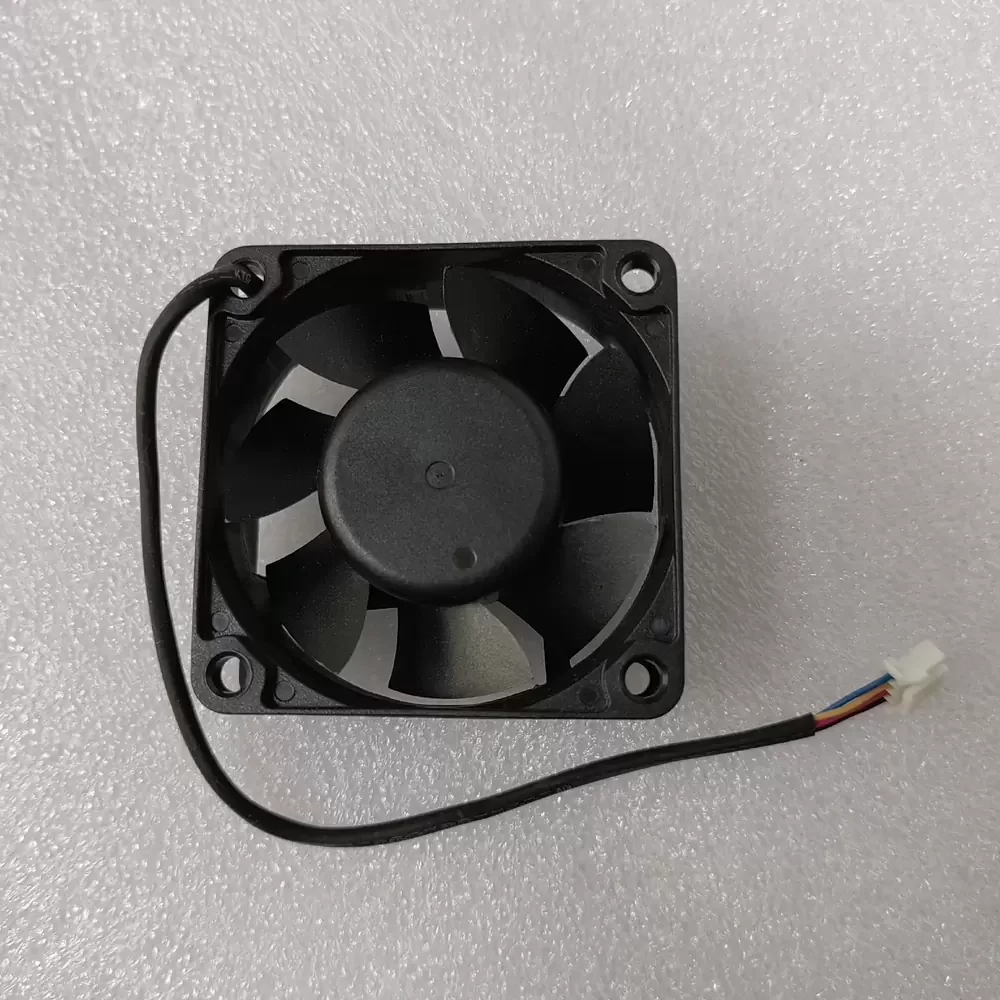

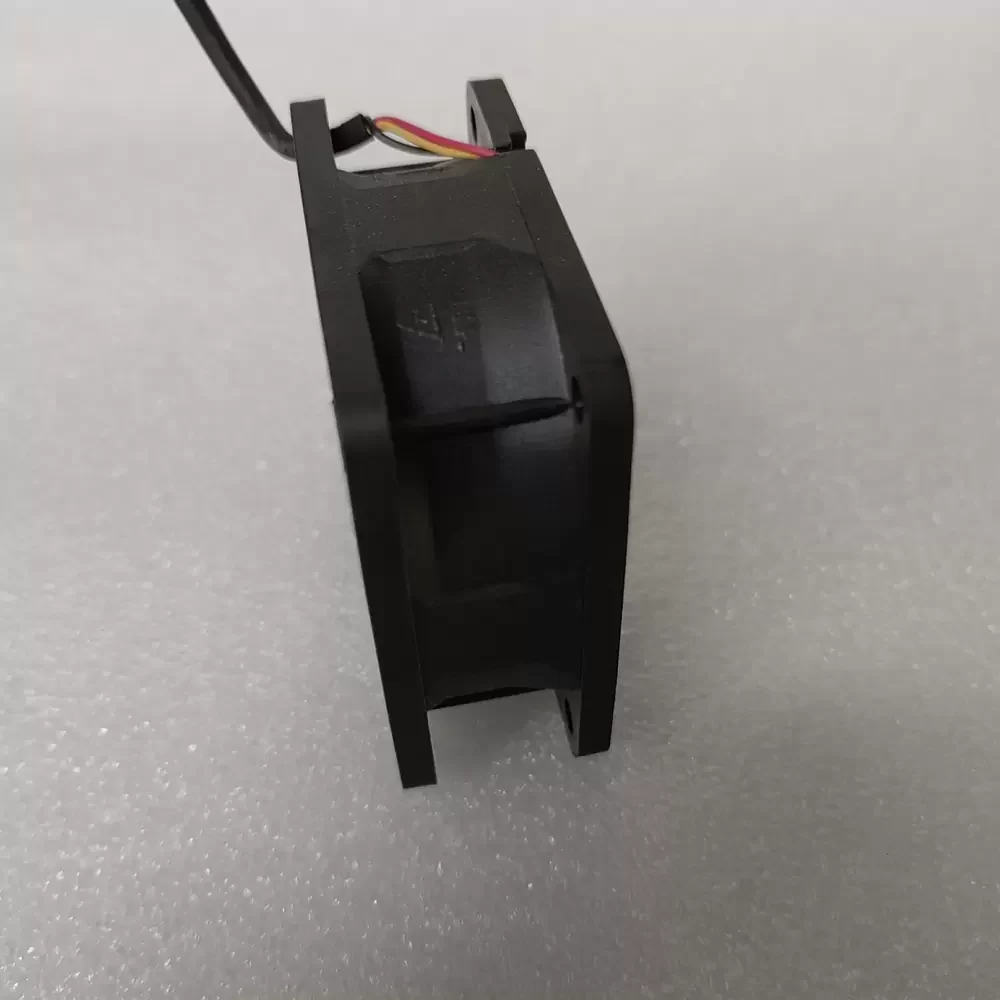

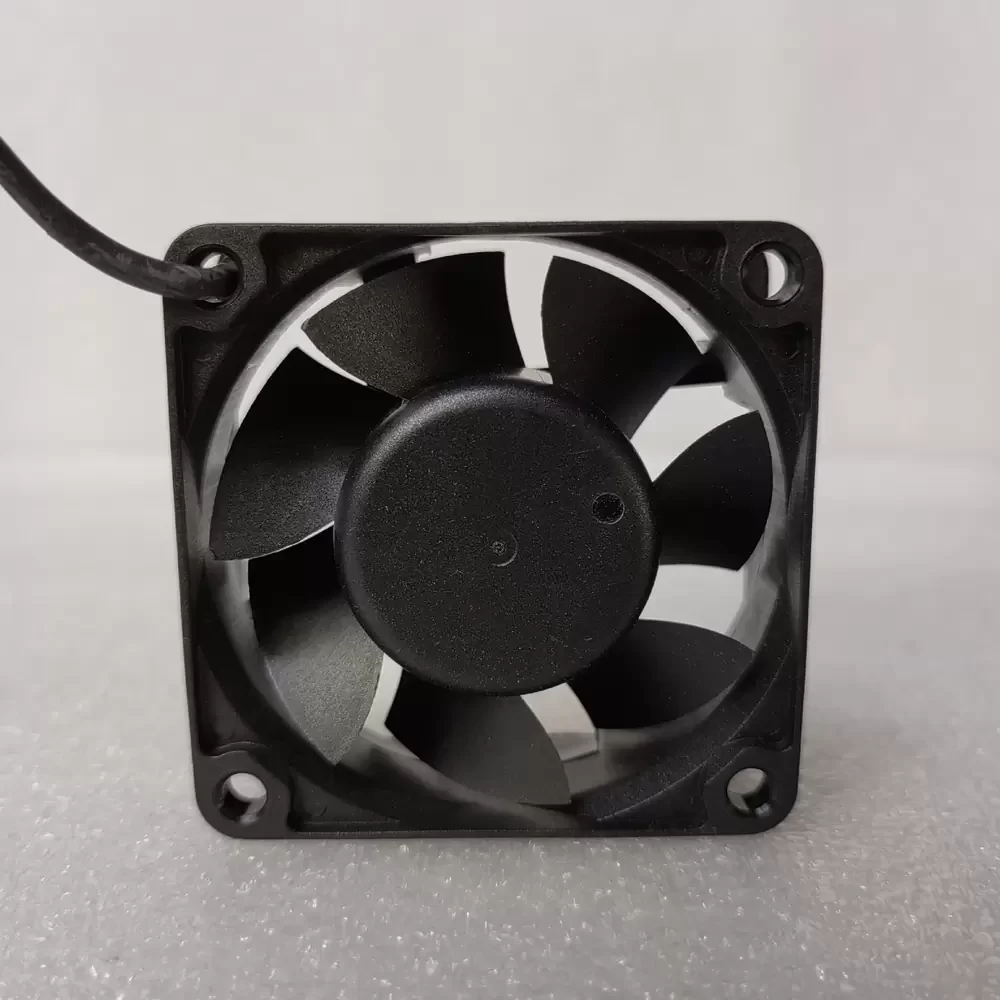

The Magic MGT6012UB-W25 is a precision-engineered DC axial fan designed for high-density thermal management applications. Utilizing advanced DC brushless motor technology, this unit delivers consistent torque and rotational stability. The architecture incorporates a robust dual ball bearing system, significantly reducing frictional coefficients and enhancing long-term reliability under continuous operation. Constructed with a reinforced thermoplastic frame, the MGT6012UB-W25 ensures structural rigidity and optimal vibration damping. Its aerodynamic impeller design maximizes static pressure capabilities while maintaining efficient airflow throughput, making it an ideal solution for systems requiring low thermal impedance and sustained cooling performance.
Model Number: MGT6012UB-W25
Brand: Magic (Magic Protechnic)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.38 A
Power Input: 4.56 W
Rated Speed: 6500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 38.5 CFM (65.4 m³/h / 1.09 m³/min)
Max. Static Pressure: 10.67 mmH₂O (104.6 Pa / 0.42 inH₂O)
Dimensions: 60x60x25mm
Weight: 65 g
Noise Level: 43.5 dBA
Frame Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Life Expectancy: 70,000 Hours at 40°C
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: Lead Wires
Ingress Protection: IP20
Motor Protection: Impedance Protected, Reverse Polarity Protection
Insulation Class: Class A
This high-performance cooling solution is specifically engineered for demanding industrial and IT environments. The MGT6012UB-W25 is frequently deployed in compact server chassis, network switches, and power supply units where space is limited but heat dissipation requirements are critical. Additionally, the MGT6012UB-W25 serves as a reliable component in industrial automation control panels, medical instrumentation, and telecommunications equipment, ensuring component longevity by maintaining optimal operating temperatures within enclosed electronic assemblies.
