Description

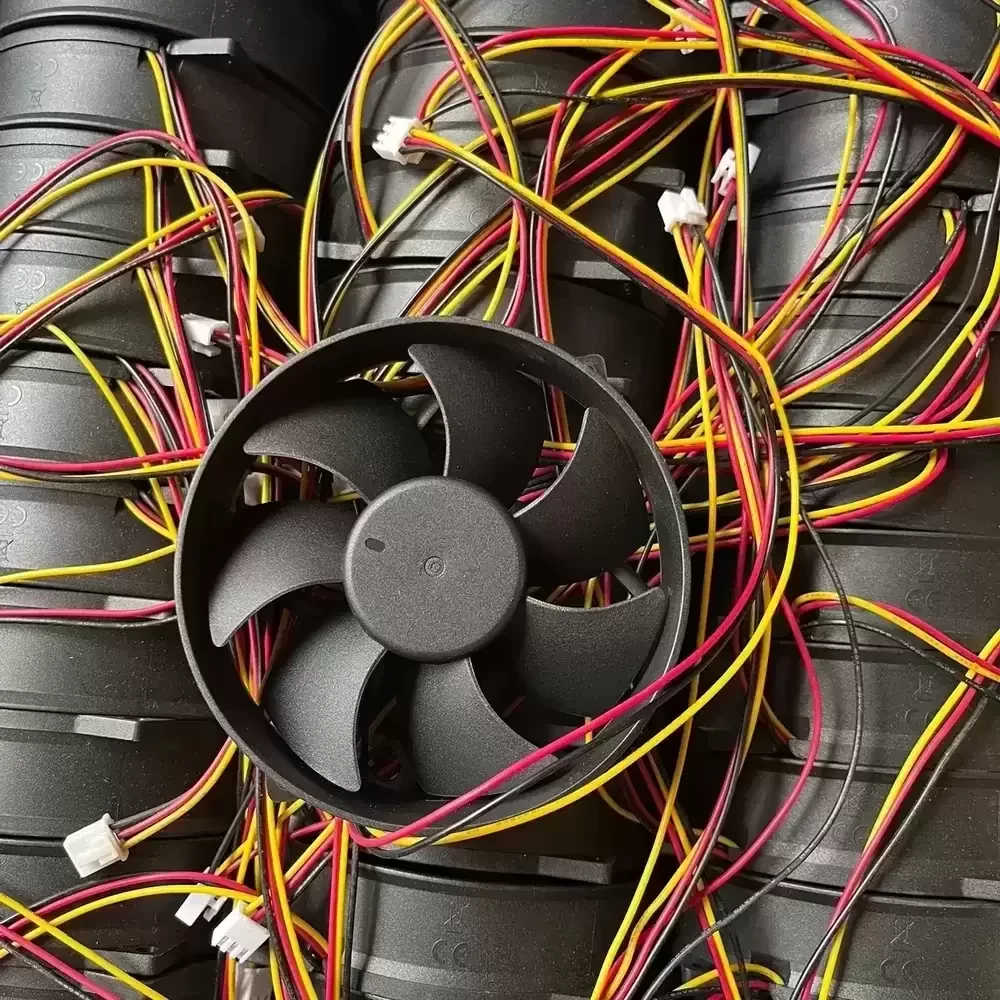

The SNOWFAN YY9225M12S is a precision-engineered Axial Fan designed for efficient thermal management in electronic enclosures and computing hardware. Utilizing advanced DC motor technology paired with a durable Hydraulic Bearing system, this unit optimizes rotational stability while minimizing friction-induced noise and vibration. The impeller and frame are constructed from environmentally friendly, flame-retardant PBT plastic (UL 94V-0), ensuring high structural rigidity and resistance to deformation under thermal stress. With a balanced aerodynamic profile, the YY9225M12S delivers consistent airflow to lower thermal impedance in critical components, making it a reliable solution for continuous operation in diverse industrial and consumer environments.
Model Number: YY9225M12S
Brand: SNOWFAN
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.5 VDC
Start Voltage: ≤ 7 VDC
Rated Current: 0.20 A ±10%
Power Consumption: 2.4 W
Rated Speed: 2800 RPM ±10%
Bearing Type: Hydraulic Bearing
Max. Air Flow: 41 CFM (69.66 m³/h)
Max. Static Pressure: 3.12 mmH₂O (30.6 Pa / 0.12 inH₂O)
Noise Level: 31 dB-A
Dimensions: 92 x 92 x 25 mm
Housing Material: PBT Plastic UL 94V-0
Blade Material: PBT Plastic UL 94V-0
Operating Temperature: -10 to +60 °C
Operating Humidity: 5% to 95% RH
Life Expectancy: 30,000 Hours (at 40°C)
Termination: 2 Wire (Red +, Black -)
Wire Length: 320 mm
Connector: 2.54 Terminal (Compatible with 3-pin headers)
Reverse Polarity Protection: None
Locked Rotor Protection: None
This cooling solution is specifically engineered for integration into computer hardware systems, including motherboard CPU coolers and chassis ventilation setups. The YY9225M12S provides essential airflow for maintaining optimal operating temperatures in server racks, desktop workstations, and custom PC builds. Additionally, the YY9225M12S is suitable for power supply units, small-scale industrial automation cabinets, and telecommunications equipment where reliable heat dissipation is required to prevent component throttling or failure.
