Description

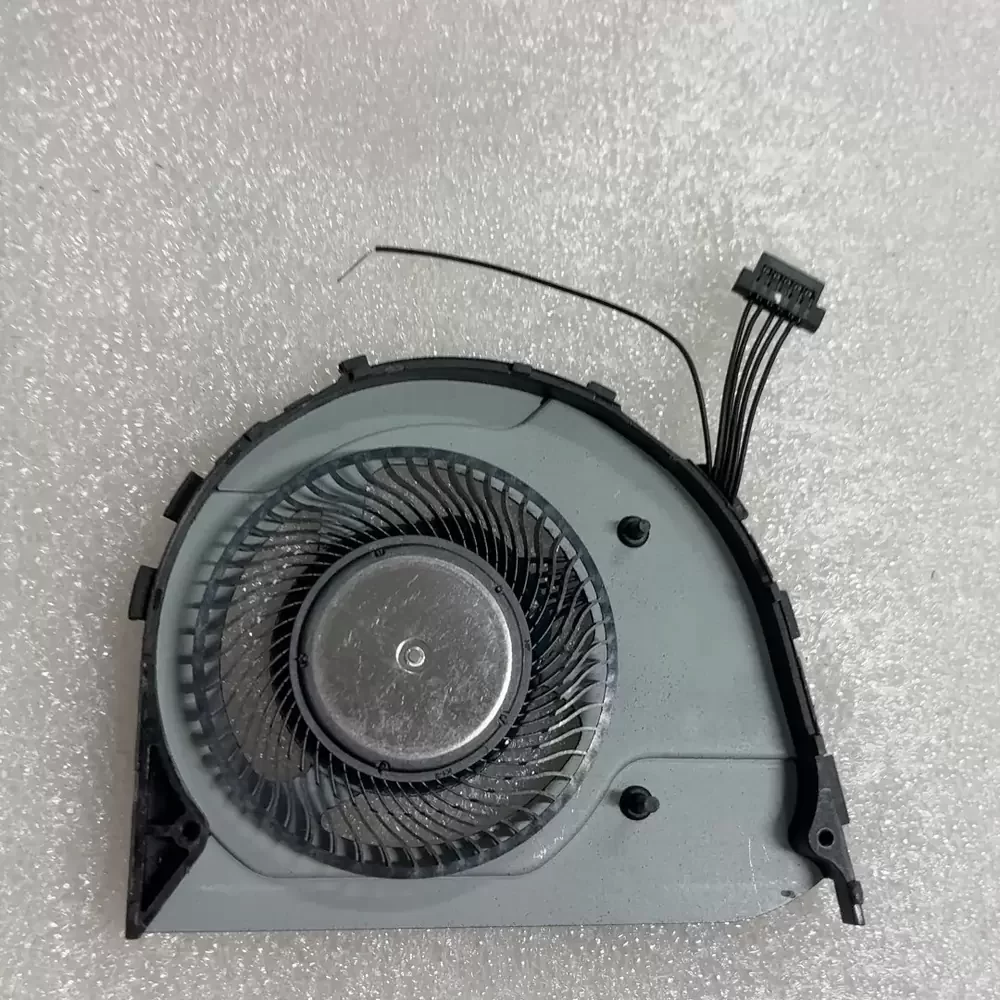

Sunon EG50050S1-CA10-S9A is a 5 VDC brushless cooling fan featuring a 2.25 W power rating and a 4-pin PWM interface. The unit utilizes a Hypro bearing system designed for a service life of 100,000 hours and operates at a nominal speed of 2500 RPM. Constructed with a combination of aluminum and PBT thermoplastic, the fan incorporates a slim-profile housing and a high-efficiency impeller to manage thermal loads. The internal DC motor is engineered for low electromagnetic interference and consistent airflow delivery.
EG50050S1-CA10-S9A Specifications
Model: EG50050S1-CA10-S9A
Brand: Sunon
Category: DC Brushless Fan
Voltage: 5 VDC
Power: 2.25 W
Current: 0.45 A
Bearing Type: Hypro bearing
Connector: 4-pin PWM
Speed: 2500 RPM
Service Life: 100,000 hours
Material: Aluminum and PBT Thermoplastic
Radiator Type: Air-cooled
Certification: CE
Compatible FRU: 01HW757, 01HW758, 00HN995, 02DA165
EG50050S1-CA10-S9A Applications
Primary applications include integration into Lenovo ThinkPad X380 Yoga, Yoga 260, and Yoga 370 laptop thermal management systems. Deployed within compact mobile computing chassis to facilitate heat dissipation from CPU and GPU heat pipe assemblies.
Additional information
| Shipping Weight | 1 kg |
|---|
