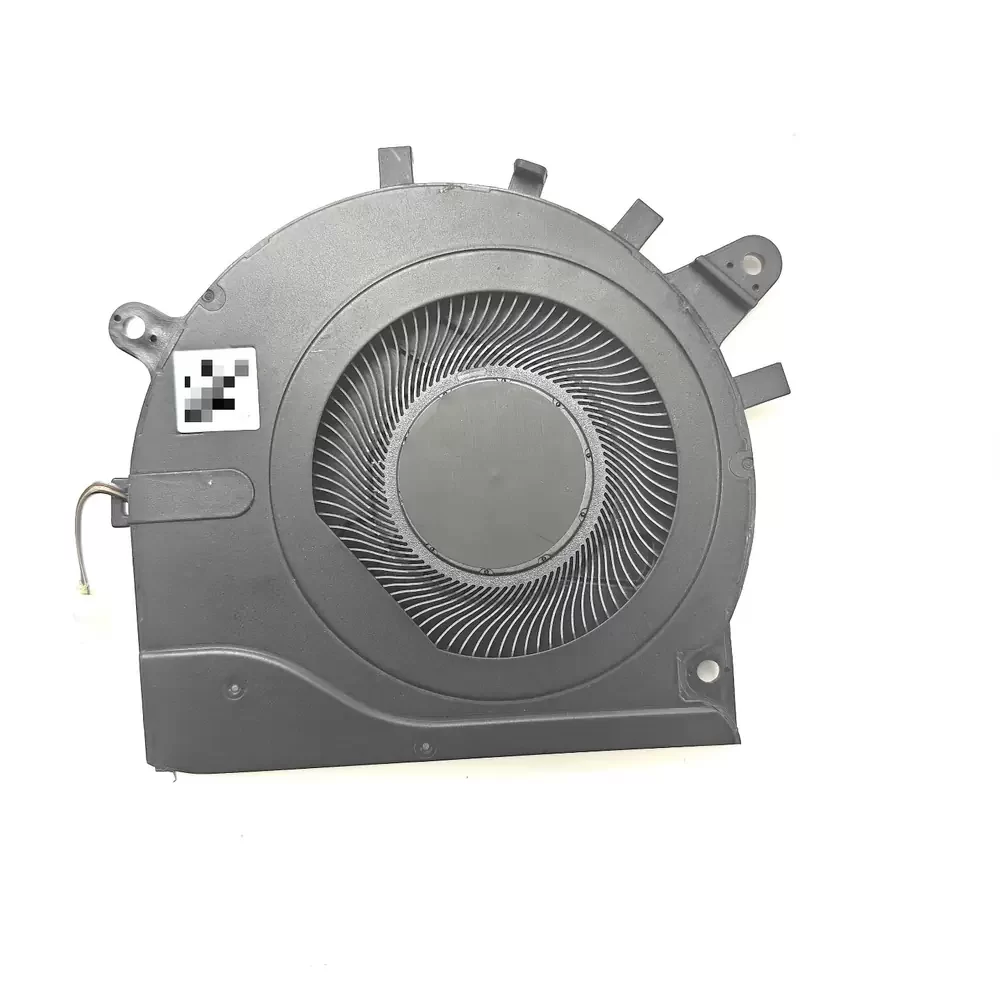

EG50040S1-CX30-S9A SUNON 5VDC 2.50W Laptop Cooling Fan

Description

SUNON EG50040S1-CX30-S9A is a 50 x 50 x 4 mm brushless DC blower fan operating at 5 VDC with a 2.50 W power rating. The unit features a high-performance MagLev bearing system and a 4-pin PWM interface for precise speed modulation. Constructed with a UL 94V-0 rated thermoplastic PBT impeller and frame, the internal motor utilizes a multi-pole design to optimize airflow and static pressure within ultra-thin enclosures.

EG50040S1-CX30-S9A Specifications
Model: EG50040S1-CX30-S9A
Brand: SUNON
Category: DC Brushless Blower Fan
Voltage: 5 VDC
Power Consumption: 2.50 W
Current: 0.50 A
Dimensions: 50 x 50 x 4 mm
Bearing Type: MagLev (Magnetic Levitation)
Connector: 4-pin PWM
Material: Thermoplastic PBT
Flammability Rating: UL 94V-0
Motor Type: Brushless DC
Operating Voltage Range: 3.5 to 5.5 VDC
Signal Output: PWM Speed Control
Rotation: Counter-Clockwise
Life Expectancy: 70,000 Hours at 40 °C

EG50040S1-CX30-S9A Applications
Primary applications include integration into LG 15Z90S series laptop thermal modules and ultra-thin notebook chassis. Deployed within compact mobile computing hardware for active heat dissipation from CPU and GPU heat pipe assemblies.
