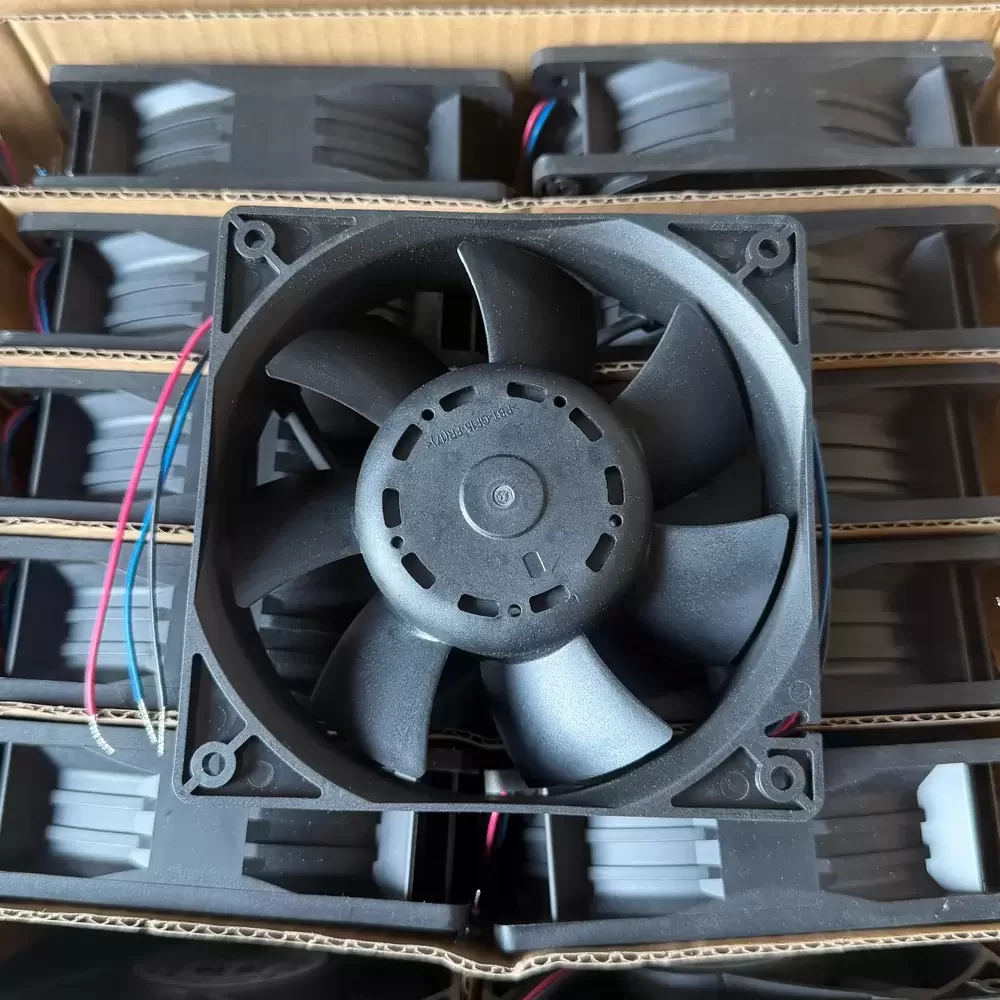

AFB1212EHE-CR00 Delta 12VDC 2.20A 120x120x38mm Axial Fan

Description

Delta AFB1212EHE-CR00 is a 120 x 120 x 38 mm axial fan operating at 12 VDC with a 190.00 CFM airflow rating and 17.78 mmH2O static pressure. The unit features a plastic PBT (UL 94V-0) impeller and frame construction housing a dual ball bearing system. It draws 2.20 A at a rated power of 26.4 W, reaching speeds of 4000 RPM. The electrical interface consists of three lead wires, including a dedicated R00 locked rotor sensor signal output for system monitoring.

AFB1212EHE-CR00 Specifications
Model: AFB1212EHE-CR00
Brand: Delta Electronics
Frame Size: 120 x 120 x 38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.8 VDC
Input Current: 2.20 A
Input Power: 26.4 W
Rated Speed: 4000 RPM
Maximum Air Flow: 190.00 CFM (5.380 m³/min)
Maximum Static Pressure: 17.78 mmH2O (0.700 inH2O)
Acoustical Noise: 59.0 dB-A
Bearing Type: Dual Ball Bearing
Material: Plastic (UL 94V-0)
Lead Wires: UL 1007 AWG #24
Signal Output: R00 (Locked Rotor Sensor)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 330 g
Safety Approvals: UL, TUV, CE

AFB1212EHE-CR00 Applications
Primary applications include integration into high-density server enclosures, telecommunications rack cooling systems, and industrial power supply thermal management units. Deployed within network switches and high-performance computing workstations requiring high static pressure for airflow through dense internal components.
