Description

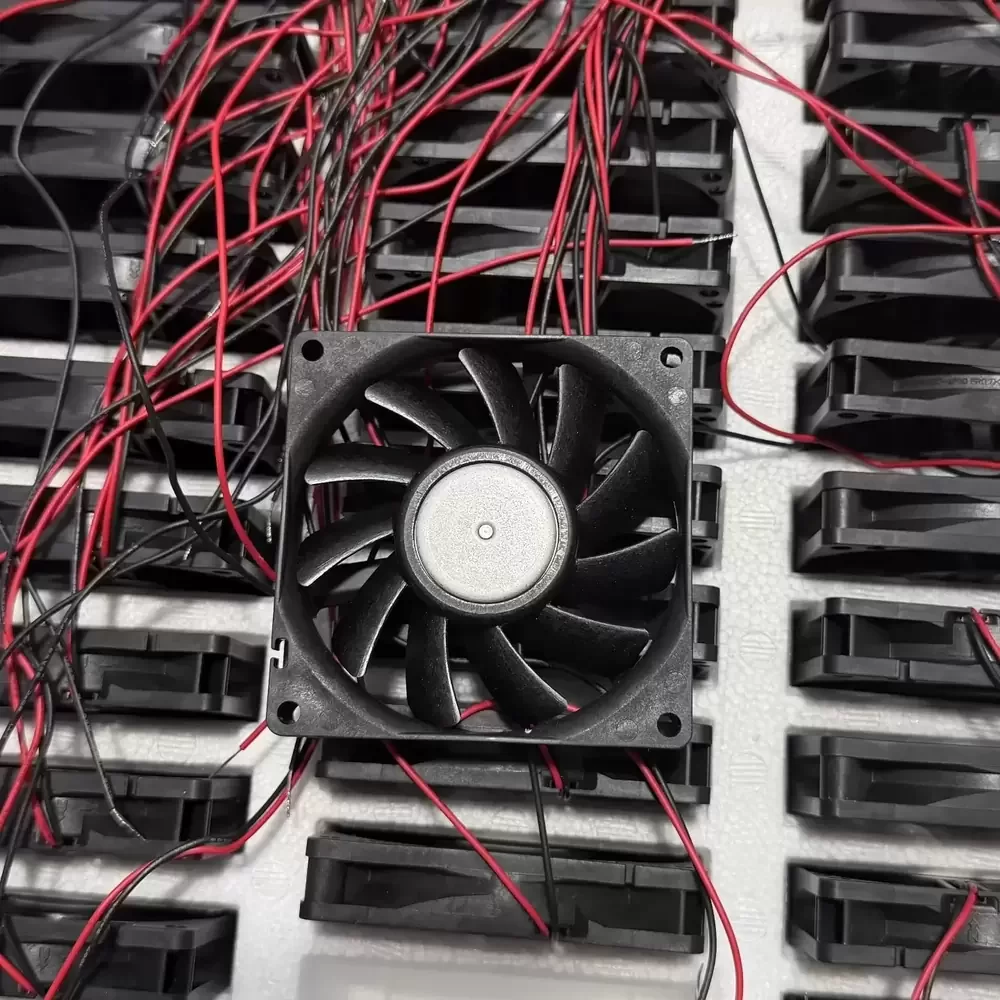

Sanyo Denki 109P0824H702 is an 80 x 80 x 15 mm DC axial fan operating at a nominal 24 VDC while delivering a maximum airflow of 32.1 CFM (0.899 m³/min). Engineered with a durable double ball bearing system and a lightweight plastic frame, this tubeaxial cooling component operates at 3100 RPM and generates a low acoustic noise profile of 31.0 dB(A). The unit features a standard 2-wire lead interface for direct power integration and is designed for continuous, high-reliability thermal management in constrained spaces.
109P0824H702 Specifications
Model Number: 109P0824H702
Brand: Sanyo Denki
Series: San Ace 80
Product Category: DC Axial Fan / Tubeaxial
Nominal Voltage: 24 VDC
Rated Current: 0.1 A
Dimensions: 80 x 80 x 15 mm
Maximum Airflow: 32.1 CFM (0.899 m³/min / 54.6 m³/h)
Rated Speed: 3100 RPM
Acoustic Noise: 31.0 dB(A)
Bearing Type: Double Ball Bearing
Termination: 2-Wire Leads
Frame Material: Plastic
Impeller Material: Plastic
Status: Obsolete (Replacement: 9GA0824H7002)
109P0824H702 Applications
Primary applications include integration into industrial control panels, CNC spindle cooling systems, and telecommunications base stations. Deployed within automated test equipment and power supply enclosures, this fan ensures rigorous thermal regulation for sensitive electronic components.
Additional information
| Shipping Weight | 1 kg |
|---|
