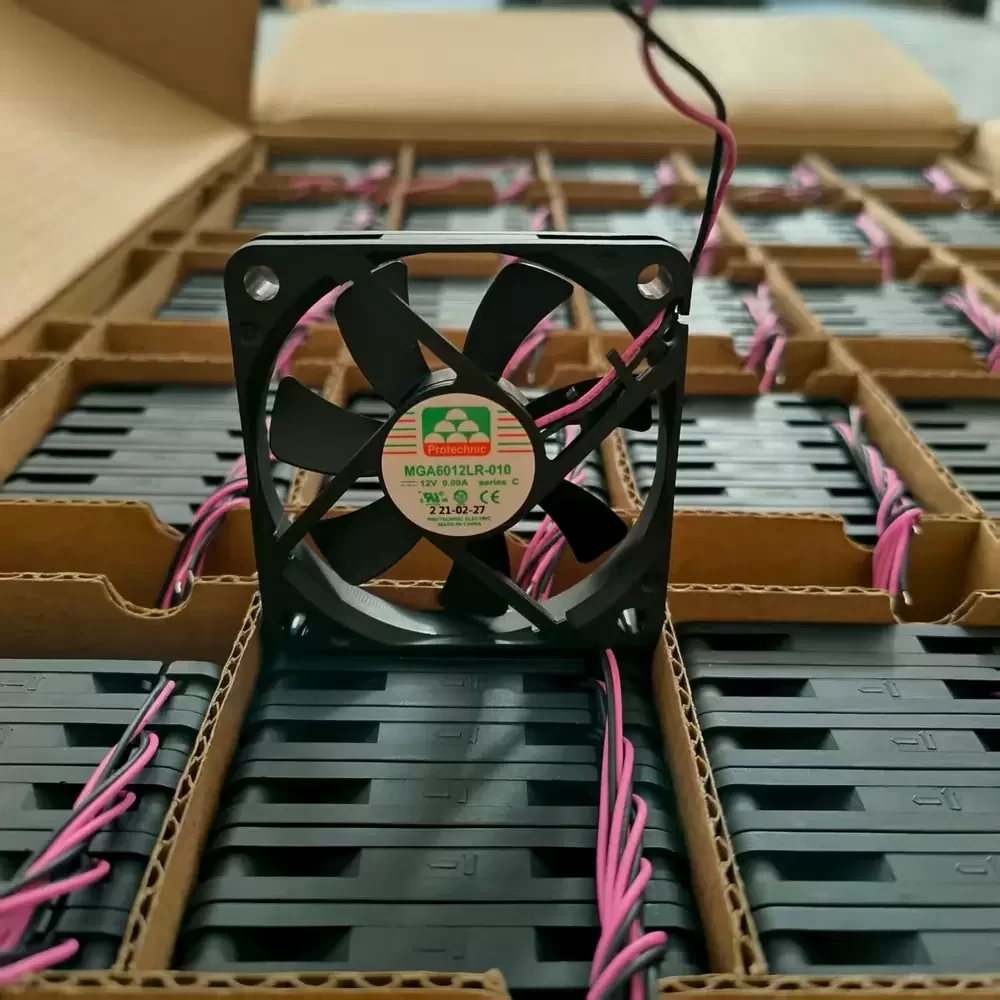

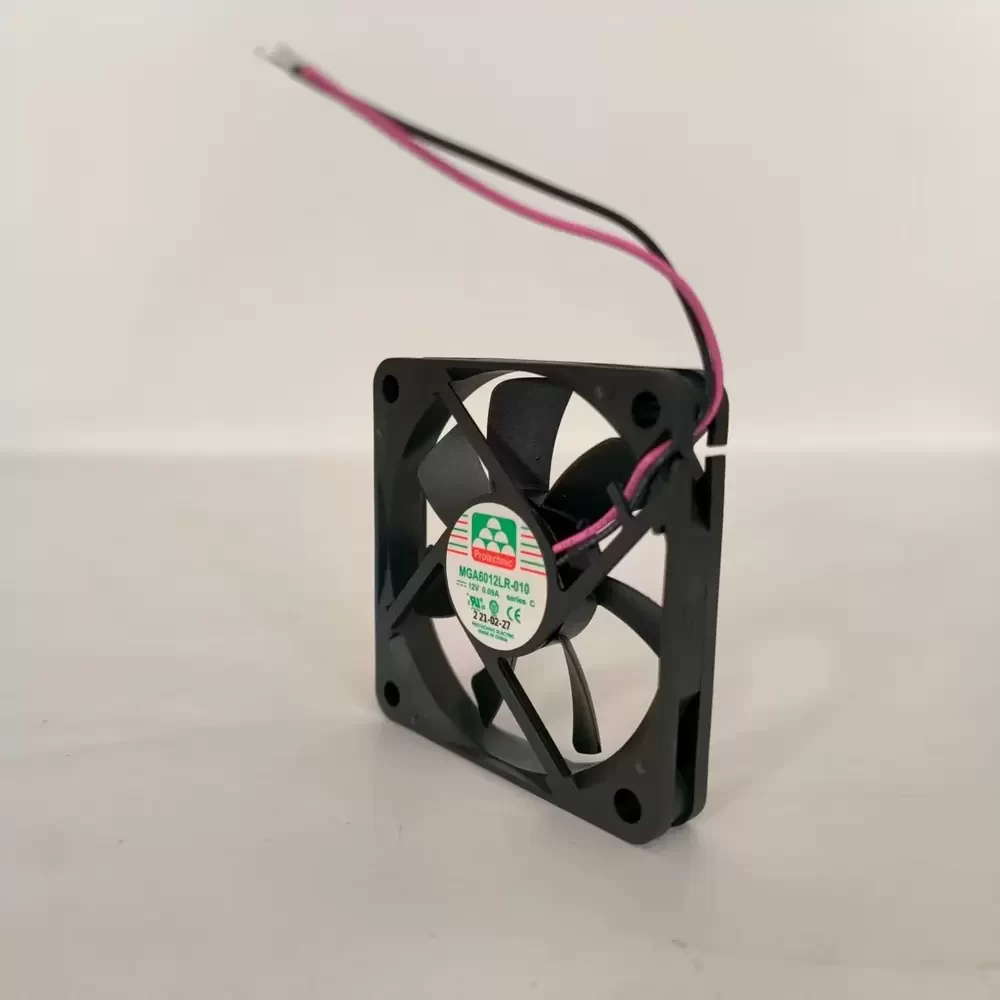

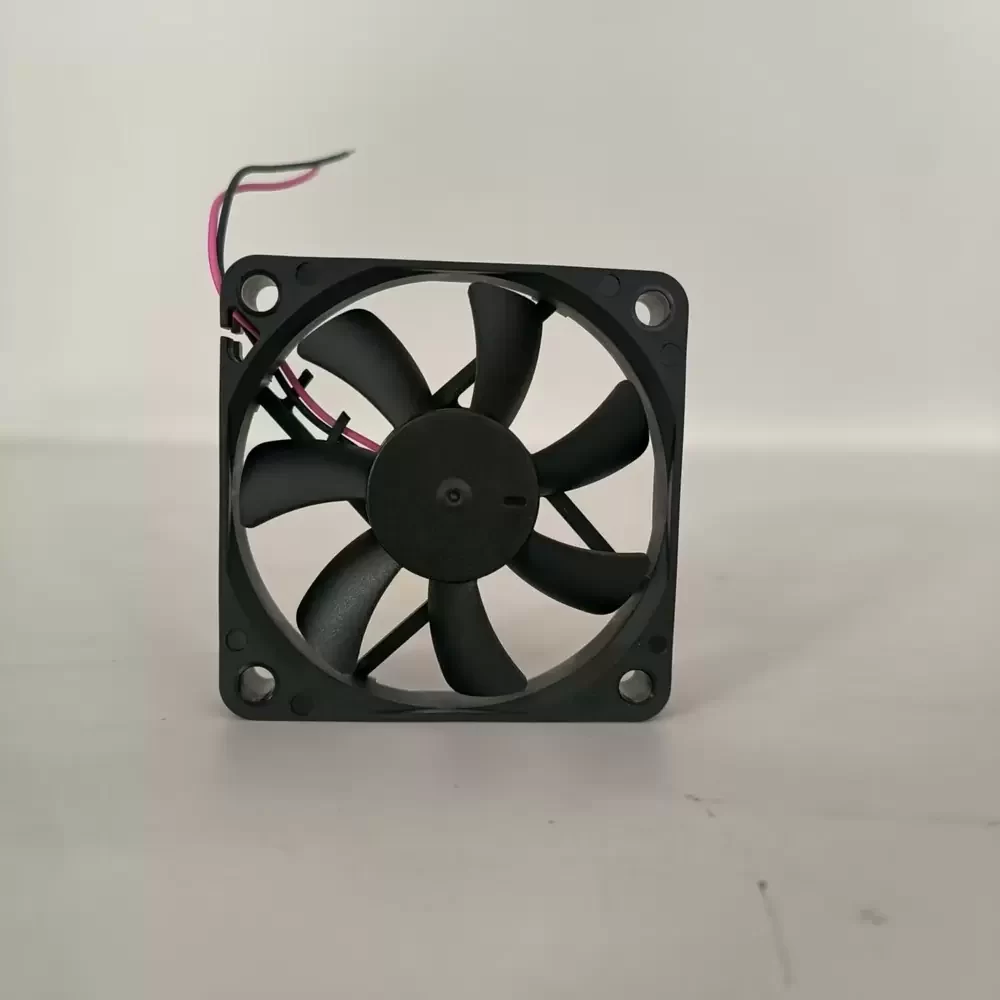

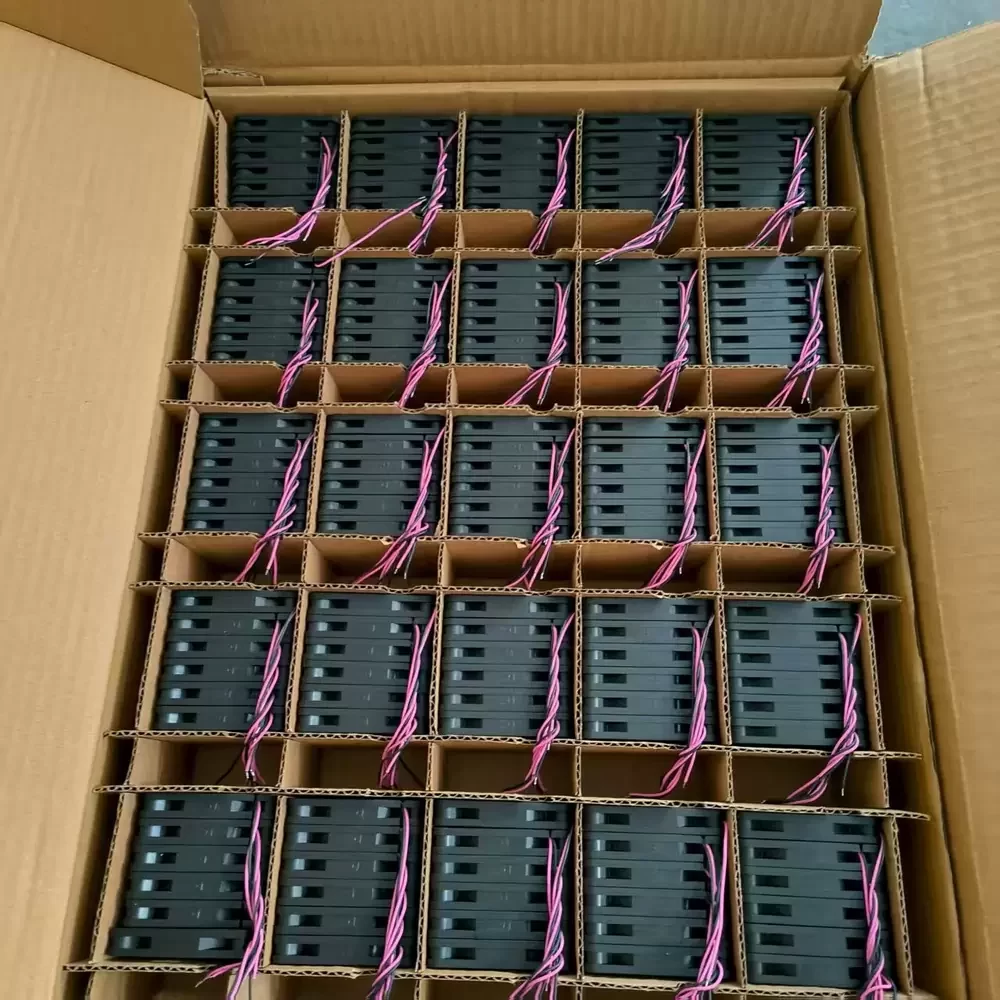

MGA6012LR-O10C Protechnic 12VDC 60x60x10mm DC Axial Fan

Description

Protechnic MGA6012LR-O10C is a 60 x 60 x 10 mm, 12 VDC, 11.75 CFM DC axial fan engineered with a PBT UL94V-0 plastic frame and impeller. This unit utilizes a rifle bearing mechanism to ensure a 40,000-hour operational lifespan at temperatures ranging from -10 °C to 70 °C. The hardware interfaces via a standard 2-wire lead configuration and integrates internal circuitry for automatic restart, locked rotor, and reverse polarity protection.

MGA6012LR-O10C Specifications
Model Number: MGA6012LR-O10C
Brand: Protechnic (Yongli)
Product Category: DC Axial Cooling Fan
Dimensions: 60 x 60 x 10 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 VDC to 13.8 VDC
Input Current: 0.09 A
Input Power: 1.08 W
Rated Speed: 3000 RPM
Maximum Airflow: 11.75 CFM (0.3327 CMM)
Static Pressure: 1.37 mmAq (0.054 inchAq)
Noise Level: 18.0 dBA
Bearing System: Rifle Bearing
Frame Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Termination: 2-Wire Leads (Red +, Black -)
Wire Length: 300 mm
Weight: 30 g
Operating Temperature: -10 °C to 70 °C
Expected Life (L10): 40,000 hours
Motor Protection: Auto-Restart, Locked Rotor, Reverse Polarity
Safety Approvals: UL, TUV, CE

MGA6012LR-O10C Applications
Primary applications include integration into industrial power supplies, compact chassis enclosures, and automated control panels requiring active thermal management. Deployed within telecommunications equipment, CNC machinery control boxes, and specialized electronic instrumentation where space-constrained cooling is mandatory.
