Description

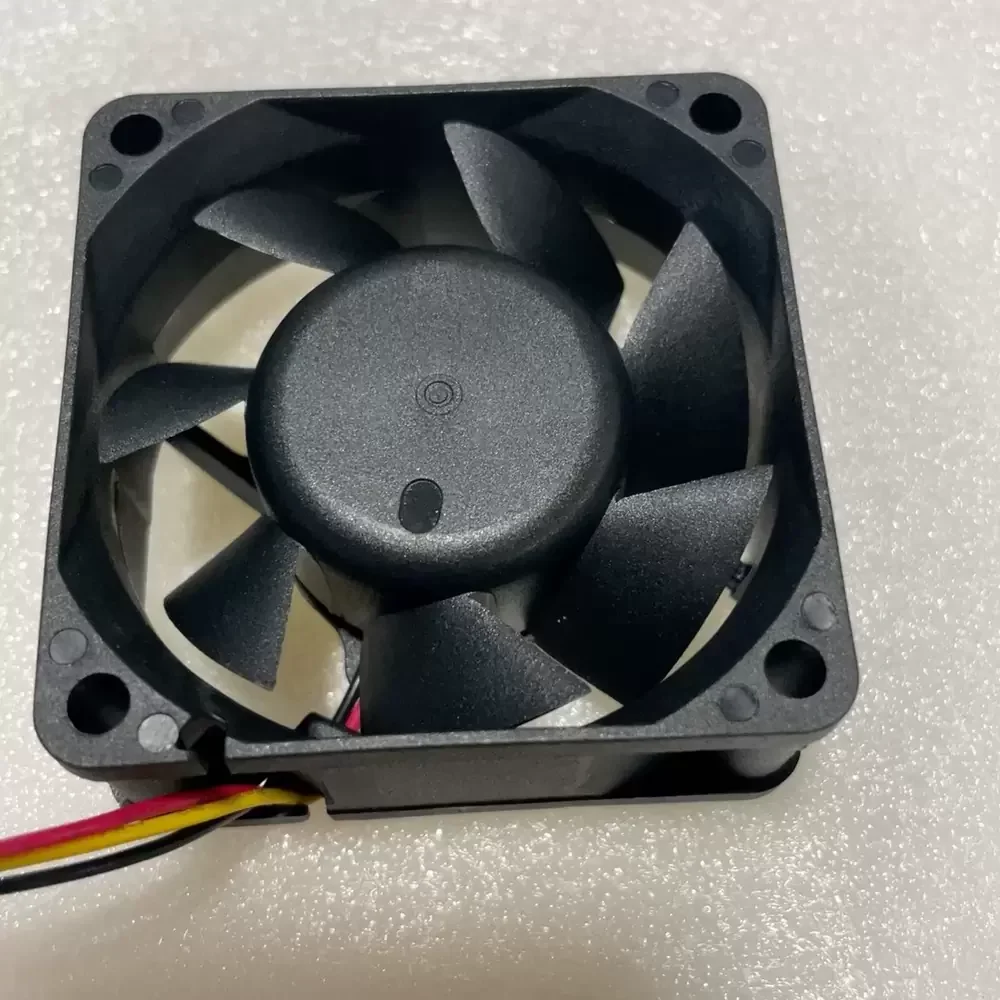

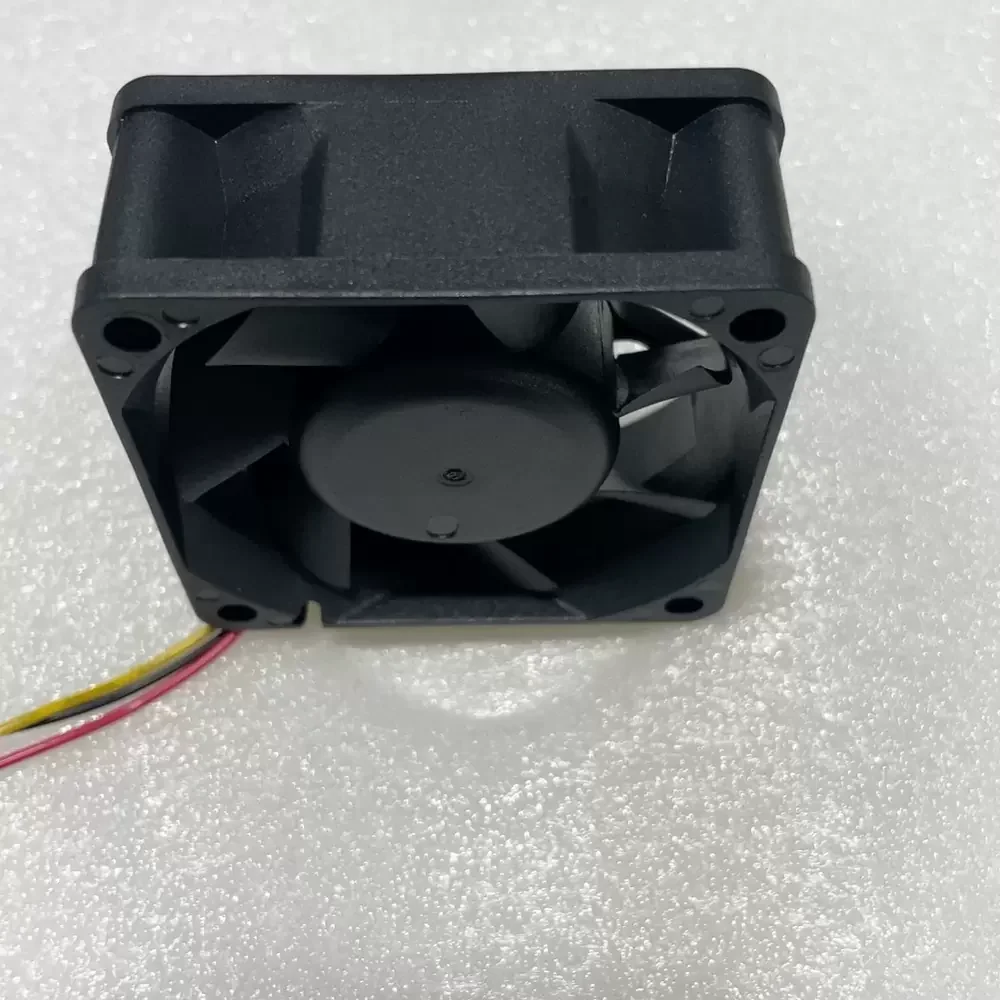

The NMB-MAT 2410ML-05W-B69-C15 is a precision-engineered DC axial fan designed for critical thermal management in industrial environments. Manufactured by MinebeaMitsumi, this unit utilizes advanced dual ball bearing technology to minimize friction and extend operational lifespan under continuous load. The aerodynamic impeller design optimizes airflow while maintaining structural rigidity, effectively reducing thermal impedance in high-density electronic enclosures. Its brushless DC motor architecture ensures stable torque delivery and energy efficiency, making it a robust solution for demanding cooling applications requiring consistent static pressure and volumetric flow.
Model Number: 2410ML-05W-B69-C15
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.17 A
Input Power: 4.08 W
Rated Speed: 5300 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 25.0 CFM (0.71 m³/min)
Max. Static Pressure: 7.3 mmH₂O (71.5 Pa / 0.29 inH₂O)
Dimensions: 60 x 60 x 25 mm
Weight: 65 g
Life Expectancy: 60,000 Hours @ 25°C
Noise Level: 36.0 dBA

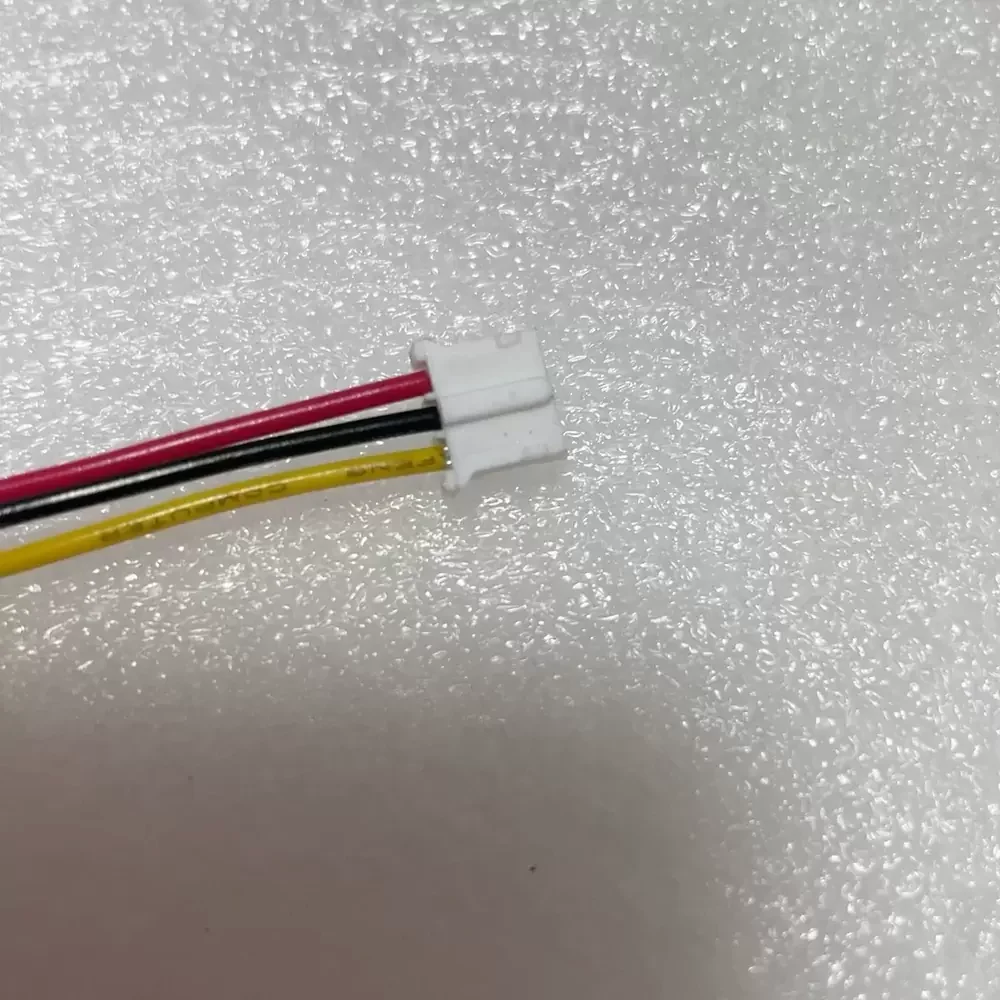

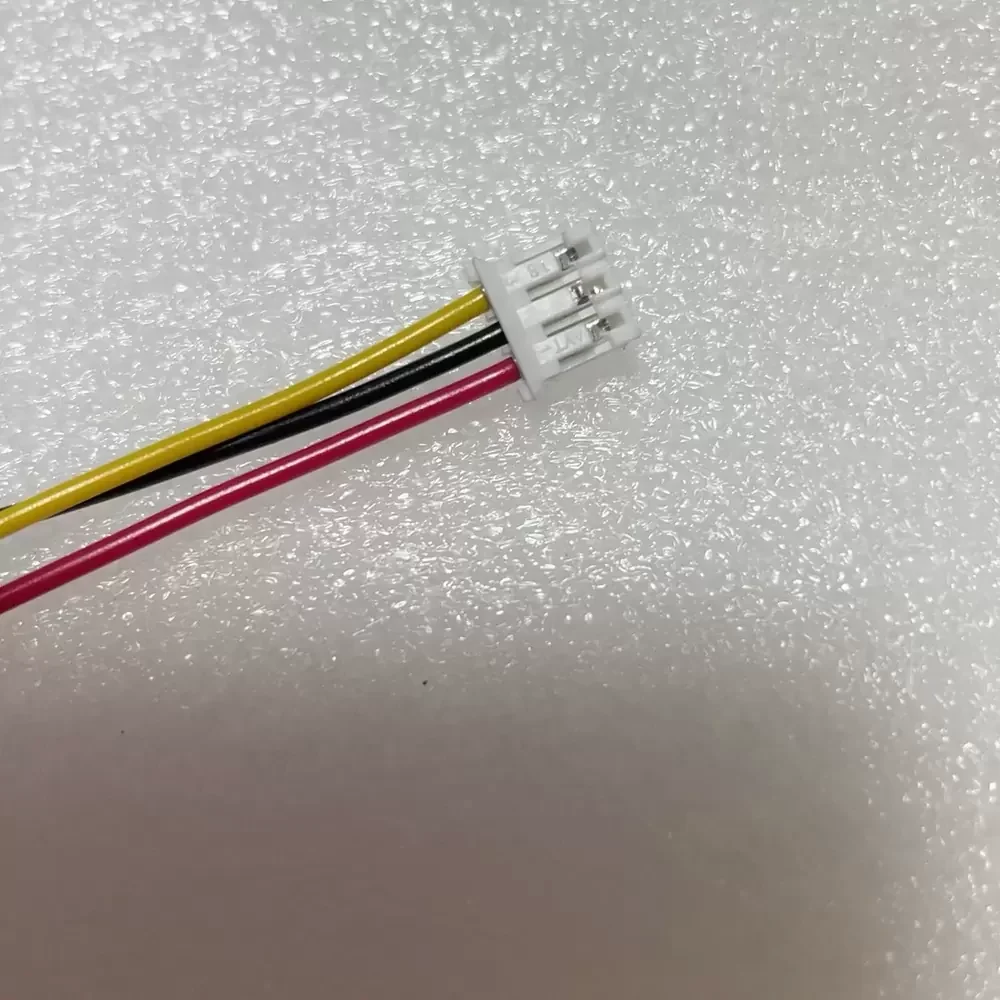

Termination: 3-Wire Lead
Sensor Output: Tachometer / Signal
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection: Locked Rotor Protection, Polarity Protection
Mounting Orientation: Any
The 2410ML-05W-B69-C15 is specifically engineered for high-reliability applications such as variable frequency drive (VFD) inverters and industrial automation control panels. Its compact form factor allows for seamless integration into server rack power supplies, telecommunications equipment, and medical instrumentation where space is constrained but thermal load is high. The 2410ML-05W-B69-C15 provides consistent airflow to dissipate heat from sensitive semiconductors, ensuring system stability in CNC machinery and network switchgear environments.
