Description

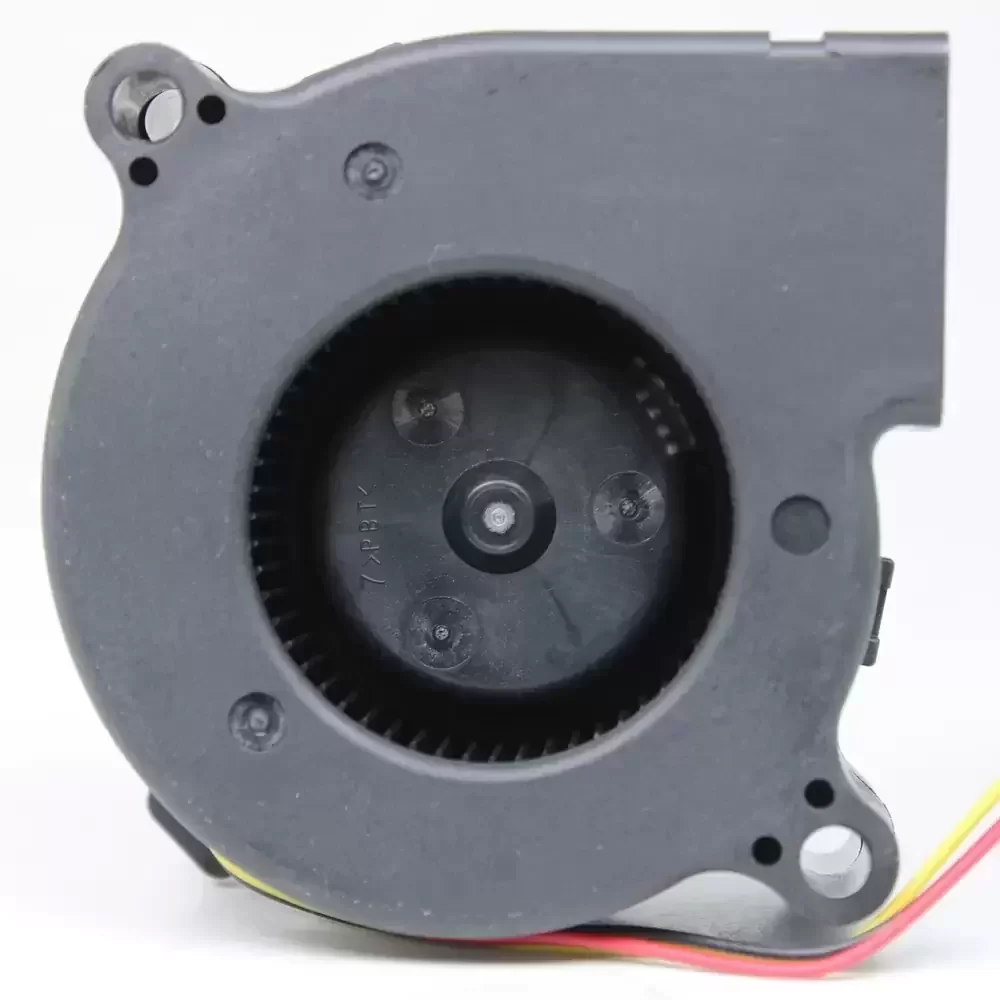

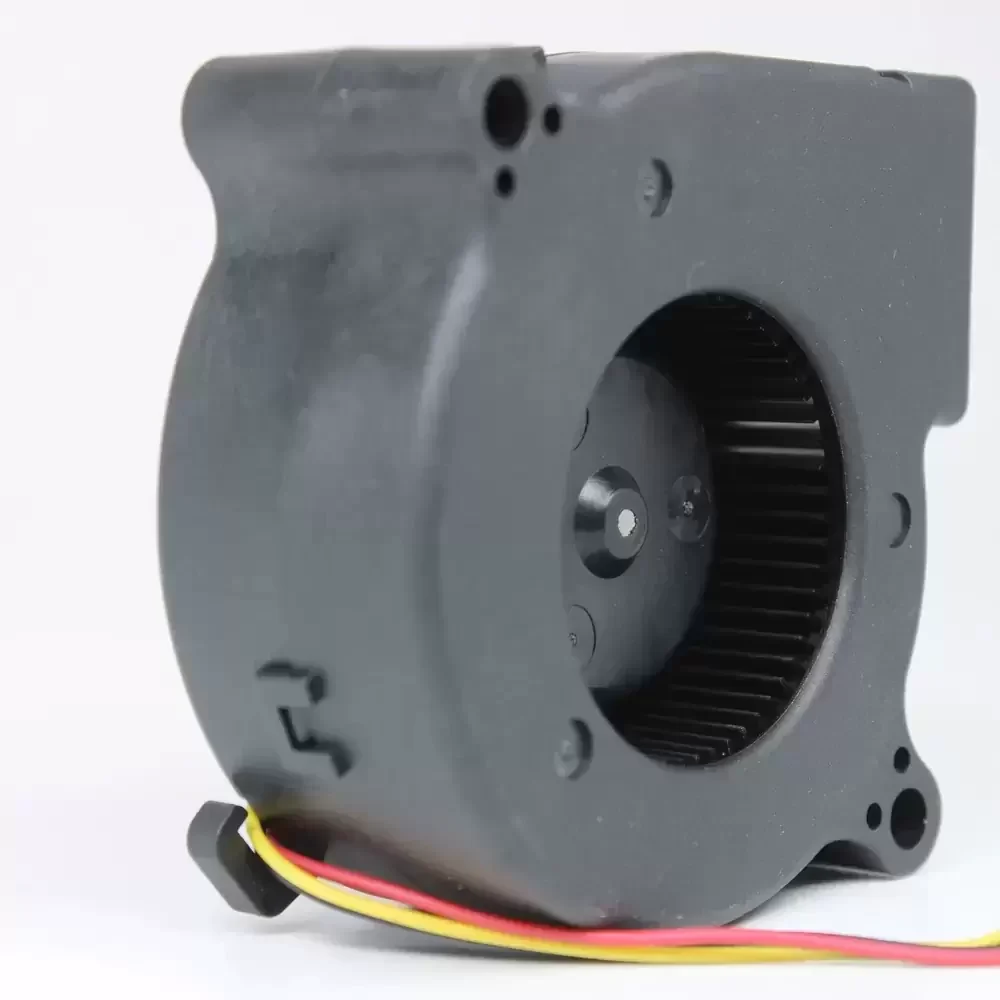

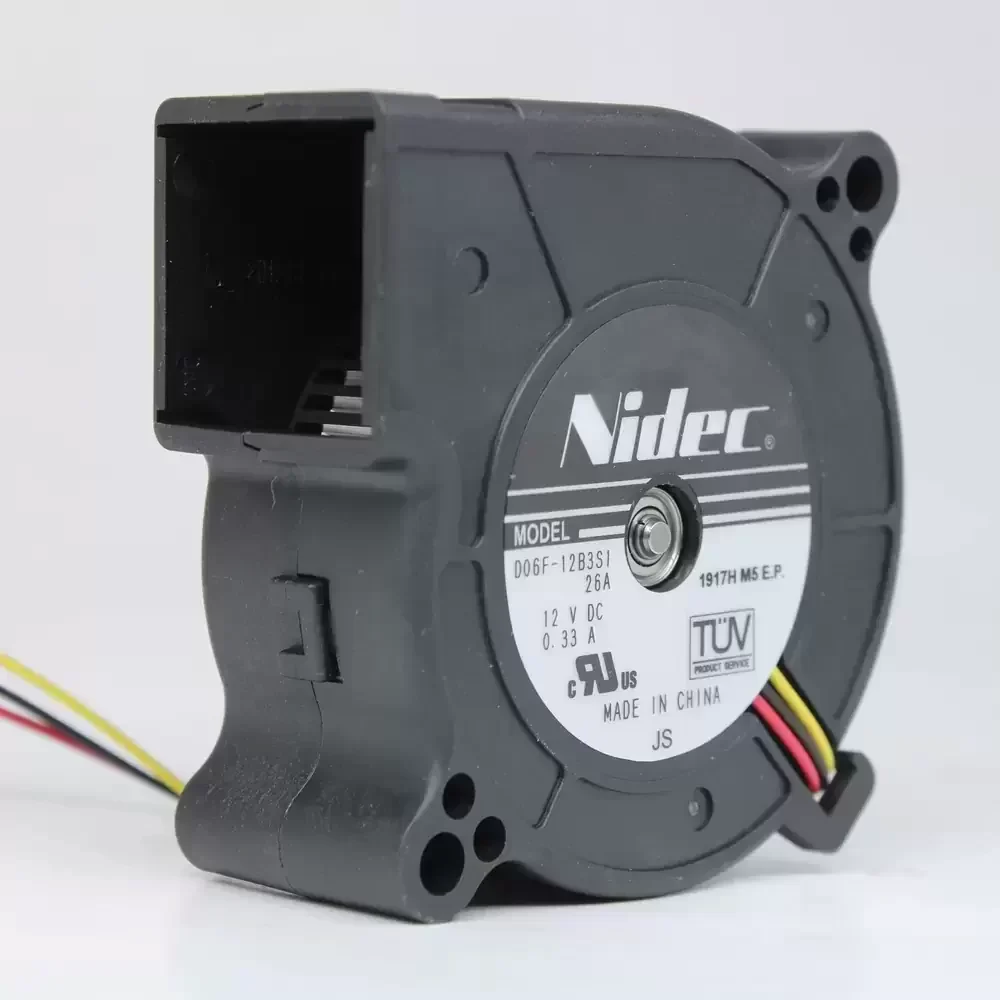

The Nidec D06F-12B3S1 is a Centrifugal Blower engineered for high-static pressure applications requiring concentrated airflow in restricted spaces. Utilizing Nidec’s advanced motor technology, this unit features a precision-balanced impeller housed within a structurally rigid scroll casing, designed to minimize turbulence and optimize aerodynamic efficiency. The blower operates on a 12VDC platform with a robust bearing architecture that ensures long-term reliability and reduced thermal impedance under continuous load. Its compact form factor allows for integration into high-density electronic assemblies, providing superior thermal management through directed air columns.
Model Number: D06F-12B3S1
Brand: Nidec
Product Type: Centrifugal Blower
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.33 A
Input Power: 3.96 W
Rated Speed: 4200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 12.5 CFM (21.2 m³/h / 0.35 m³/min)
Max. Static Pressure: 14.5 mmH₂O (142.2 Pa / 0.57 inH₂O)
Dimensions: 60 x 60 x 25 mm
Noise Level: 38.0 dB(A)
Termination: 3-Wire (Lead Wire)
Signal Output: Tachometer (RPM Sensor)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Safety Protection: Locked Rotor Protection, Polarity Protection
Weight: 65 g
The D06F-12B3S1 is specifically designed for applications where space is at a premium but high pressure is required to overcome system resistance. Common implementations include cooling for projectors, 3D printer extruders, and compact server chassis where the D06F-12B3S1 can effectively force air through dense heatsinks. Additionally, this blower is utilized in telecommunications equipment and industrial automation control panels, where the reliability of the D06F-12B3S1 ensures consistent thermal regulation for critical components.
