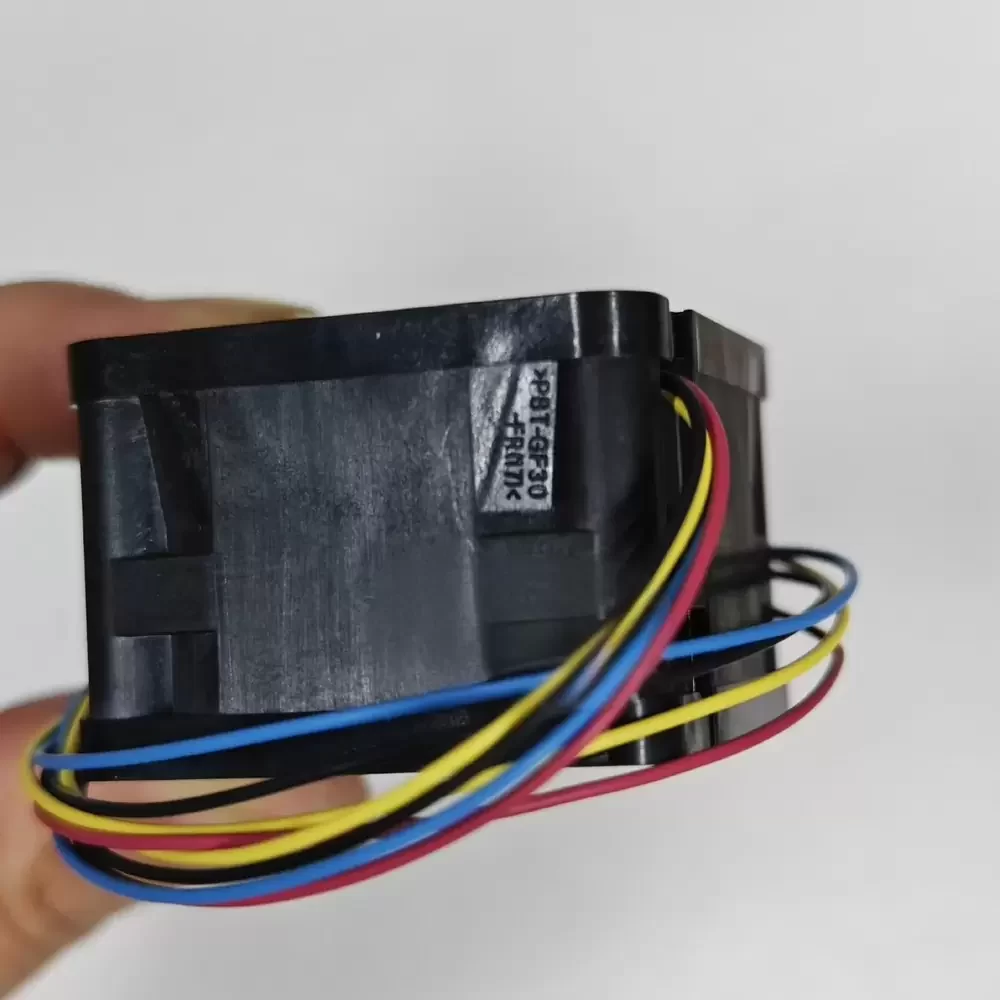

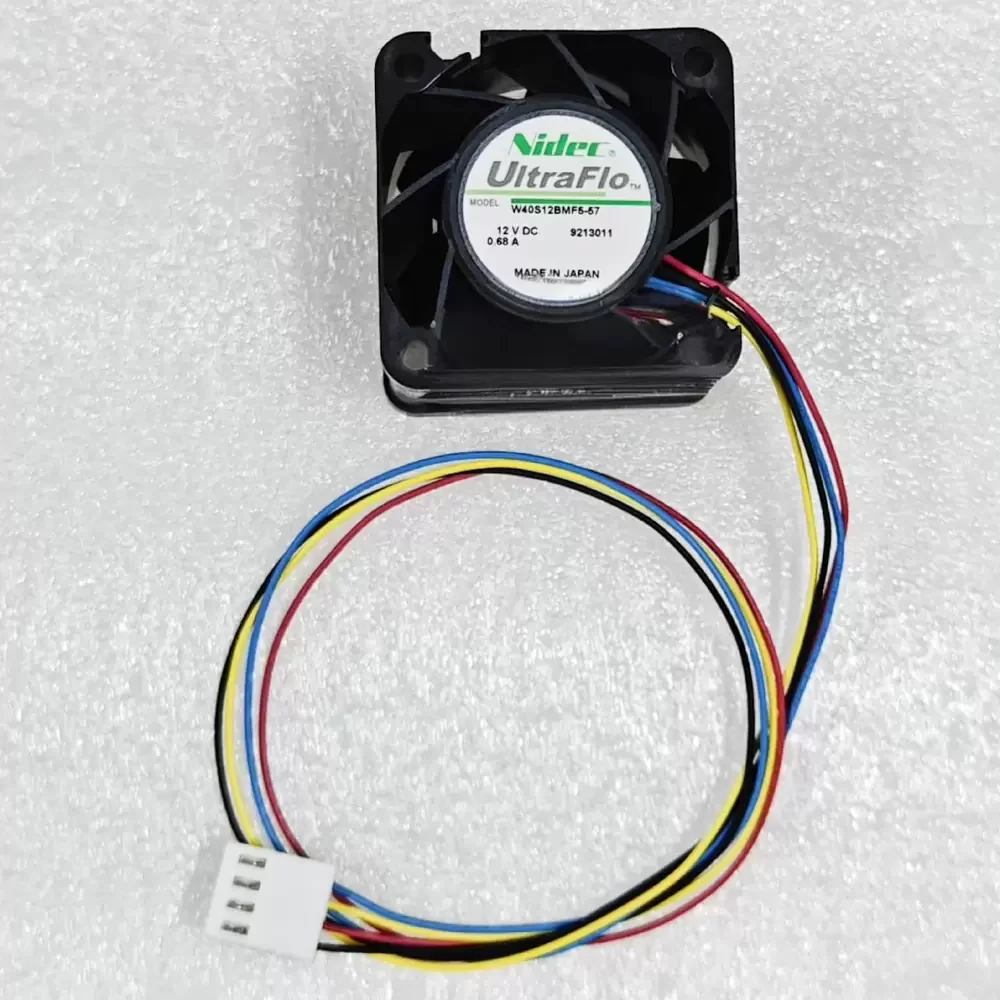

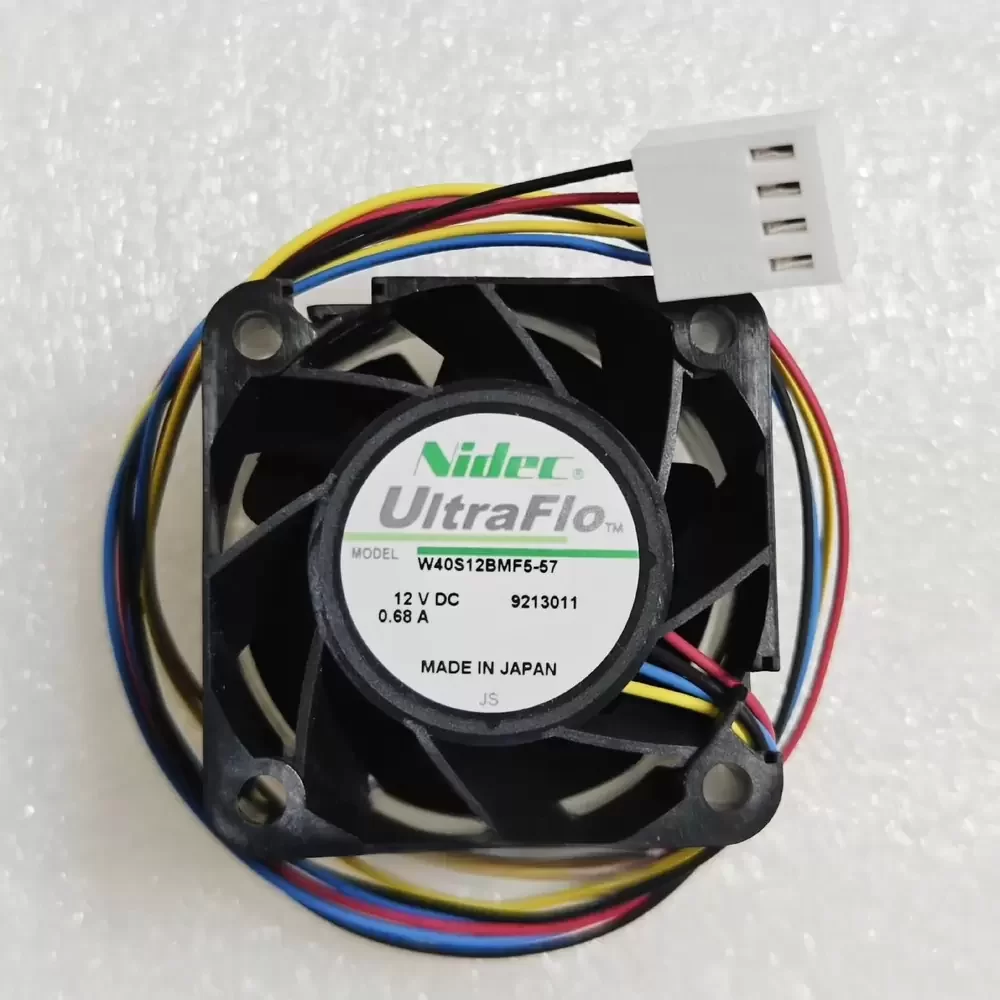

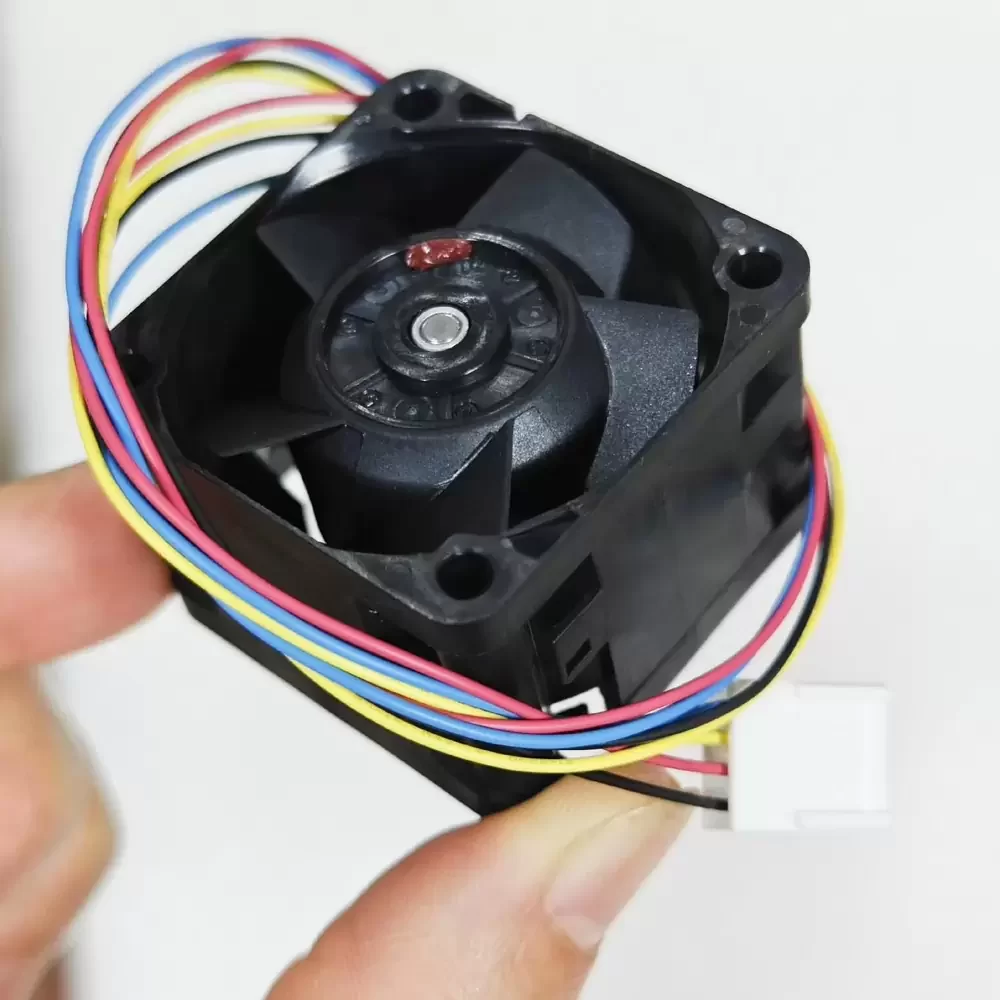

W40S12BMF5-57 Nidec 12VDC 0.68A 40x40x28mm Server Fan

Description

The Nidec W40S12BMF5-57 is a compact 40 mm x 40 mm x 28 mm DC brushless axial fan operating at a nominal 12 VDC and drawing 0.68 A to achieve a maximum rotational speed of 18300 RPM. Engineered with a high-power motor and an optimized wind tunnel design, this unit delivers enhanced pressure characteristics for long-distance wind supply. The internal architecture features a highly durable dual ball bearing mechanism, ensuring extended operational longevity and stable performance under continuous load. Interfacing is facilitated through a standard 4-wire termination, allowing for precise PWM speed control and tachometer signal output, while generating an acoustic noise level of 43 dBA during peak operation.

W40S12BMF5-57 Specifications
Manufacturer: Nidec
Model Number: W40S12BMF5-57
Product Category: DC Brushless Axial Fan
Dimensions: 40 mm x 40 mm x 28 mm
Nominal Voltage: 12 VDC
Nominal Current: 0.68 A
Maximum Speed: 18300 RPM
Acoustic Noise: 43 dBA
Bearing Type: Dual Ball Bearing
Termination: 4-Wire
Control Method: PWM Speed Control
Output Signal: Tachometer
Motor Type: High-Power Brushless DC
Country of Origin: Japan

W40S12BMF5-57 Applications
Primary applications include integration into 1 U server power supplies, high-density telecommunications routing equipment, and compact industrial control panels requiring forced convection cooling. Deployed within CNC spindle drive enclosures and automated test equipment, the fan provides targeted thermal management for densely packed electronic components operating under continuous thermal loads.
