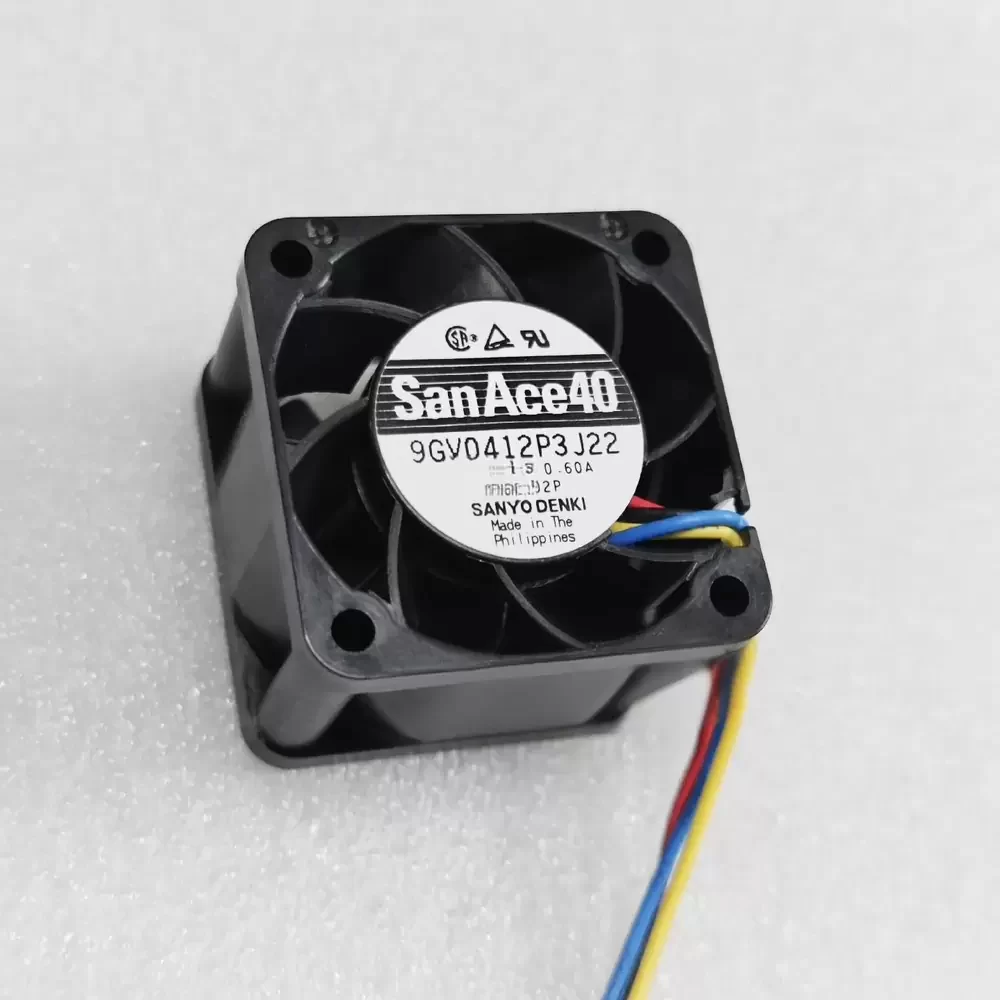

9GV0412P3J22 Sanyo Denki 12VDC 0.60A 40x40x28mm Axial Fan

Description

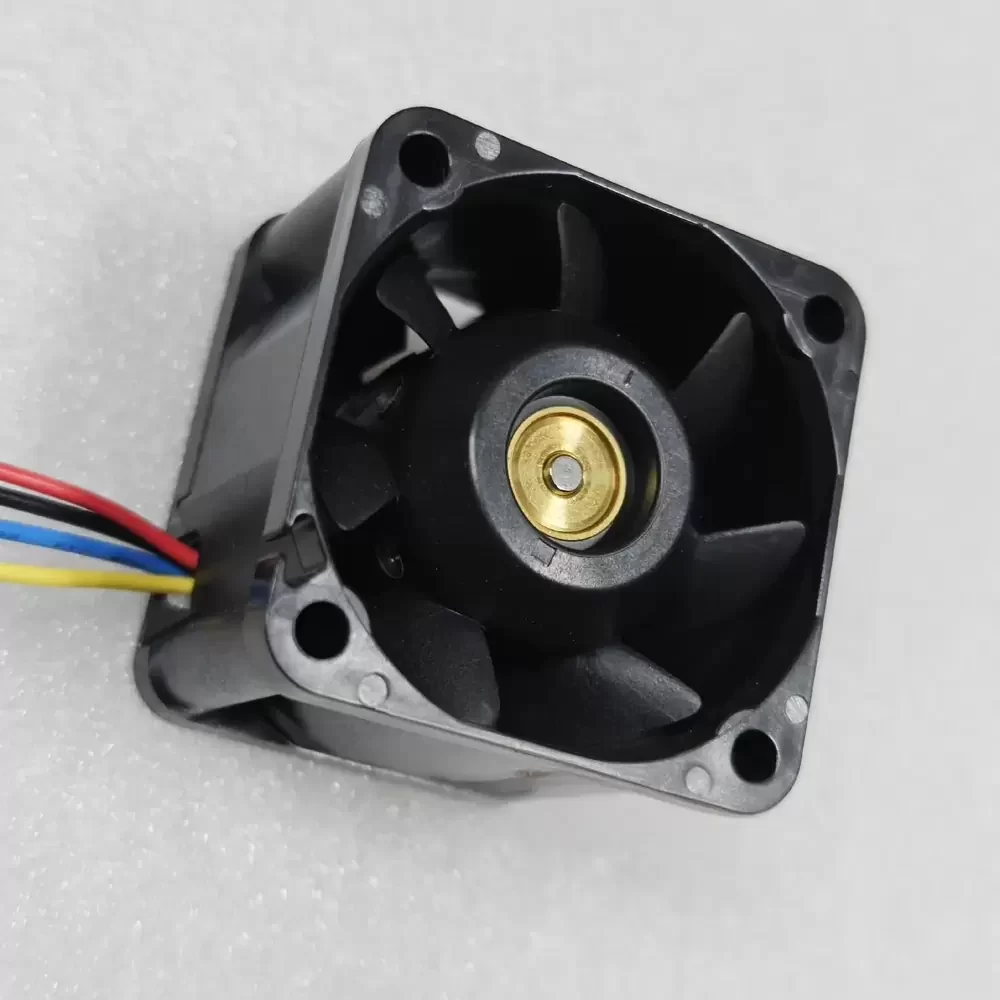

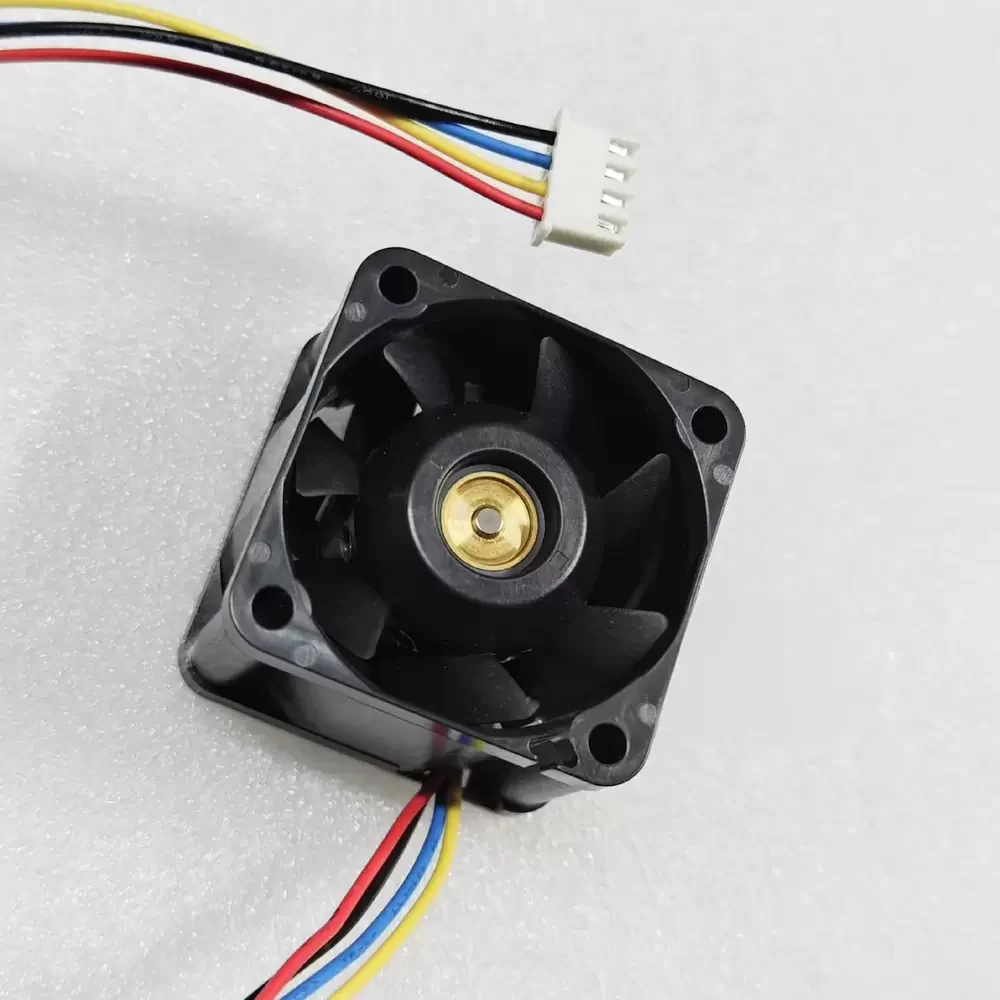

Sanyo Denki 9GV0412P3J22 is a high-performance 40 x 40 x 28 mm axial fan operating at a nominal 12 VDC with a 0.60 A current rating. This Guide Vane (GV) type fan features a dual ball bearing system and a 4-wire interface supporting PWM speed control. The internal structure utilizes a plastic frame and impeller (UL 94V-0) designed to optimize airflow and static pressure through integrated stationary vanes that straighten the air discharge.

9GV0412P3J22 Specifications
Model: 9GV0412P3J22
Brand: Sanyo Denki
Category: DC Axial Fan

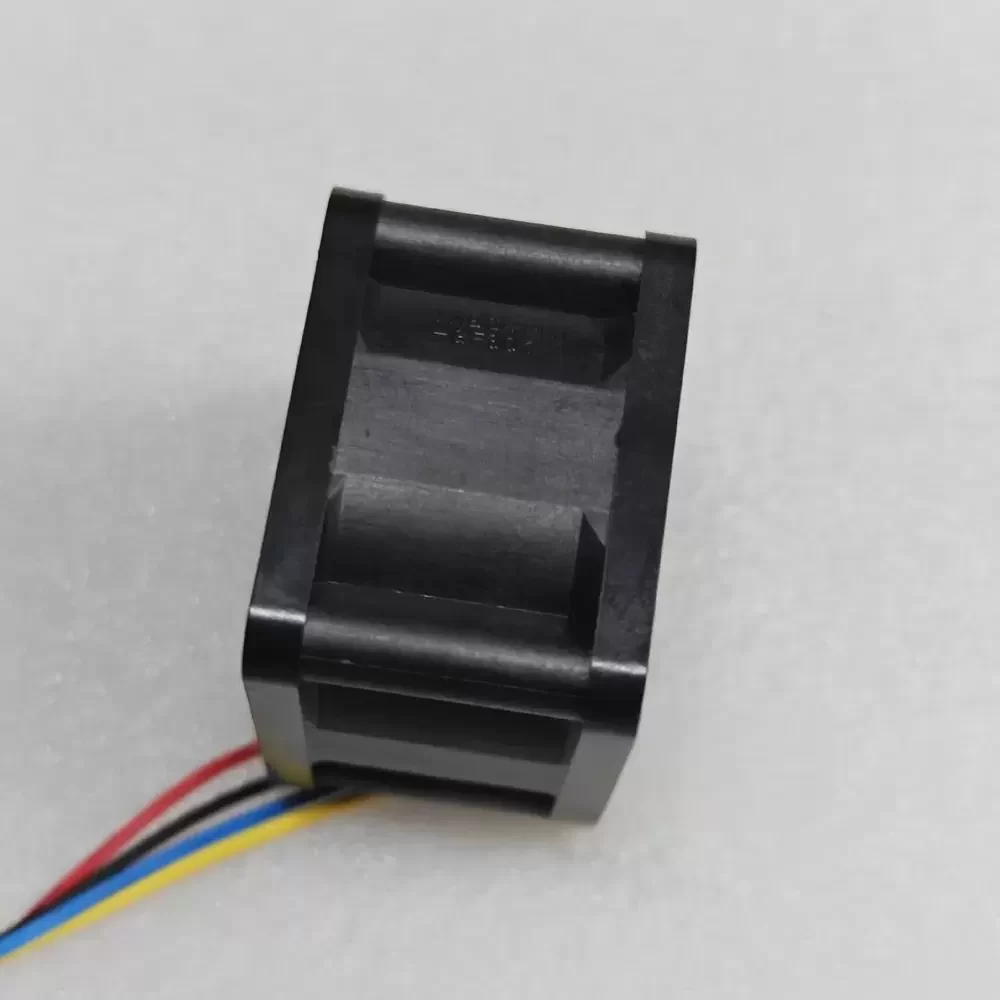

Frame Size: 40 x 40 x 28 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.8 VDC
Rated Current: 0.60 A
Rated Input: 7.2 W
Rated Speed: 14 700 RPM
Max Airflow: 0.64 m3/min (22.6 CFM)
Max Static Pressure: 330 Pa (1.32 inchH2O)
Sound Pressure Level: 52 dB(A)
Bearing Type: Dual Ball Bearing

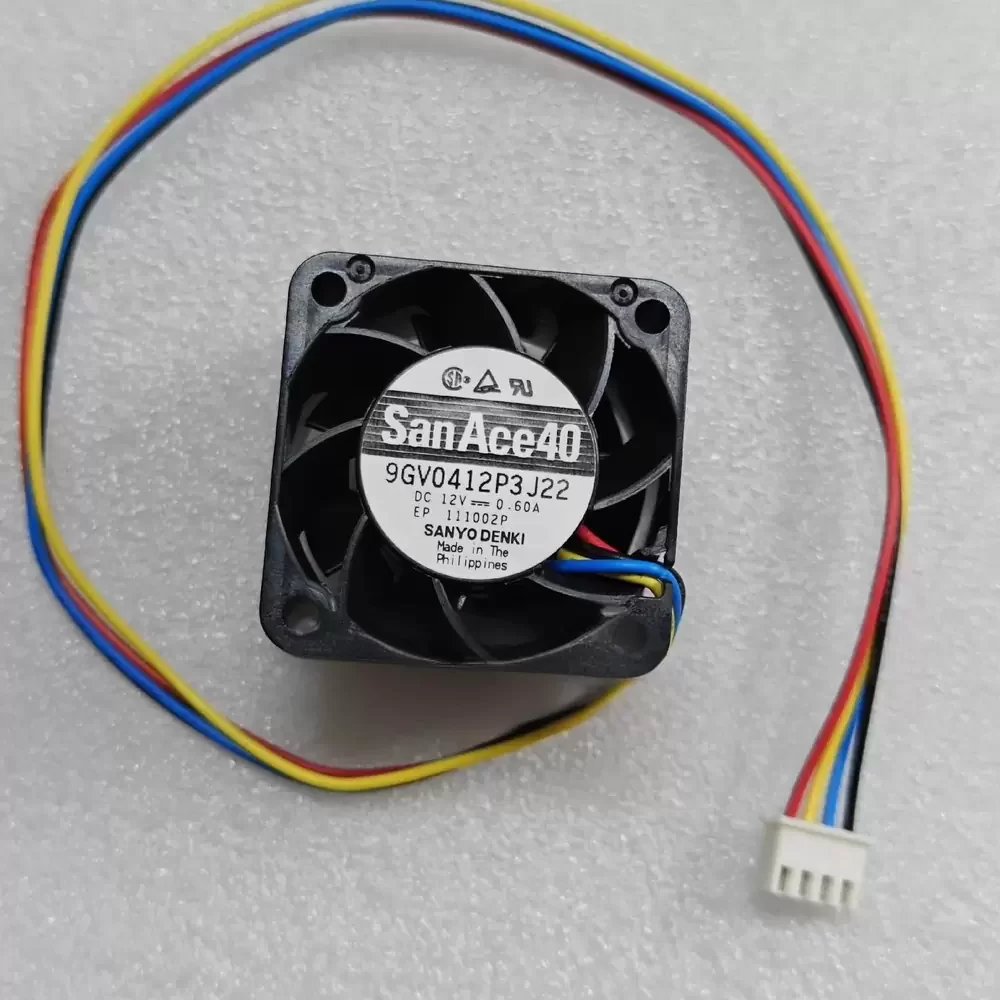

Interface: 4-wire (Red: +, Black: -, Yellow: Sensor, Brown: PWM)
Control Type: PWM Speed Control
Operating Temperature: -20 to +70 °C
Storage Temperature: -30 to +70 °C
Expected Life: 40 000 hours at 60 °C
Mass: 65 g
Material: Plastic Frame and Impeller (UL 94V-0)
Safety Certifications: UL, CSA, TUV, RoHS

9GV0412P3J22 Applications
Primary applications include integration into 1U rack-mount servers, high-density telecommunications switching equipment, and compact power supply units. Deployed within network routers and industrial control cabinets where high back-pressure cooling is required for tightly packed electronic components.
