MGA12024HB-O38 Protechnic 24VDC 120x120x38mm Axial Fan

Description

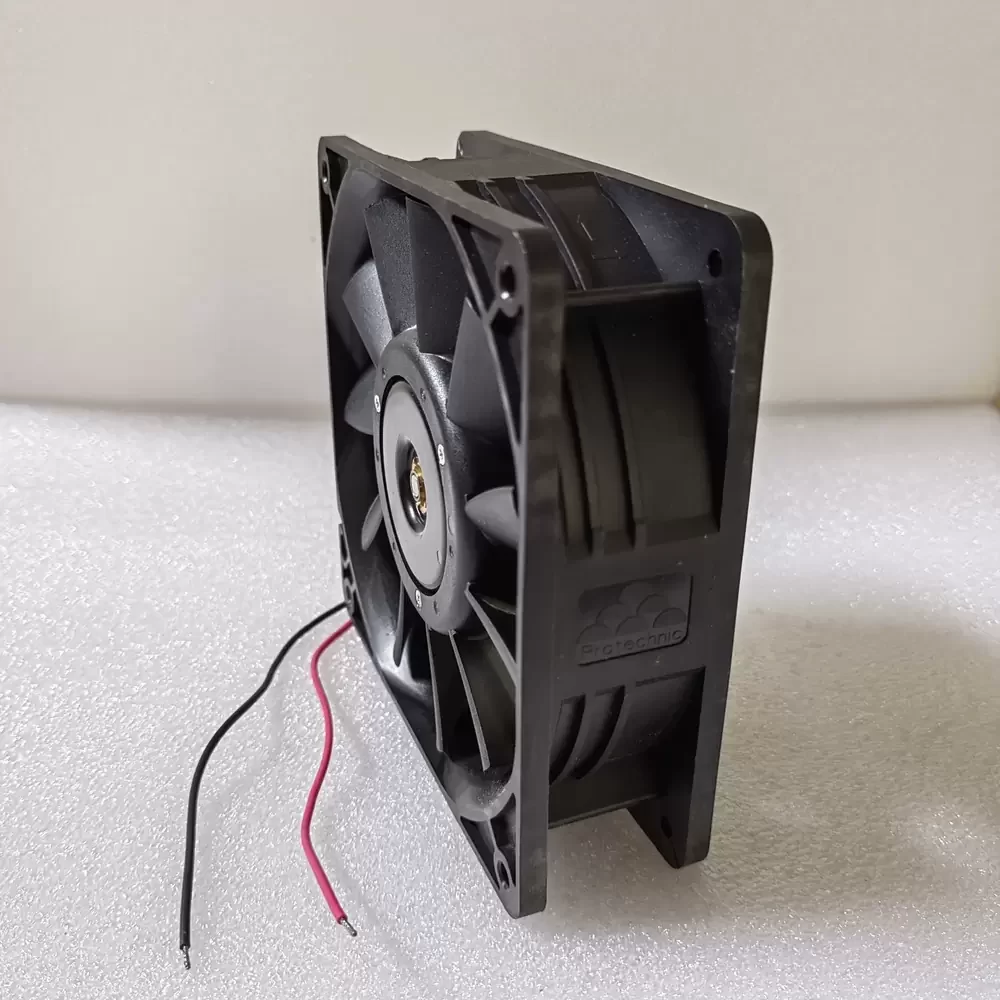

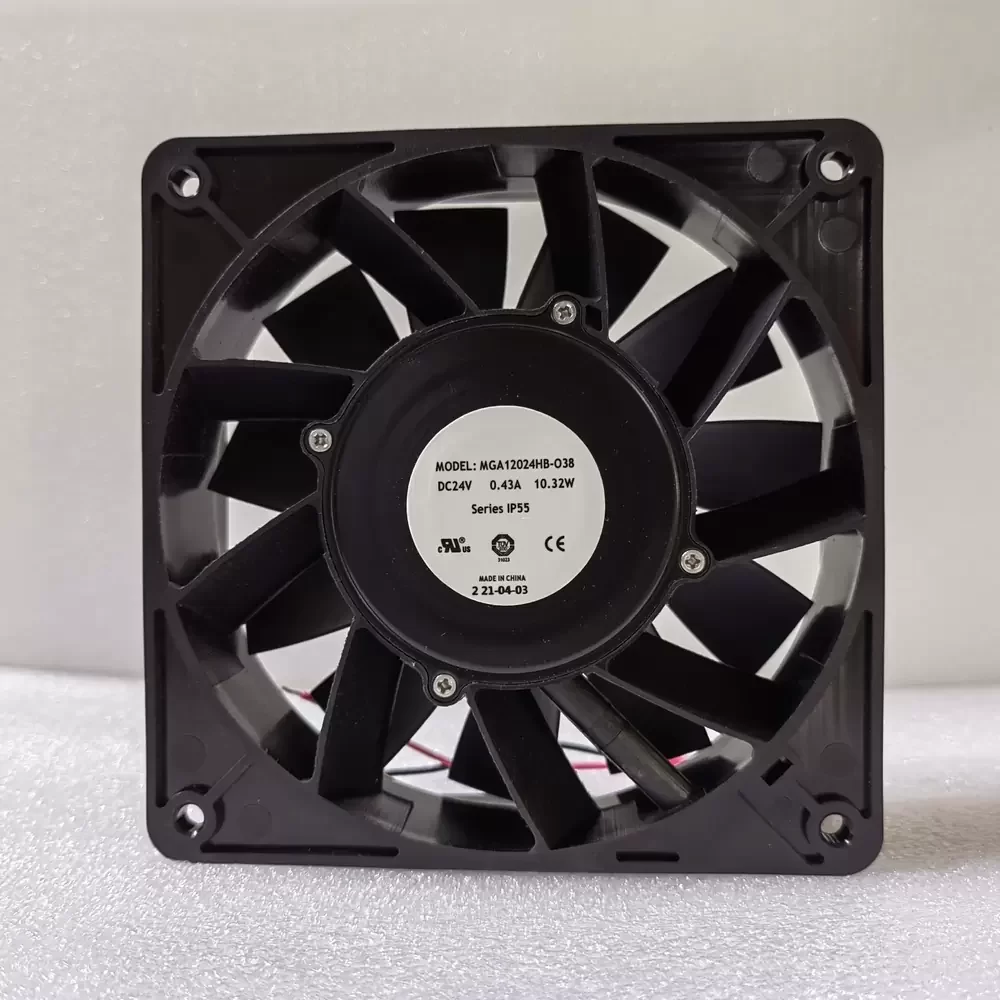

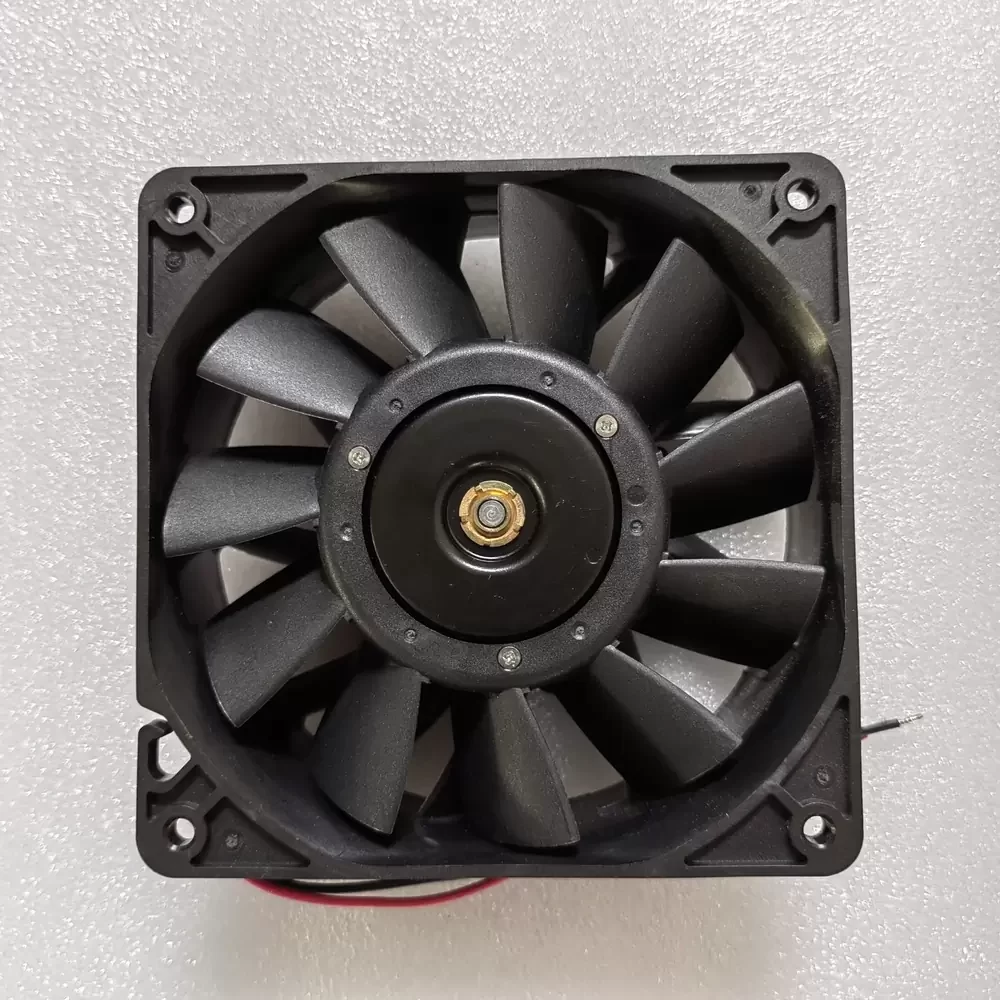

Protechnic MGA12024HB-O38 is a 120 x 120 x 38 mm axial cooling fan operating at 24 VDC with a 10.32 W power rating. The unit features a dual ball bearing system and a PBT plastic housing and impeller rated to UL 94V-0 flammability standards. It utilizes a brushless DC motor design with an IP 55 ingress protection rating for resistance against dust and water jets. The mechanical interface consists of a standard square frame with four mounting holes and discrete lead wire terminations for electrical connection.

MGA12024HB-O38 Specifications
Model: MGA12024HB-O38
Brand: Protechnic Electric
Product Category: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 0.43 A
Rated Power: 10.32 W
Rated Speed: 3100 RPM
Maximum Airflow: 130.5 CFM
Static Pressure: 0.45 in-H2O
Noise Level: 48.5 dBA
Bearing Type: Dual Ball Bearing
Ingress Protection: IP 55
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Termination: 2-Wire Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Insulation Resistance: 10M Ohm at 500 VDC
Dielectric Strength: 5 mA Max at 500 VAC for 1 minute
Weight: 330 g

MGA12024HB-O38 Applications
Primary applications include integration into industrial control cabinets, server rack enclosures, and high-capacity power supply units. Deployed within CNC machine tool cooling systems, telecommunications base stations, and uninterruptible power supply (UPS) thermal management modules.
