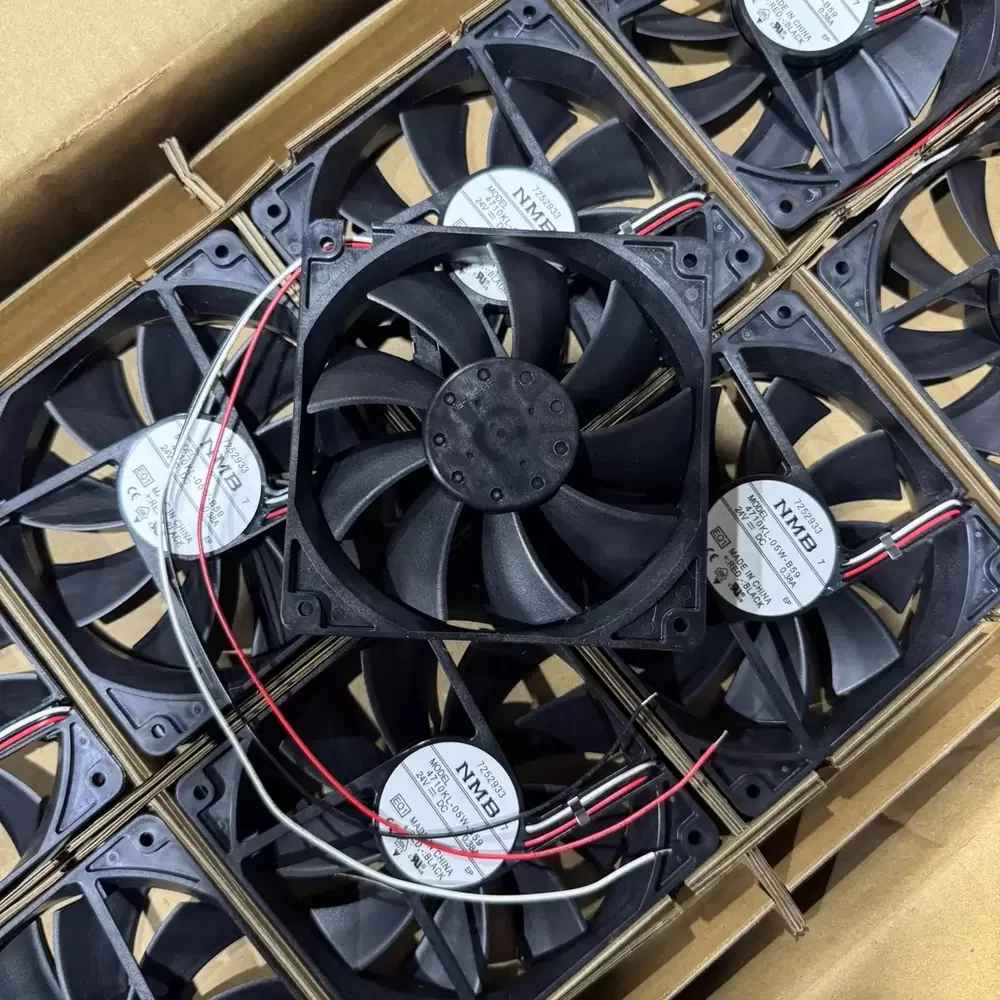

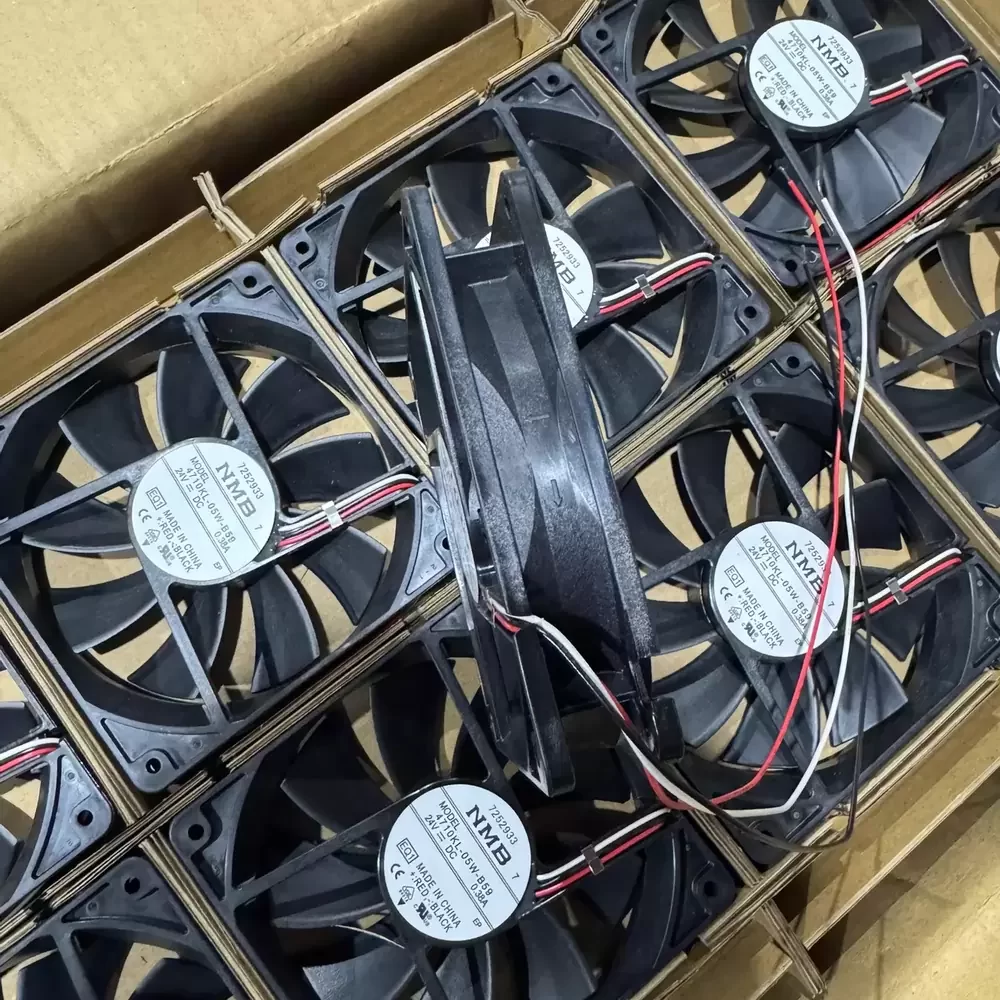

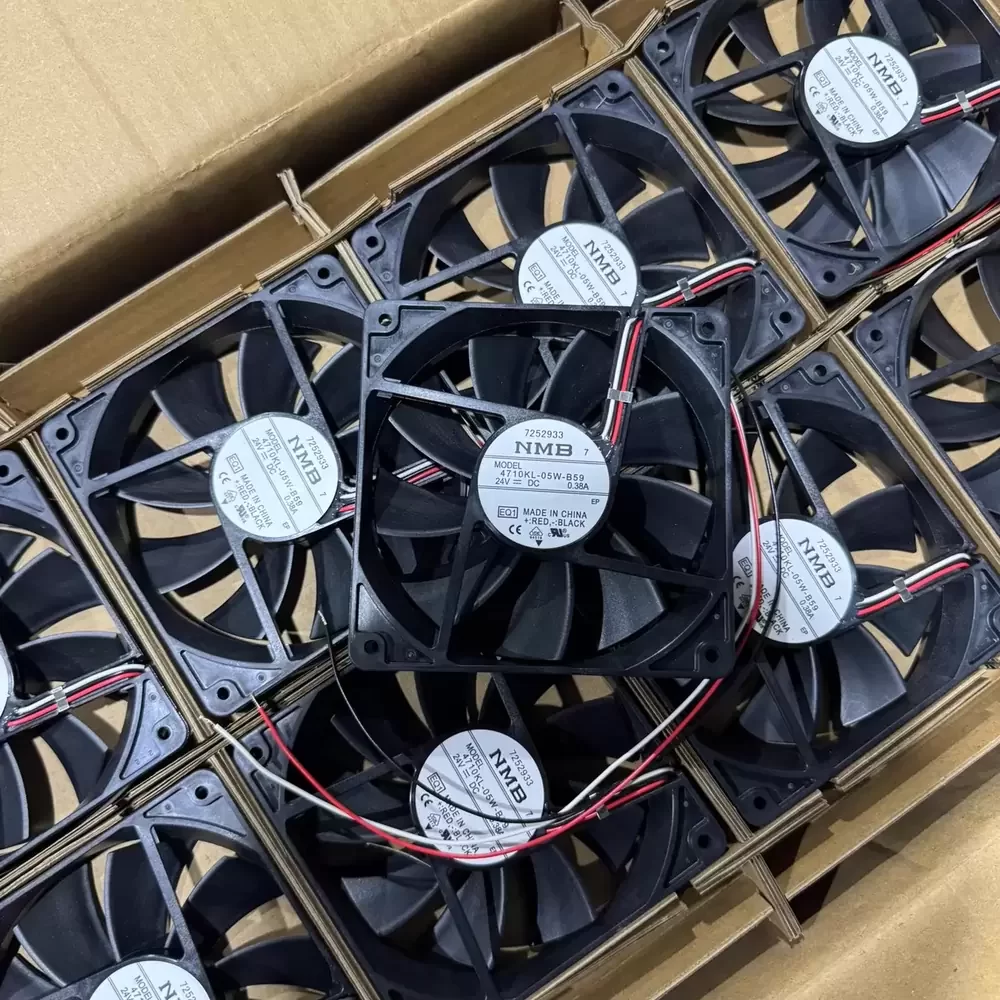

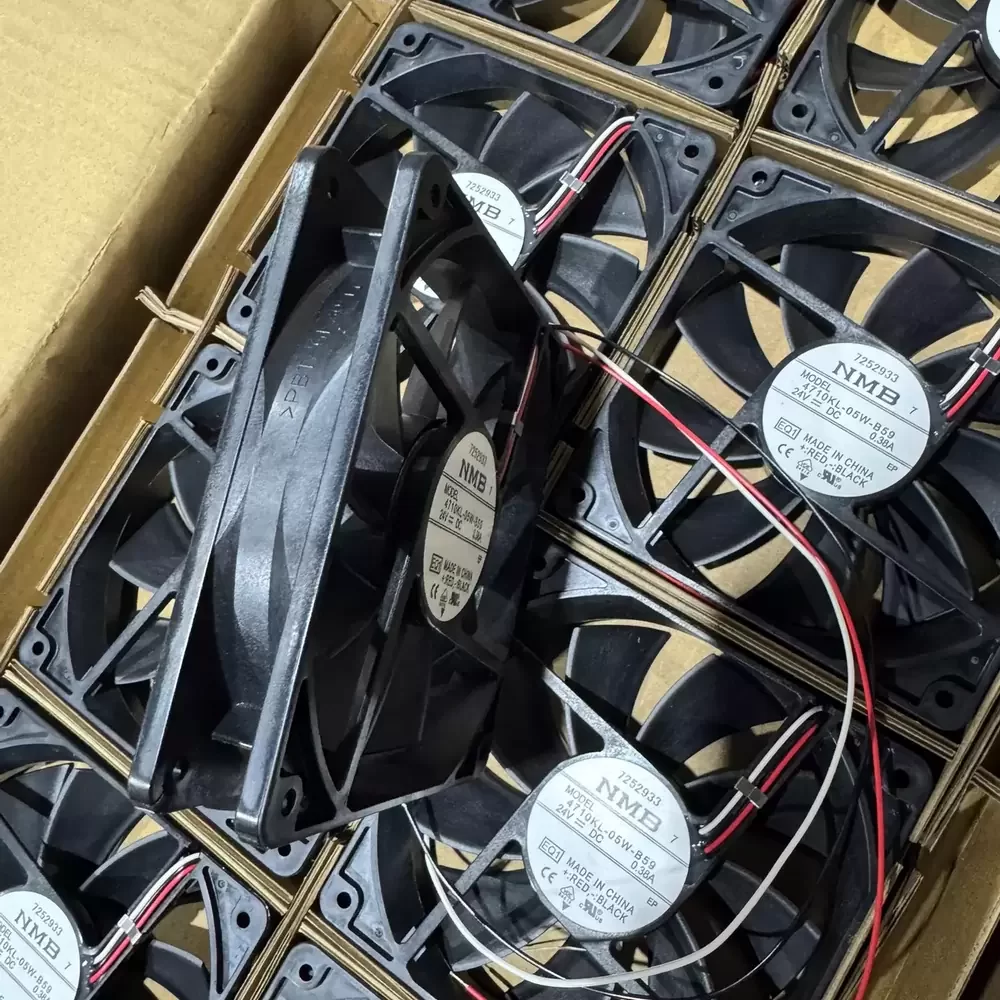

4710KL-05W-B59-EQ1 NMB 24VDC 114.7CFM 119mm DC Axial Fan

Description

NMB 4710KL-05W-B59-EQ1 119 x 119 x 25 mm 24 VDC 114.7 CFM tubeaxial cooling fan features a dual ball bearing mechanism designed for a 100,000 hours life expectancy at 25 °C. It operates within a 10 to 26 VDC range, drawing 0.29 A nominally and up to 0.38 A maximum, consuming 6.96 W of power. The structural design incorporates a square frame with 3 lead wires providing a locked rotor output signal, delivering a maximum static pressure of 50.5 Pa and generating 41.5 dBA of acoustic noise at a rated speed of 2800 RPM.

4710KL-05W-B59-EQ1 Specifications
Model Number: 4710KL-05W-B59-EQ1
Brand: NMB Technologies
Product Category: DC Tubeaxial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 10 to 26 VDC
Nominal Current: 0.29 A
Maximum Current: 0.38 A
Input Power: 6.96 W
Rated Speed: 2800 RPM
Maximum Air Flow: 114.7 CFM
Maximum Air Flow (Metric): 3.25 m³/min
Maximum Static Pressure: 0.2 inH2O
Maximum Static Pressure (Metric): 50.5 Pa
Acoustic Noise: 41.5 dBA
Dimensions: 119 x 119 x 25 mm
Mass: 180 g
Bearing Type: Ball Bearing
Life Expectancy: 100,000 Hours at 25 °C
Power Connection: 3 Lead Wires
Sensor Output: Locked Rotor Sensor
Frame Type: Square

4710KL-05W-B59-EQ1 Applications
Primary applications include integration into industrial frequency converters, CNC machinery control cabinets, and heavy-duty chassis thermal management systems. Deployed within automated manufacturing equipment and power distribution panels requiring continuous high-volume airflow and locked rotor monitoring.
