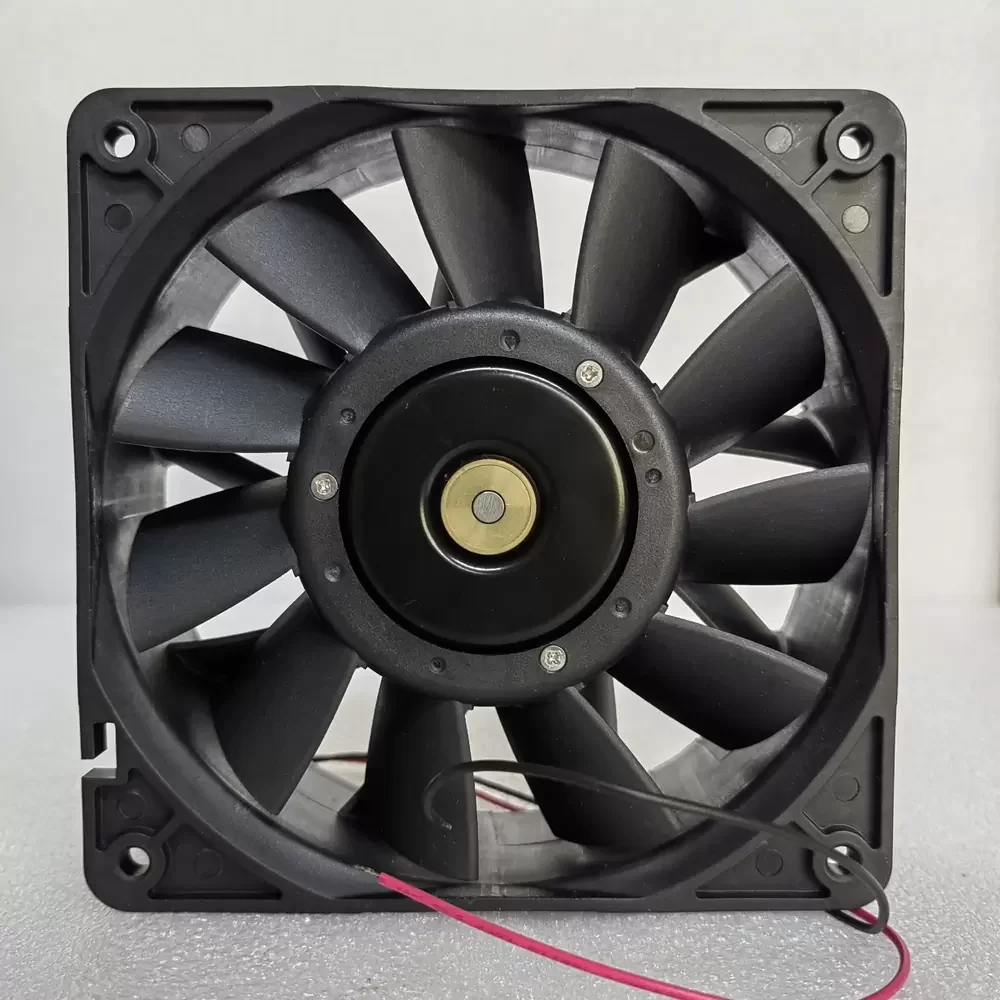

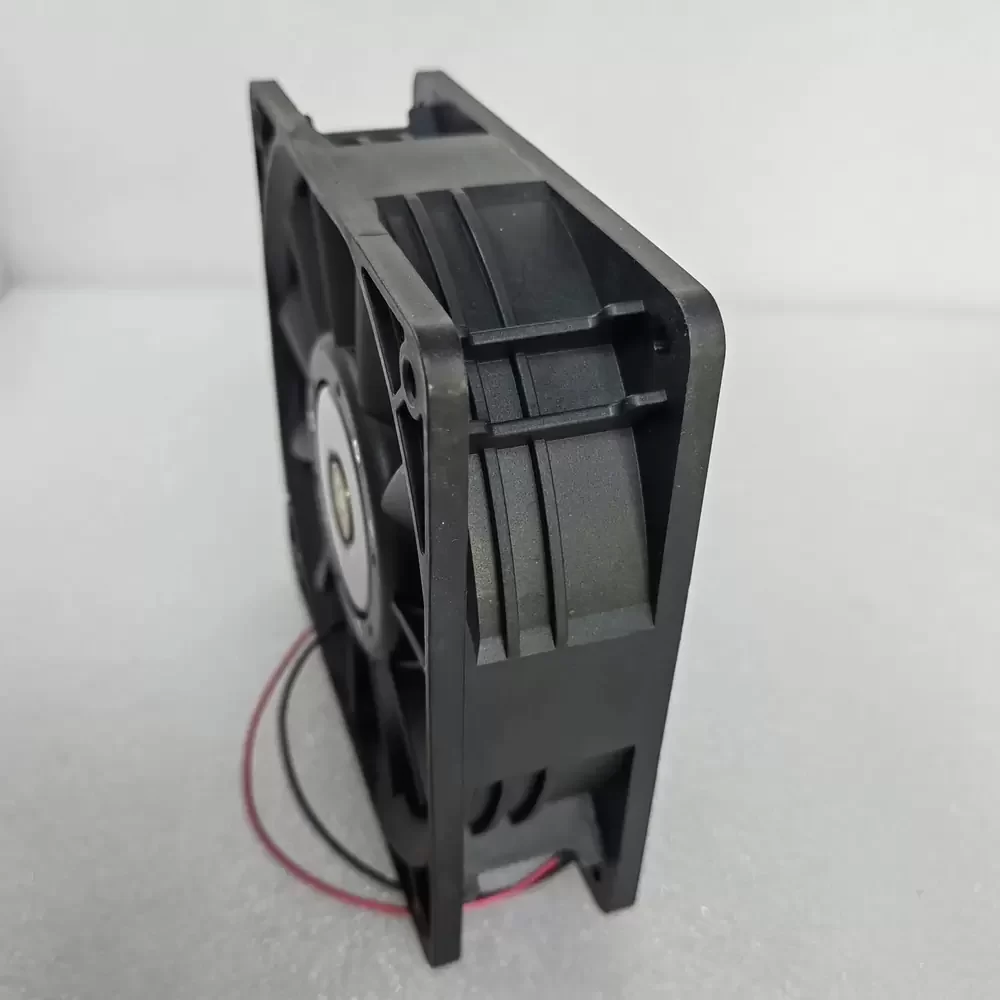

MGA12024UB-O38F Protechnic 24VDC 2.4A 120x38mm Axial Fan

Description

Protechnic MGA12024UB-O38F is a high-performance 120 x 120 x 38 mm axial fan operating at a nominal 24 VDC with a 2.4 A current draw. The unit features a dual ball bearing system and a PBT plastic housing and impeller rated to UL 94V-0 flammability standards. It utilizes a 2-wire lead configuration for power input, delivering high static pressure and significant airflow volume through its optimized blade geometry. The internal motor is brushless DC with integrated polarity protection and auto-restart functionality.

MGA12024UB-O38F Specifications
Model: MGA12024UB-O38F
Brand: Protechnic Electric
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage: 14.0 to 27.6 VDC
Rated Current: 2.4 A
Input Power: 57.6 W
Rated Speed: 6000 RPM
Maximum Airflow: 250.0 CFM
Static Pressure: 1.55 in-H2O
Noise Level: 68.5 dBA
Bearing Type: Dual Ball Bearing
Material: PBT Thermoplastic (UL 94V-0)
Termination: 2-Wire Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 430 g
Safety Approvals: UL, CUL, TUV, CE

MGA12024UB-O38F Applications
Primary applications include integration into high-density server rack enclosures, telecommunications base station cooling modules, and industrial power supply thermal management systems. Deployed within CNC machine control cabinets and large-scale network switch chassis requiring high-pressure forced-air cooling.
