Description

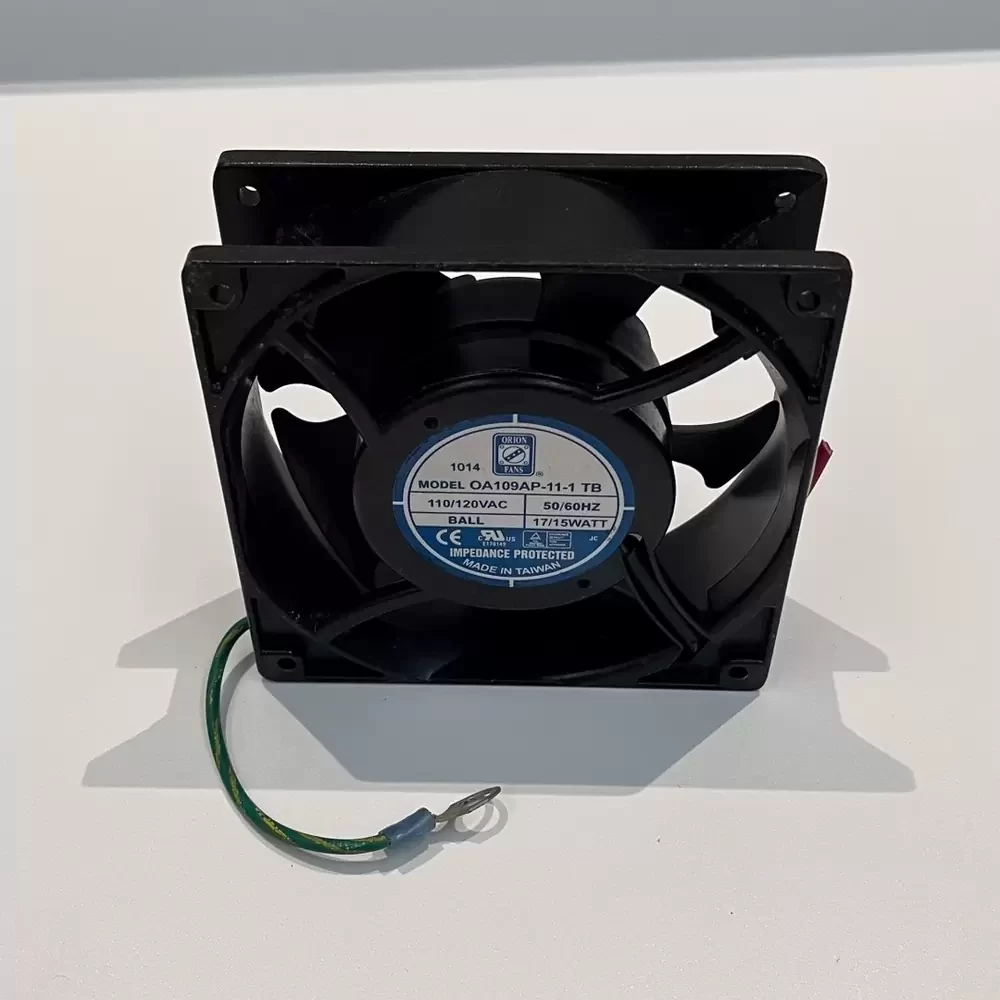

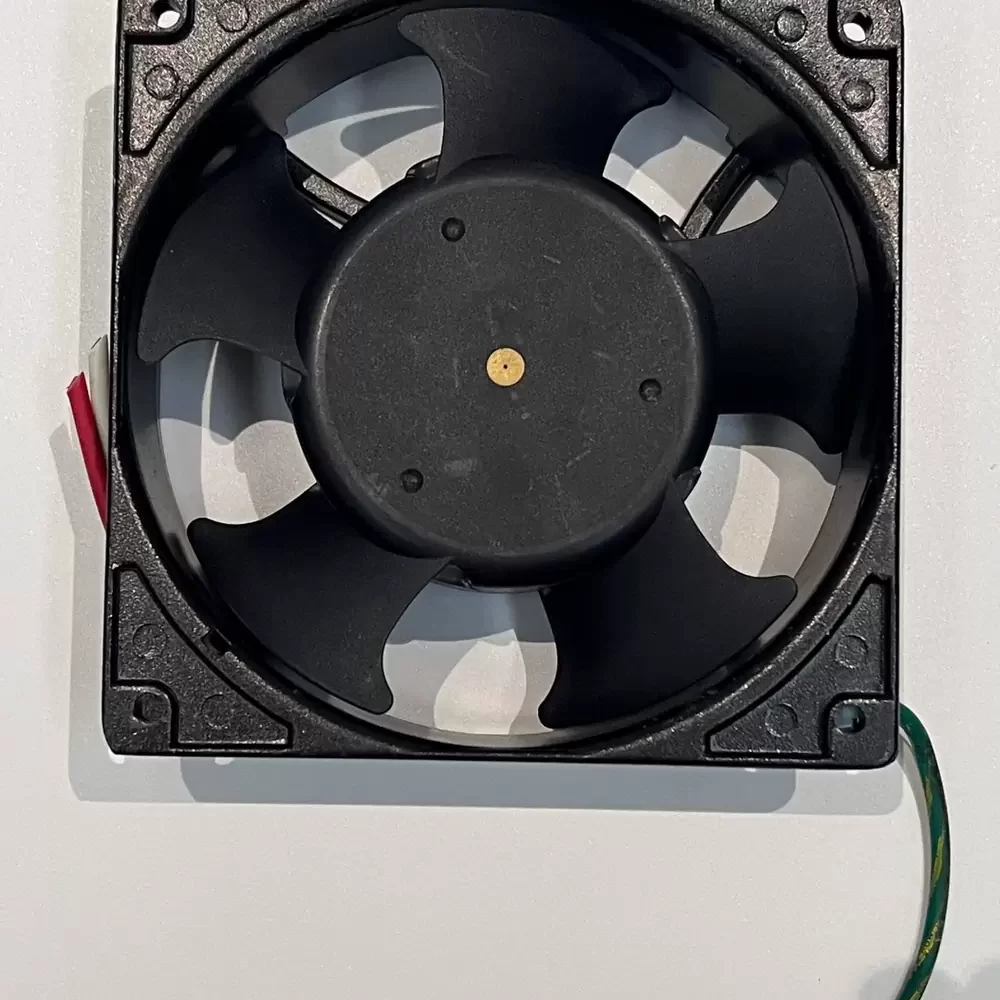

The Orion Fans OA109AP-11-1TB is a high-performance AC Axial Fan engineered for demanding industrial thermal management. This unit features a robust die-cast aluminum housing and a UL94V-0 thermoplastic impeller, ensuring structural rigidity and fire safety in critical environments. The motor utilizes a shaded pole induction architecture with internal impedance protection to prevent thermal failure during locked rotor conditions. Equipped with a precision dual ball bearing system, the fan minimizes thermal impedance and maximizes operational longevity. Its aerodynamic blade profile is optimized for high static pressure, making it an ideal solution for dense electronic enclosures requiring consistent airflow and reliable heat dissipation.
Model Number: OA109AP-11-1TB
Brand: Orion Fans
Product Type: AC Axial Fan
Rated Voltage: 115VAC
Voltage Range: 110 – 120VAC
Frequency: 50/60Hz
Rated Current: 0.16/0.14A
Power: 17/15W
Rated Speed: 3000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 110 CFM (186.9 m³/h)
Max. Static Pressure: 7.11 mmH₂O (69.7 Pa / 0.28 inH₂O)
Dimensions: 120x120x38mm
Weight: 560g
Life Expectancy: 60,000 Hours (L10 at 40C)
Noise Level: 42 dB
Housing Material: Die-Cast Aluminum
Blade Material: PBT, UL94V-0 Plastic

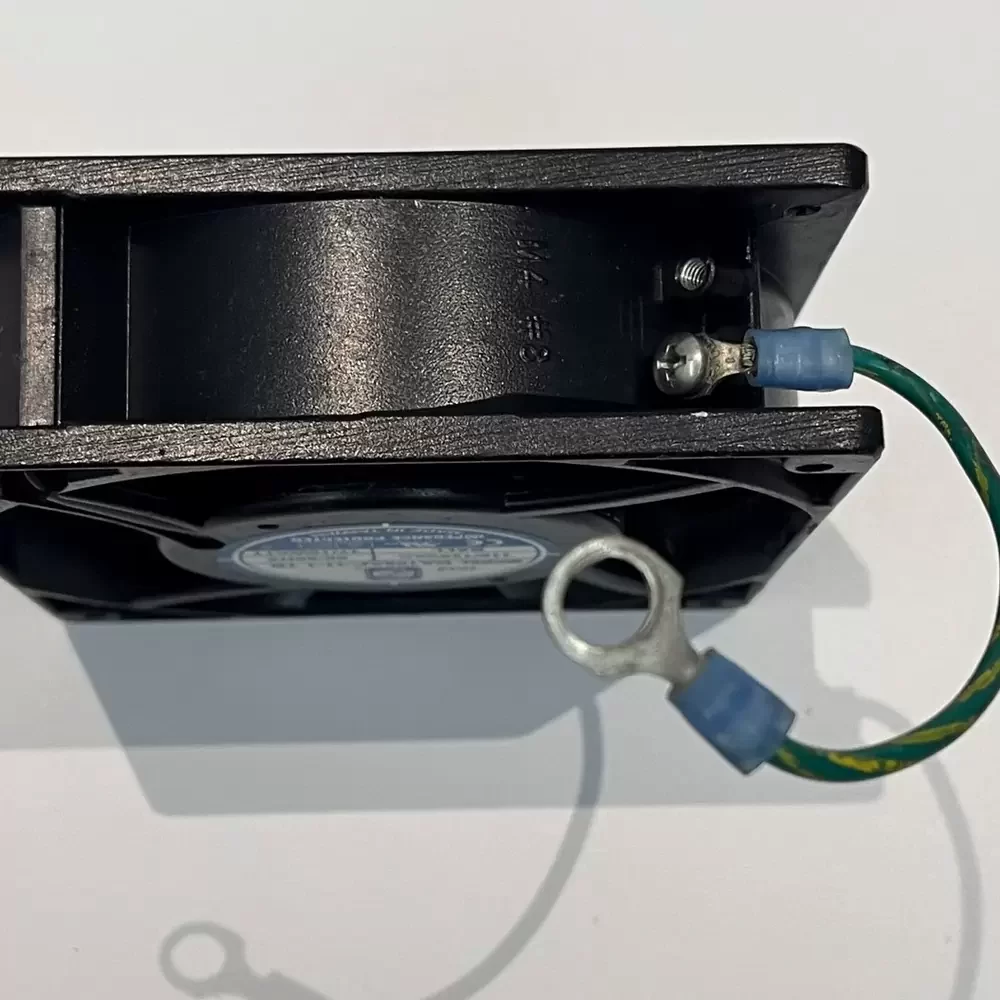

Termination: Terminals
Operating Temperature: -20C to +80C
Storage Temperature: -40C to +100C
Protection: Impedance Protected
Insulation Resistance: 100M ohm between leadwire and frame (500VDC)
Dielectric Strength: 1 min at 1500VAC/50-60Hz
Certifications: UL, cUL, TUV, CE, RoHS
The Orion Fans OA109AP-11-1TB is specifically designed for integration into industrial control cabinets and server enclosures where reliable heat extraction is paramount. In telecommunications infrastructure, the OA109AP-11-1TB provides the necessary static pressure to overcome internal resistance in densely packed equipment racks. It is also frequently utilized in CNC machinery and power supply cooling systems to maintain optimal operating temperatures for sensitive electronics. The rugged construction ensures that the OA109AP-11-1TB performs consistently in medical diagnostic equipment and automated industrial processing lines.
