Description

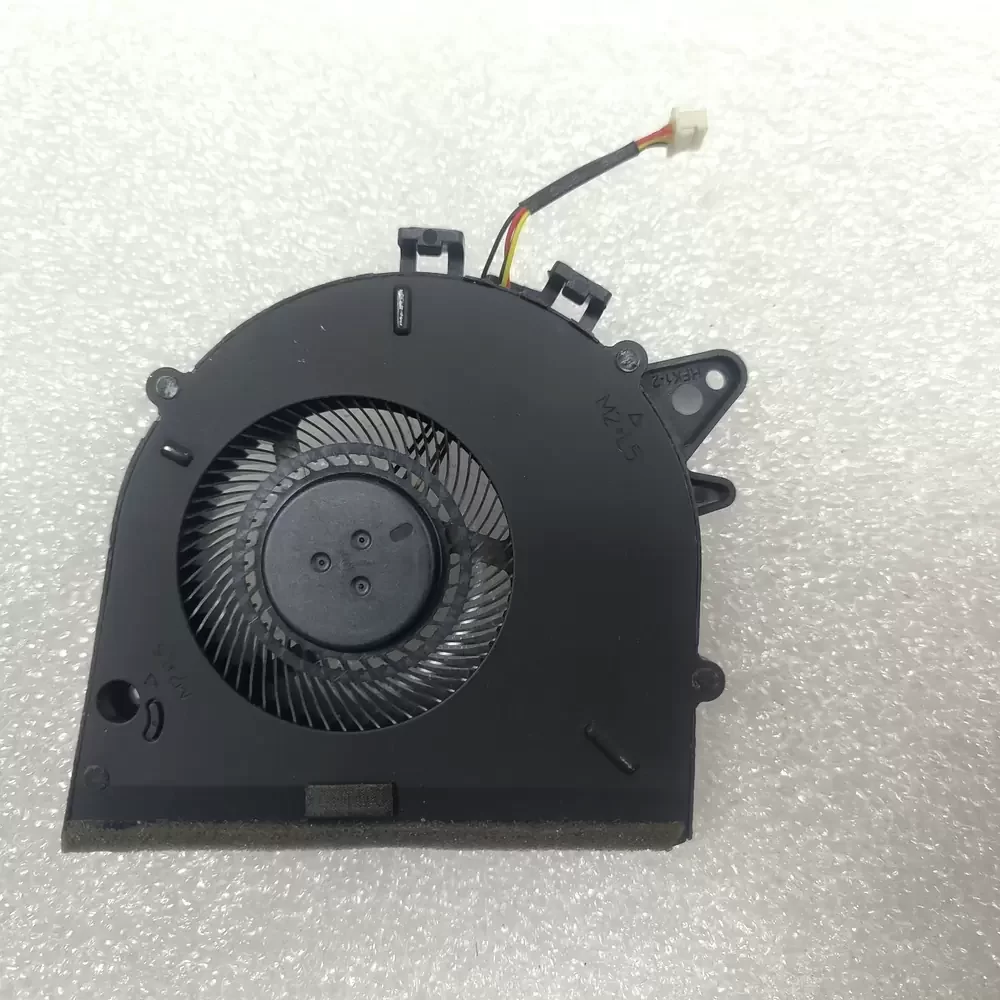

The SUNON EG75100S1-1C010-S9A is a high-performance DC blower engineered for critical thermal management in mobile computing systems. Operating at a rated 5VDC with a power consumption of 2.25W, this 75mm cooling unit features SUNON’s patented MagLev bearing system, which significantly reduces noise and extends service life compared to traditional bearings. The integrated 4-wire interface supports precise PWM speed control and tachometer feedback, ensuring efficient heat dissipation for high-load components. Optimized for the Lenovo Legion Y7000P and Y530P series, this industrial-grade fan delivers the high static pressure required for compact laptop heat sinks, maintaining system stability during intensive CPU and GPU operations.
Model Number: EG75100S1-1C010-S9A
Brand: SUNON
Product Type: Blower
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.45A
Power: 2.25W
Rated Speed: 4500 RPM
Bearing Type: MagLev
Max. Air Flow: 12.5 CFM (21.2 m³/h / 0.35 m³/min)
Max. Static Pressure: 15.2 mmH₂O (149.1 Pa / 0.60 inH₂O)
Dimensions: 75x75x10mm
Weight: 45g
Life Expectancy: 70,000 Hours at 40C
Speed Control: PWM
Signal Output: Tachometer
Termination: 4-Pin Connector
Operating Temperature: -10 to +70 C
Housing Material: Thermoplastic PBT UL94V-0
Blade Material: Thermoplastic PBT UL94V-0
Protection: Auto Restart, Polarity Protection
The EG75100S1-1C010-S9A is specifically designed for integration into the internal cooling assemblies of high-performance gaming laptops. As a dedicated thermal solution, the EG75100S1-1C010-S9A is the primary component for heat extraction in the Lenovo Legion Y7000P, Y530P, and Y7000P-2018 models, ensuring the CPU and GPU remain within safe operating temperatures during heavy processing tasks.
