Description

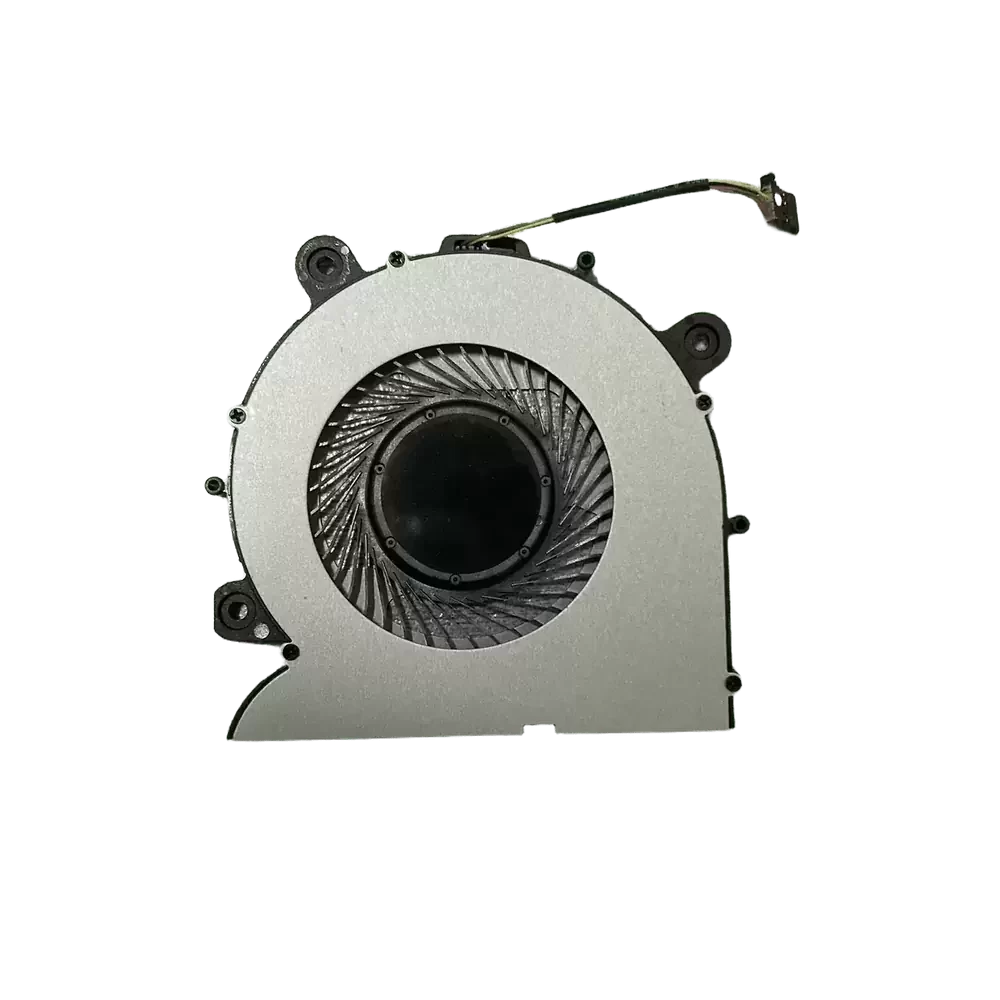

The AVC BAZA0605R5M-003 is a professional-grade DC blower engineered for ultra-thin laptop thermal management and specialized industrial cooling. Operating at 5VDC with a 0.50A current rating, this 65x65x5mm centrifugal fan utilizes an advanced hydraulic bearing system to provide reliable operation and reduced acoustic profiles. The BAZA0605R5M-003 features a 4-wire PWM interface, allowing for precise speed control and real-time monitoring. Optimized for high airflow in restricted spaces, this industrial cooling fan is a critical component for maintaining system stability in compact hardware environments like the ASUS VivoBook 14 series and custom DIY electronic modifications.
Model Number: BAZA0605R5M-003
Brand: AVC
Product Type: Blower
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.50A
Power: 2.5W
Rated Speed: 4500 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 4.80 CFM (8.15 m³/h / 0.13 m³/min)
Max. Static Pressure: 12.50 mmH₂O (122.58 Pa / 0.49 inH₂O)
Dimensions: 65x65x5mm
Weight: 25g
Life Expectancy: 40,000 Hours
Speed Control: 4-wire PWM
Termination: 4-pin Connector
Housing Material: UL94V-0 Plastic
Blade Material: UL94V-0 Plastic
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Certifications: CE, TUV, UL
The BAZA0605R5M-003 is specifically designed as a replacement cooling solution for the ASUS VivoBook 14 series, including the TP412F, TP412UA, SF4100, and V4000 models. Due to its ultra-slim 5mm profile, the BAZA0605R5M-003 is also frequently employed in DIY electronics projects, small form factor PC builds, and portable medical devices where efficient heat extraction is required within extremely tight spatial constraints.
