Description

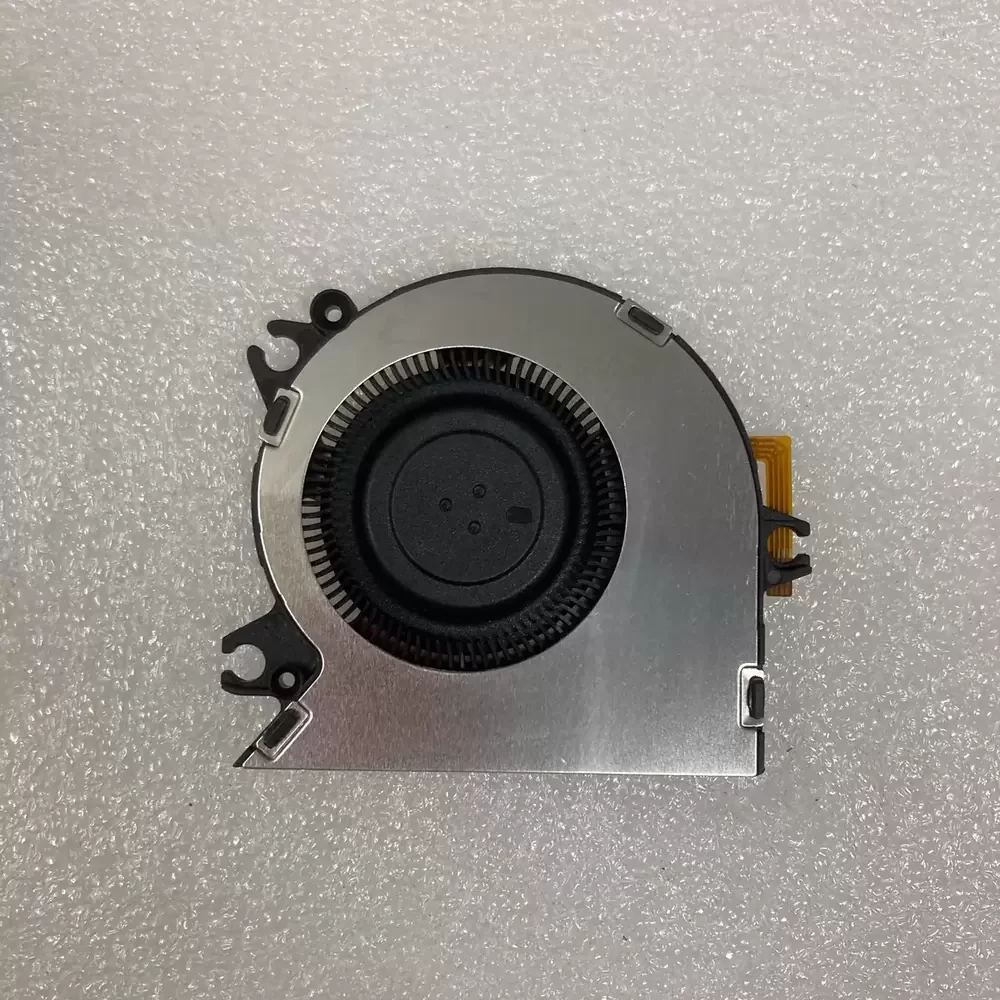

Foxconn PVF050B05H-P01-AE is a 5VDC 50mm Blower optimized for localized thermal management in compact gaming consoles and docking stations. The centrifugal impeller design generates concentrated static pressure to overcome the high impedance of dense internal heat sinks, ensuring heat dissipation remains consistent during peak processing loads. By maintaining a 0.37A current draw, this 50mm 5VDC Blower balances power consumption with the airflow velocity required to prevent thermal throttling in the Nintendo Switch NS2 base. Integrated PWM Speed Control Blower functionality allows the system to modulate RPM based on real-time thermistor data, effectively minimizing acoustic resonance while preventing heat soak in the primary logic board.
Model Number: PVF050B05H-P01-AE
Brand: Foxconn
Product Type: Centrifugal Blower
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.37A
Power: 1.85W
Rated Speed: 5500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 4.8 CFM
Max. Static Pressure: 12.4 mmH2O
Dimensions: 50mm x 50mm x 15mm
Weight: 25g
Life Expectancy: 50,000 Hours at 40C
Speed Control: PWM Signal
Termination: 4-Pin Connector
Housing Material: UL94V-0 Thermoplastic PBT
Blade Material: UL94V-0 Thermoplastic PBT
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Certifications: CE, TUV, UL, RoHS
Applications & Industry Use Cases
1. Gaming Console Repair: Direct replacement fan for Nintendo Switch NS2 docking station thermal failures.
2. Telecom Edge Routing: Cooling compact SFP modules to prevent signal degradation from heat soak.
3. Industrial PLCs: Maintaining airflow in shallow-depth control modules to protect sensitive logic circuits.
4. 1U Server Blades: Providing penetrating airflow for localized hotspots in high-density rack environments.
5. Portable Medical Devices: Reliable heat extraction for handheld diagnostic tools requiring 5VDC power rails.
