Description

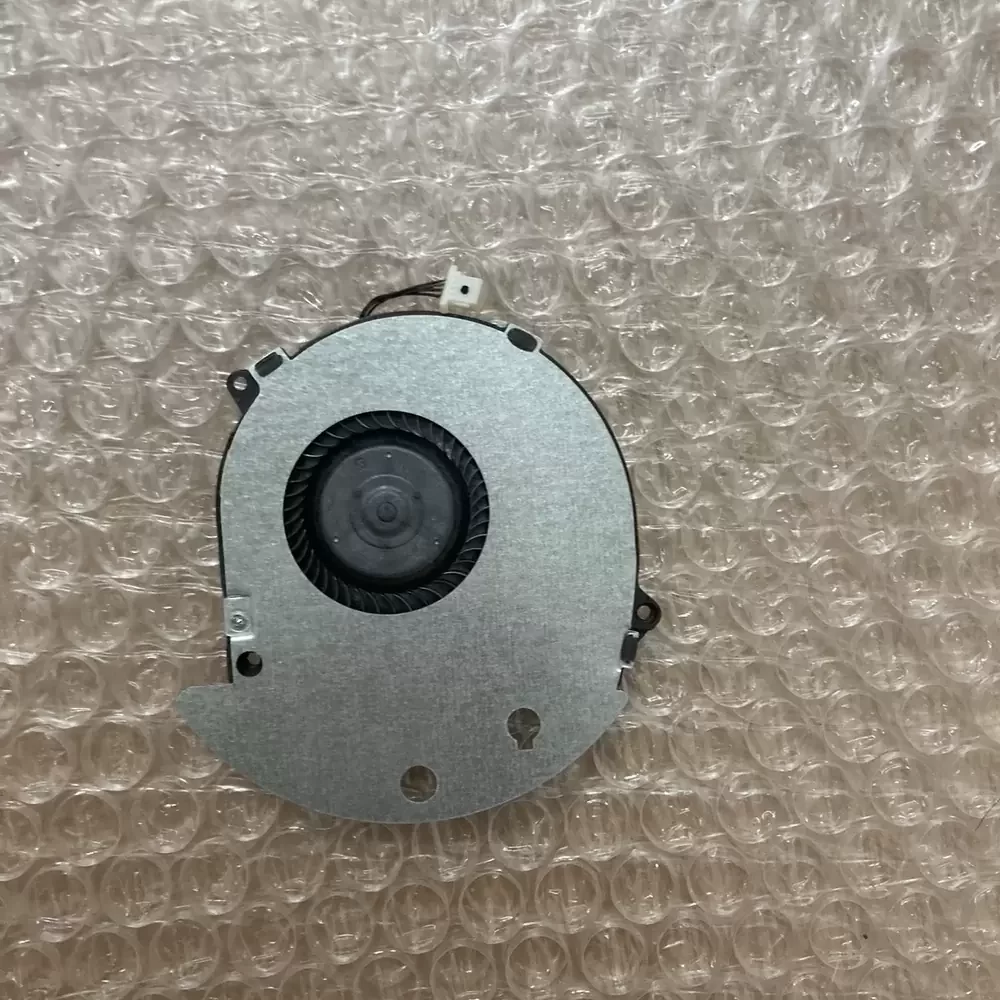

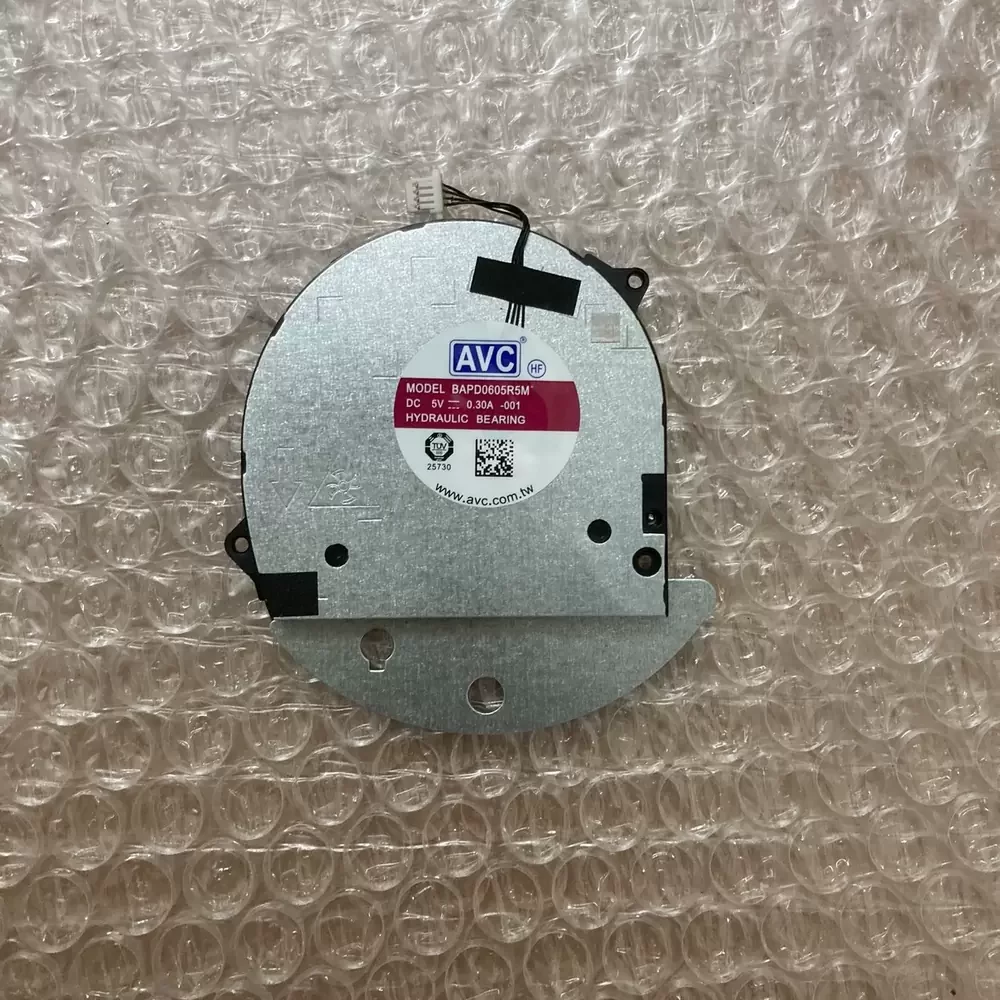

AVC BAPD0605R5M is a 5VDC 60x60x5mm Blower optimized for extreme Z-height constraints in mobile computing and embedded systems. The hydraulic bearing’s sealed lubricant film prevents grease migration under 24/7 thermal stress, ensuring rotational stability despite the ultra-thin 5mm profile. By maintaining a consistent 0.30A current draw, this unit generates sufficient static pressure to overcome the impedance of dense copper heat pipe fins. Integrated 4-wire PWM control allows for precise RPM modulation, which directly mitigates acoustic resonance during variable CPU loads. This 60x60x5mm 5VDC Blower utilizes a high-density impeller to ensure the Ultra-Thin Blower maintains laminar airflow in restricted cavities.
Model Number: BAPD0605R5M
Brand: AVC
Product Type: DC Centrifugal Blower
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.30A
Power: 1.5W
Rated Speed: 4500 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 3.85 CFM
Max. Static Pressure: 5.20 mmH2O
Dimensions: 60x60x5mm
Weight: 18g
Life Expectancy: 40,000 Hours at 40C
Speed Control: 4-Wire PWM (Pulse Width Modulation)
Termination: 4-Pin Connector
Material: UL94V-0 PBT Plastic
Protection: Locked Rotor Protection, Reverse Polarity Protection
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Applications & Industry Use Cases
1. Ultra-thin Laptops: Direct replacement fan for 5mm chassis requiring high-density thermal dissipation.
2. 1U Network Switches: Minimizing resonance in shallow-depth rackmount networking hardware.
3. Industrial Tablets: Preventing heat soak in sealed ruggedized handheld diagnostic tools.
4. Telecom Edge Routing: Compact cooling for high-frequency signal processing in outdoor enclosures.
5. Embedded NUCs: Penetrating airflow for micro-PC builds with restricted internal volumetric space.
