Description

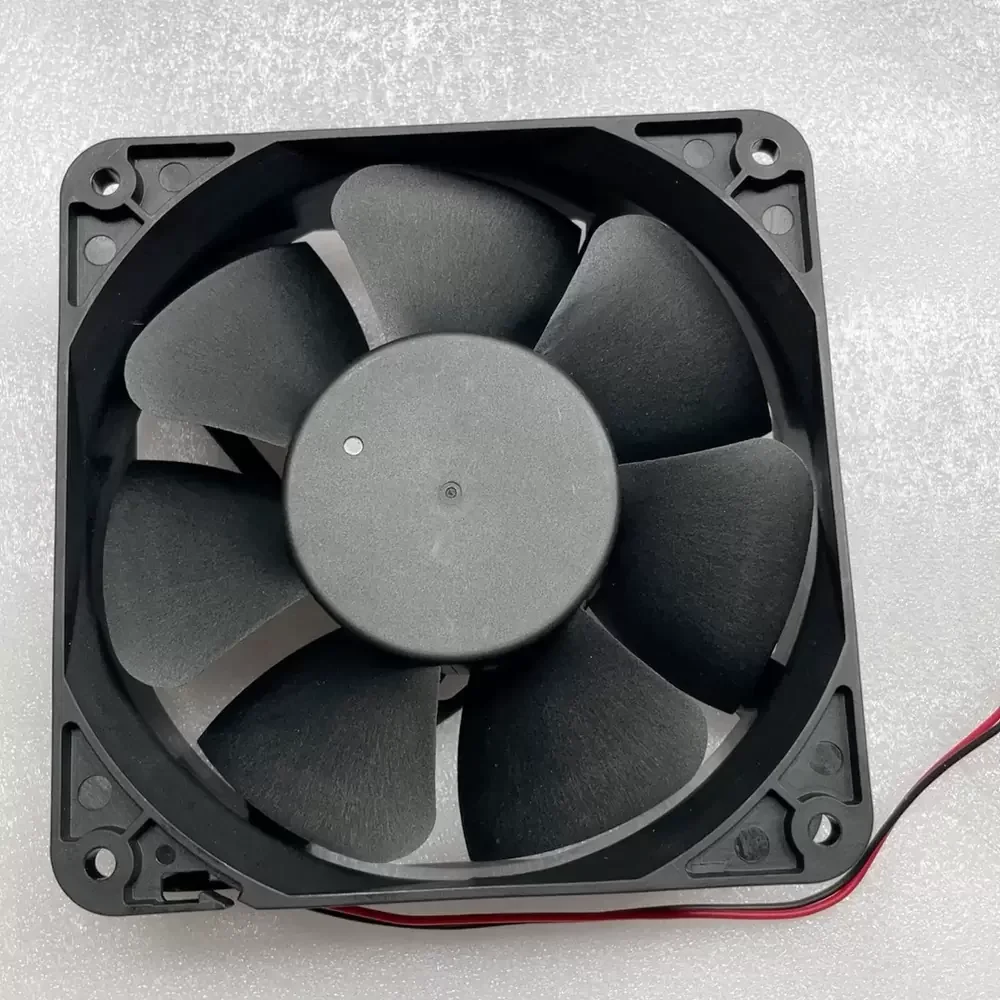

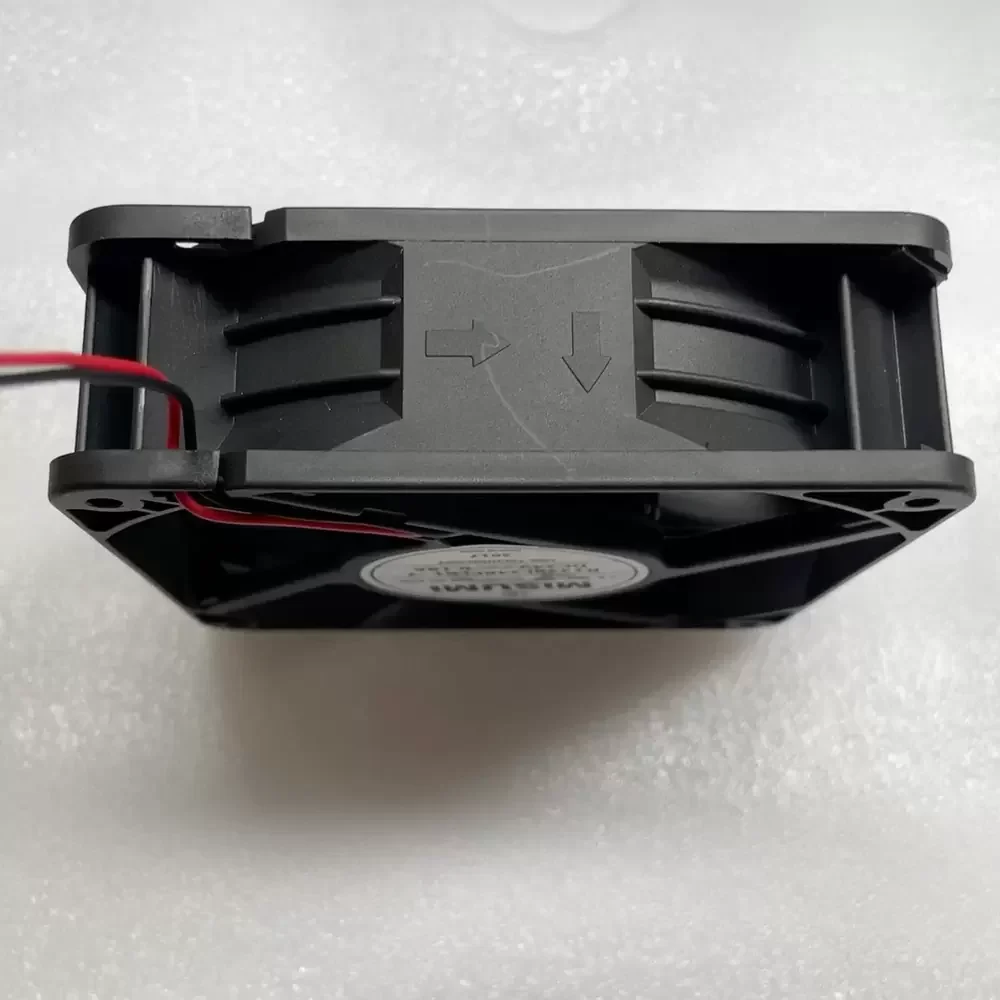

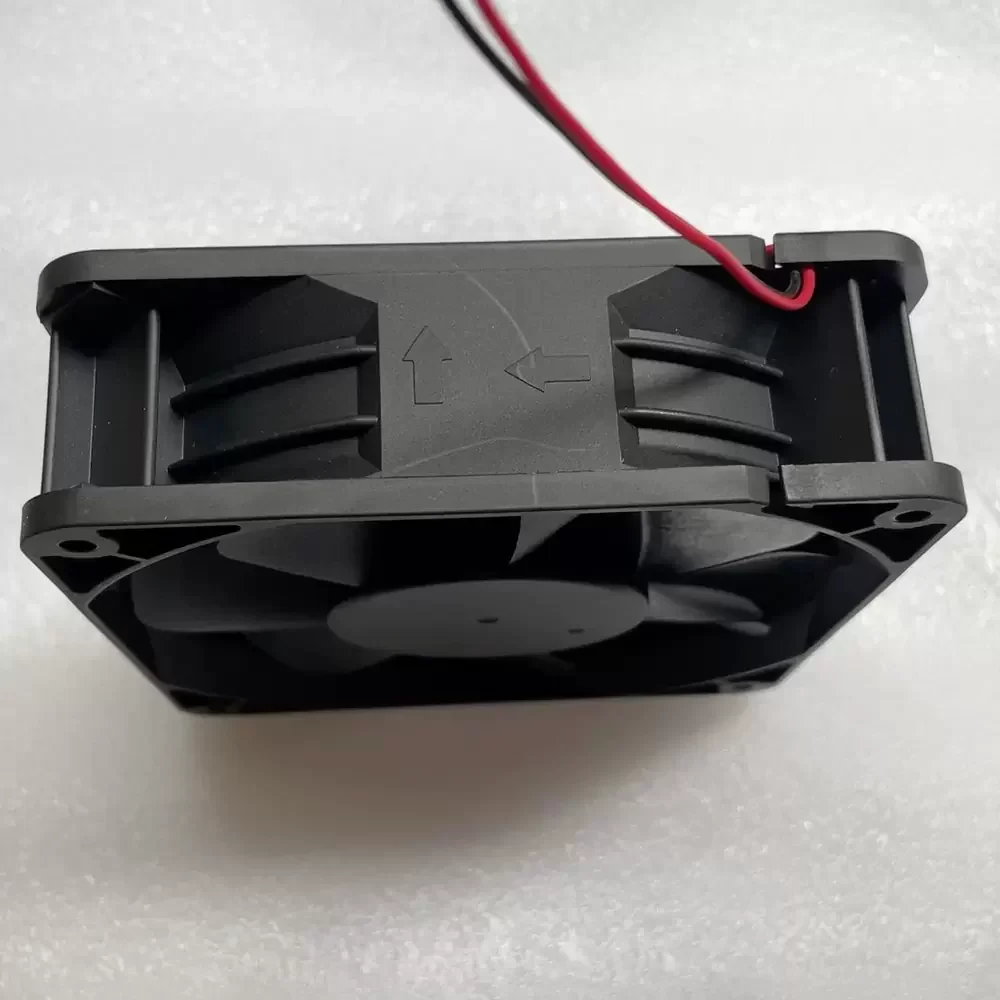

The Misumi R1238L24BPLB1-7 is a precision-engineered DC axial fan designed for critical thermal management in industrial environments. Utilizing advanced brushless DC motor technology, this unit ensures consistent rotational stability and optimized torque delivery while maintaining energy efficiency. The aerodynamic impeller design minimizes turbulence while maximizing static pressure capabilities, effectively reducing thermal impedance within high-density enclosures. Constructed with a robust frame and durable bearing architecture, the R1238L24BPLB1-7 maintains structural rigidity under continuous load, making it an ideal solution for systems requiring reliable forced air convection and long-term operational stability.
Model Number: R1238L24BPLB1-7
Brand: Misumi
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.18 A
Power: 4.32 W
Rated Speed: 2600 RPM (Reference)
Bearing Type: Ball Bearing
Max. Air Flow: 98.0 CFM (166.5 m³/h)
Max. Static Pressure: 7.2 mmH₂O (70.6 Pa)
Dimensions: 120 x 120 x 38 mm
Weight: 260 g
Life Expectancy: 50,000 Hours @ 40°C
Motor Type: Brushless DC
Termination: 2-Wire (Red/Black)
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Mounting Orientation: Any
Ingress Protection: IP20
The R1238L24BPLB1-7 is specifically engineered for demanding applications such as server rack cooling, industrial automation control cabinets, and telecommunications equipment. Its robust design allows for integration into CNC machinery and power supply units where consistent airflow is paramount for component longevity. By effectively dissipating heat in enclosed spaces, the R1238L24BPLB1-7 ensures optimal operating temperatures for sensitive electronics, preventing thermal throttling and hardware failure in continuous-duty cycles.
