Description

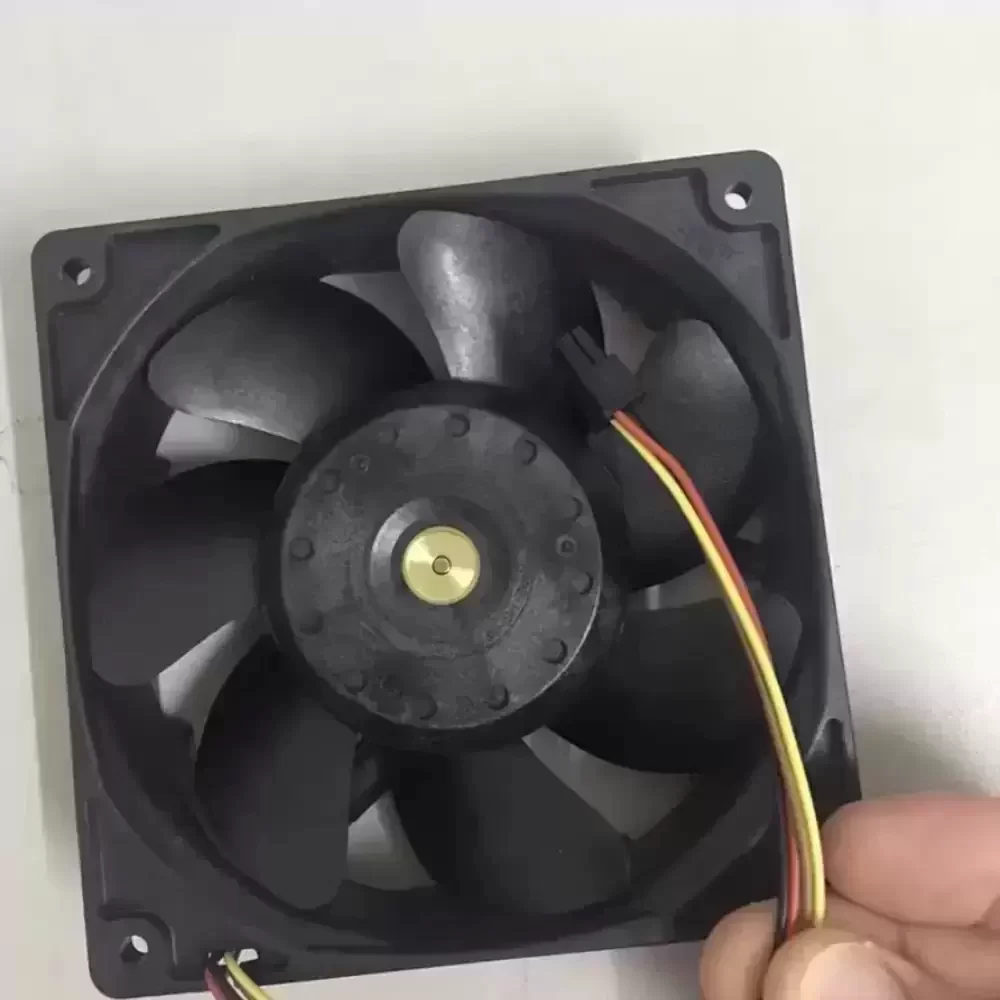

The Sanyo Denki 9G1212P1G061 is a precision-engineered DC axial fan designed for critical thermal management applications requiring high static pressure and consistent airflow. Part of the renowned San Ace 120 series, this unit features a robust thermoplastic housing and a dual ball bearing system that ensures low thermal impedance and exceptional longevity under continuous operation. The aerodynamic impeller design optimizes air intake while minimizing turbulence, providing superior cooling efficiency. With integrated PWM speed control, the 9G1212P1G061 allows for dynamic modulation of rotational speed, balancing acoustic performance with necessary heat dissipation, making it an ideal solution for high-density electronic enclosures and industrial machinery.
Model Number: 9G1212P1G061
Brand: Sanyo Denki
Product Type: DC Axial Fan
Series: San Ace 120 (9G Type)
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.83 A
Power Consumption: 9.96 W
Rated Speed: 3600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 116.0 CFM (197.0 m³/h / 3.28 m³/min)
Max. Static Pressure: 11.2 mmH₂O (110 Pa / 0.44 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 290 g
Life Expectancy: 40,000 Hours @ 60°C
Speed Control: PWM (Pulse Width Modulation)

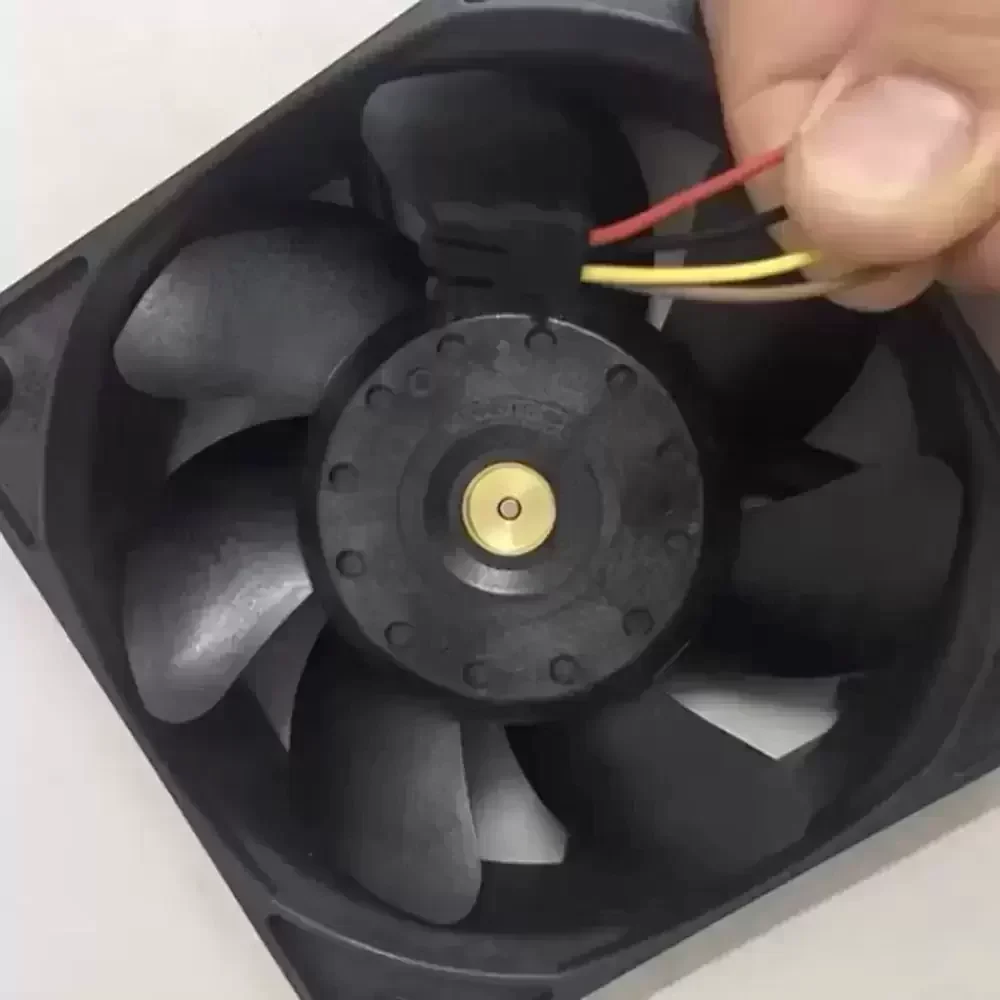

Termination: 4-Wire Lead (Red +, Black -, Yellow Sensor, Brown PWM)
Noise Level: 46 dB(A)
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +70°C
Protection: Locked Rotor Protection, Reverse Polarity Protection
Dielectric Strength: 50/60 Hz, 500 VAC, 1 minute
Insulation Resistance: 10 MΩ or more at 500 VDC
This high-performance cooling solution is specifically engineered for demanding telecommunications equipment, including the Motorola XIR R8200 repeater systems where reliability is paramount. The 9G1212P1G061 excels in server rack environments, network switching gear, and industrial automation cabinets requiring sustained airflow. By integrating the 9G1212P1G061 into power supply units and medical instrumentation, operators ensure optimal thermal stability, preventing component degradation in 24/7 operational cycles.
