Description
The Fulltech UF-12A11BTM is a precision-engineered AC axial fan designed for critical thermal management in industrial environments. Utilizing a robust shaded pole motor architecture, this unit operates efficiently at 115VAC, delivering consistent airflow with optimized static pressure capabilities. The construction features a durable aluminum die-cast frame and thermoplastic impeller, ensuring structural rigidity and resistance to deformation under thermal stress. Equipped with a dual ball bearing system, the UF-12A11BTM minimizes frictional coefficients to extend operational lifespan while maintaining low thermal impedance. Integrated thermal protection safeguards the motor windings against overheating, making it a reliable solution for continuous duty cycles in demanding electrical enclosures and machinery.

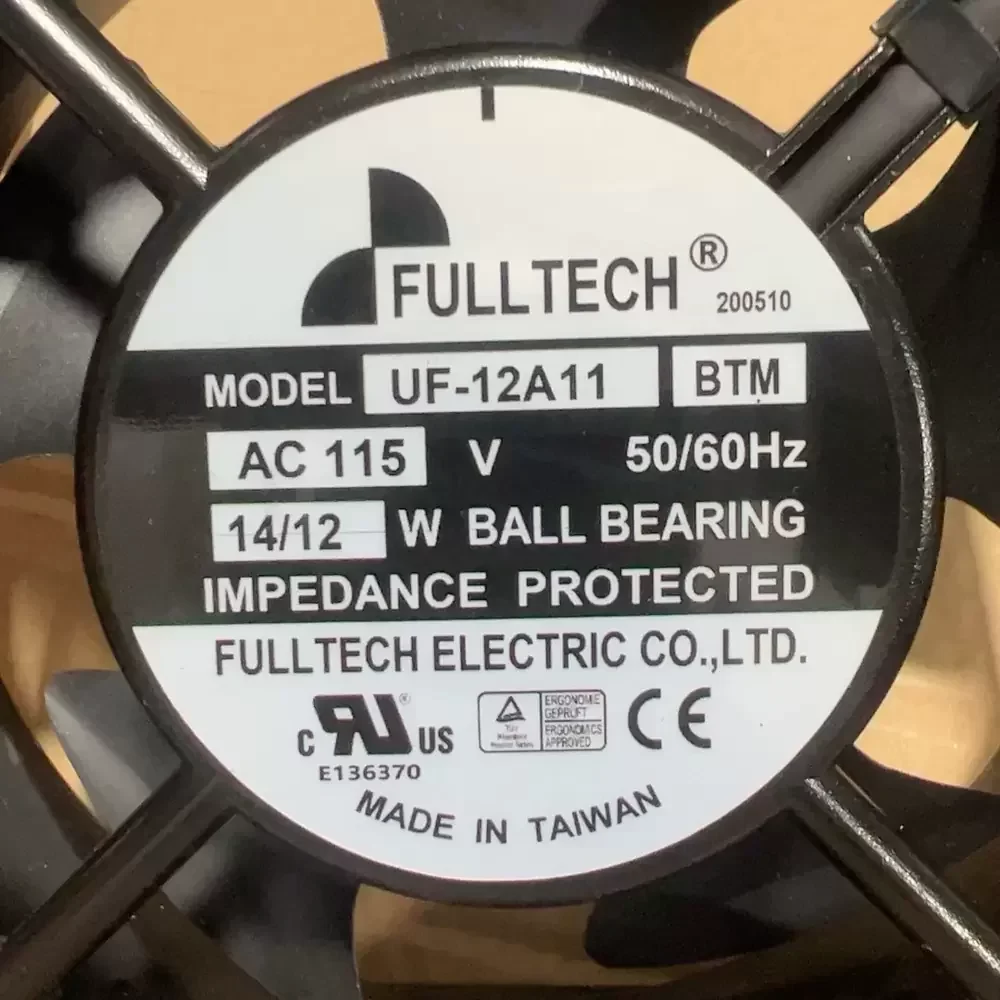

Model Number: UF-12A11BTM
Brand: Fulltech
Product Type: AC Axial Fan
Rated Voltage: 115 VAC
Frequency: 50/60 Hz
Input Power: 14W / 12W
Rated Current: 0.14 A / 0.12 A
Rated Speed: 2700 RPM / 3100 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 95 CFM / 115 CFM
Max. Static Pressure: 8.38 mmH₂O / 9.65 mmH₂O
Dimensions: 120x120x38mm
Frame Material: Die-Cast Aluminum (Black)
Blade Material: Thermoplastic PBT (UL94V-0)
Motor Protection: Impedance Protected / Thermal Protection

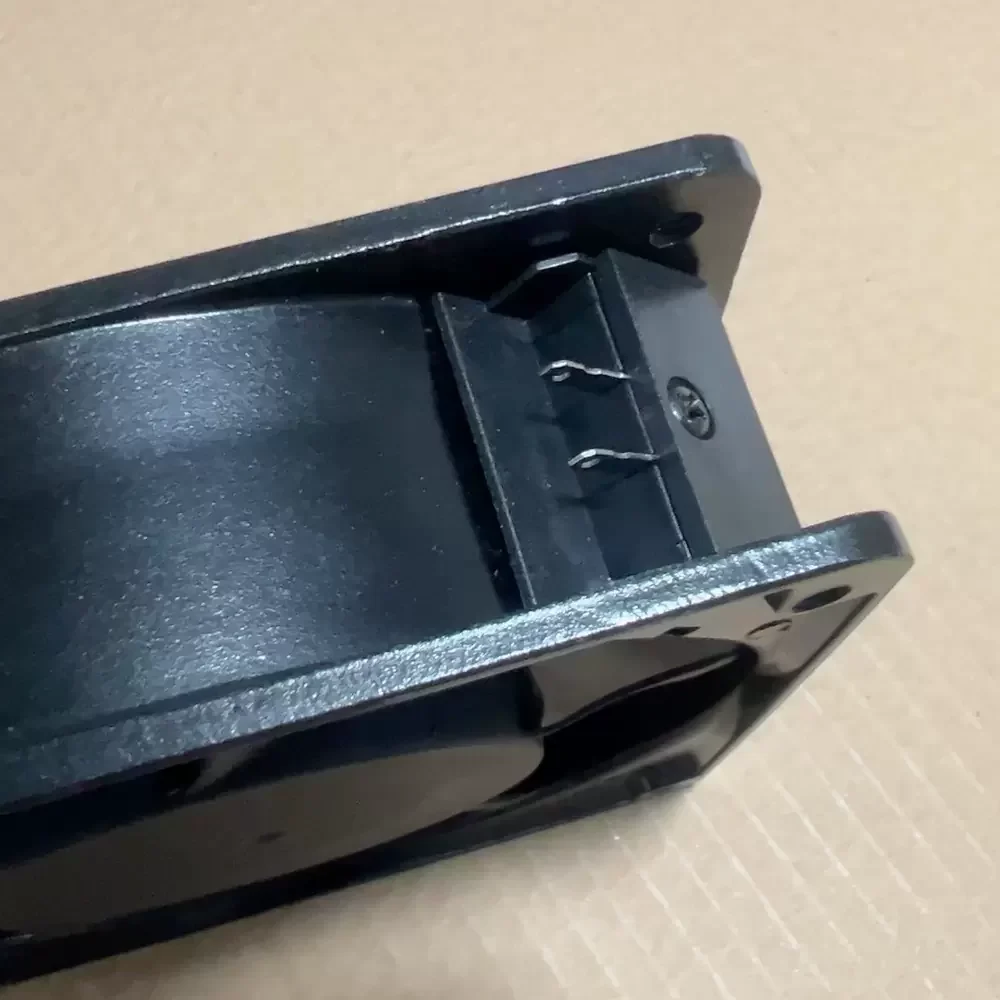

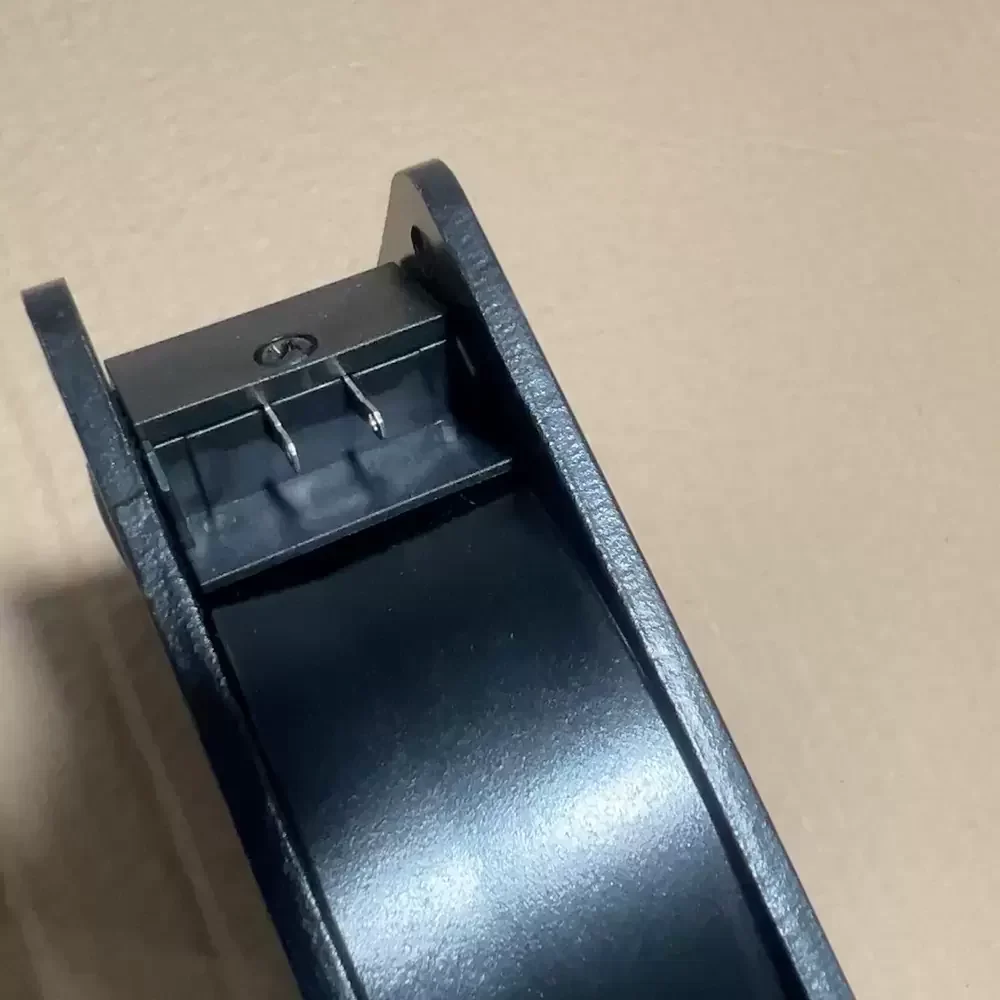

Termination: Terminals
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 42 dB(A) / 46 dB(A)
Life Expectancy: 50,000 Hours at 25°C
Weight: 550g
Designed for high-reliability ventilation, the UF-12A11BTM is extensively utilized in industrial automation and power distribution systems. Its robust AC motor makes it ideal for cooling server racks, electrical control cabinets, and CNC machinery control panels where consistent airflow is paramount. The UF-12A11BTM effectively dissipates heat in enclosed distribution boxes, preventing component failure due to thermal saturation in telecommunications infrastructure and medical instrumentation.
