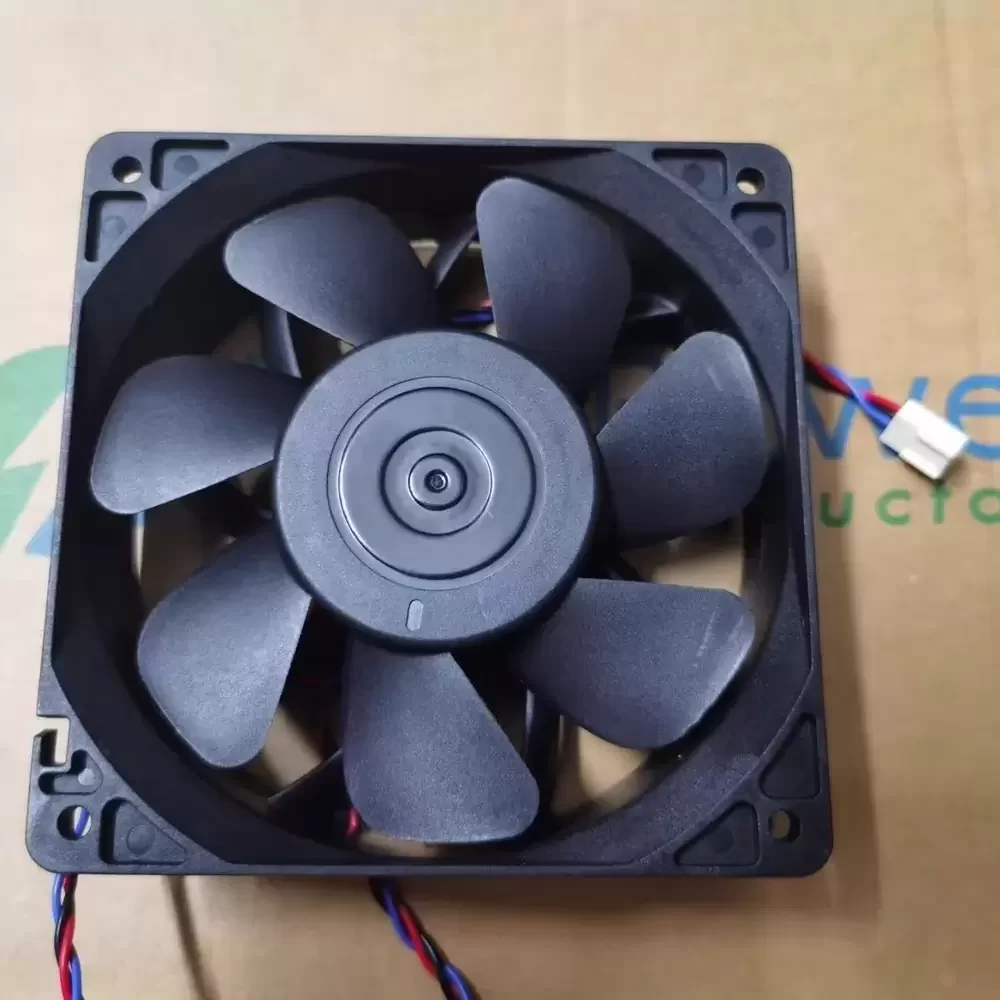

RB1238H12B-6 SHLF 12VDC 1.60A 120x120x38mm Axial Fan

Description

SHLF RB1238H12B-6 is a high-performance axial cooling fan measuring 120 x 120 x 38 mm, operating at a nominal 12 VDC with a 1.60 A current draw. It features a robust double ball bearing system and a 3-wire interface for power and speed monitoring. The housing is constructed from UL 94V-0 rated PBT plastic, housing a high-torque motor capable of reaching 4500 RPM to generate significant static pressure and high-velocity airflow for thermal management in dense environments.

RB1238H12B-6 Specifications
Model: RB1238H12B-6
Brand: SHLF
Category: DC Axial Fan
Voltage: 12 VDC
Operating Voltage Range: 8.0 to 14.0 VDC
Current: 1.60 A
Power Consumption: 19.2 W
Dimensions: 120 x 120 x 38 mm
Rotational Speed: 4500 RPM
Airflow: 173.83 CFM
Static Pressure: 21.60 mmH2O
Bearing Type: Dual Ball Bearing
Interface: 3-wire
Noise Level: 64 dB-A
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Material: PBT Plastic (UL 94V-0)
Weight: 300 g

RB1238H12B-6 Applications
Primary applications include integration into high-output gas BBQ grills, industrial server racks, and ASIC mining rigs. Deployed within CNC control cabinets, telecommunications enclosures, and power supply cooling systems requiring high-pressure thermal management.
