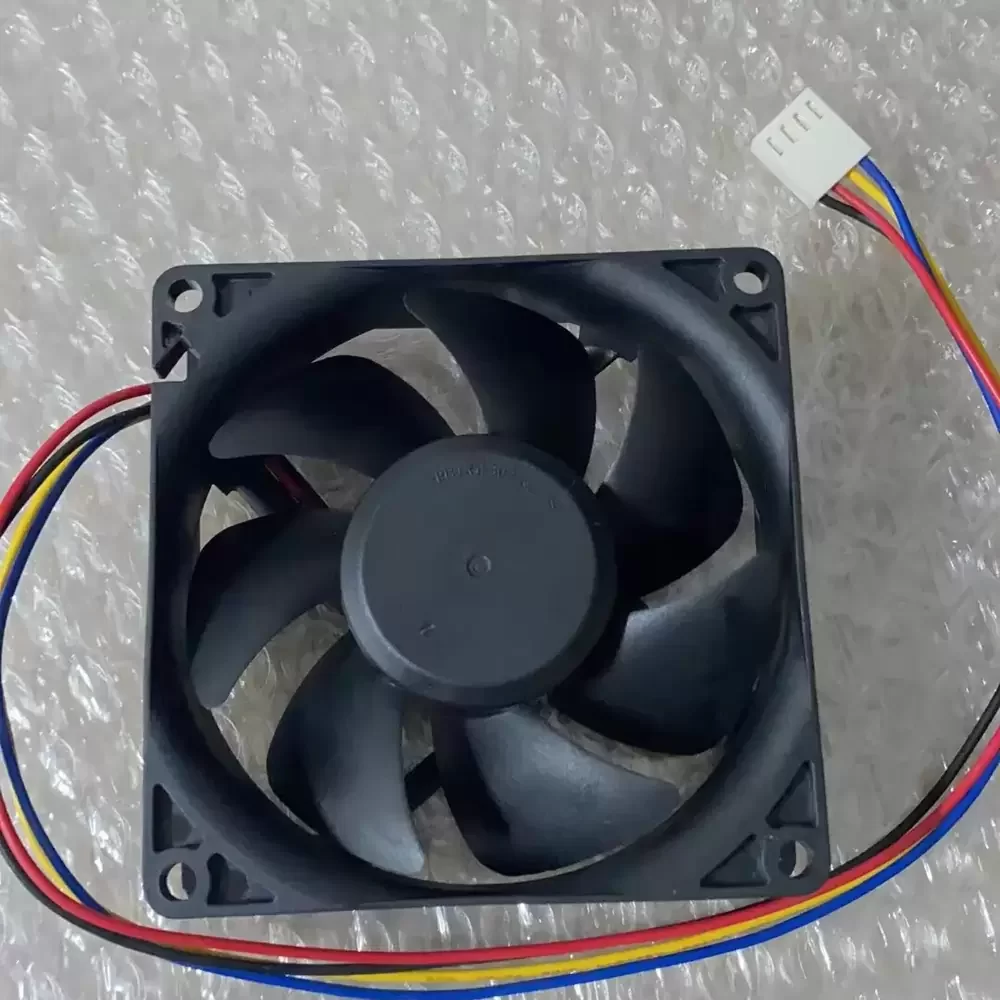

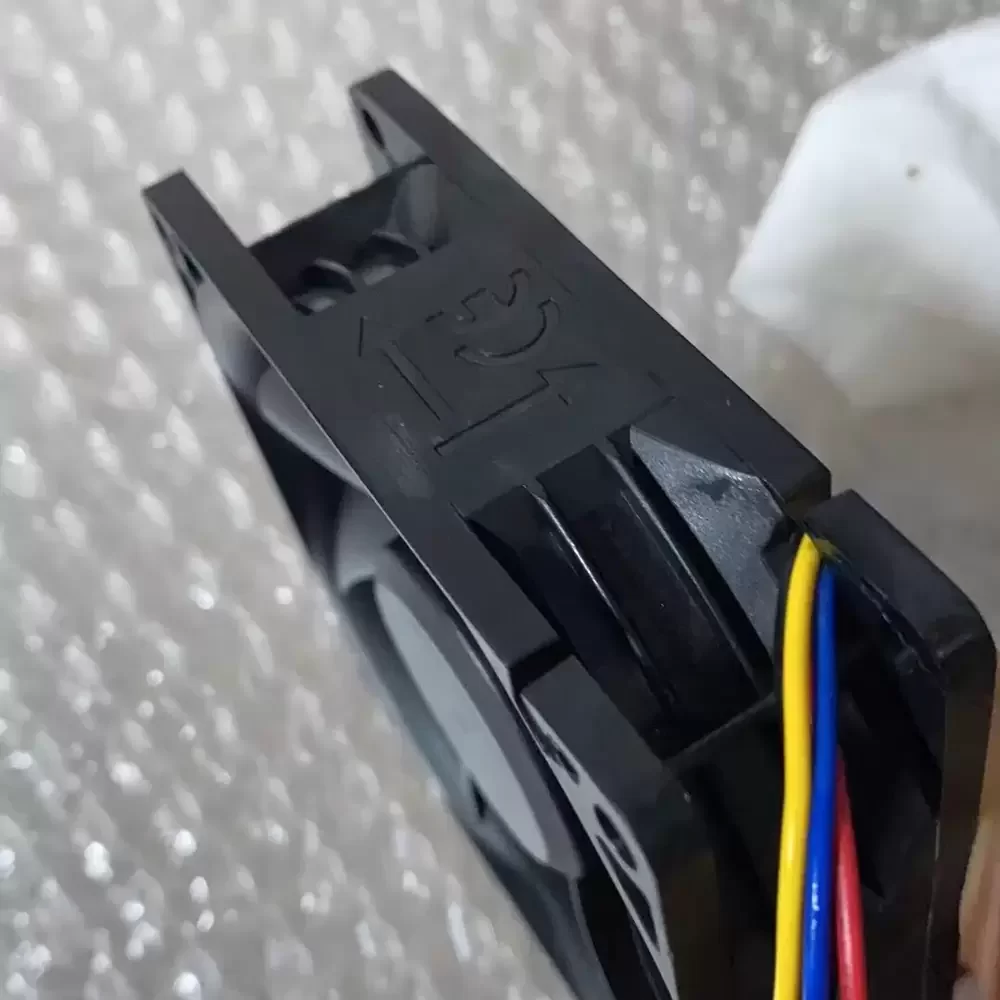

PSAD18025BM-AB65 AAVID 12VDC 0.35A 80x25mm Axial Fan

Description

AAVID PSAD18025BM-AB65 80 x 80 x 25 mm, 12 VDC, 0.35 A, and 60.0 CFM axial cooling fan. This high-performance component utilizes a dual ball bearing system for extended operational life and a 4-wire interface that supports Pulse Width Modulation (PWM) for dynamic speed regulation. The frame and impeller are manufactured from UL 94V-0 rated PBT plastic, ensuring structural integrity and fire safety. Internal circuitry includes auto-restart protection and a tachometer signal output for real-time rotational monitoring.

PSAD18025BM-AB65 Specifications
Model: PSAD18025BM-AB65
Brand: AAVID (Boyd Corporation)
Product Category: Axial Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 6 to 13.8 VDC
Rated Current: 0.35 A
Rated Power: 4.2 W
Dimensions: 80 x 80 x 25 mm
Fan Speed: 4500 RPM
Maximum Airflow: 60.0 CFM (1.70 m³/min)
Static Pressure: 8.47 mmH2O (0.31 inH2O)
Noise Level: 43.0 dBA
Bearing Type: Dual Ball Bearing
Termination: 4-wire lead
Signal Output: Tachometer (FG)
Control Type: Pulse Width Modulation (PWM)
Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 70,000 hours at 40 °C
Safety Approvals: UL, CUL, TUV, CE

PSAD18025BM-AB65 Applications
Primary applications include integration into server rack enclosures, industrial inverter cooling systems, and telecommunications base station thermal management. Deployed within CNC control cabinets and high-density power supply units requiring active PWM-regulated heat dissipation.
