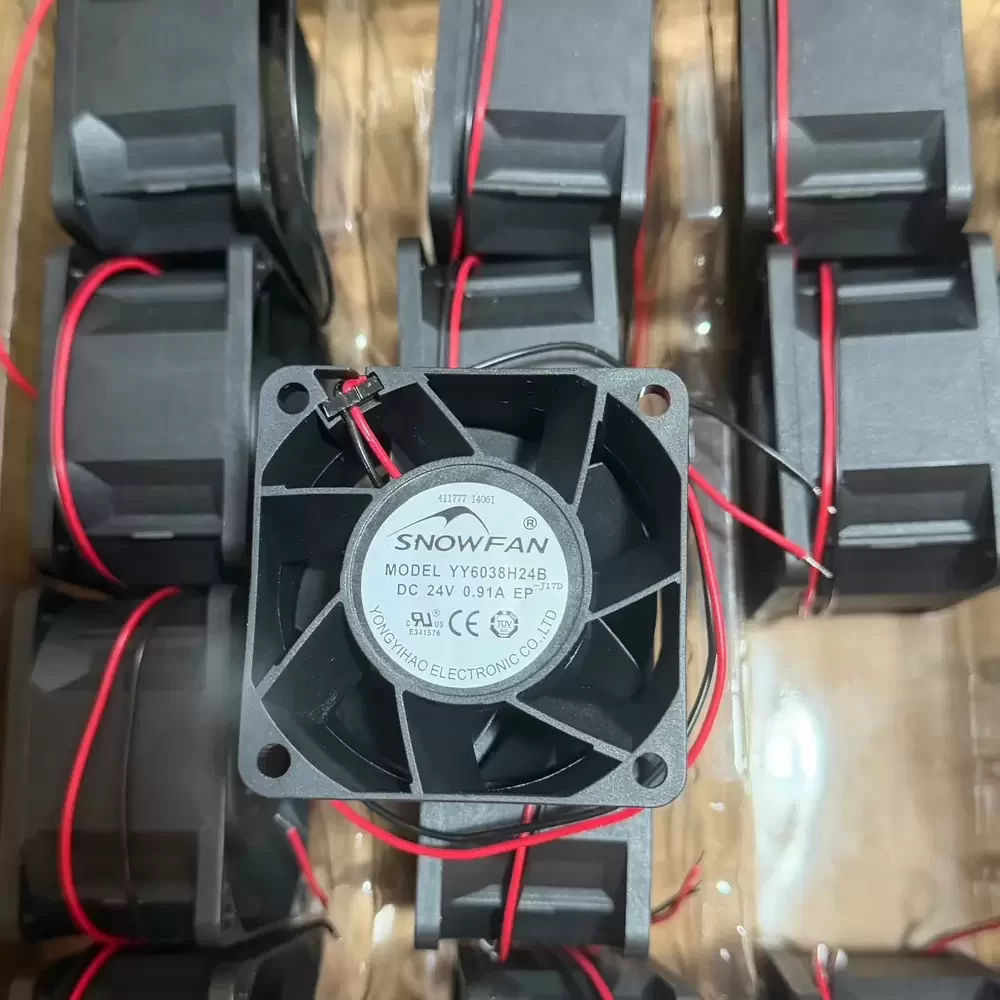

YY6038H24B SNOWFAN 24VDC 0.91A 60x60x38mm Axial Fan

Description

SNOWFAN YY6038H24B 60 x 60 x 38 mm 24 VDC 0.91 A 66 CFM is a high-performance DC axial cooling fan designed for intensive thermal management. This industrial-grade component features a dual ball bearing assembly and a high-torque brushless motor capable of reaching rotational speeds up to 17,000 RPM. The housing and seven-blade impeller are precision-molded from thermoplastic PBT rated to UL 94V-0 standards for flame retardancy and structural integrity under high thermal stress. It generates a maximum static pressure of 82 mmH2O to overcome resistance in densely packed electronic environments and utilizes a 2-wire lead interface for secure power integration.

YY6038H24B Specifications
Model: YY6038H24B
Brand: SNOWFAN
Category: DC Axial Fan
Dimensions: 60 x 60 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 18 to 26.5 VDC
Rated Current: 0.91 A
Input Power: 21.84 W
Rated Speed: 17,000 RPM
Maximum Airflow: 66.0 CFM
Maximum Static Pressure: 82.0 mmH2O
Noise Level: 65.0 dBA
Bearing Type: Dual Ball Bearing
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +80 °C
Service Life: 70,000 hours at 40 °C
Weight: 104 g
Lead Wire: UL 1007 AWG #24 (Red +, Black -)
Safety Approvals: CE, UL, TUV, RoHS

YY6038H24B Applications
Primary applications include integration into high-density server racks, telecommunications base stations, and industrial welding power supplies. Deployed within frequency converters, CNC machine control cabinets, and medical imaging equipment to provide concentrated thermal management for high-heat electronic components.
