9WF0624H4D04 Sanyo Denki 24VDC 60x60x25mm Axial Fan

Description

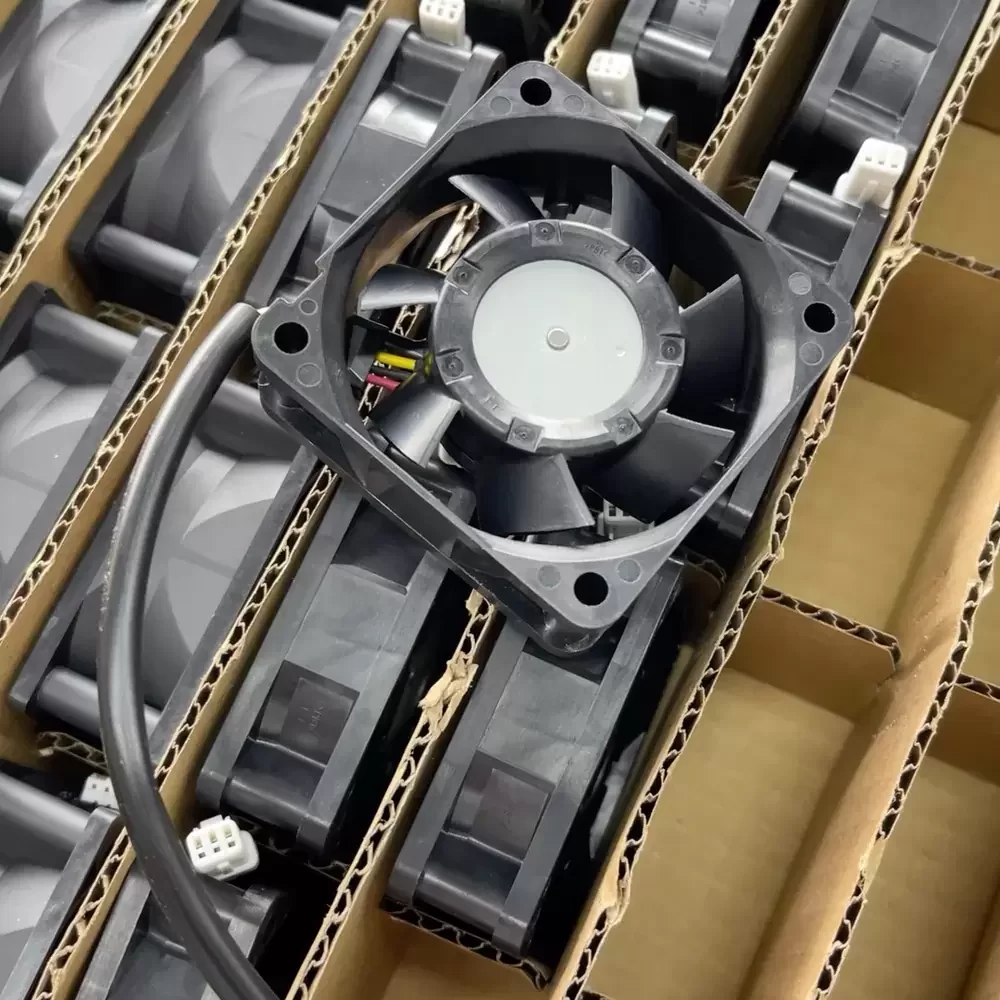

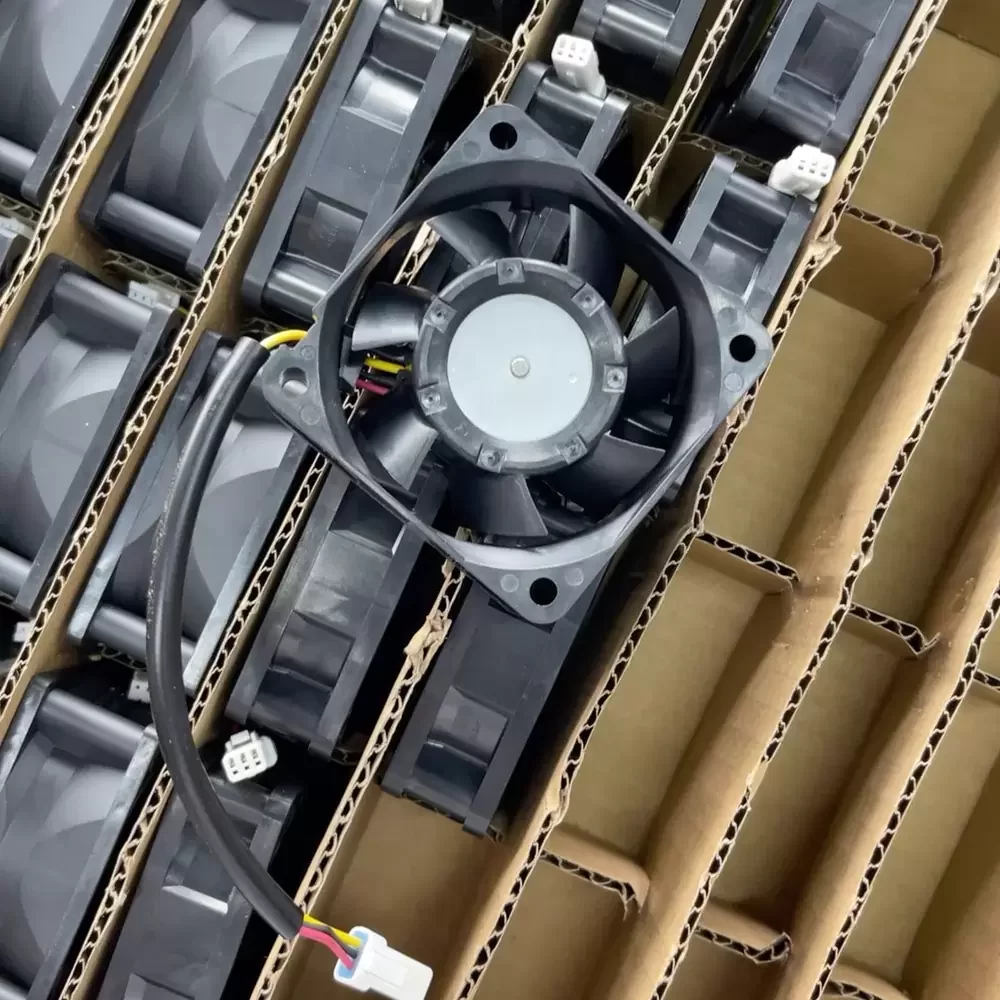

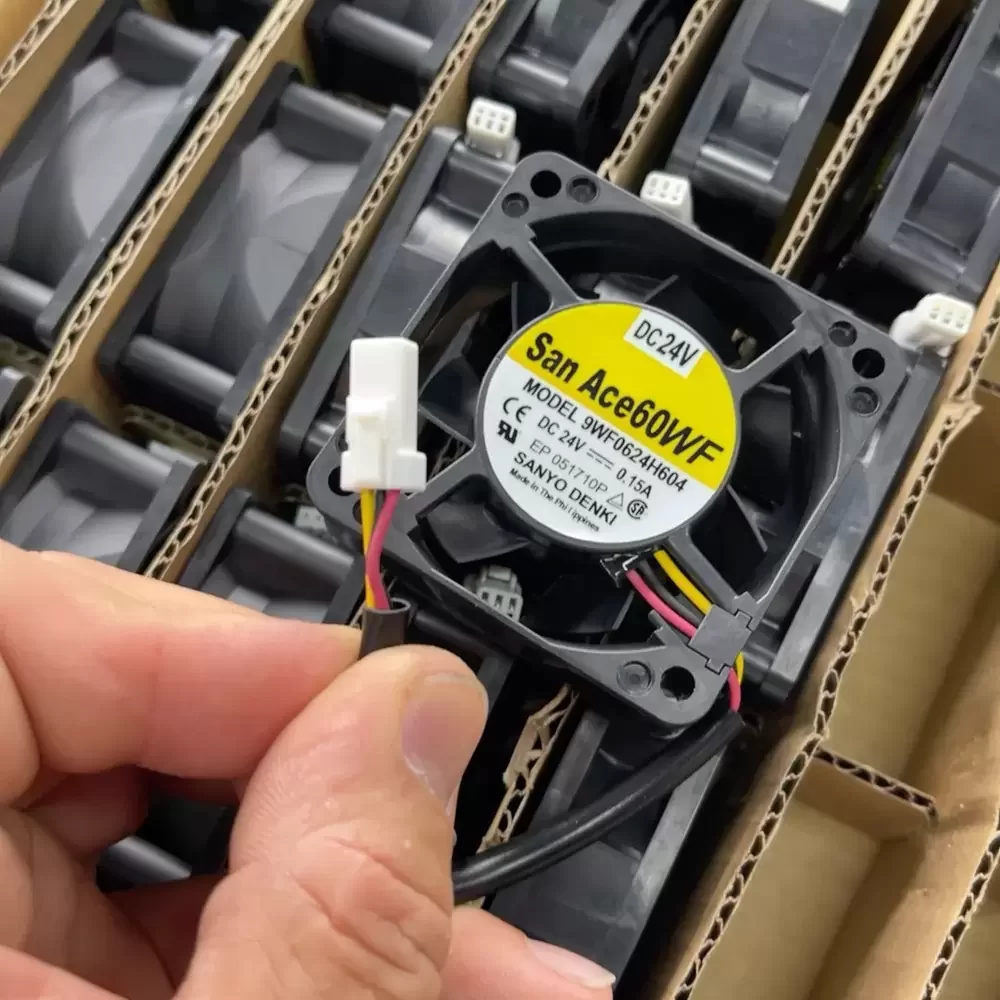

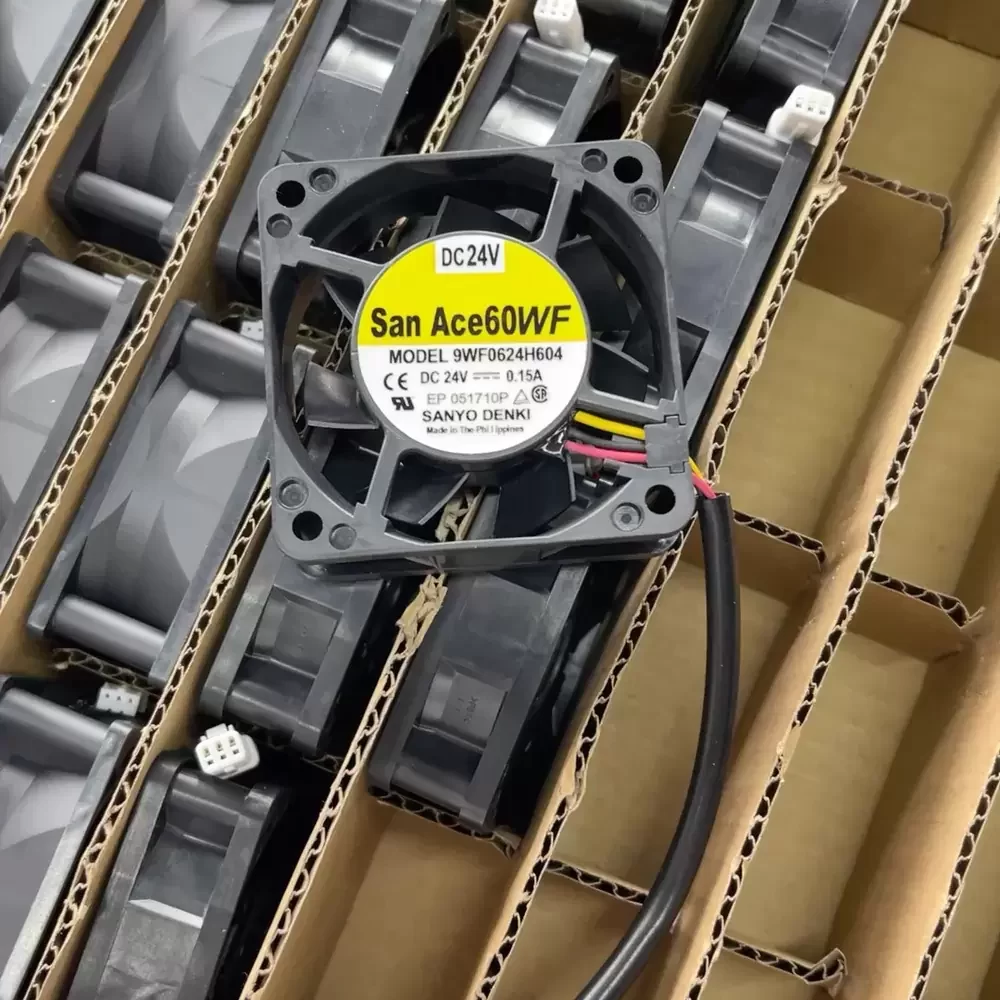

Sanyo Denki 9WF0624H4D04 is a 60 x 60 x 25 mm axial cooling fan operating at a nominal 24 VDC with a 0.15 A current draw. This oil-proof component features a die-cast aluminum frame and a dual ball bearing assembly designed for continuous operation in environments with oil mist. The unit generates a rotational speed of 6500 RPM, producing a maximum airflow of 0.7 m³/min and a static pressure of 100 Pa. It incorporates a 3-wire electrical interface with a dedicated pulse sensor for real-time tachometer output.

9WF0624H4D04 Specifications
Model Number: 9WF0624H4D04
Brand: Sanyo Denki
Series: San Ace 60WF
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 to 27.6 VDC
Rated Current: 0.15 A
Rated Input: 3.6 W
Rated Speed: 6500 RPM
Max Airflow: 0.7 m³/min
Max Airflow: 24.7 CFM
Max Static Pressure: 100 Pa
Max Static Pressure: 0.402 inchH2O
Noise Level: 41 dB(A)
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum
Impeller Material: Plastic (UL 94V-0)
Protection: Oil Proof
Expected Life: 40000 Hours at 60 °C
Operating Temperature: -20 to +70 °C
Storage Temperature: -30 to +70 °C
Sensor Type: Pulse Sensor
Lead Wire: 3-wire
Mass: 110 g

9WF0624H4D04 Applications
Primary applications include integration into Fanuc servo drives, CNC machine tool control units, and industrial robotic controllers. Deployed within high-density server enclosures and power conversion systems where exposure to airborne lubricants requires oil-resistant thermal management components.
