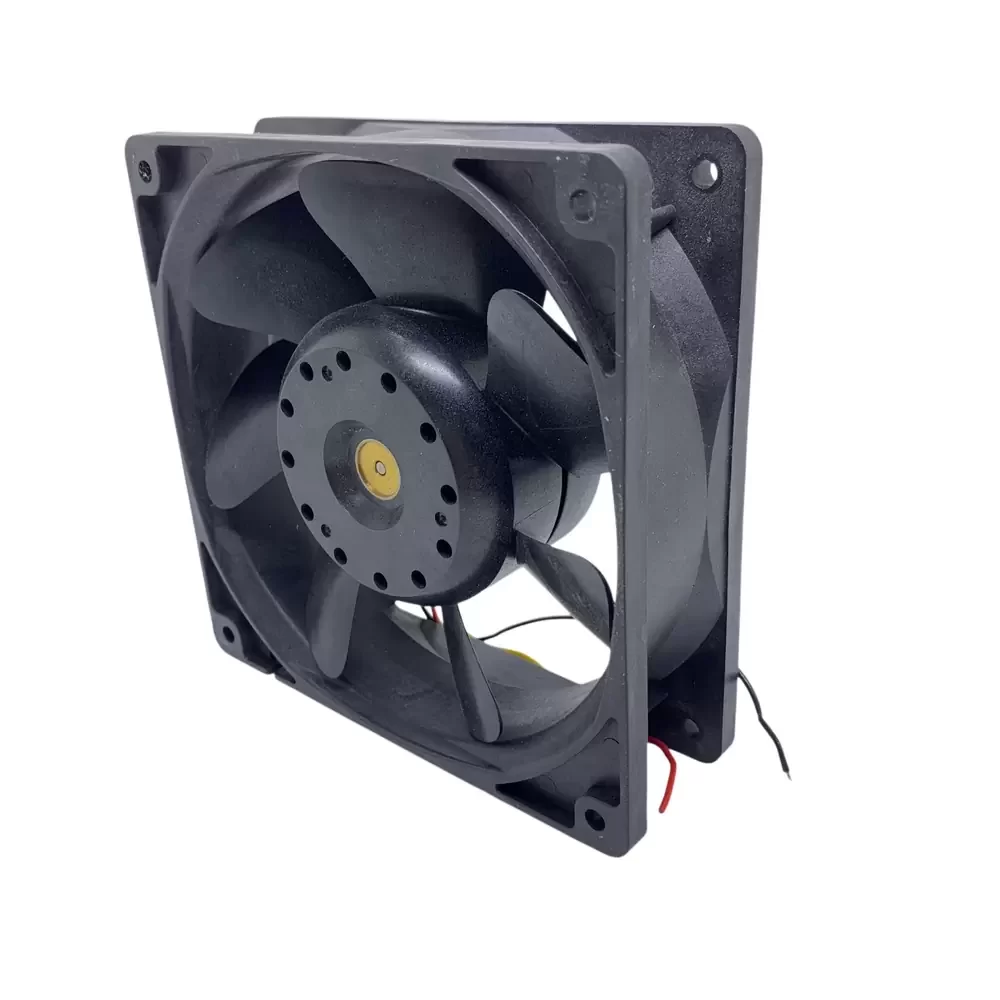

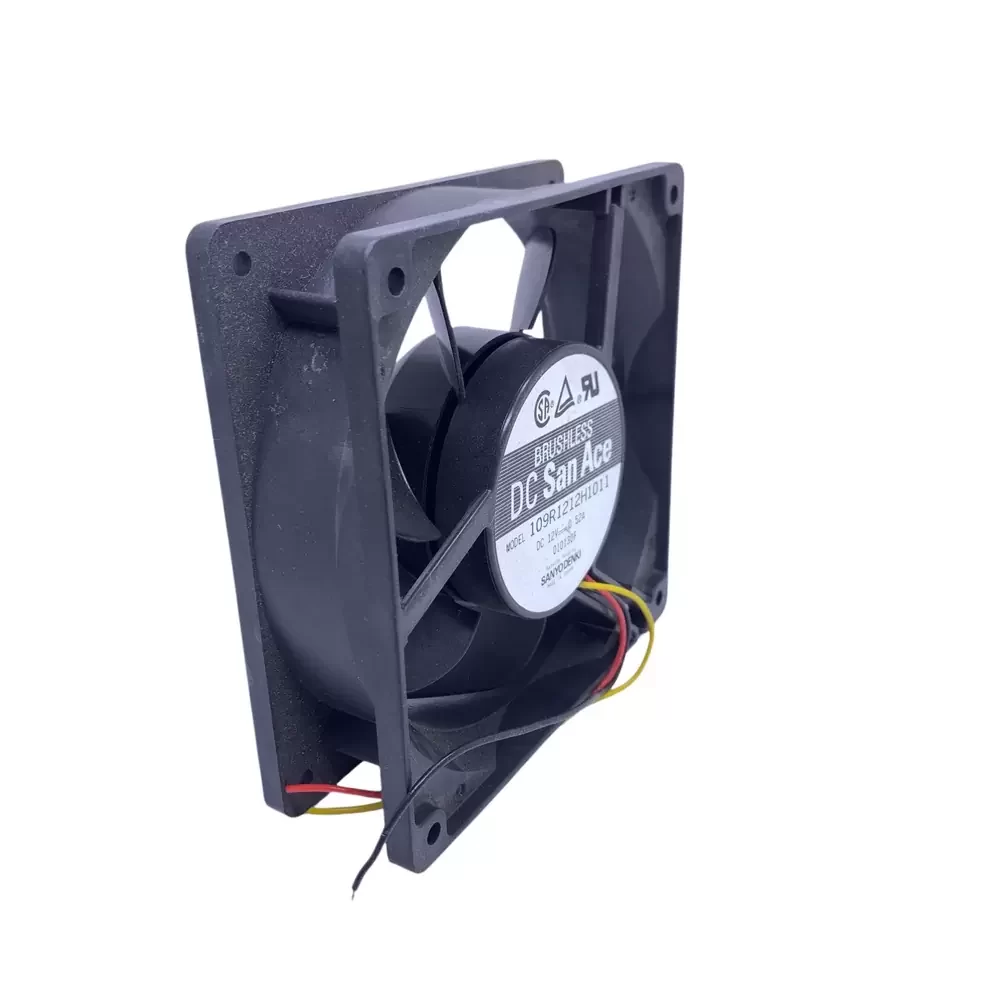

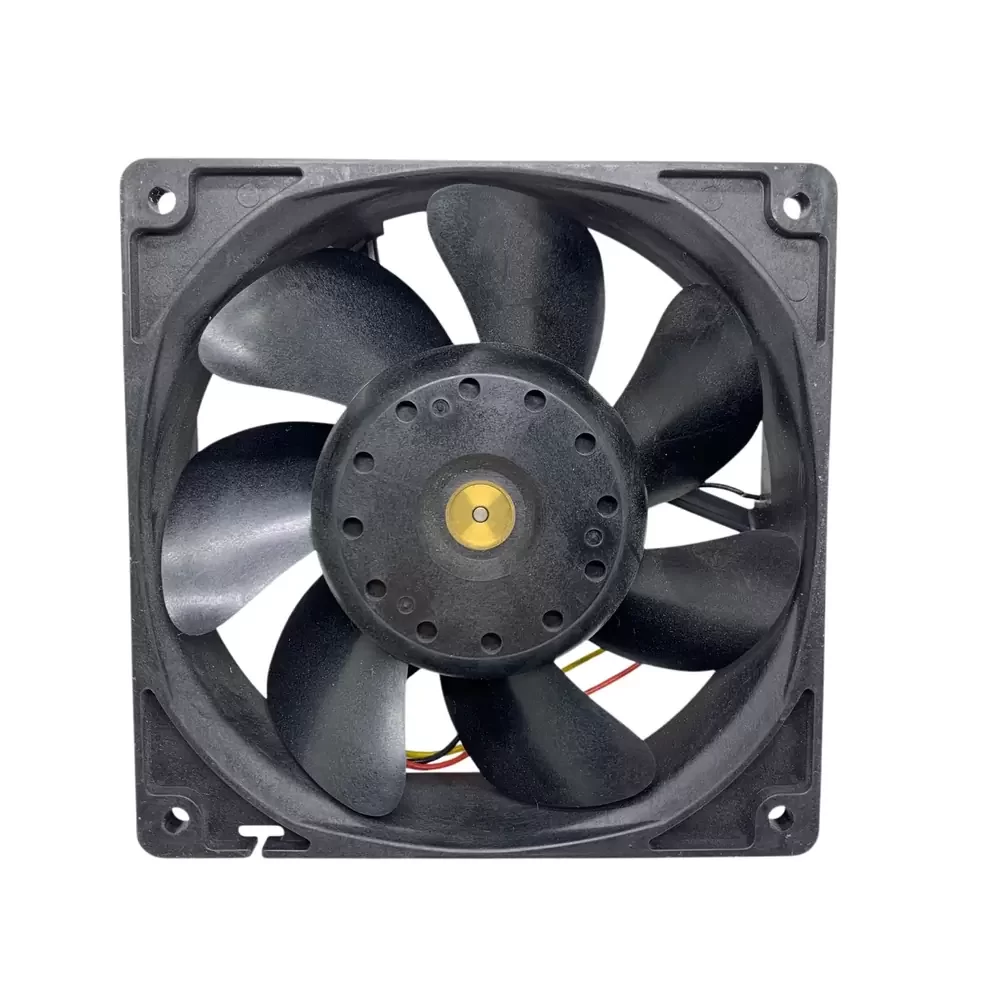

109R1212H1011 Sanyo Denki 12VDC 0.52A 120x120x38mm Axial Fan

Description

Sanyo Denki 109R1212H1011 is a 120 x 120 x 38 mm axial fan operating at a nominal 12 VDC with a rated current of 0.52 A. This high-performance cooling unit features a dual ball bearing system and a plastic frame and impeller rated to UL 94V-0 flammability standards. It delivers a maximum airflow of 2.9 m³/min (102.4 CFM) and a maximum static pressure of 64.7 Pa at a rated speed of 2800 RPM. The internal motor architecture includes polarity protection and locked rotor burnout protection, ensuring operational stability across a temperature range of -20 to +70 °C.

109R1212H1011 Specifications
Model: 109R1212H1011
Brand: Sanyo Denki
Series: San Ace 120 (R Series)
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.8 VDC
Rated Current: 0.52 A
Rated Input: 6.24 W
Rated Speed: 2800 RPM
Max Airflow: 2.9 m³/min
Max Airflow: 102.4 CFM
Max Static Pressure: 64.7 Pa
Max Static Pressure: 0.260 inchH2O
Noise Level: 39 dB(A)
Operating Temperature: -20 to +70 °C
Storage Temperature: -30 to +70 °C
Expected Life: 40000 hours at 60 °C
Dimensions: 120 x 120 x 38 mm
Mass: 290 g
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Bearing Type: Dual Ball Bearing

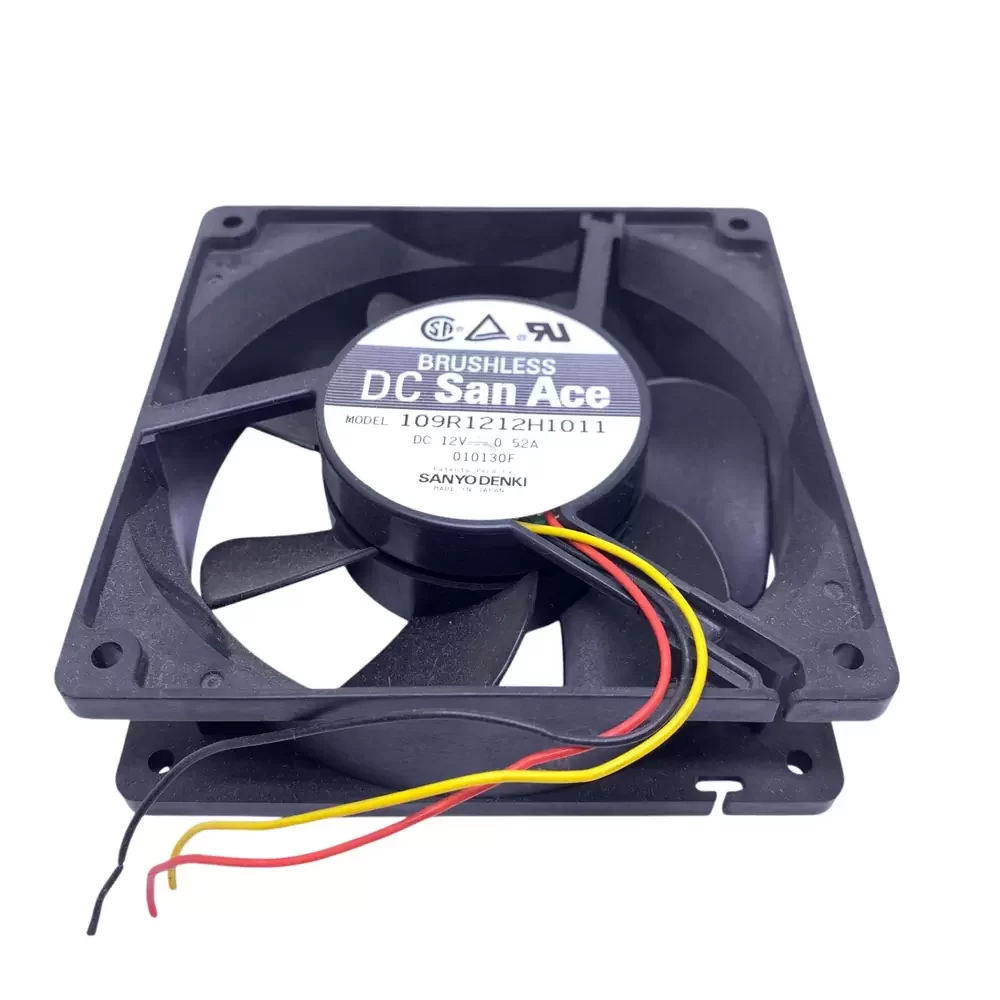

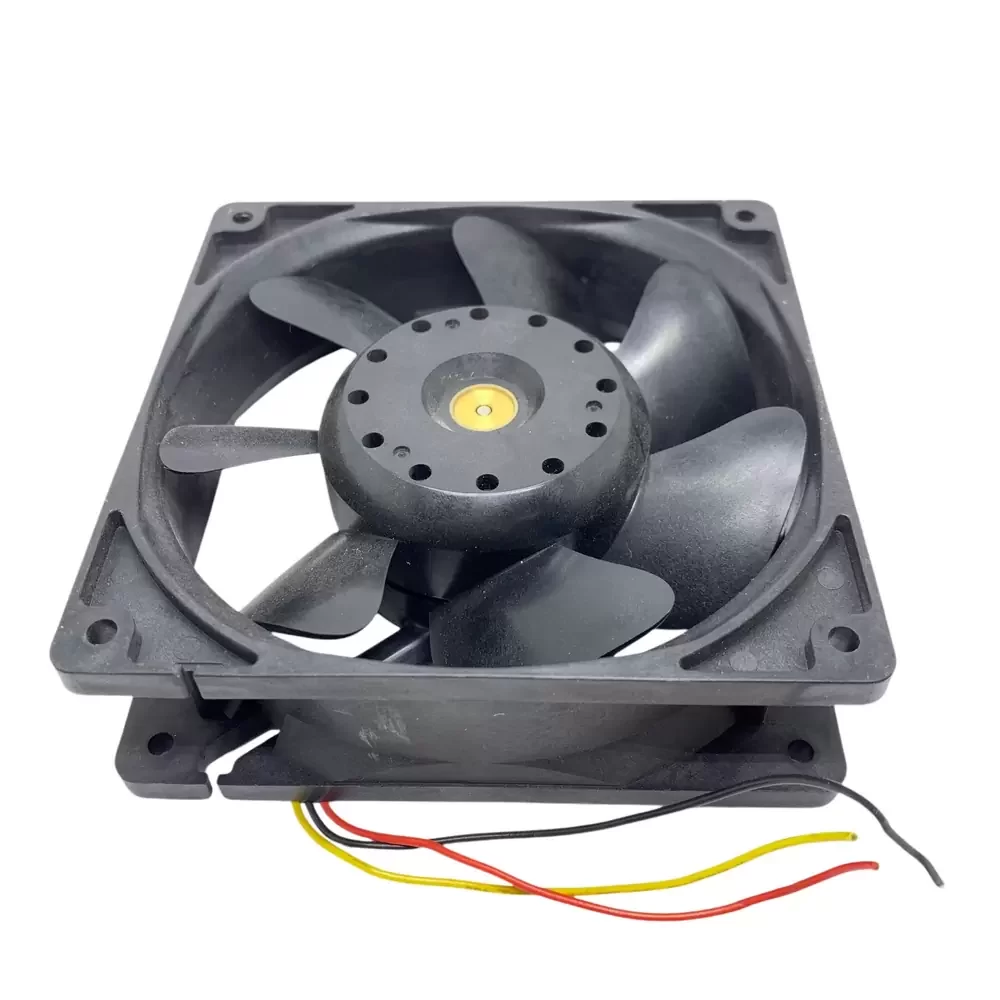

Lead Wire: Red (+), Black (-), Yellow (Sensor)
Sensor Type: Pulse Sensor

109R1212H1011 Applications
Primary applications include integration into industrial frequency inverters, server rack enclosures, and telecommunications power supplies. Deployed within CNC machine control cabinets and medical diagnostic imaging equipment for critical thermal management of high-density electronic components.
