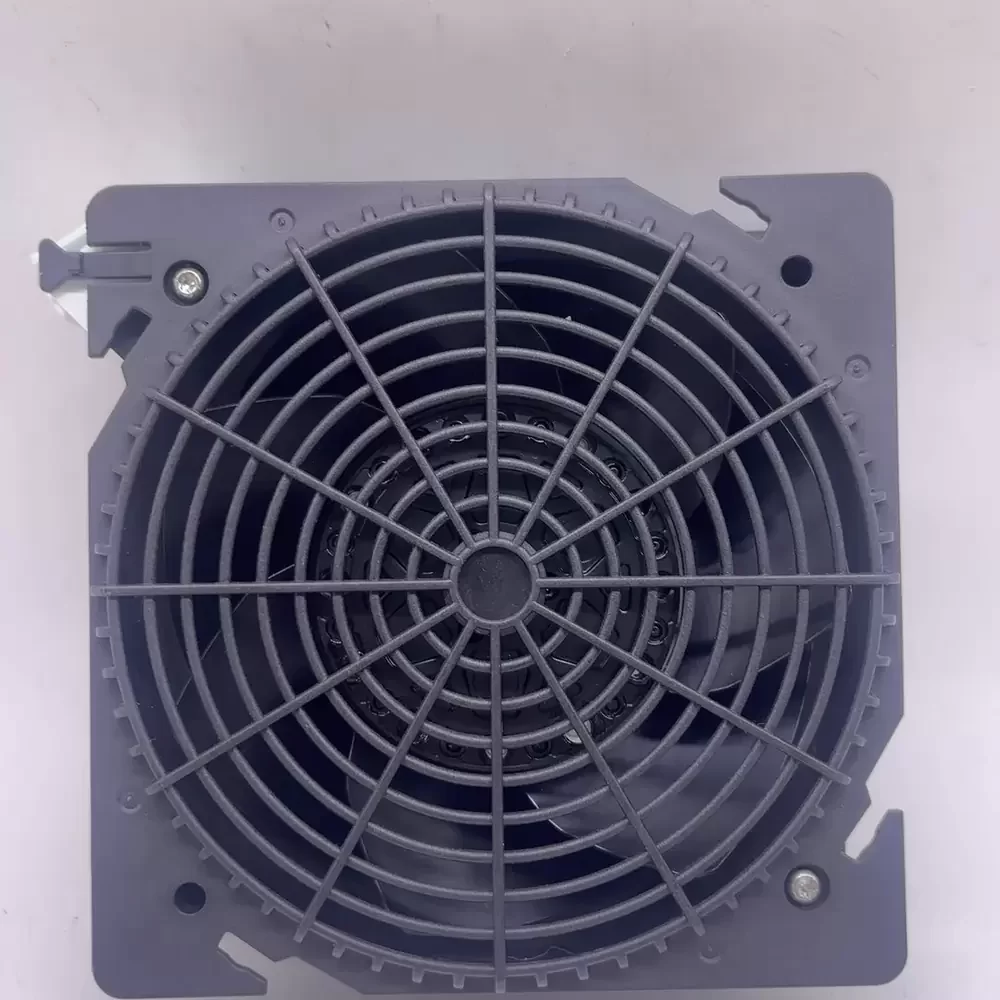

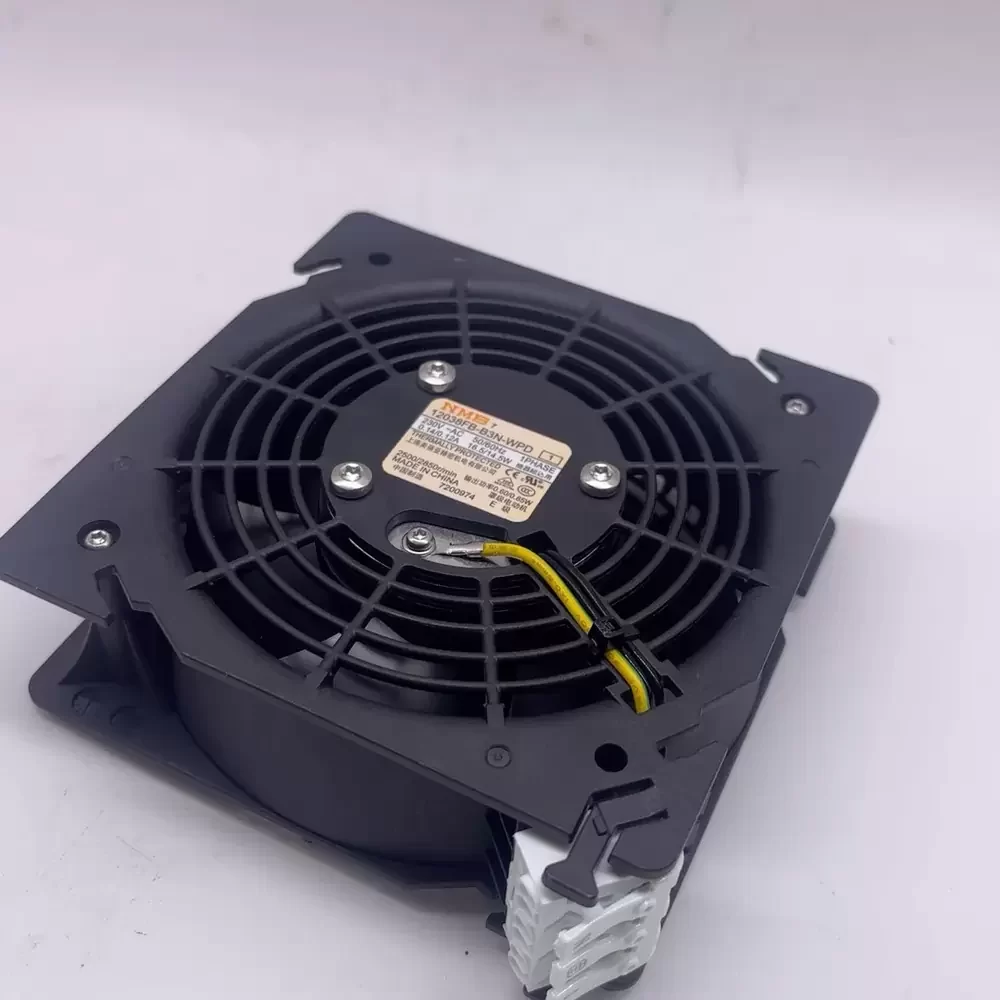

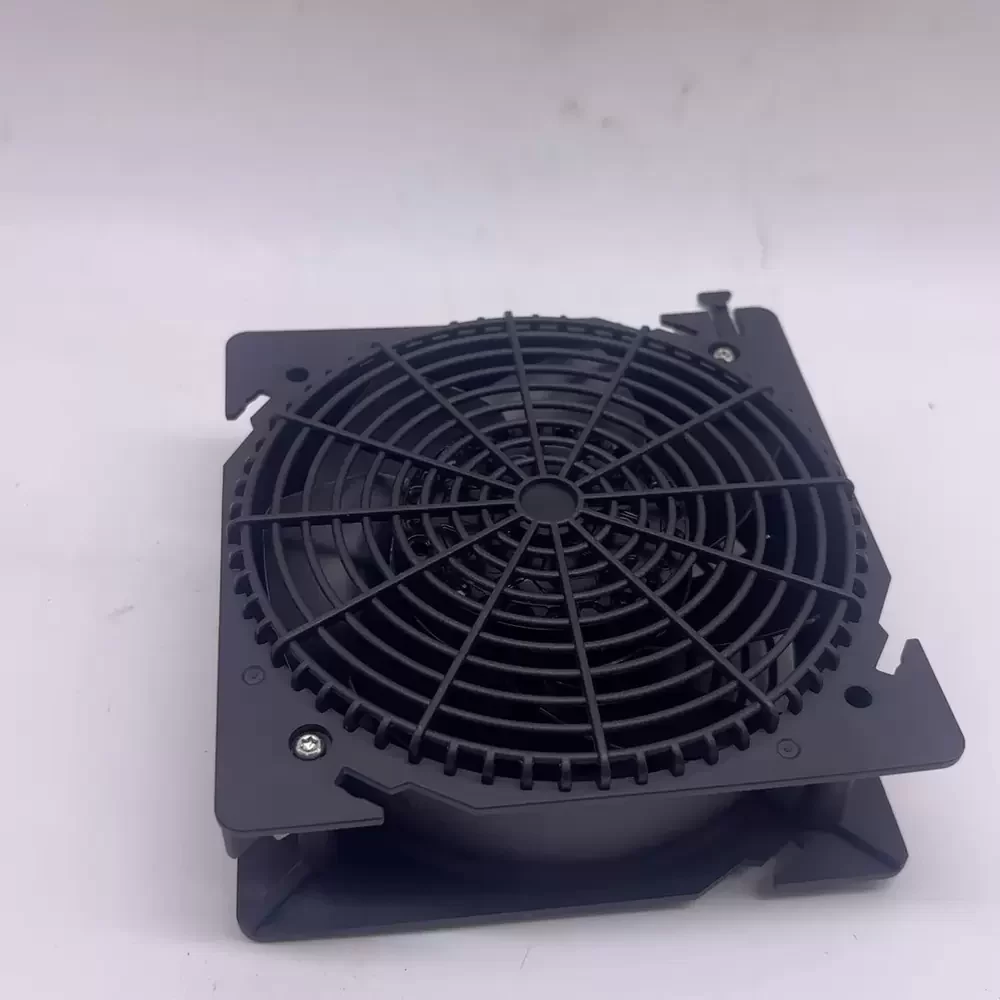

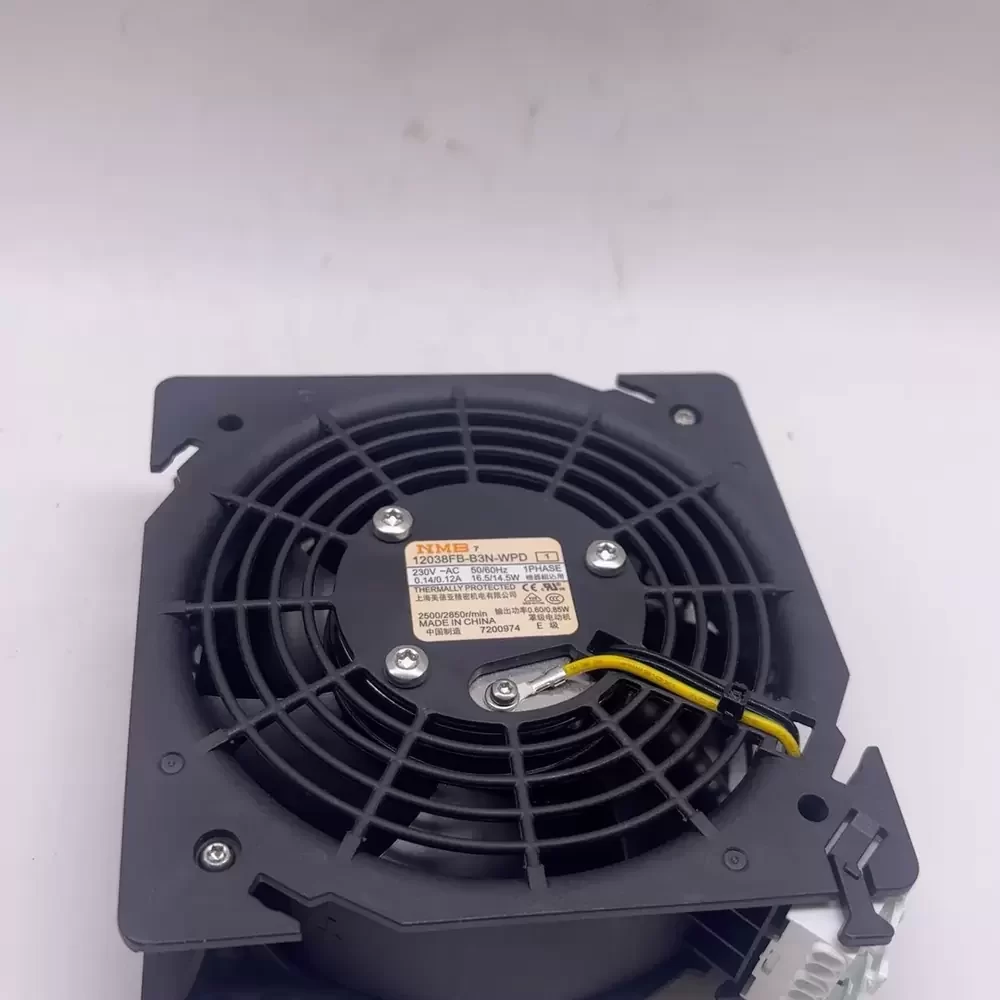

12038FB-B3N-WPD-1 NMB 230VAC 120x120x38mm Axial Fan

Description

NMB 12038FB-B3N-WPD-1 is a 120 x 120 x 38 mm AC axial fan operating at 230 VAC with a power consumption of 16.5 W and a maximum airflow of 102.4 CFM. The unit features a robust aluminum die-cast frame and a UL 94V-0 plastic impeller mounted on a dual ball bearing system for extended service life. It incorporates a shaded pole induction motor with integrated thermal protection and utilizes a 3-wire lead termination for electrical interface. The mechanical design includes an integrated metal finger guard and standard mounting holes for secure installation.

12038FB-B3N-WPD-1 Specifications
Model: 12038FB-B3N-WPD-1
Brand: NMB (MinebeaMitsumi)
Category: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Input Power: 16.5 / 14.5 W
Rated Current: 0.14 / 0.12 A
Rotational Speed: 2500 / 2850 RPM
Max Airflow: 88.2 / 102.4 CFM
Max Static Pressure: 66.6 / 86.2 Pa
Noise Level: 40 / 44 dB
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum
Impeller Material: Plastic (UL 94V-0)
Termination: 3-wire Lead Wires
Motor Protection: Thermal Protected
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Mass: 530 g
Safety Approvals: UL, CSA, VDE, CE

12038FB-B3N-WPD-1 Applications
Primary applications include integration into Rittal electrical enclosures, CNC machine tool control cabinets, and industrial server racks. Deployed within telecommunications base stations and power supply cooling systems to maintain thermal equilibrium in high-density electronic assemblies.
