R3G310-RS05-J1 ebmpapst 380-480VAC 310mm EC Centrifugal Fan

Description

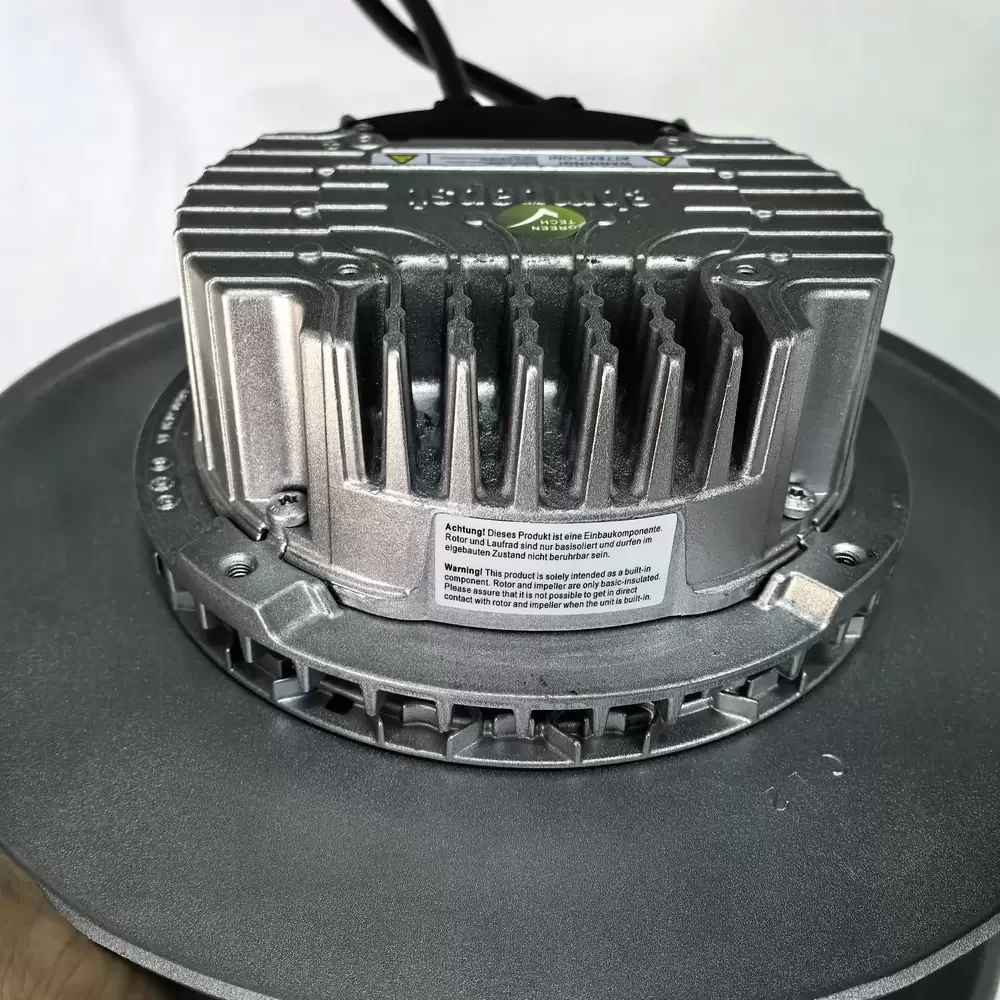

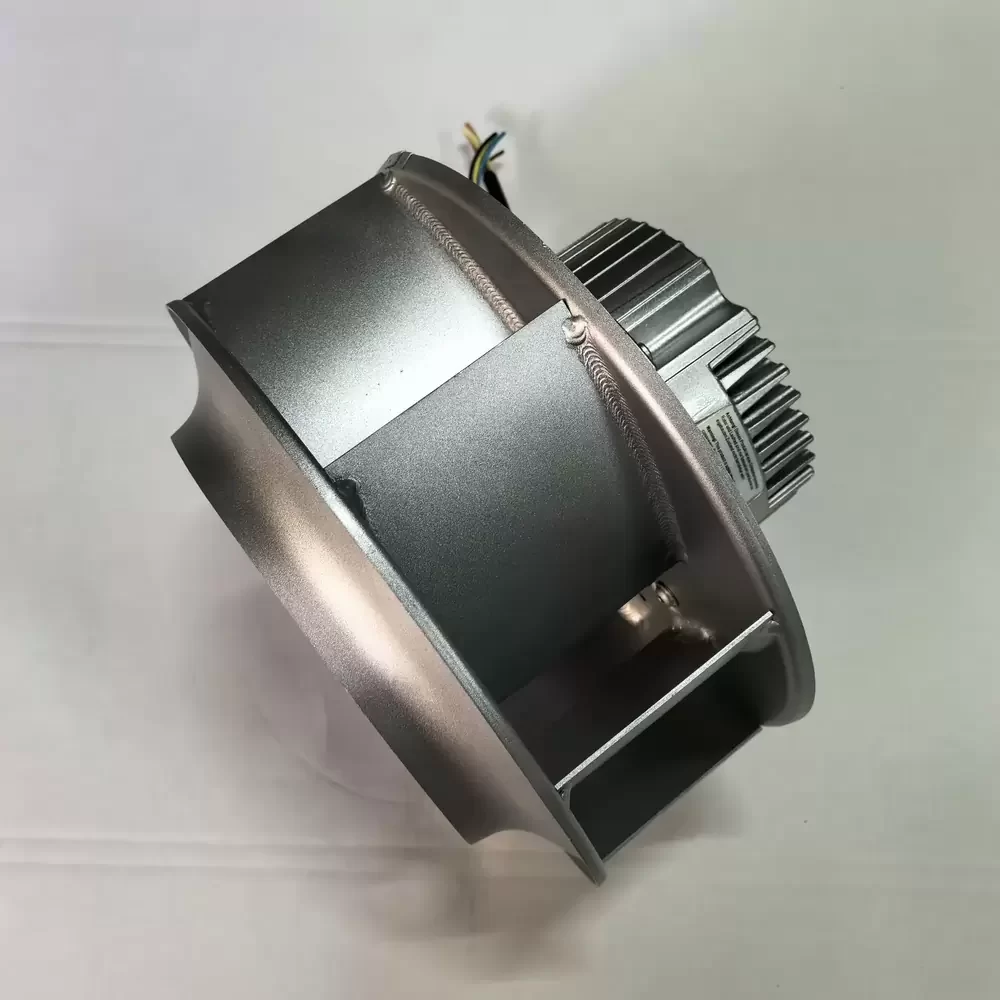

ebm-papst R3G310-RS05-J1 is a 310 mm diameter EC centrifugal fan operating at 380-480 VAC with a 0.78 kW power rating and 2700 rpm nominal speed. The unit features a RadiCal backward-curved impeller constructed from fiberglass-reinforced polypropylene plastic, mounted to a high-efficiency M3G084-FA brushless EC motor. It incorporates integrated control electronics with a 0-10 VDC or PWM control interface, tach output, and RS-485 MODBUS RTU communication. The mechanical assembly utilizes maintenance-free dual ball bearings and achieves an IP 55 protection rating with insulation class F.

R3G310-RS05-J1 Specifications

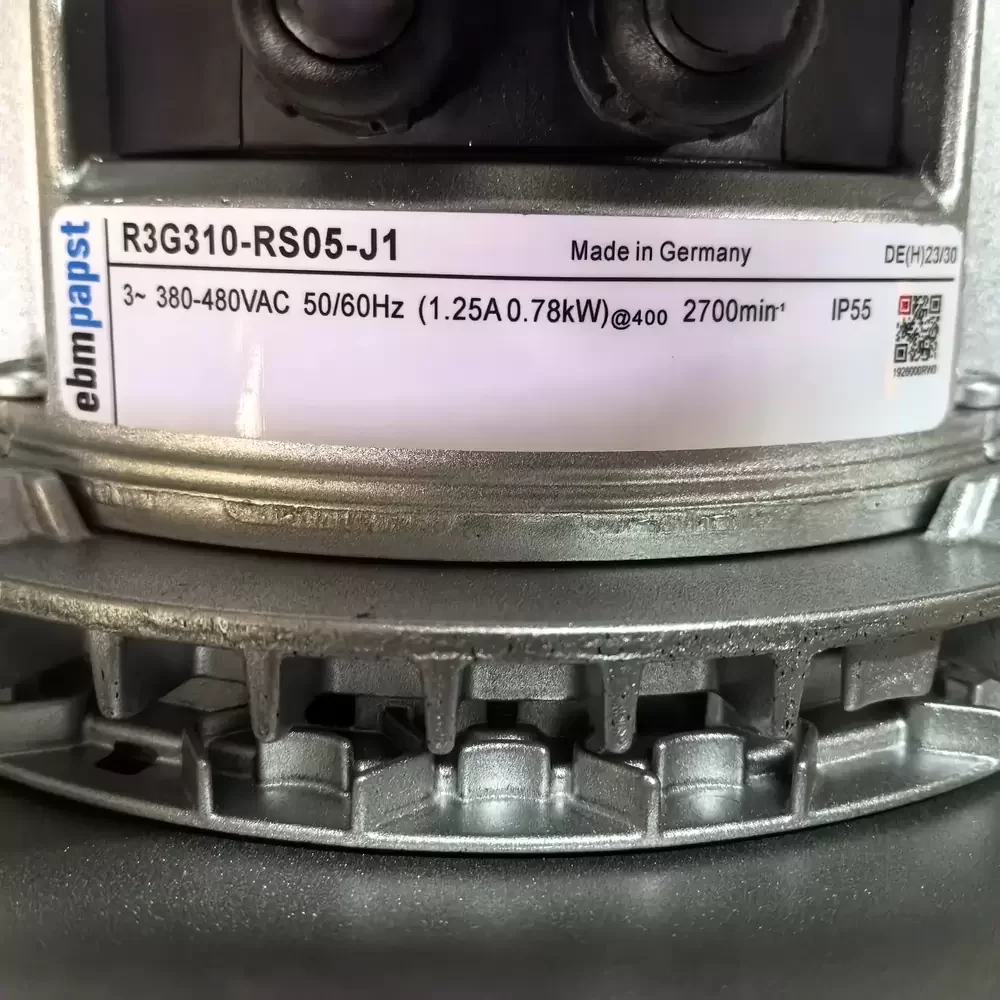

Model: R3G310-RS05-J1
Brand: ebm-papst
Motor: M3G084-FA
Phase: 3~
Nominal Voltage: 380-480 VAC
Frequency: 50/60 Hz
Input Power: 0.78 kW
Current Draw: 1.25 A
Speed: 2700 rpm
Airflow: 2700 m³/h
Static Pressure: 632 Pa
Impeller Diameter: 310 mm
Number of Blades: 6
Direction of Rotation: Clockwise
Protection Class: IP 55
Insulation Class: F
Operating Temperature: -25 to +60 °C
Storage Temperature: -40 to +80 °C
Bearing Type: Ball bearing
Control Input: 0-10 VDC / PWM
Communication: RS-485 MODBUS RTU
Material: PP plastic impeller, Die-cast aluminum electronics housing
Weight: 5.54 kg
Approvals: CE, UL, CSA, VDE

R3G310-RS05-J1 Applications
Primary applications include integration into precision air conditioning units, server rack cooling systems, and cleanroom ventilation modules. Deployed within industrial heat exchangers, AHU (Air Handling Units), and telecommunications base station thermal management systems.
