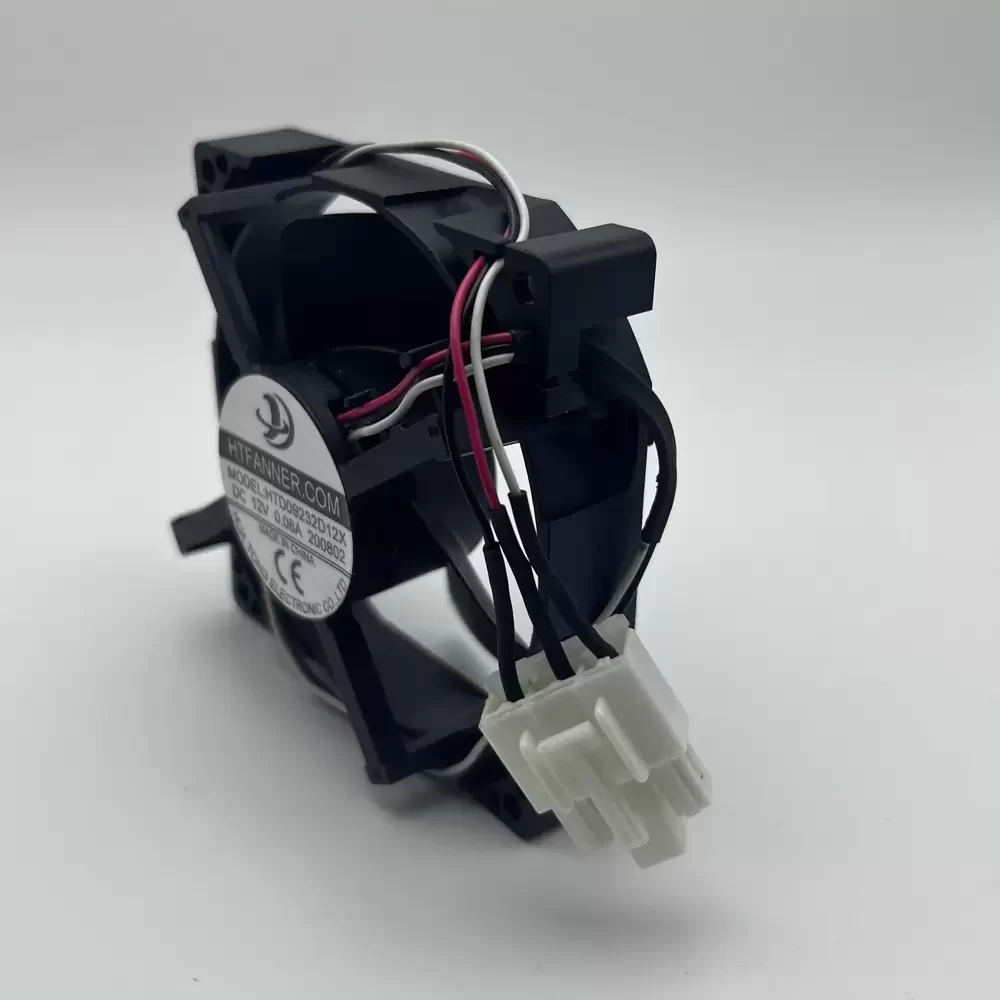

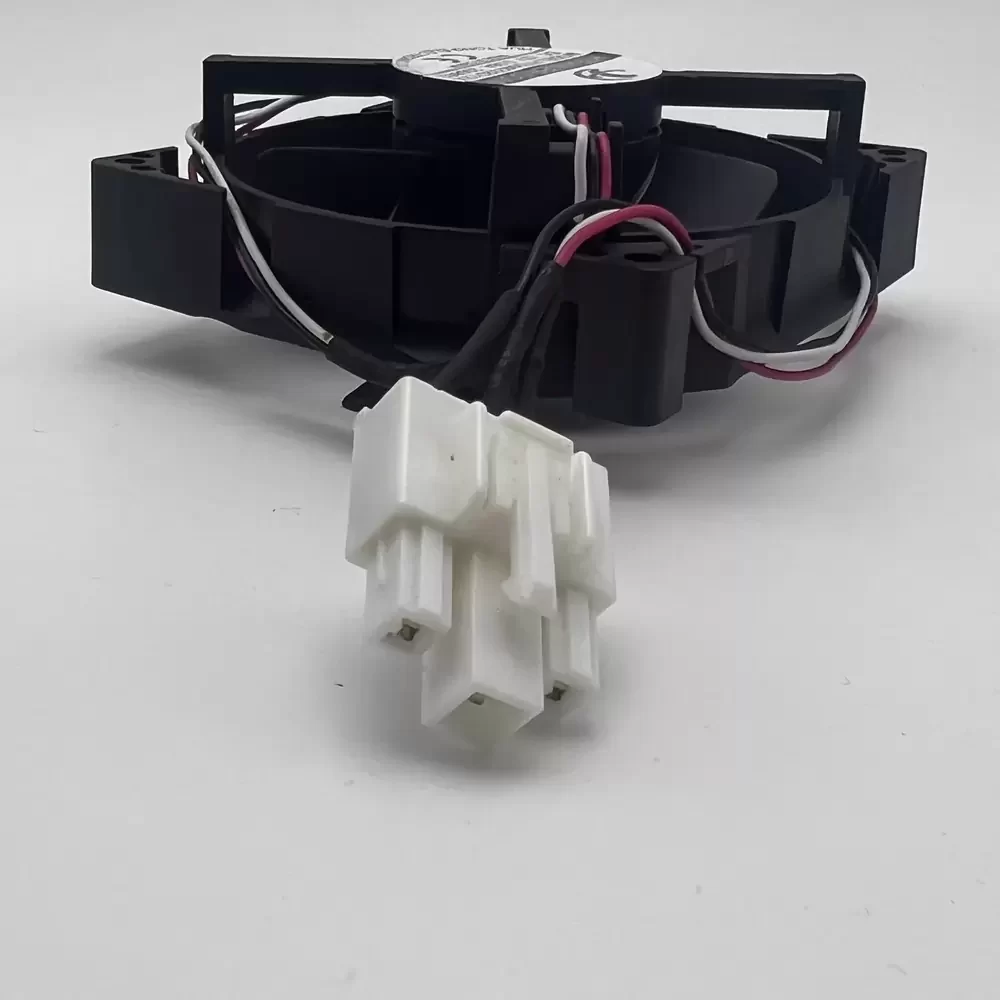

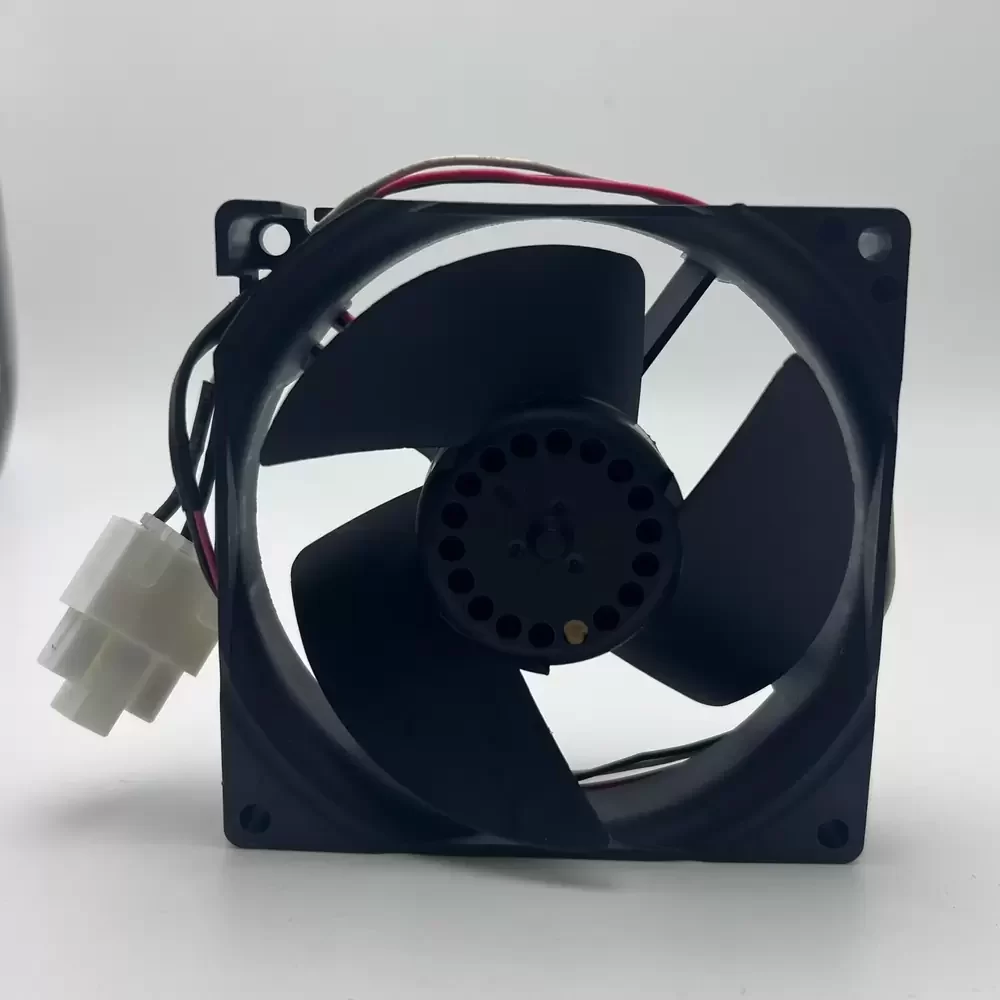

HTD09232D12X HTFANNER 12VDC 0.08A 92x92x32mm Freezer Fan

Description

HTFANNER HTD09232D12X is a 92 x 92 x 32 mm axial cooling fan operating at 12 VDC with a 0.08 A current draw. The unit features a high-strength PBT plastic housing and a 7-blade impeller designed for low-noise airflow. It utilizes a 3-wire interface providing power and a tachometer output signal for rotational speed monitoring. The internal motor is a brushless DC design with a hydraulic bearing system for extended operational life and vertical or horizontal mounting capability.

HTD09232D12X Specifications
Model: HTD09232D12X
Brand: HTFANNER
Category: Refrigerator Freezer Fan
Voltage: 12 VDC
Current: 0.08 A
Power: 0.96 W
Dimensions: 92 x 92 x 32 mm
Wiring: 3-wire
Bearing Type: Hydraulic Bearing
Housing Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Motor Type: Brushless DC
Signal Output: Tachometer Signal
Mounting: 4-hole Flange Mount
Max Operating Temperature: 85 °C

HTD09232D12X Applications
Primary applications include integration into Little Swan BCD-182WGL freezer compartments and domestic refrigeration forced-air circulation systems. Deployed within evaporator cooling assemblies and residential cold-storage units requiring consistent thermal regulation.
