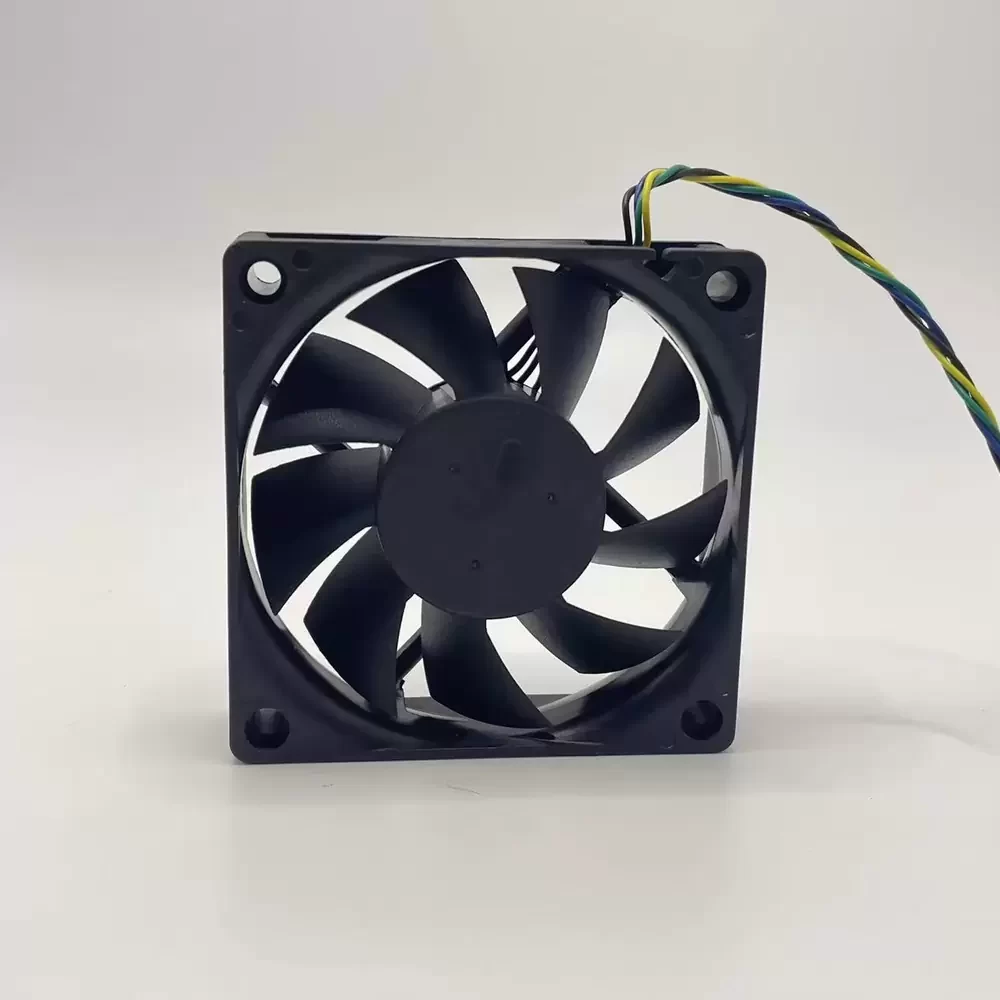

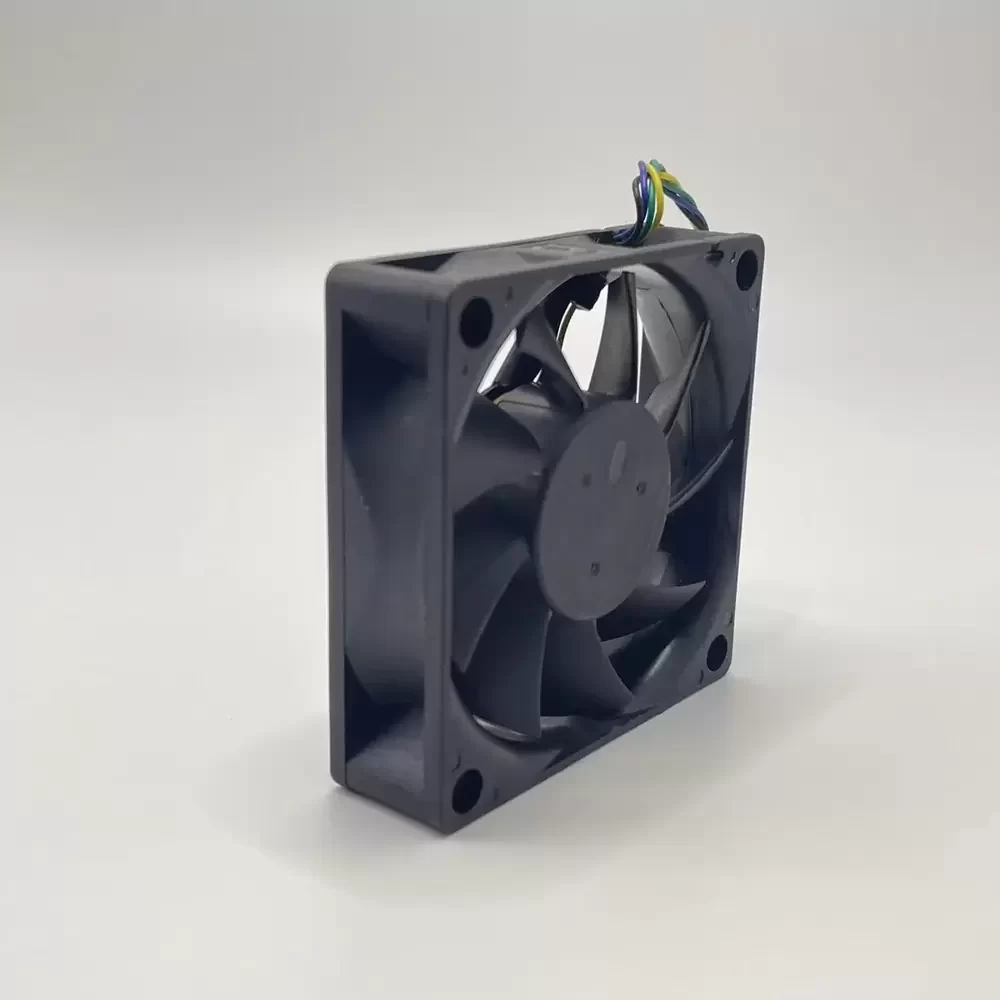

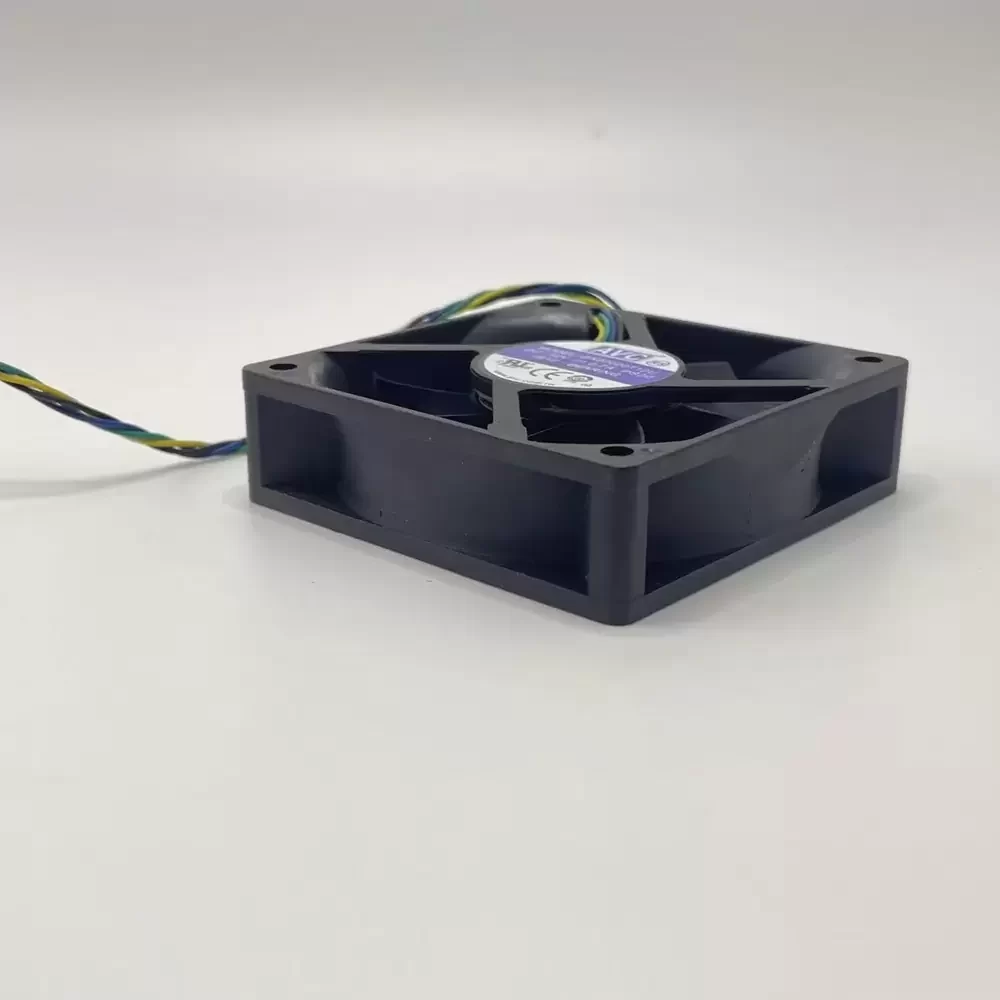

DA07020T12U-PS20 AVC 12V 0.7A 70x70x20mm DC Axial Fan

Description

AVC DA07020T12U-PS20 70 x 70 x 20 mm 12 VDC 0.7 A 4400 RPM DC axial fan is a high-performance cooling component. It features a 4-wire PWM interface for precise speed control and utilizes a double ball bearing system for extended operational life. The unit is constructed with a durable plastic frame and impeller, delivering high static pressure and airflow.

DA07020T12U-PS20 Specifications
Model: DA07020T12U-PS20
Brand: AVC (Asia Vital Components)
Category: DC Axial Fan
Dimensions: 70 x 70 x 20 mm
Voltage: 12 VDC
Current: 0.7 A
Power: 8.4 W
Speed: 4400 RPM
Noise Level: 30 dBA
Bearing Type: Double Ball Bearing
Interface: 4-wire PWM
Material: Plastic (UL 94V-0)
Weight: 60 g
Operating Voltage Range: 7.0 to 13.8 VDC
Lead Wire: UL1007 AWG26
Termination: 4-pin Connector

DA07020T12U-PS20 Applications
Primary applications include integration into computer CPU cooling systems, 3D printer enclosures, and server rack thermal management units. Deployed within telecommunications equipment and industrial power supply cooling modules requiring high-static pressure and variable speed control.
