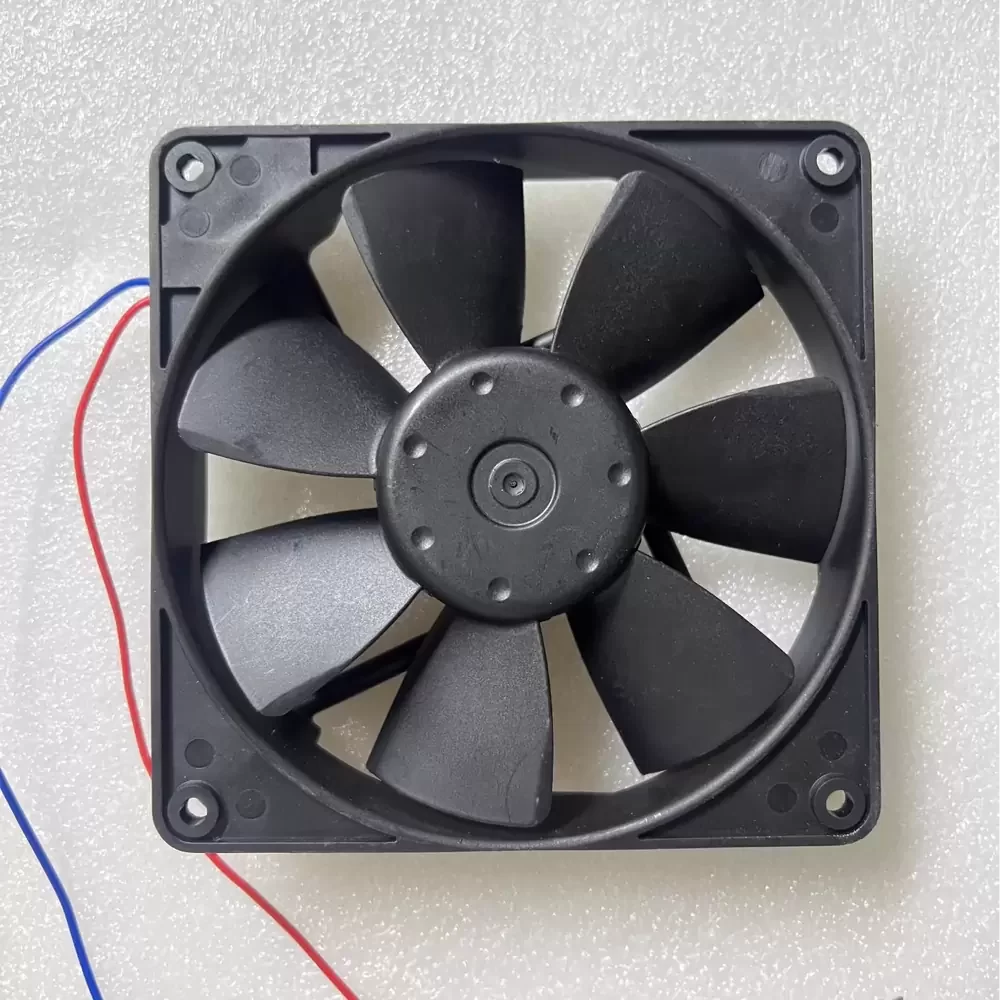

4414FD ebm-papst 24VDC 5W 100CFM Axial Fan

Description

ebm-papst 4414FD 119 x 119 x 25.4 mm 24 VDC 100 CFM DC axial fan. The unit features a fiberglass-reinforced plastic PBTP housing and PA impeller, driven by a 5 W motor drawing 0.21 A at a nominal speed of 2900 RPM. It utilizes a dual ball bearing system for extended operational longevity and interfaces via standard 2-wire leads. The fan operates within a 12 to 28 VDC range, generating 43 dBA of acoustic noise while maintaining an IP20 environmental protection rating.

4414FD Specifications
Model: 4414FD
Brand: ebm-papst
Product Category: DC Axial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 12 to 28 VDC
Power Consumption: 5 W
Nominal Current: 0.21 A
Maximum Airflow: 100 CFM
Airflow Volume: 170 m³/h
Nominal Speed: 2900 RPM
Acoustic Noise Level: 43 dBA
Bearing System: Dual Ball Bearing
Dimensions: 119 x 119 x 25.4 mm
Weight: 172.37 g
Housing Material: Plastic (PBTP)
Impeller Material: Plastic (PA)
Termination: 2-Wire Leads
Operating Temperature Range: -20 to 75 °C
Ingress Protection: IP20

4414FD Applications
Primary applications include integration into CNC spindle cooling systems, telecom base station enclosures, and industrial HVAC control panels. Deployed within automated factory robotics cabinets, server racks, and high-power LED thermal management arrays to ensure continuous heat dissipation. Utilized in variable frequency drive enclosures and heavy-duty power supply units requiring forced convection cooling.
