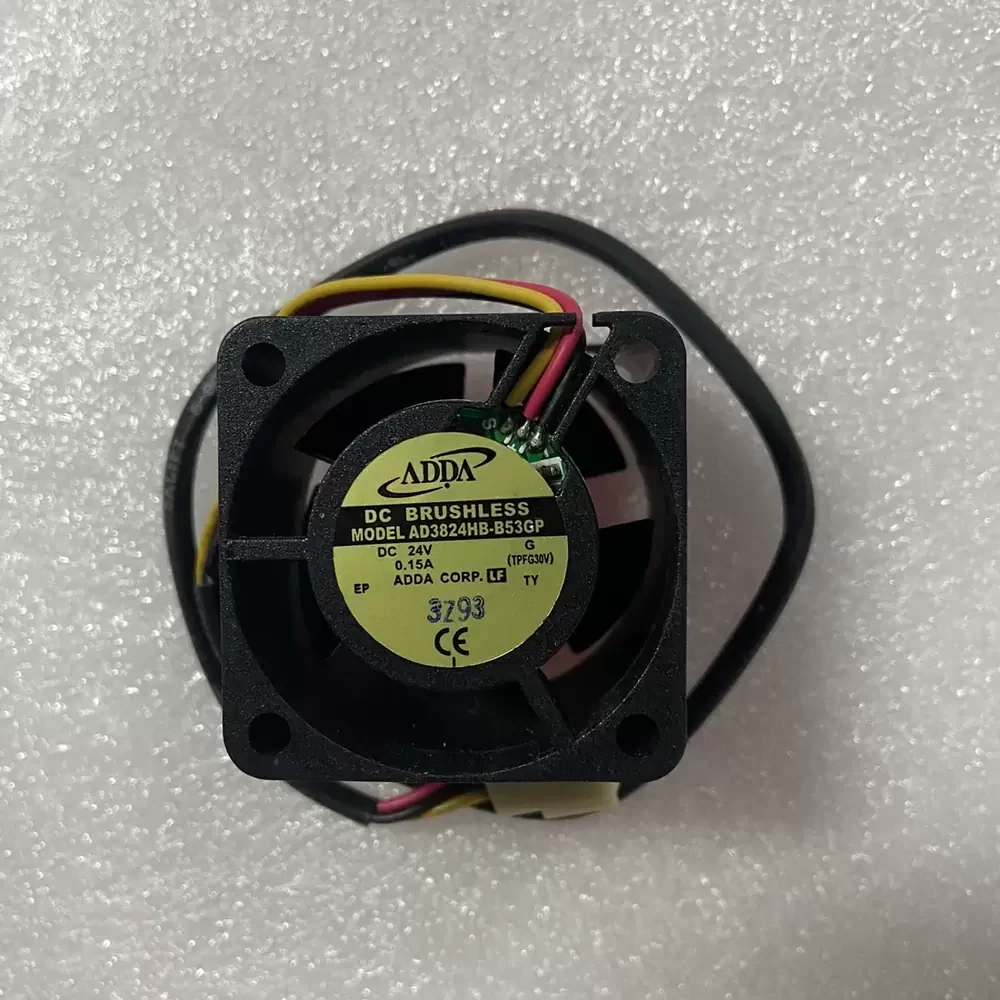

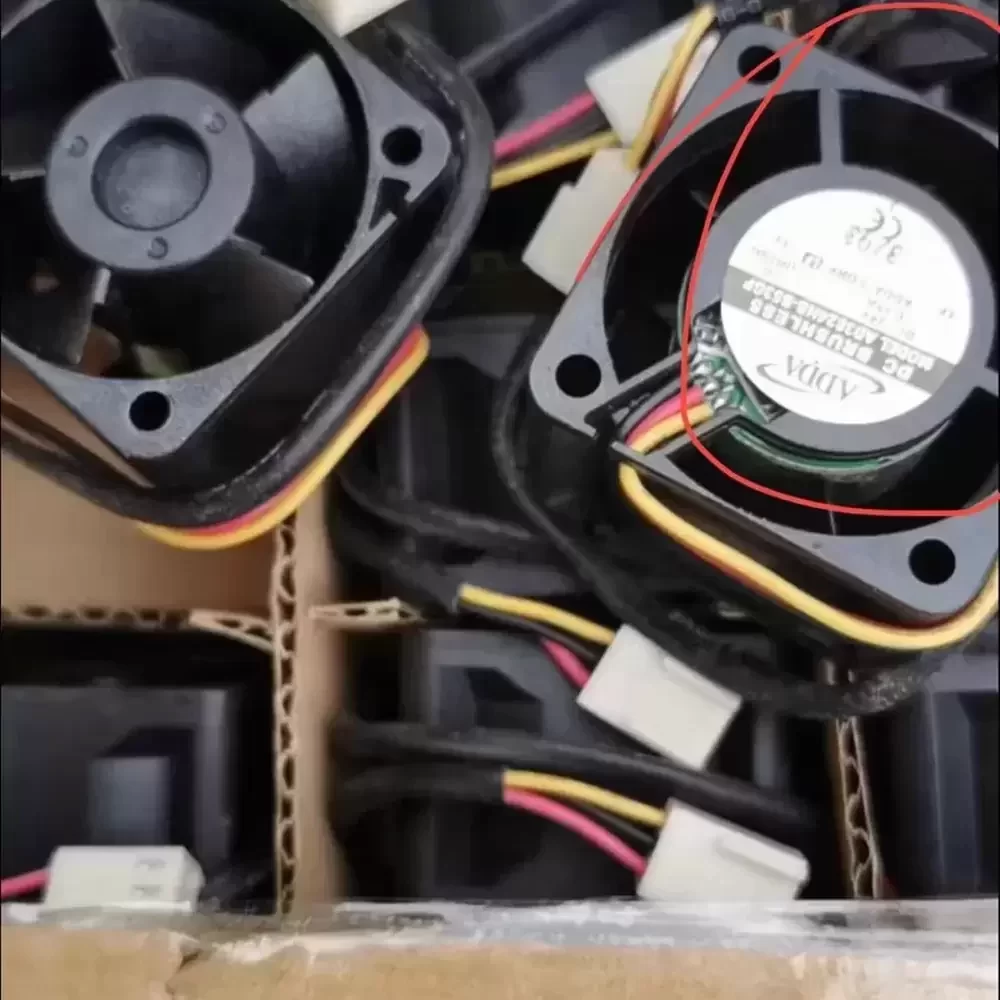

AD3824HB-B53GP ADDA 24VDC 0.15A 38x38x28mm Axial Fan

Description

ADDA AD3824HB-B53GP is a compact 38 x 38 x 28 mm brushless DC cooling fan operating at a nominal 24 VDC and drawing 0.15 A to deliver high-velocity airflow. Constructed with a durable glass-filled PBT UL94V-0 frame and an impeller with 5 blades, this unit utilizes a precision dual ball bearing system to ensure extended operational longevity and stable rotational dynamics. The hardware integrates an interface with 3 wires featuring an FG (Frequency Generator) tachometer output for real-time speed monitoring, alongside built-in motor and polarity protection mechanisms.

AD3824HB-B53GP Specifications
Model Number: AD3824HB-B53GP
Brand: ADDA
Product Category: Brushless DC Axial Fan
Nominal Voltage: 24 VDC
Rated Current: 0.15 A
Power Consumption: 3.6 W

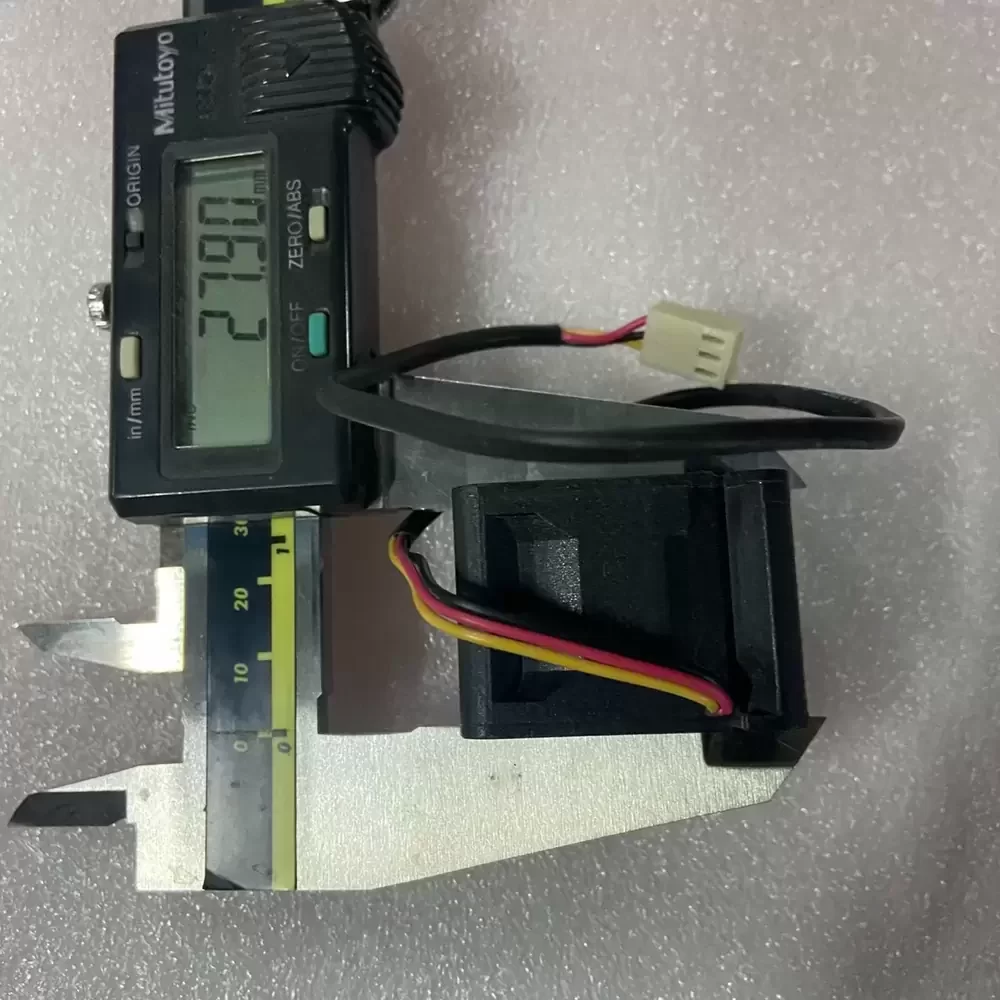

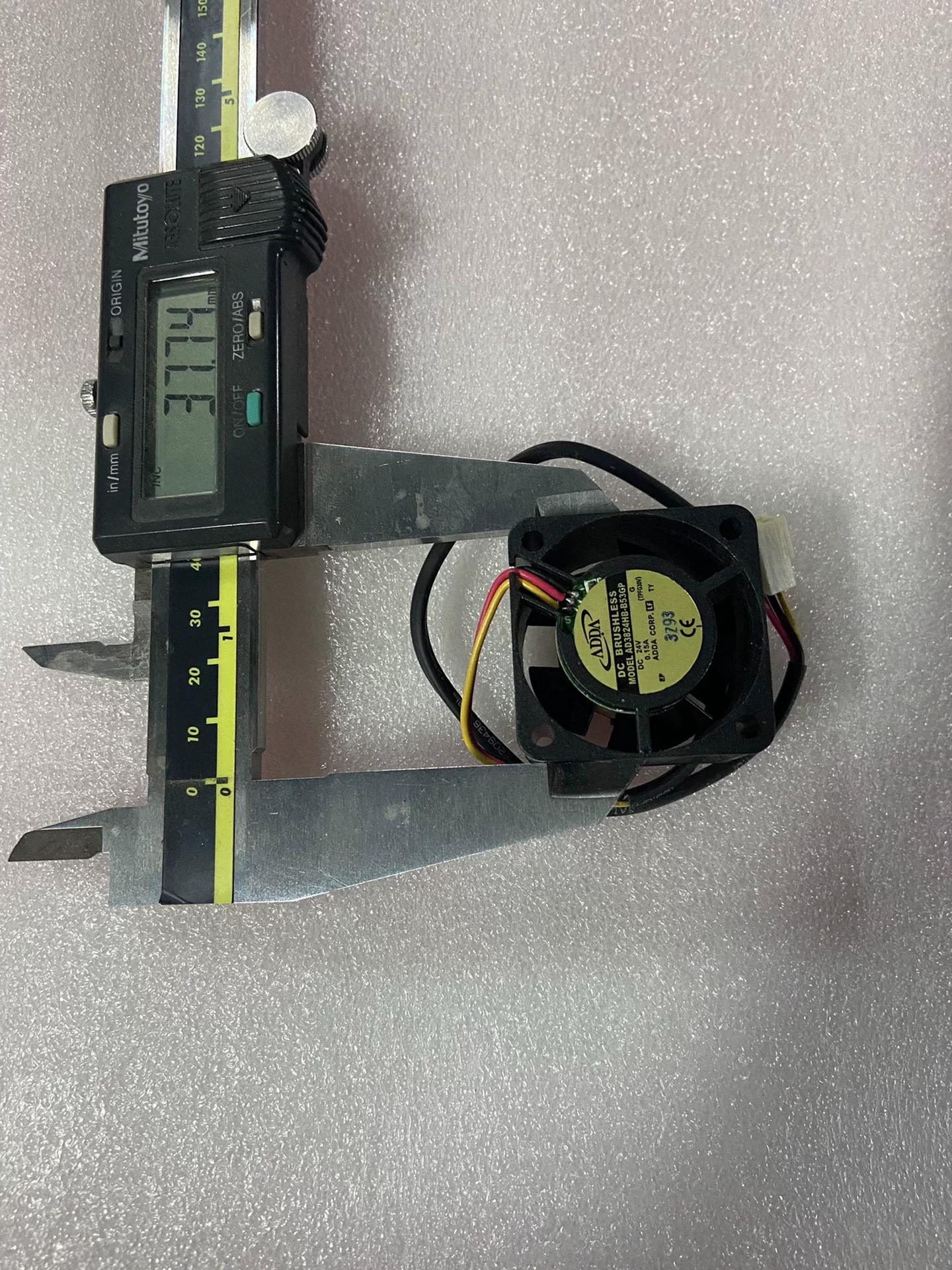

Dimensions: 38 x 38 x 28 mm

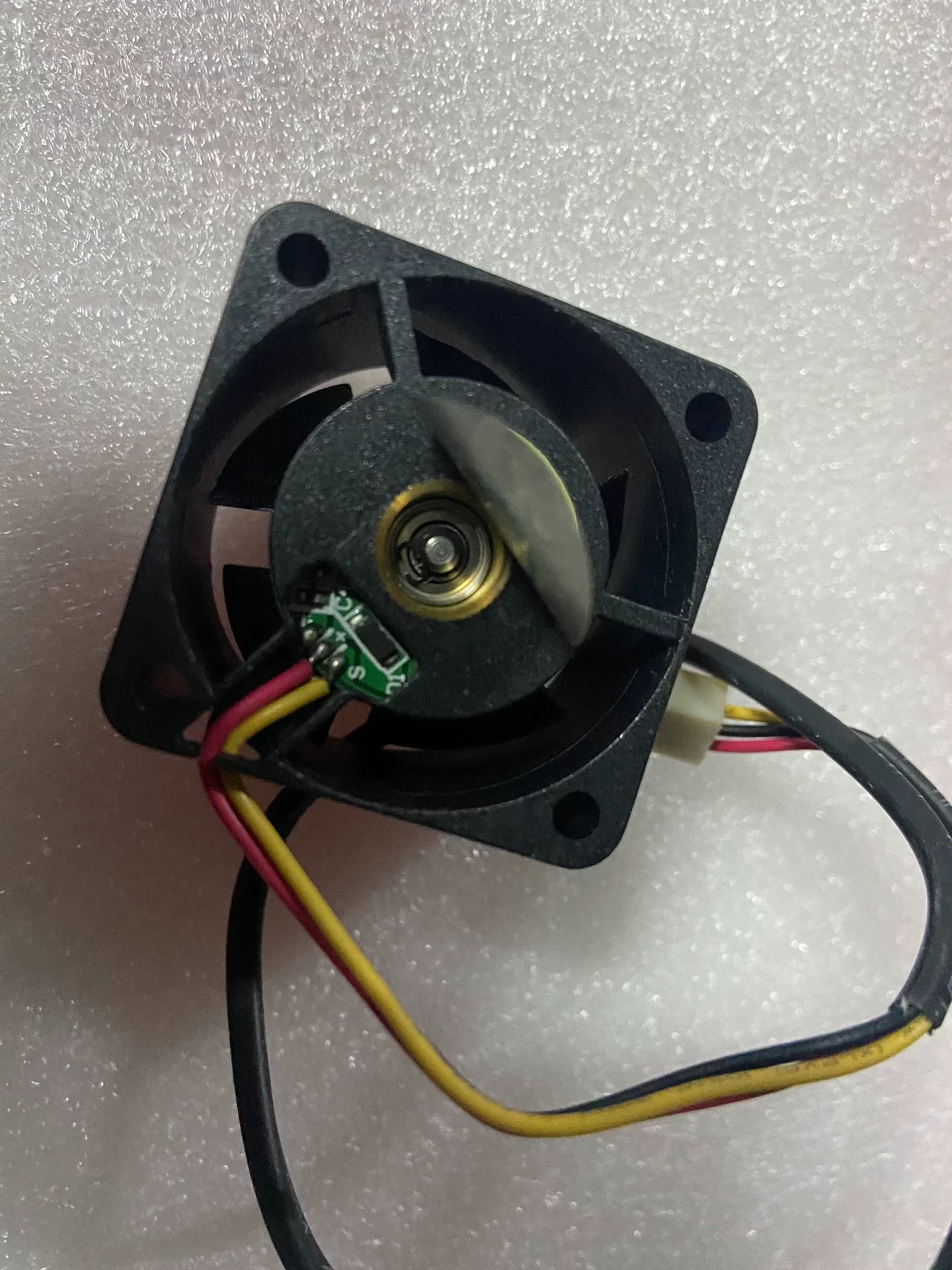

Bearing System: Ball Bearing
Impeller Design: 5 Blades
Speed Classification: High Speed
Frame Material: Glass-filled PBT (UL94V-0)
Impeller Material: Glass-filled PBT (UL94V-0)

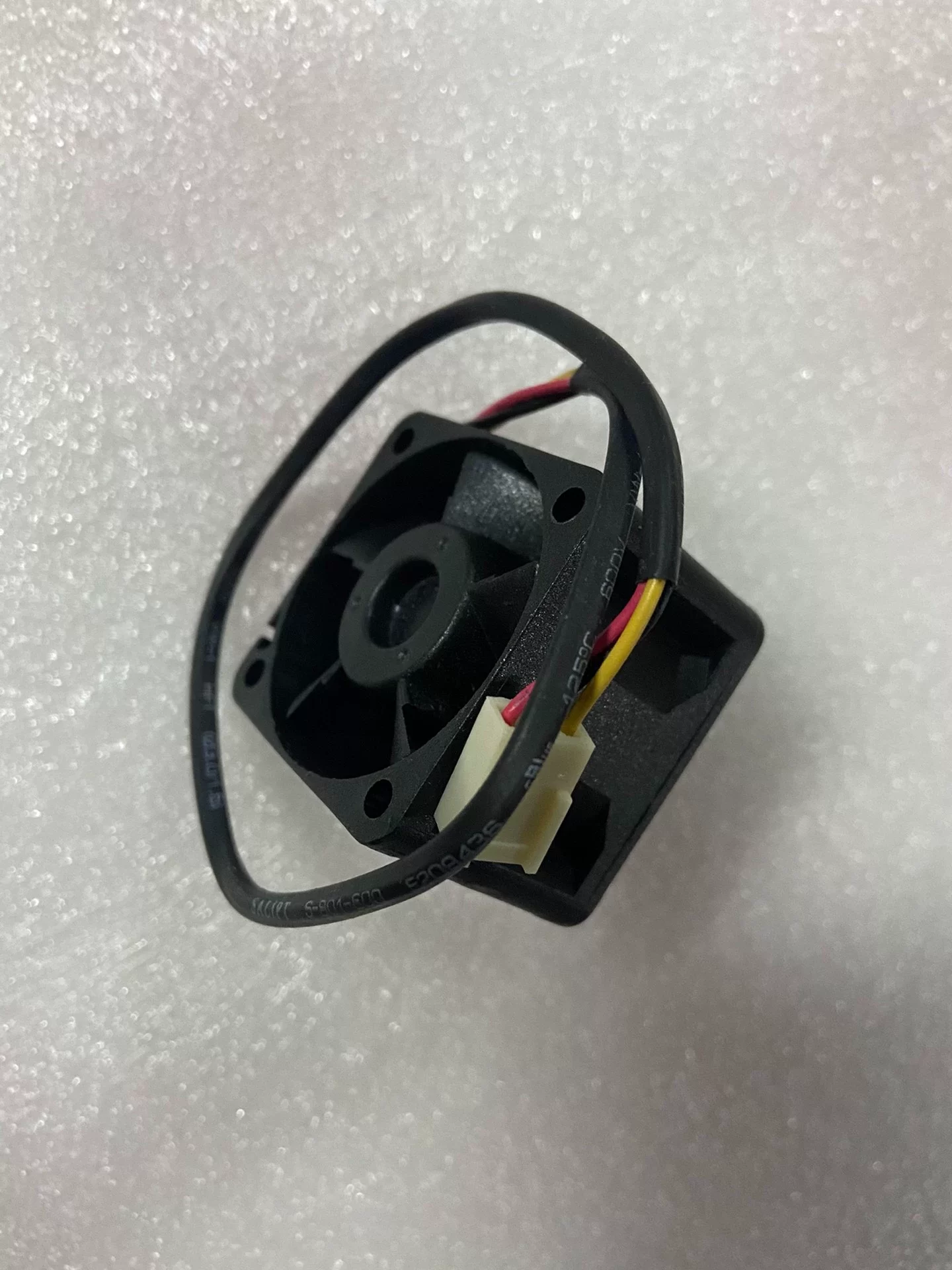

Interface: 3 Wires
Connector Type: 3 Pin Connector
Sensor Output: FG (Frequency Generator / Tachometer)
Series: GP (Great Performance)
Operating Temperature: -10 °C to 75 °C
Storage Temperature: -40 °C to 75 °C
Motor Protection: Polarity and Impedance Protection

AD3824HB-B53GP Applications
Primary applications include integration into variable frequency drives (VFDs), compact industrial power supplies, and telecommunications routing equipment requiring localized thermal management. Deployed within rackmount servers, CNC control cabinets, and automated diagnostic instrumentation, the component provides continuous forced-air convection to maintain optimal semiconductor junction temperatures.
