Description

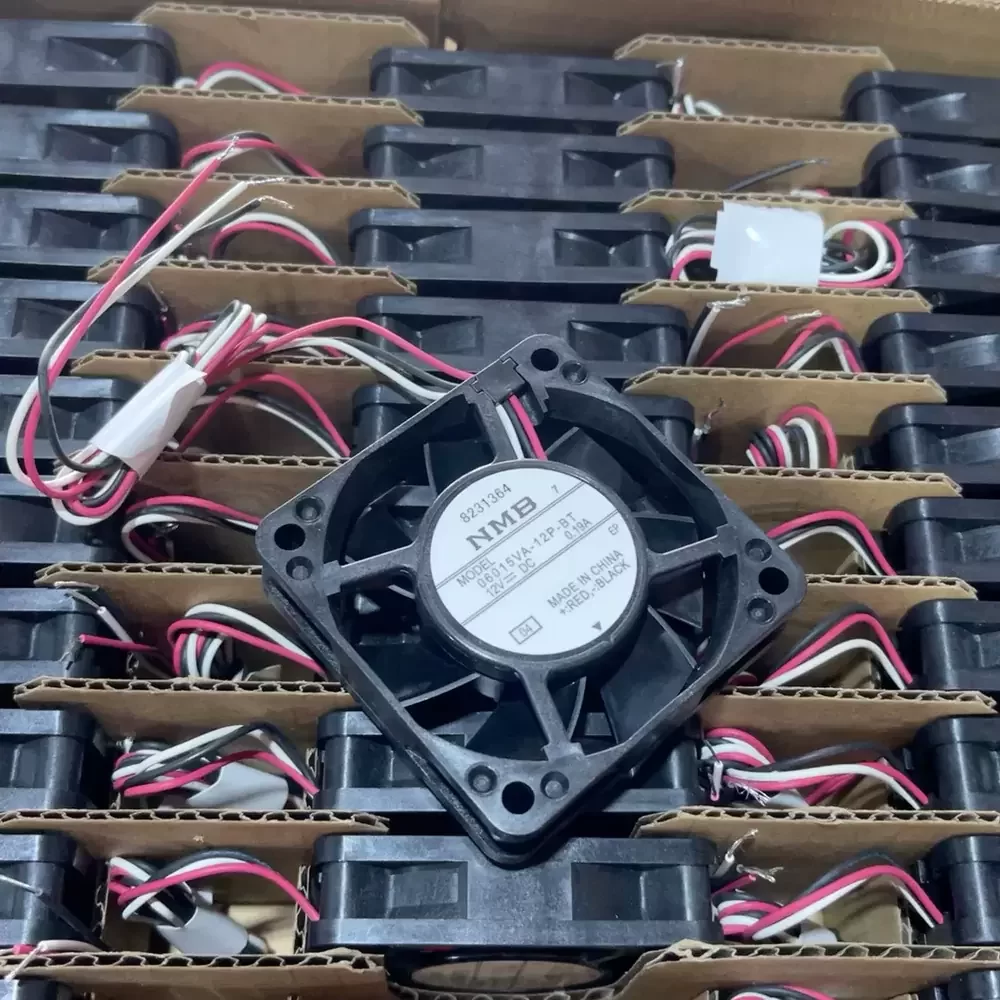

The NMB 2406VA-12P-BT-04 is a precision-engineered DC Axial Fan designed for rigorous industrial thermal management applications. Integrating MinebeaMitsumi’s advanced motor technology with a robust Dual Ball Bearing architecture, this component minimizes frictional coefficients to ensure extended operational service life under continuous duty cycles. The unit features an optimized aerodynamic impeller geometry that delivers consistent static pressure while maintaining structural rigidity, effectively reducing thermal impedance in high-density electronic enclosures. Its compact 15mm profile allows for seamless integration into space-constrained hardware, providing superior airflow efficiency relative to its form factor.
Model Number: 2406VA-12P-BT-04
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.19 A
Power: 2.28 W
Rated Speed: 4800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 19.4 CFM (32.9 m³/h / 0.55 m³/min)
Max. Static Pressure: 4.8 mmH₂O (47.1 Pa / 0.19 inH₂O)
Dimensions: 60 x 60 x 15 mm
Weight: 45 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 34.0 dBA
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Termination: 3-Wire Lead with Connector
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Certifications: UL, CSA, TUV
This cooling solution is specifically calibrated for integration into industrial automation systems, variable frequency drives (VFDs), and server chassis where reliability is paramount. The 2406VA-12P-BT-04 excels in dissipating heat from power supply units and telecommunications equipment, preventing thermal throttling in critical infrastructure. Maintenance engineers and OEMs frequently select the 2406VA-12P-BT-04 for its convenient pre-terminated connector and proven durability in demanding factory environments.
